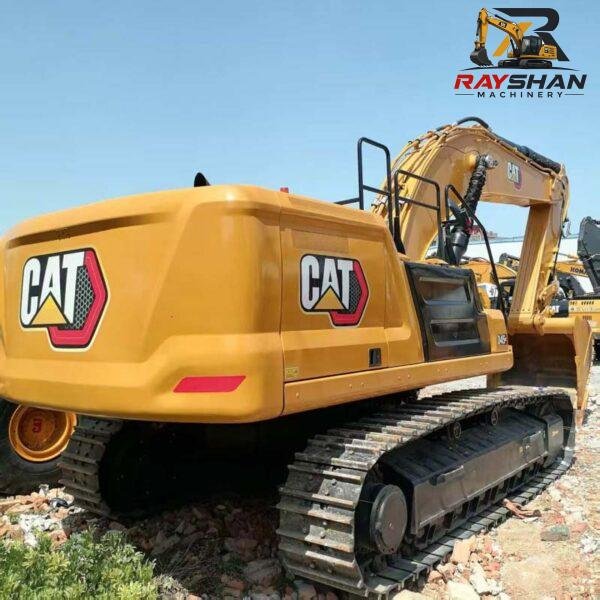

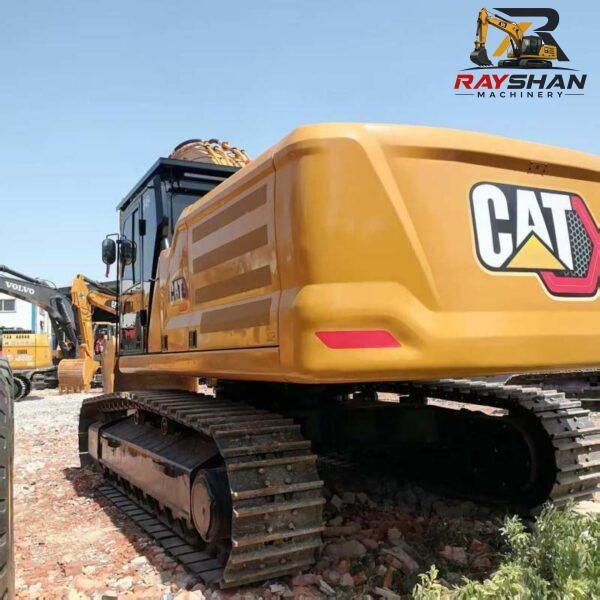

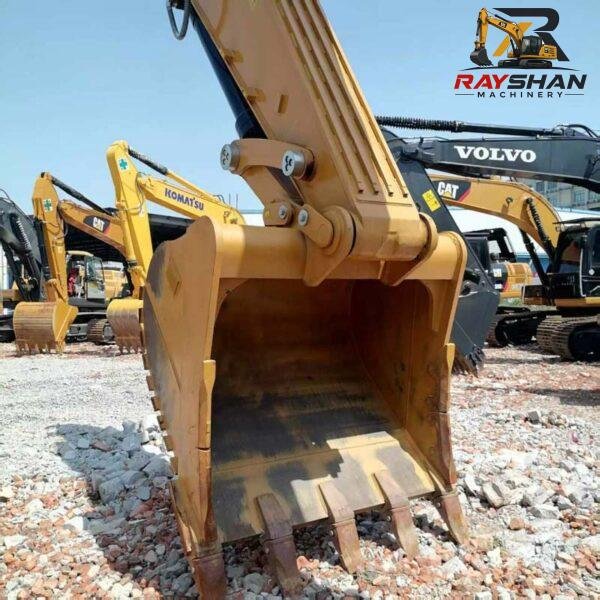

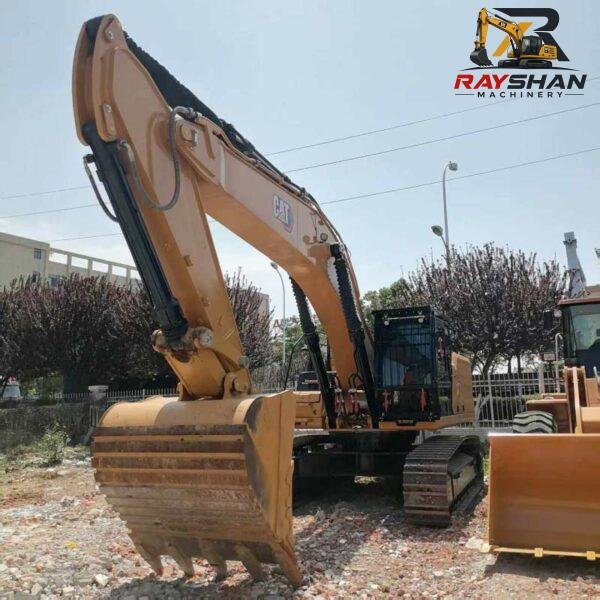

Used CAT 345GC Excavator 45ton for sale High Resale Value
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
*Proven Dependability: With verified low operating hours and a complete service history, this machine has consistently excelled in demanding tasks like mining and road construction. Trusted by contractors globally, it’s a reliable workhorse for any project.
1. Core Power & Powertrain (Engine)
The 2023 Next-Gen model features an advanced electronic common-rail powertrain with integrated Smart Mode configuration, maximizing thermodynamic efficiency and matching hydraulic load demands smoothly to drastically lower fuel overhead.
| Parameter | Metric System | Imperial System | Technical Remarks |
| Engine Model | CAT C9.3B | CAT C9.3B | Next-Gen electronic injection, Turbocharged |
| Net Flywheel Power | 250 kW | 335 hp | Rated @ 2200 rpm (ISO 9249) |
| Gross Power | 251 kW | 337 hp | Total engine power capacity (ISO 14396) |
| Displacement | 9.3 L | 568 cu in | Heavy-duty inline 6-cylinder setup |
2. Weight, Capacities & Logistics Dimensions
Exact logistics boundaries required by global freight forwarders for calculating ocean transit routing (RORO booking, Flat Rack configurations) and regional heavy-haul road clearances.
| Parameter | Metric System | Imperial System | Shipping & Logistics Relevance |
| Operating Weight | 42,200 kg | 93,000 lbs | True 45-ton class heavy-duty asset baseline |
| Transport Length | 11,610 mm | 38.09 ft | Boom lowered standard shipping position |
| Transport Width | 3,340 mm | 10.96 ft | Fixed chassis width with standard 600 mm shoes |
| Transport Height | 3,610 mm | 11.84 ft | Top of cab/boom shipping height clearance line |
| Fuel Tank Capacity | 600 L | 158.5 gal | High-capacity reservoir for prolonged deep shifts |
| Hydraulic Tank Cap. | 185 L | 48.9 gal | Core fluid reservoir volume declaration |
3. Hydraulic & Structural Systems
Features CAT’s advanced electro-hydraulic main control valve system. By completely removing traditional hydraulic pilot lines, it eliminates cabin heat transfer, minimizes internal pressure drop, and accelerates multifunction cycle responses.
| Parameter | Metric System | Imperial System | Field Performance Indicator |
| Max Implement Flow | 558 L/min | 147 gal/min | Advanced electronic main pump system |
| Implement Pressure | 35,000 kPa | 5,076 psi | Normal heavy lifting circuit threshold |
| Swing Speed | 8.4 rpm | 8.4 rpm | High-efficiency cycle rotation speed |
| Swing Torque | 144 kN-m | 106,210 lb-ft | Heavy lateral slewing aggregation force |

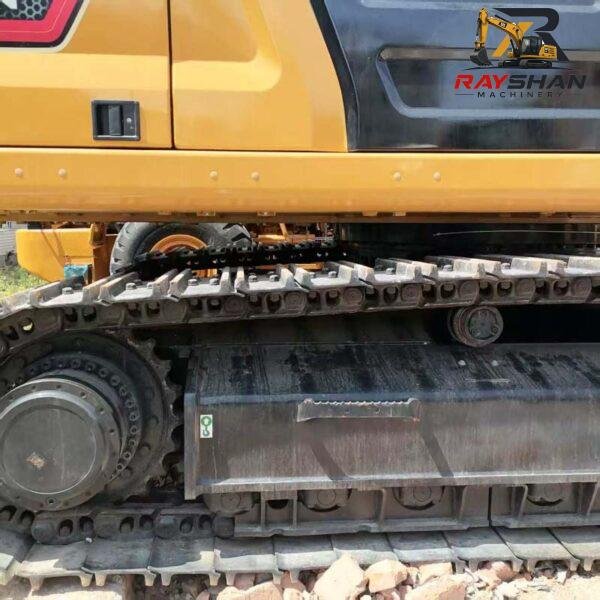

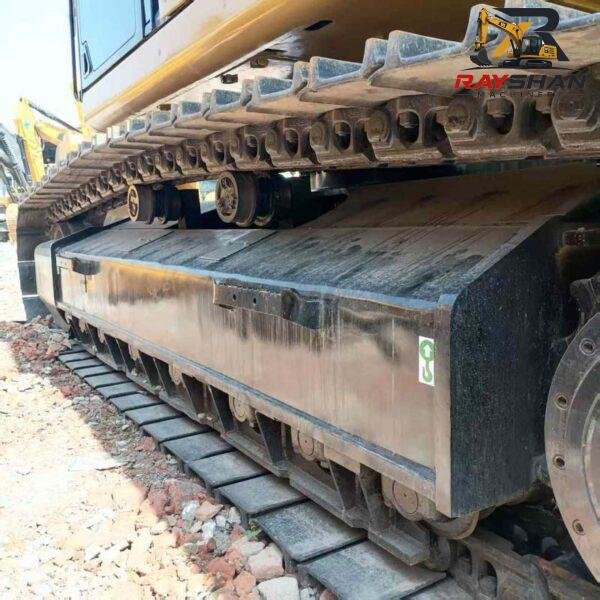

4. Undercarriage & Ground Logistics
Built with a reinforced Next-Gen X-chassis carbody structure and standardized heavy tie-down points, ensuring low ground-bearing pressure and maximum stability during heavy-lift or truck-loading tasks.
| Parameter | Metric System | Imperial System | Underfoot Durability |
| Standard Shoe Width | 600 mm | 24 in | Triple grouser heavy track pads |
| Track Gauge | 2,740 mm | 8.99 ft | Extended footprint for enhanced lateral stability |
| Max Travel Speed | 4.7 km/h | 2.92 mph | Dual-speed auto shift travel drives |
| Max Drawbar Pull | 331 kN | 74,410 lbs | Maximum traction effort for slopes and rough terrain |
5. Working Ranges (Standard 2.9 m / 9’6″ Stick)
Definitive excavation profiles enabling international procurement managers to instantly verify job-site suitability for bulk material handling or high-volume truck loading.
| Parameter | Metric System | Imperial System |
| Max Digging Depth | 7,200 mm | 23.62 ft |
| Max Reach Along Ground | 11,010 mm | 36.12 ft |
| Max Cutting Height | 10,230 mm | 33.56 ft |
| Max Loading Height | 7,040 mm | 23.10 ft |
| Standard Bucket Capacity | 2.10 m³ | 2.75 yd³ |
