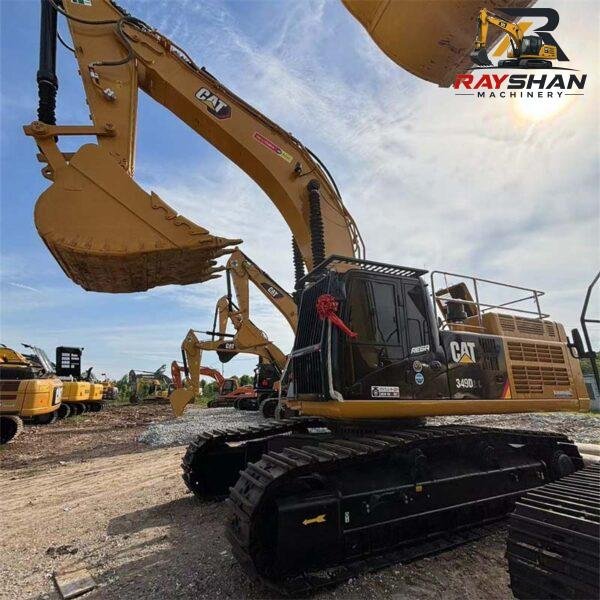

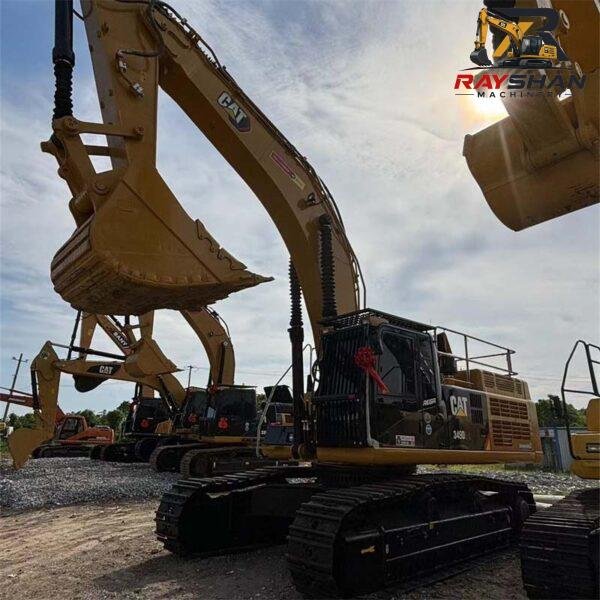

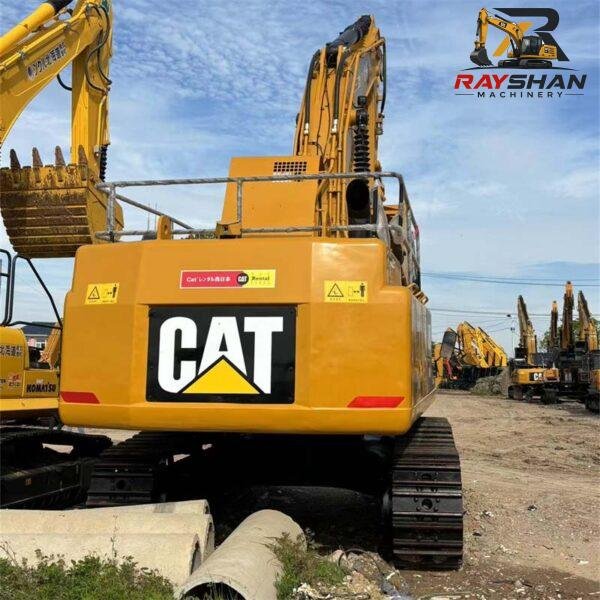

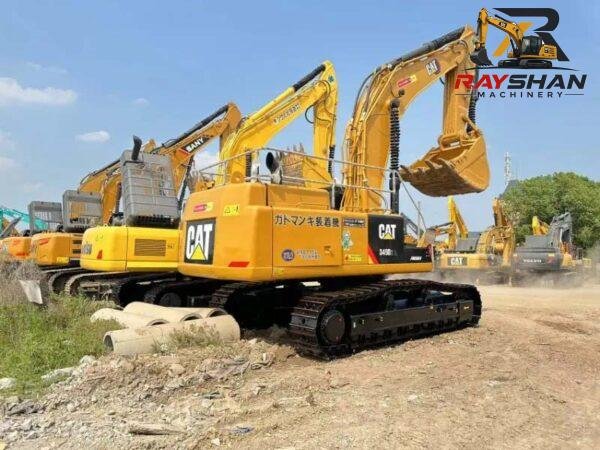

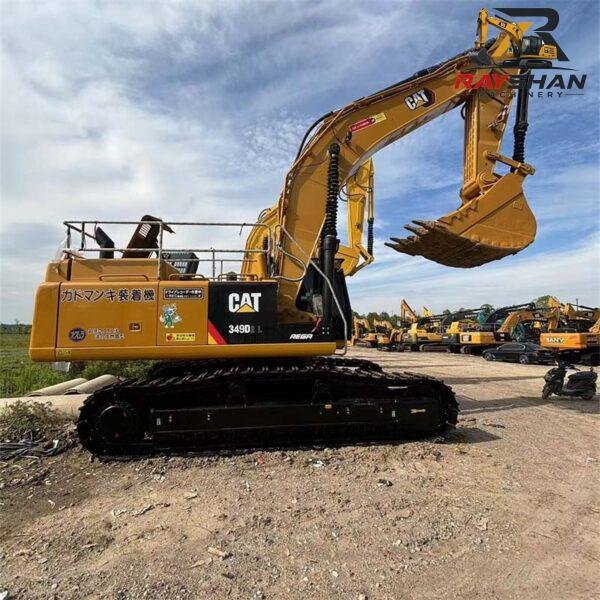

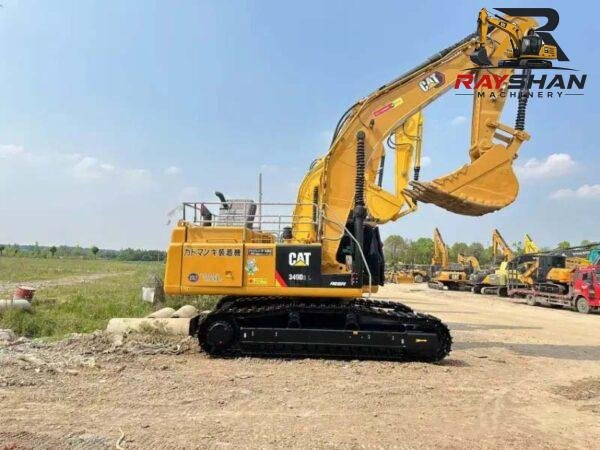

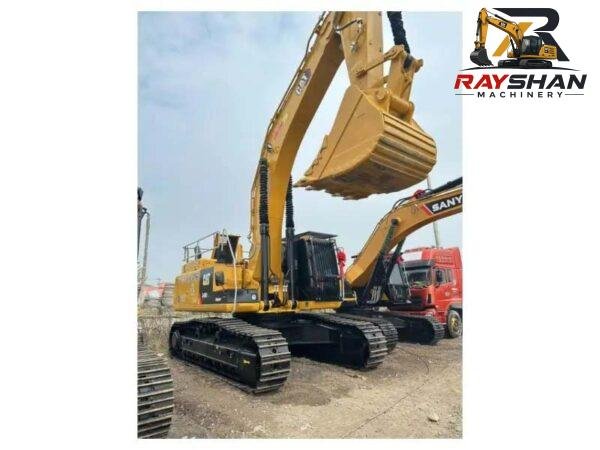

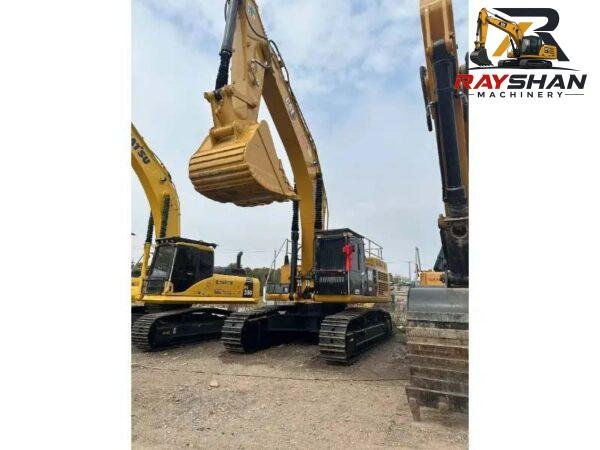

Used CAT 349D2L Excavator 50ton for sale Parts Support
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
*Proven Dependability: With verified low operating hours and a complete service history, this machine has consistently excelled in demanding tasks like mining and road construction. Trusted by contractors globally, it’s a reliable workhorse for any project.

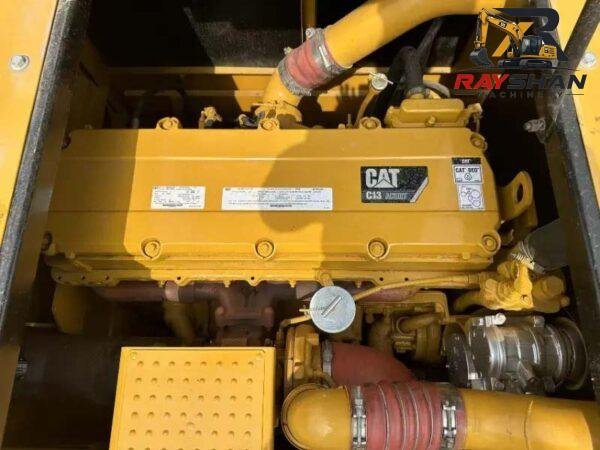

1. Core Power & Powertrain (Engine)
The 2017 model year relies on a heavy-duty mechanical injection layout, specifically configured to maximize fuel tolerance and eliminate fuel-system downtime when operating in global regions utilizing lower-grade, high-sulfur diesel.
| Parameter | Metric System | Imperial System | Technical Remarks |
| Engine Model | CAT C13 ACERT | CAT C13 ACERT | Heavy-duty inline 6-cylinder layout |
| Net Flywheel Power | 289 kW | 388 hp | Rated @ 1800 rpm (ISO 9249) |
| Gross Power | 301 kW | 404 hp | Total engine power capacity (ISO 14396) |
| Displacement | 12.5 L | 763 cu in | Large-displacement engine for severe mining |
2. Weight, Capacities & Logistics Dimensions
Exact shipping and rigging metrics required by international freight forwarders for calculating ocean transit routing (RORO booking, Flat Rack configurations) and regional heavy-haul road clearances.
| Parameter | Metric System | Imperial System | Shipping & Logistics Relevance |
| Operating Weight | 47,800 kg | 105,380 lbs | Standard 50-ton class heavy mining asset footprint |
| Transport Length | 11,920 mm | 39.11 ft | Boom lowered standard shipping position |
| Transport Width | 3,490 mm | 11.45 ft | Extended track gauge width for heavy balance |
| Transport Height | 3,670 mm | 12.04 ft | Top of cab/boom shipping clearance line |
| Fuel Tank Capacity | 705 L | 186.2 gal | High-capacity reservoir for prolonged field shifts |
| Hydraulic Tank Cap. | 243 L | 64.2 gal | Core fluid reservoir volume declaration |

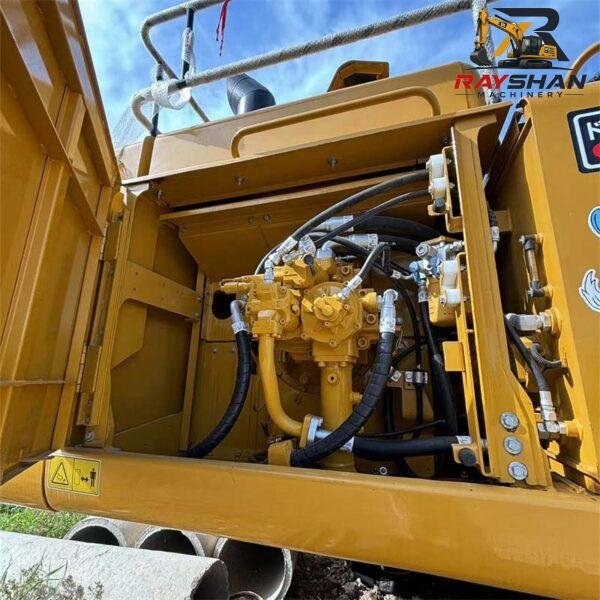

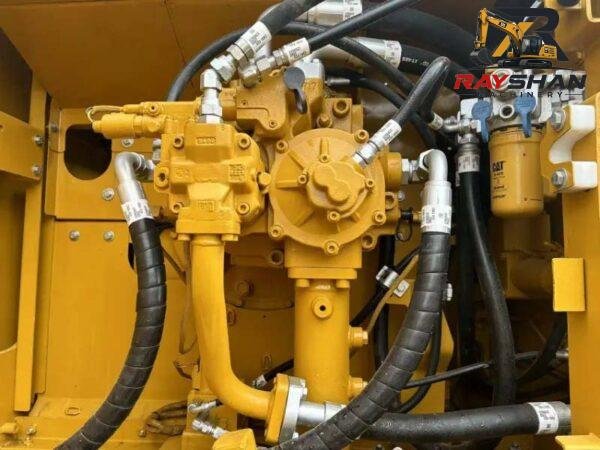

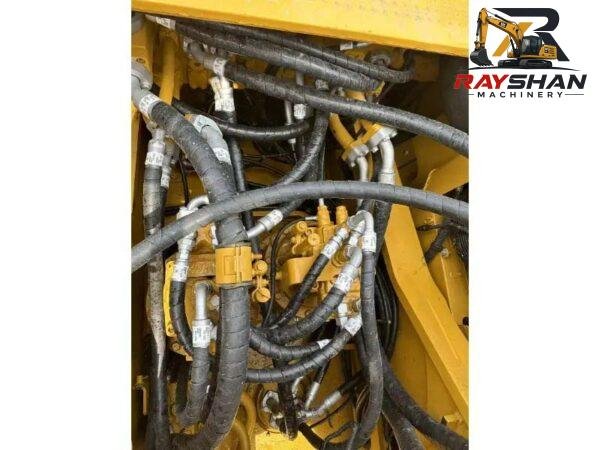

3. Hydraulic & Structural Systems
Features a heavy-duty cross-sensing hydraulic system engineered with automatic flow aggregation, designed to sustain maximum hydraulic horsepower when operating high-impact attachment tools or large-capacity rock buckets.
| Parameter | Metric System | Imperial System | Field Performance Indicator |
| Max Implement Flow | 2 x 360 L/min | 2 x 95.1 gal/min | Dual variable-displacement piston pumps |
| Implement Pressure | 35,000 kPa | 5,076 psi | Heavy lift/digging circuit threshold |
| Swing Speed | 8.5 rpm | 8.5 rpm | High-torque cycle rotation speed |
| Bucket Breakout Force | 244 kN | 54,850 lbs | High-penetration heavy digging linkage output |

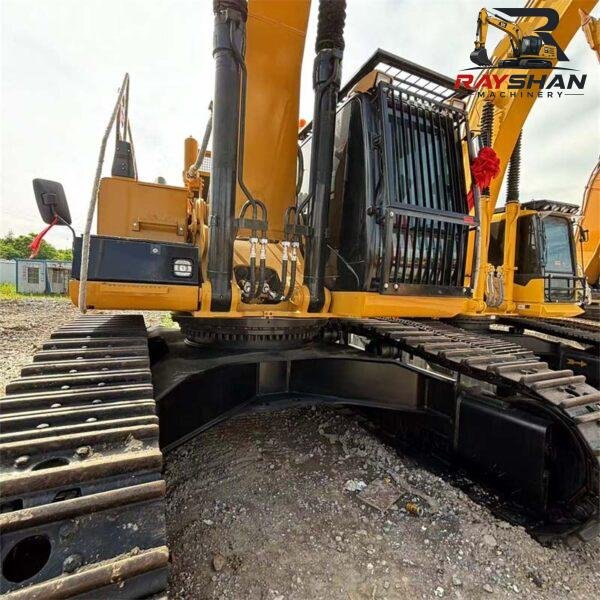

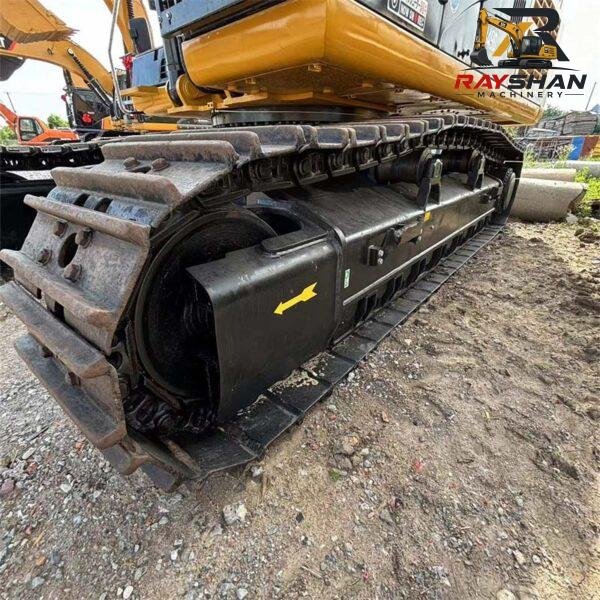

4. Undercarriage & Ground Logistics
Built with a premium heavy-duty, robotically welded X-shaped carbody. The “L” designation specifies the long undercarriage frame, providing an extended footprint for optimal stability during heavy-lift or quarry operations.
| Parameter | Metric System | Imperial System | Underfoot Durability |
| Standard Shoe Width | 600 mm | 24 in | Triple grouser heavy track pads |
| Track Gauge | 2,890 mm | 9.48 ft | Extended footprint for enhanced lateral stability |
| Max Travel Speed | 4.5 km/h | 2.80 mph | Dual-speed auto shift travel drives |
| Max Drawbar Pull | 338 kN | 75,985 lbs | Maximum traction effort for slopes and rocky terrain |
5. Working Ranges (Standard 3.4 m / 11’2″ Stick)
Definitive excavation profiles enabling international procurement managers to instantly verify job-site suitability for deep mining or mass truck loading.
| Parameter | Metric System | Imperial System |
| Max Digging Depth | 7,650 mm | 25.10 ft |
| Max Reach Along Ground | 11,640 mm | 38.19 ft |
| Max Cutting Height | 10,650 mm | 34.94 ft |
| Max Loading Height | 7,370 mm | 24.18 ft |
| Standard Bucket Capacity | 2.50 m³ | 3.27 yd³ |
