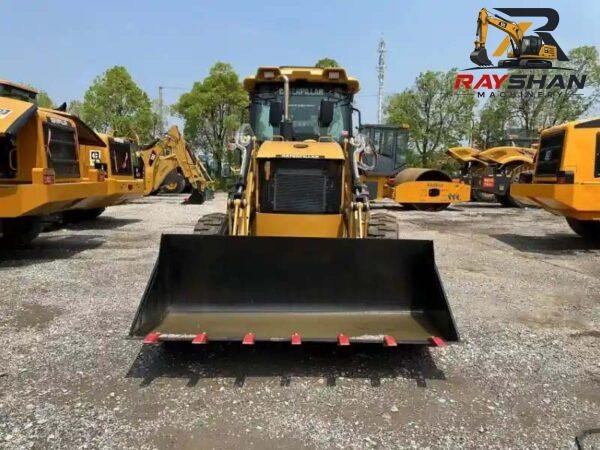

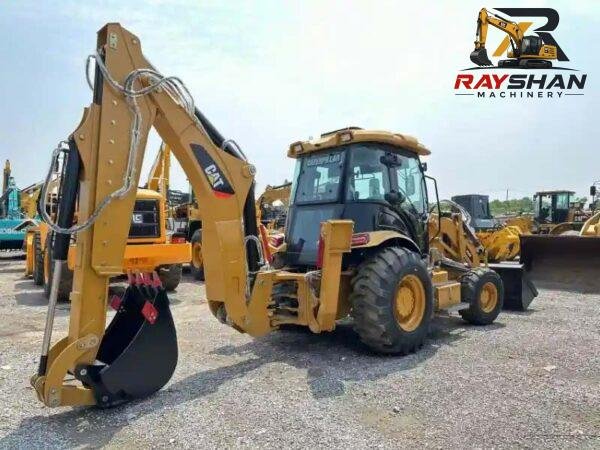

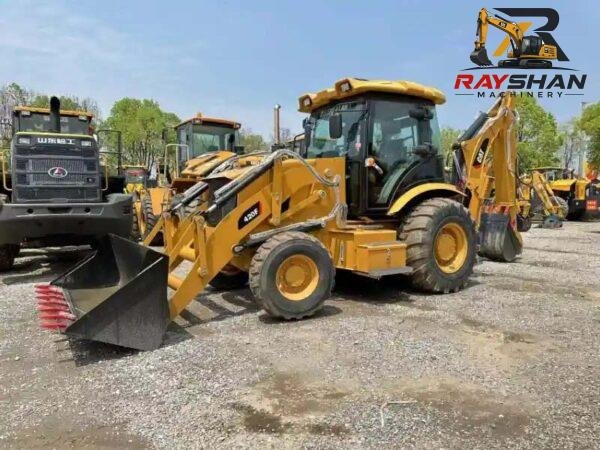

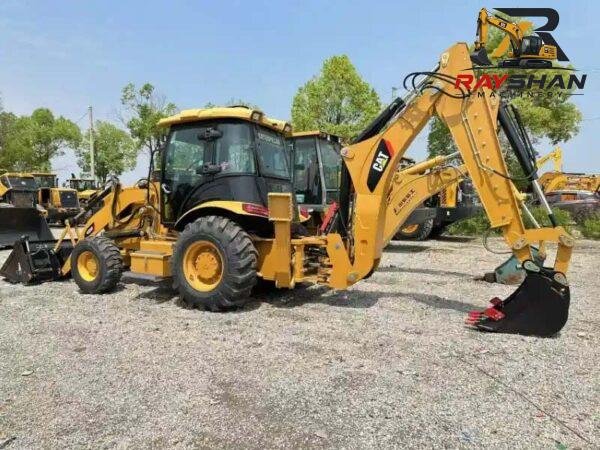

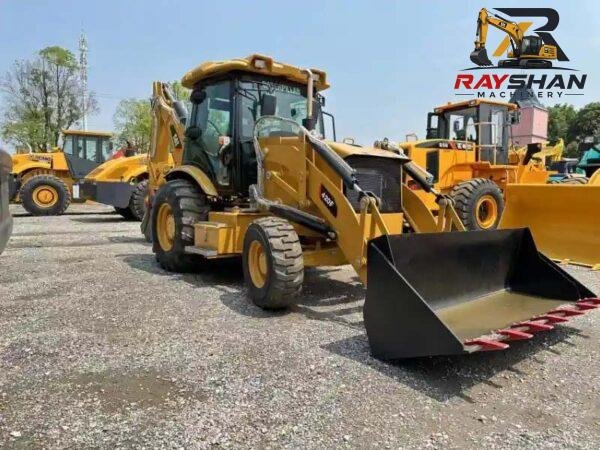

Used CAT 420F Excavator 10ton for sale Dig Forces
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
*Proven Dependability: With verified low operating hours and a complete service history, this machine has consistently excelled in demanding tasks like mining and road construction. Trusted by contractors globally, it’s a reliable workhorse for any project.
1. Core Power & Powertrain (Engine)
The 2014 model features CAT’s electronically controlled ACERT powertrain, optimizing combustion efficiency and ensuring reliable operations when utilizing varying fuel qualities in international utility and municipal trade markets.
| Parameter | Metric System | Imperial System | Technical Remarks |
| Engine Model | CAT C4.4 ACERT | CAT C4.4 ACERT | Electronic common rail, Turbocharged |
| Net Flywheel Power | 69 kW | 93 hp | Rated @ 2200 rpm (ISO 9249) |
| Gross Power | 76 kW | 102 hp | Total thermodynamic capacity (ISO 14396) |
| Displacement | 4.4 L | 268 cu in | Inline 4-cylinder heavy-duty design |
2. Weight, Capacities & Logistics Dimensions
Exact shipping and rigging boundaries required by international freight forwarders to calculate ocean transit routing (Standard High-Cube container breakdown, RORO booking, or Flat Rack) and standard commercial road clearances.
| Parameter | Metric System | Imperial System | Shipping & Logistics Relevance |
| Operating Weight (Max) | 11,000 kg | 24,251 lbs | Maximum configuration with counterweights & 4WD |
| Operating Weight (Base) | 7,670 kg | 16,909 lbs | Standard baseline operating specification |
| Transport Length | 7,330 mm | 24.05 ft | Complete tractor unit in tucked shipping position |
| Transport Width | 2,320 mm | 7.61 ft | Standard fixed footprint over rear tires |
| Transport Height | 3,580 mm | 11.75 ft | Top of backhoe boom shipping clearance line |
| Fuel Tank Capacity | 160 L | 42.0 gal | Optimal fuel reservoir for full-shift autonomy |
3. Backhoe Performance Specifications
Engineered with an aggressive curved-boom design that yields significant structural clearance when digging over obstacles, paired with high-pressure load-sensing hydraulics.
| Parameter | Metric System | Imperial System | Field Performance Indicator |
| Digging Depth (Standard) | 4,360 mm | 14.30 ft | Baseline trenching capability |
| Digging Depth (Extended) | 5,440 mm | 17.85 ft | Configured with optional Extendahoe stick |
| Stick Digging Force | 43 kN | 9,662 lbs | SAE standard rating |
| Bucket Digging Force | 62 kN | 13,935 lbs | High-penetration bucket linkage output |
| System Relief Pressure | 25,000 kPa | 3,626 psi | Main hydraulic circuit threshold |
4. Loader Performance Specifications
Features a heavy-duty front linkage layout designed to deliver high breakout forces and exceptional dual-tilt bucket leveling profiles during rapid stock-piling or truck-loading.
| Parameter | Metric System | Imperial System | Field Performance Indicator |
| Loader Bucket Capacity | 1.00 m³ | 1.31 yd³ | Standard General Purpose (GP) front bucket |
| Loader Breakout Force | 49 kN | 11,015 lbs | High aggregation force at ground level |
| Lift Capacity (Max Height) | 3,060 kg | 6,746 lbs | Maximum payload handling at full extension |
| Dump Clearance (Max Angle) | 2,740 mm | 8.99 ft | Efficient loading clearance for standard tipper trucks |
5. Drivetrain & Travel Logistics
Equipped with a standard Power Shuttle transmission providing four forward and four reverse fully synchronized gears, paired with optional heavy-duty four-wheel drive (4WD).
| Parameter | Metric System | Imperial System | Underfoot Mobility |
| Max Travel Speed (Forward) | 40.0 km/h | 25.0 mph | High-speed roading capability between job sites |
| Transmission Type | Power Shuttle | Power Shuttle | 4 Forward / 4 Reverse synchronized shifts |
| Steering Configuration | Front-Wheel | Front-Wheel | Hydrostatic power steering system |
| Turning Radius (2WD) | 8,160 mm | 26.77 ft | Outside widest front tire |
