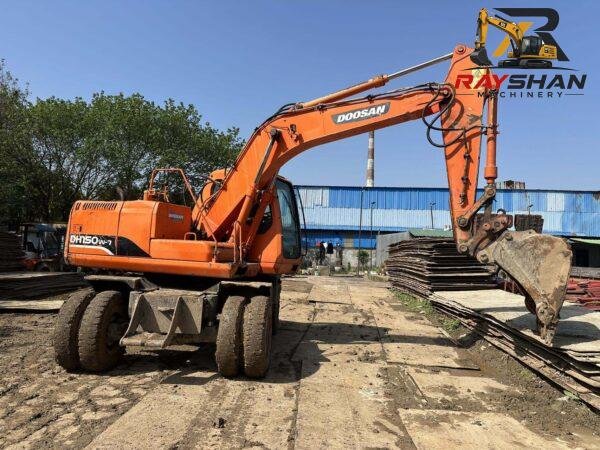

Used DOOSAN 150 Excavator 15ton for sale Balanced Dimension
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
*Proven Dependability: With verified low operating hours and a complete service history, this machine has consistently excelled in demanding tasks like mining and road construction. Trusted by contractors globally, it’s a reliable workhorse for any project.
1. Core Power & Powertrain (Engine)
The DX150 is powered by an industrial-grade, turbocharged engine designed to maximize fuel efficiency while maintaining high torque for consistent productivity in various load conditions.
| Parameter | Metric System | Imperial System | Technical Remarks |
| Engine Model | Doosan D34 | Doosan D34 | 4-cylinder, Turbocharged |
| Net Flywheel Power | 85 kW | 114 hp | Rated @ 2,000 rpm |
| Displacement | 3.4 L | 207 cu in | Optimized for mid-size fuel economy |
| Emission Standard | Tier 4 Final / Stage V | Tier 4 Final / Stage V | Global export compliance |
2. Weight, Capacities & Logistics Dimensions
These metrics are essential for logistics planning. The compact transport footprint of the DX150 allows for cost-effective mobilization, often requiring only standard flatbed transport equipment.
| Parameter | Metric System | Imperial System | Shipping & Logistics Relevance |
| Operating Weight | 14,800 kg | 32,630 lbs | Standard configuration with bucket |
| Transport Length | 7,720 mm | 25.33 ft | Highly compact for easy transport |
| Transport Width | 2,590 mm | 8.50 ft | Optimized for standard road hauling |
| Transport Height | 2,850 mm | 9.35 ft | Clearance-compliant for standard haulers |
| Fuel Tank Capacity | 250 L | 66.0 gal | Balanced for long work-day endurance |
3. Hydraulic & Digging Performance
Doosan’s Electronic Power Optimizing System (EPOS) ensures that hydraulic pressure is dynamically allocated, providing the precise control needed for finish work and the power needed for fast loading cycles.
| Parameter | Metric System | Imperial System | Field Performance Indicator |
| Max System Flow | 2 x 127 L/min | 2 x 33.5 gal/min | Dual variable displacement pumps |
| Operating Pressure | 35,000 kPa | 5,076 psi | High relief for responsive digging |
| Swing Speed | 12.0 rpm | 12.0 rpm | Fast cycle times for utility projects |
| Bucket Breakout Force | 105 kN | 23,600 lbf | Robust penetration for 15-ton class |
| Stick Digging Force | 70 kN | 15,730 lbf | Strong power for deep utility trenching |
4. Undercarriage & Mobility
The undercarriage is engineered for stability in diverse terrains, providing the necessary traction to navigate muddy trench beds while remaining gentle enough for sensitive surface operation.
| Parameter | Metric System | Imperial System | Underfoot Mobility |
| Standard Shoe Width | 500 mm | 20 in | Triple grouser heavy-duty tracks |
| Max Travel Speed | 5.5 km/h | 3.4 mph | Dual-speed auto-shift capability |
| Max Traction Force | 150 kN | 33,720 lbf | Excellent incline performance |
| Ground Pressure | 44.0 kPa | 6.38 psi | Low ground impact for urban sites |
5. Working Ranges
Defining the essential operational envelope for municipal utility installation, foundation preparation, and medium-scale infrastructure work.
| Parameter | Metric System | Imperial System |
| Max Digging Depth | 5,640 mm | 18.50 ft |
| Max Reach (Ground) | 8,390 mm | 27.53 ft |
| Max Cutting Height | 8,660 mm | 28.41 ft |
| Max Loading Height | 6,370 mm | 20.90 ft |
