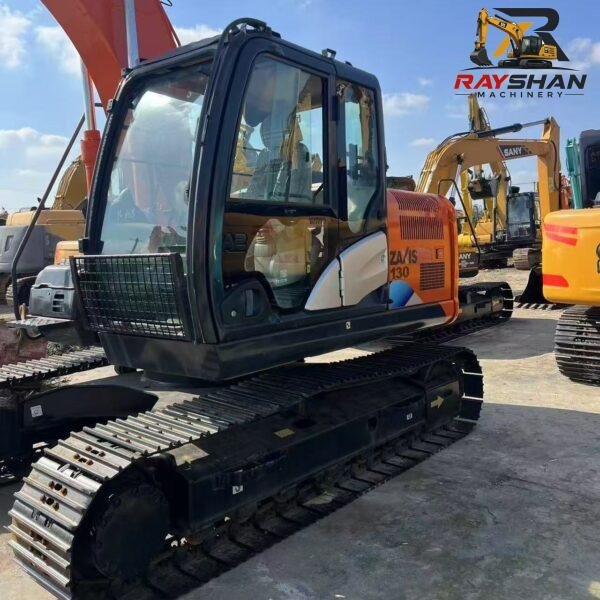

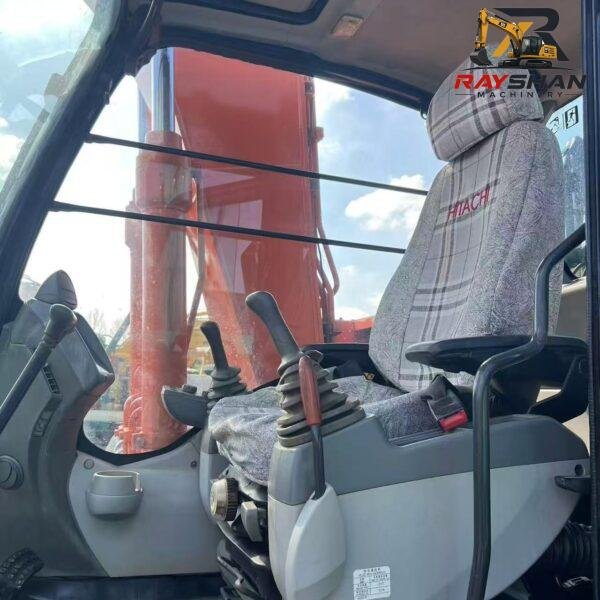

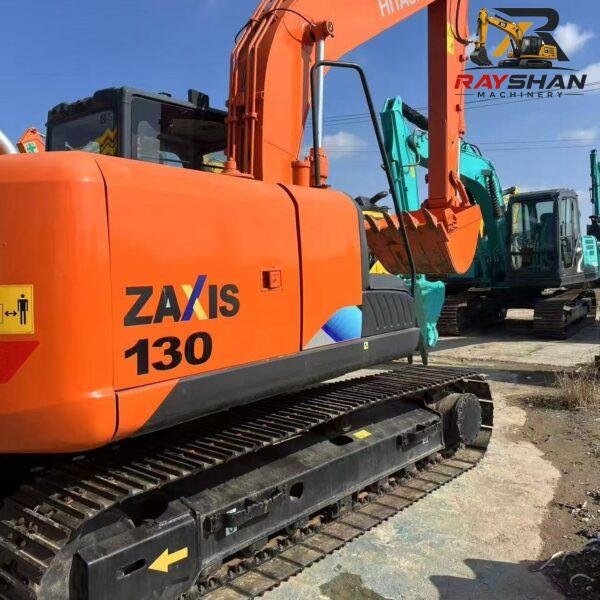

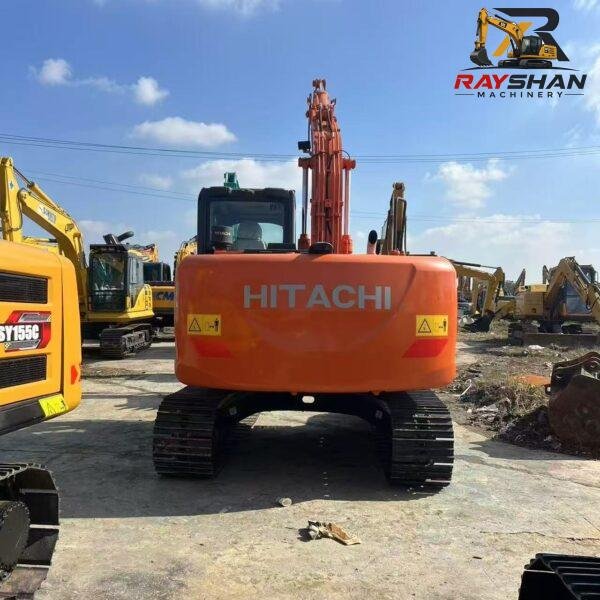

Used HITACHI ZX130 Excavator 13ton for sale Durable & Reliable
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.

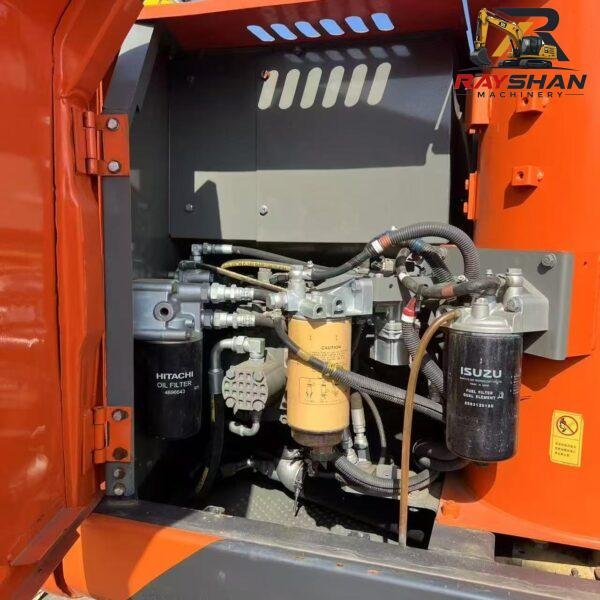

1. Core Power & Powertrain (Engine)
The ZX130-5 is powered by the proven Isuzu engine, renowned for its fuel-efficient torque delivery and its ability to maintain consistent performance under varied operational workloads.
| Parameter | Metric System | Imperial System | Technical Remarks |
| Engine Model | Isuzu AI-4JJ1X | Isuzu AI-4JJ1X | 4-cylinder, Turbo, Intercooled |
| Net Flywheel Power | 66 kW | 89 hp | Rated @ 2,000 rpm |
| Displacement | 3.0 L | 183 cu in | Balanced for torque-dense urban work |
| Emission Standard | Tier 3 / Stage IIIA | Tier 3 / Stage IIIA | Optimized for global fuel compatibility |
2. Weight, Capacities & Logistics Dimensions
Engineered to maximize reach and breakout force while keeping a transportable footprint, the ZX130-5 is designed for rapid deployment between urban infrastructure projects.
| Parameter | Metric System | Imperial System | Shipping & Logistics Relevance |
| Operating Weight | 12,800 kg | 28,220 lbs | Sturdy, agile base for city utility work |
| Transport Length | 7,650 mm | 25.10 ft | Optimized for standard flatbed logistics |
| Transport Width | 2,490 mm | 8.17 ft | Transportable without oversized permits |
| Transport Height | 2,780 mm | 9.12 ft | Low profile for bridge/tunnel clearance |
| Fuel Tank Capacity | 250 L | 66.0 gal | High autonomy for continuous site shifts |
3. Hydraulic & Digging Performance
Equipped with the HIOS III hydraulic system, the ZX130-5 provides the precision required for delicate utility trenching and the speed necessary for high-volume truck loading.
| Parameter | Metric System | Imperial System | Field Performance Indicator |
| Max System Flow | 2 x 117 L/min | 2 x 30.9 gal/min | High-output variable displacement pumps |
| Operating Pressure | 34,300 kPa | 4,975 psi | Exceptional relief for dense soil/rock |
| Swing Speed | 13.7 rpm | 13.7 rpm | Rapid cycle time for bulk material handling |
| Bucket Breakout Force | 99 kN | 22,260 lbf | Strong force for a 13-ton class machine |
| Stick Digging Force | 68 kN | 15,285 lbf | Precise power for utility pipe-laying |
4. Undercarriage & Mobility
Designed for multi-terrain versatility, the undercarriage offers the high traction required for site preparation while maintaining stability on uneven, debris-strewn urban job sites.
| Parameter | Metric System | Imperial System | Underfoot Mobility |
| Standard Shoe Width | 600 mm | 24 in | Triple grouser heavy-duty track pads |
| Max Travel Speed | 5.5 km/h | 3.4 mph | Dual-speed auto-shift for mobilization |
| Max Traction Force | 137 kN | 30,800 lbf | Massive torque for climbing gradients |
| Ground Pressure | 41.0 kPa | 5.95 psi | Superior flotation for soft-ground work |
5. Working Ranges
Defining the essential operational envelope for municipal utility construction, residential landscaping, and civil infrastructure projects.
| Parameter | Metric System | Imperial System |
| Max Digging Depth | 5,520 mm | 18.11 ft |
| Max Reach (Ground) | 8,360 mm | 27.43 ft |
| Max Cutting Height | 8,970 mm | 29.43 ft |
| Max Loading Height | 6,480 mm | 21.26 ft |
