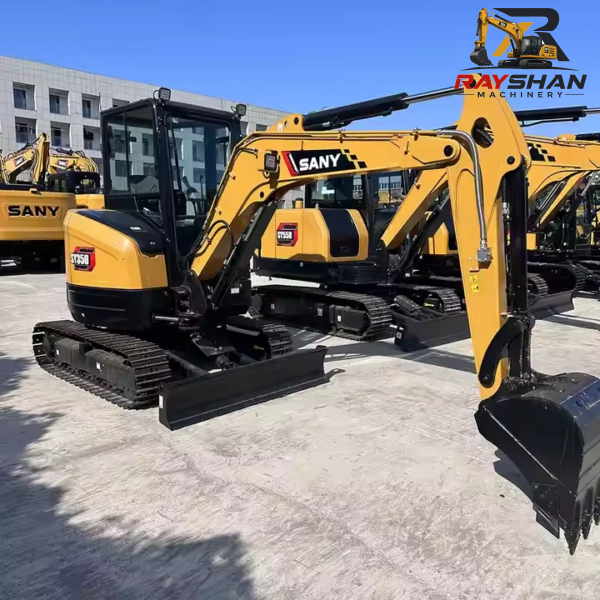

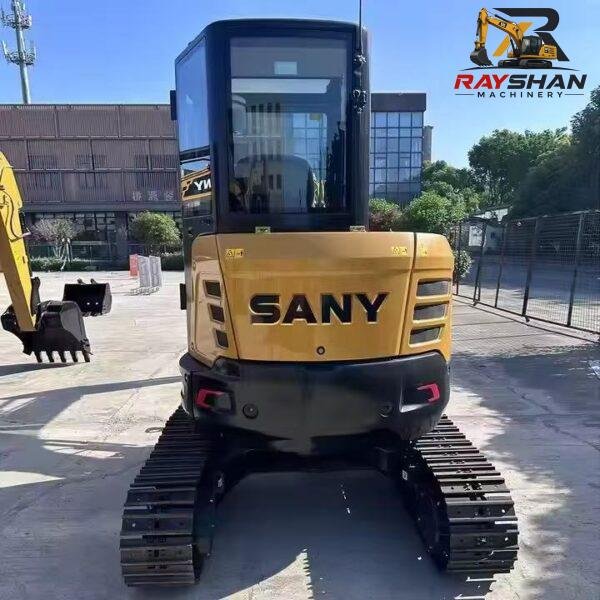

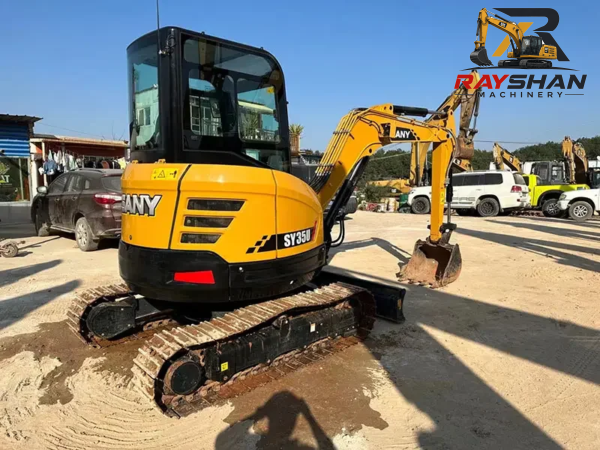

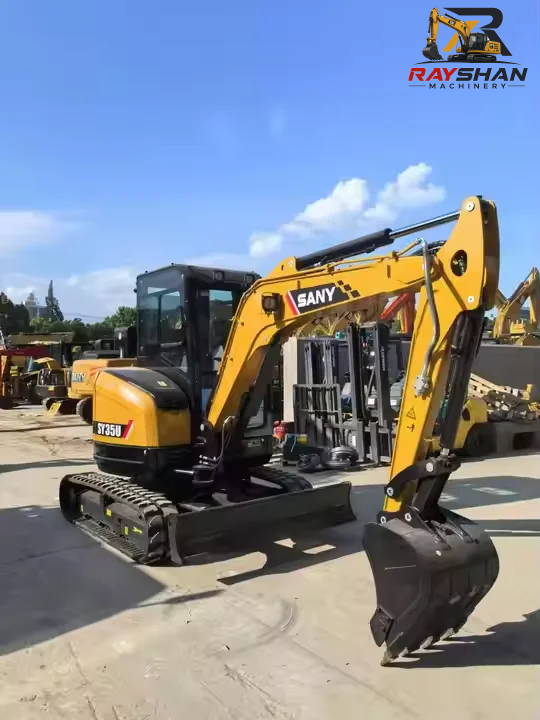

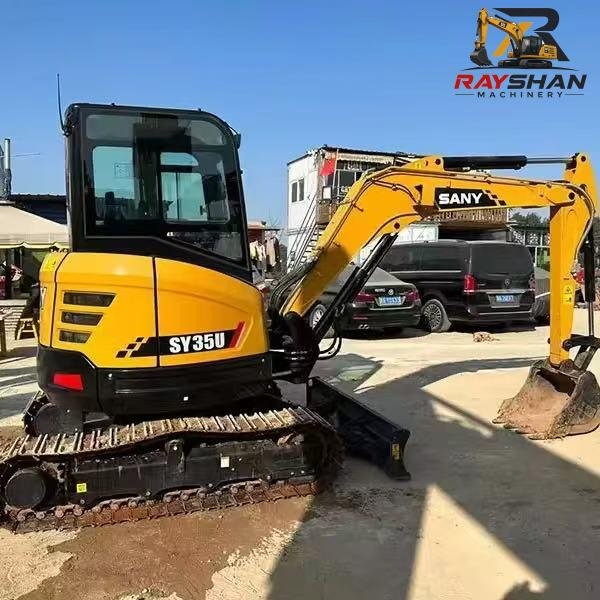

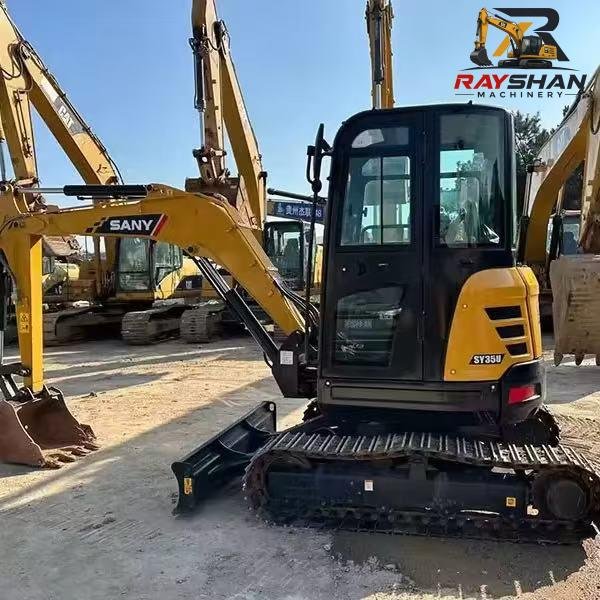

Used SANY SY35U Excavator 3.5ton for sale pre-installed breaker piping
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
*Proven Dependability: With verified low operating hours and a complete service history, this machine has consistently excelled in demanding tasks like mining and road construction. Trusted by contractors globally, it’s a reliable workhorse for any project.
1. Core Power & Powertrain (Engine)
The SY35U is equipped with a high-performance engine tailored for the demands of compact machinery, balancing reliable power output with significant fuel efficiency.
| Parameter | Metric System | Imperial System | Technical Remarks |
| Engine Model | Yanmar 3TNV88-PSY | Yanmar 3TNV88-PSY | 3-cylinder, Water-cooled |
| Net Flywheel Power | 18.2 kW | 24.4 hp | Rated @ 2,200 rpm |
| Displacement | 1.64 L | 100 cu in | High torque-to-weight ratio |
| Emissions | Tier 4 Final | Tier 4 Final | Standard for international export |
2. Weight, Capacities & Logistics Dimensions
These metrics are vital for transportation and site accessibility. The SY35U’s compact design ensures it can be moved between job sites on a light-duty trailer without special permits.
| Parameter | Metric System | Imperial System | Shipping & Logistics Relevance |
| Operating Weight | 3,855 kg | 8,499 lbs | Standard with rubber tracks |
| Transport Length | 4,835 mm | 15.86 ft | Compact for tight maneuverability |
| Transport Width | 1,720 mm | 5.64 ft | Ideal for narrow residential access |
| Transport Height | 2,510 mm | 8.23 ft | Low clearance for transport trailers |
| Fuel Tank Capacity | 40 L | 10.6 gal | Optimized for daily work cycles |
3. Hydraulic & Digging Performance
Featuring a precision-engineered load-sensing hydraulic system, the SY35U offers the high breakout force required for trenching, while maintaining the delicate control needed for backfilling and fine grading.
| Parameter | Metric System | Imperial System | Field Performance Indicator |
| Max System Flow | 88 L/min | 23.2 gal/min | Dual variable displacement pumps |
| Operating Pressure | 24,500 kPa | 3,553 psi | High power for tough soil penetration |
| Swing Speed | 9.0 rpm | 9.0 rpm | Fast cycle times for loading tasks |
| Bucket Breakout Force | 30.2 kN | 6,790 lbf | Robust force for a compact machine |
| Stick Digging Force | 18.2 kN | 4,090 lbf | Efficient for utility/trenching work |
4. Undercarriage & Mobility
As a Zero-Tail Swing (ZTS) machine, the SY35U’s upper structure rotates within the width of its tracks, significantly enhancing safety when working near walls, trees, or active roadways.
| Parameter | Metric System | Imperial System | Underfoot Mobility |
| Standard Shoe Width | 300 mm | 12 in | Rubber tracks (standard) |
| Max Travel Speed | 4.0 km/h | 2.5 mph | Dual-speed travel control |
| Max Traction Force | 32.0 kN | 7,190 lbf | Sufficient for steep site gradients |
| Ground Pressure | 30.5 kPa | 4.42 psi | Low impact for finished surfaces |
5. Working Ranges
Defining the operational limits for trenching and material handling projects.
| Parameter | Metric System | Imperial System |
| Max Digging Depth | 3,105 mm | 10.19 ft |
| Max Reach (Ground) | 5,465 mm | 17.93 ft |
| Max Cutting Height | 4,810 mm | 15.78 ft |
| Max Loading Height | 3,425 mm | 11.24 ft |
