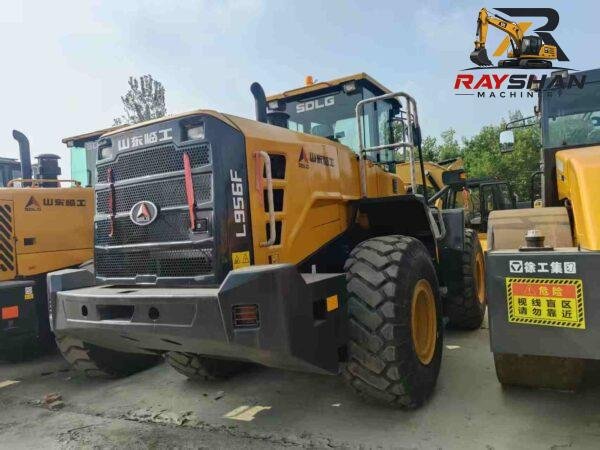

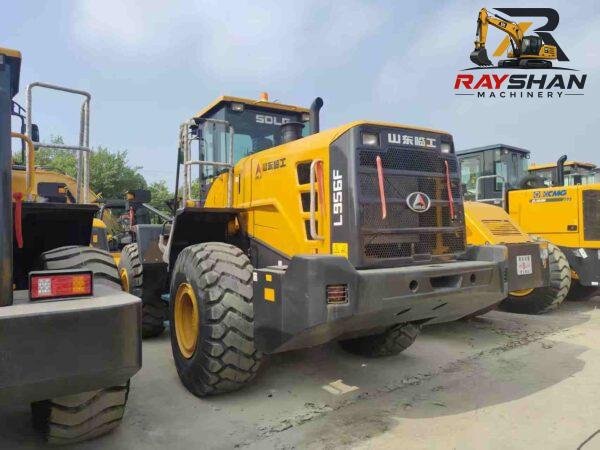

1. General Specifications
| Parameter |
Specification |
| Equipment Type |
Wheel Loader |
| Model |
SDLG L956F |
| Country of Origin |
China |
| Rated Operating Weight |
17450 kg (17.45 Ton) |
| Overall Dimension (L×W×H, Standard Bucket) |
8180 mm × 3024 mm × 3423 mm |
| Wheelbase |
3200 mm |
| Track Width |
2250 mm |
| Minimum Ground Clearance |
410 mm |

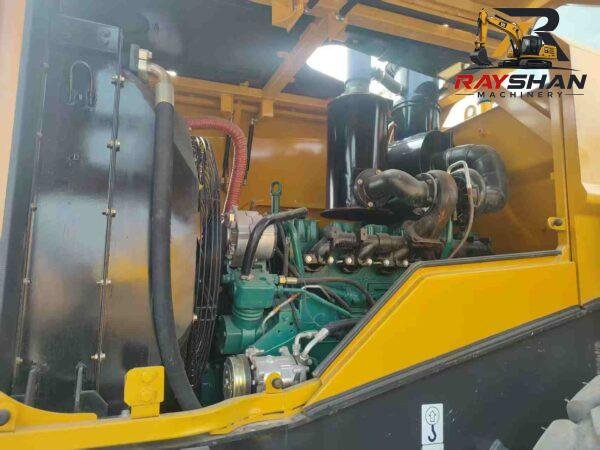

2. Powertrain System
| Parameter |
Specification |
| Engine Model |
Weichai WD10G220E23 (OEM Standard) |
| Configuration |
9.726 L, 6-Cylinder Inline Turbocharged Water-Cooled Diesel |
| Rated Net Power |
162 kW (220 HP) @ 2000 rpm |
| Maximum Torque |
980 Nm @ 1300–1500 rpm |
| Emission Standard |
Tier 3 / China Phase II |
| Fuel Tank Capacity |
260 L |
| Air Intake System |
Dry-type dual-stage air cleaner with safety filter |
| Cooling System |
Forced circulation water cooling |
3. Hydraulic System
| Parameter |
Specification |
| System Type |
Load-Sensing Pilot Hydraulic System, Parker Main Valve |
| Main Pump Maximum Flow |
215 L/min |
| System Rated Operating Pressure |
260 bar |
| Hydraulic Oil Tank Capacity |
140 L |
| Control Type |
Single-lever pilot joystick control |
| Standard Auxiliary Hydraulic Circuits |
2 Circuits (Lift Arm, Bucket) |
| Full Working Cycle Time |
10.0 s |
| Filtration System |
3-stage full-flow hydraulic oil filtration |

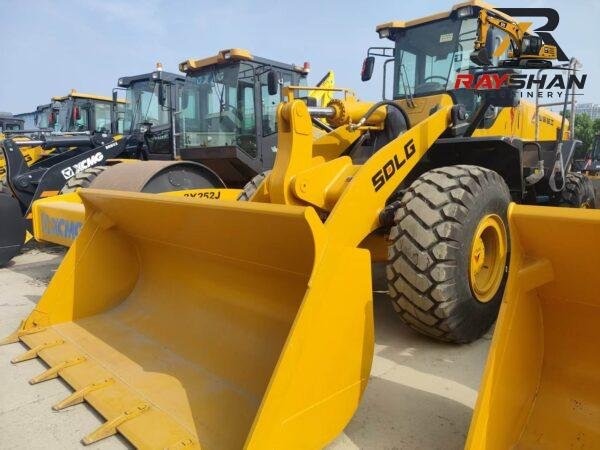

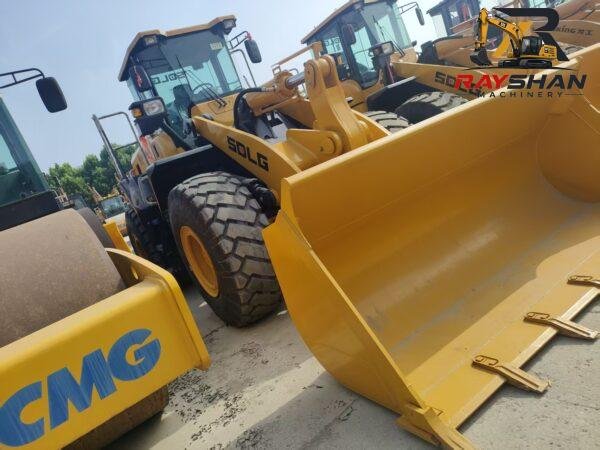

4. Working Performance Parameters
| Parameter |
Specification |
| Standard General-Purpose Bucket Capacity |
3.0 m³ |
| Optional Bucket Range |
2.7–4.5 m³ |
| Standard Bucket Width |
3024 mm |
| Rated Payload |
5000 kg |
| Maximum Lift Height to Bucket Pin |
4050 mm |
| Maximum Dump Height (45° Dump Angle) |
3040 mm |
| Maximum Dump Reach |
1095 mm |
| Bucket Breakout Force |
175 kN |
| Maximum Drawbar Pull |
165 kN |
| Maximum Gradeability |
30% |
5. Transmission & Mobility System
| Parameter |
Specification |
| Transmission Type |
SDLG Planetary Power Shift Transmission |
| Torque Converter |
Single-stage four-element double-turbine |
| Gear Configuration |
2 Forward Gears / 1 Reverse Gear |
| Maximum Forward Travel Speed |
38 km/h |
| Steering System |
Full Hydraulic Articulated Steering |
| Steering Angle Left/Right |
35° |
| Minimum Turning Radius (Over Tires) |
6100 mm |
| Standard Tire Specification |
23.5-25 18PR Heavy-Duty Tires |
| Service Brake System |
Air-over-hydraulic disc brakes |
| Parking Brake |
Electric-pneumatic internal expanding shoe brake |
6. Standard Certified Factory Equipment
| Parameter |
Specification |
| Cabin Safety |
ROPS Certified Enclosed Cabin |
| Comfort Configuration |
Three-stage shock absorption suspension seat, optional factory AC & heater |
| Instrumentation |
Digital stepping instrument cluster with fault diagnosis interface |
| Lighting System |
Full road-legal light set + 4 LED front/rear work lights |
| Standard Working Attachments |
General-purpose soil bucket, hydraulic quick coupler interface |
| Optional Factory Extras |
Rock bucket, log grapple, fork attachment, high-lift boom |
| Maintenance Features |
Large-opening rear engine hood, ground-level centralized grease points, extended service intervals |
