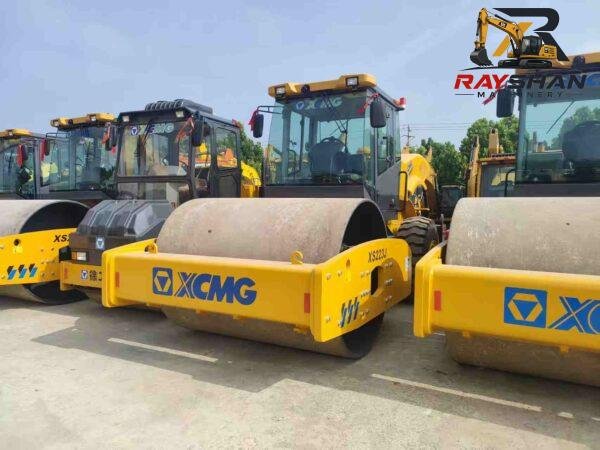

1. General Specifications
| Parameter |
Specification |
| Equipment Type |
Single Drum Vibratory Road Roller |
| Model |
XCMG XS223J |
| Country of Origin |
China |
| Rated Operating Weight |
22000 kg (22 Ton) |
| Overall Transport Length |
6050 mm |
| Overall Transport Width |
2430 mm |
| Overall Transport Height |
3250 mm |
| Wheelbase |
3170 mm |
| Minimum Ground Clearance |
350 mm |
2. Powertrain System
| Parameter |
Specification |

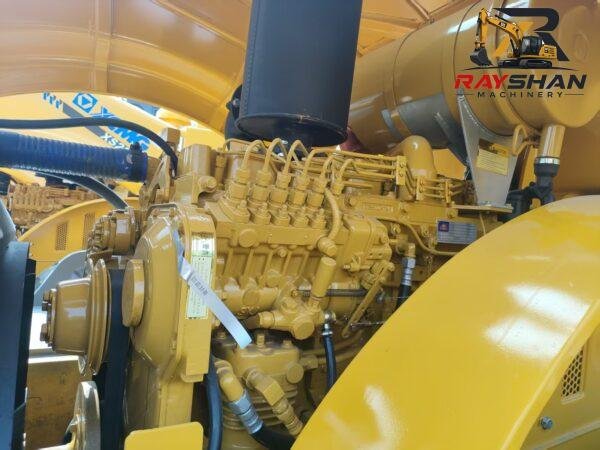

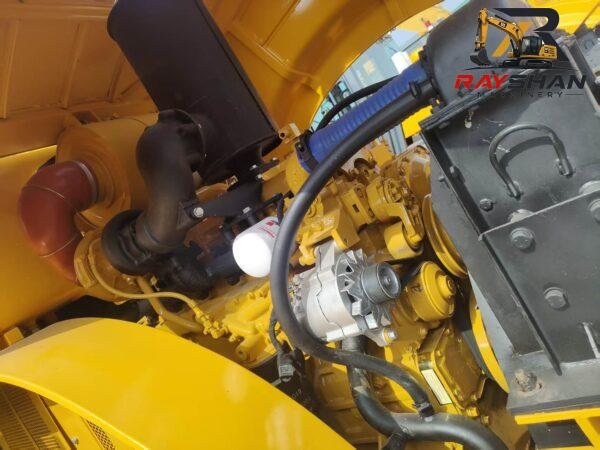

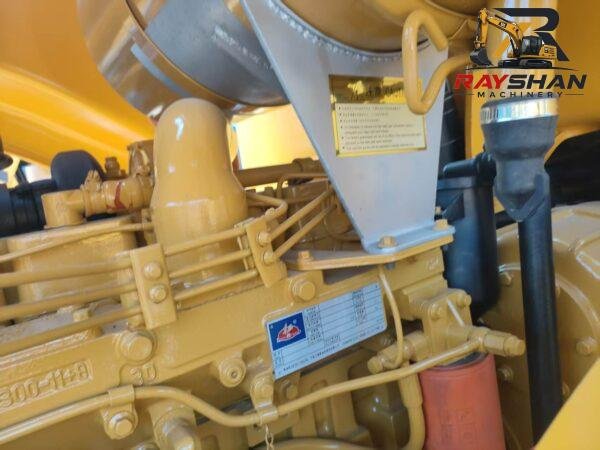

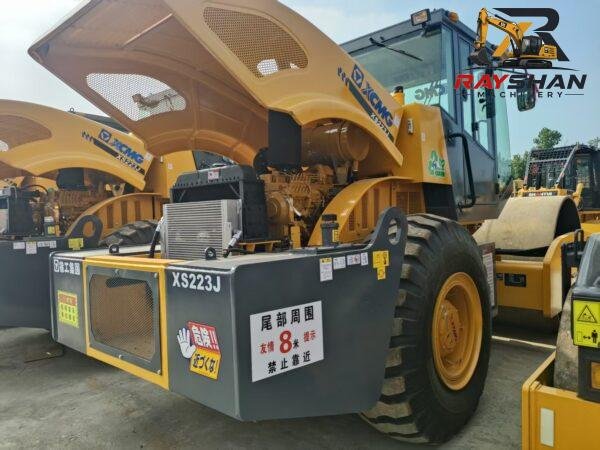

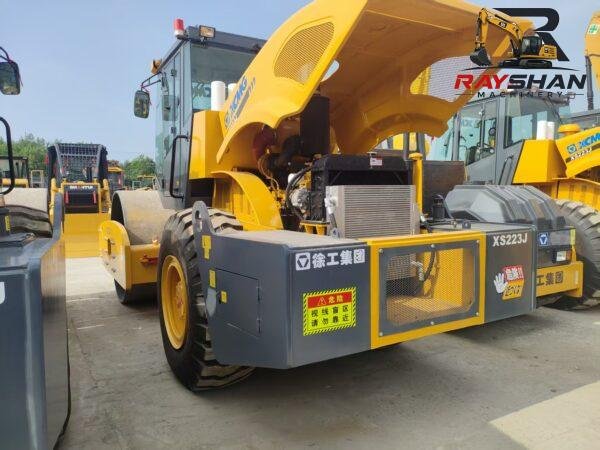

| Engine Model |
SDEC SC8D185G2 (OEM Standard) |
| Configuration |
8.3 L, 6-Cylinder Turbocharged Diesel |
| Rated Net Power |
136 kW (185 HP) @ 2200 rpm |
| Maximum Torque |
650 Nm @ 1400 rpm |
| Emission Standard |
Tier 3 / Stage IIIA |
| Fuel Tank Capacity |
280 L |
| Air Intake System |
Dry-type air cleaner with safety element |
| Cooling System |
Forced water cooling with temperature control |
3. Hydraulic System
| Parameter |
Specification |
| System Type |
Closed-Loop Load-Sensing Hydraulic System |
| Main Pump Maximum Flow |
190 L/min |
| System Rated Operating Pressure |
210 bar |
| Hydraulic Oil Tank Capacity |
120 L |
| Control Type |
Pilot Operated Joystick Control |
| Standard Auxiliary Hydraulics |
2 Circuits (Vibration System, Steering System) |
| Filtration System |
3-stage full-flow hydraulic oil filtration |
4. Core Compaction Performance Parameters
| Parameter |
Specification |

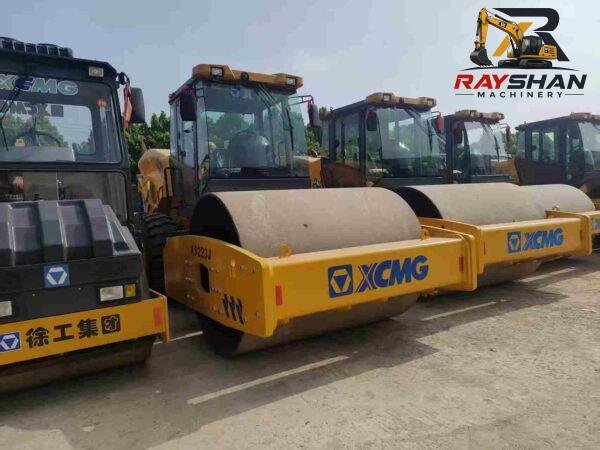

| Standard Drum Width |
2130 mm |
| Standard Drum Diameter |
1520 mm |
| Drum Shell Thickness |
30 mm |
| Static Linear Load |
103 N/mm |
| Maximum Excitation Force |
374 kN |
| Vibration Frequency |
28 Hz / 35 Hz (Dual-Frequency) |
| Nominal Amplitude |
1.8 mm / 0.9 mm (Dual-Amplitude) |
| Maximum Theoretical Compaction Depth |
500 mm |
| Gradeability |
30% |
5. Transmission & Mobility System
| Parameter |
Specification |
| Transmission Type |
Mechanical Power Shift Transmission |
| Gear Configuration |
3 Forward Gears / 3 Reverse Gears |
| Maximum Travel Speed (Forward) |
10 km/h |
| Maximum Travel Speed (Reverse) |
10 km/h |

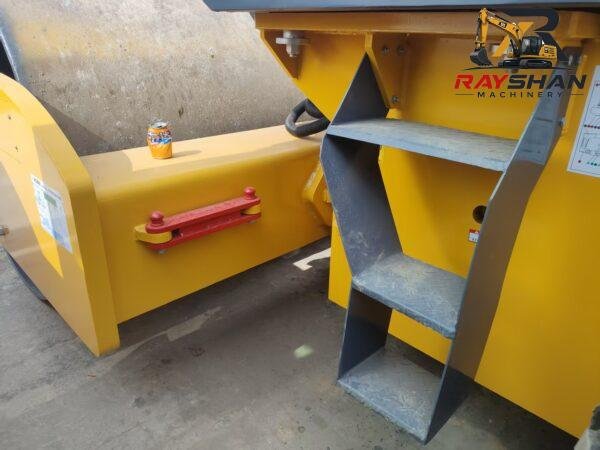

| Steering System |
Fully Hydraulic Articulated Steering |
| Minimum Turning Radius (Inside) |
3800 mm |
| Standard Tire Specification |
23.1-26 Smooth Tires (Rear Axle) |
| Brake System |
Dual-Circuit Hydraulic Service Brakes + Manual Parking Brake |
6. Standard Certified Factory Equipment
| Parameter |
Specification |
| Cabin Safety |
ROPS/FOPS Certified Enclosed Cabin (CE Compliant) |
| Comfort Configuration |
Factory-Fitted Air Conditioning & Heater, Adjustable Suspension Seat |
| Instrumentation |
Digital LCD Instrument Cluster with Fault Diagnosis & Vibration Monitoring |
| Lighting System |
Full Road-Legal Lighting Kit + 4 LED Work Lights (Front/Rear) |
| Standard Working Features |
Dual-Frequency/Dual-Amplitude Vibration System, Automatic Vibration Control |
| Optional Factory Extras |
Padfoot Drum Kit, Traction Control System, GPS Telematics, Canopy Cabin |
| Maintenance Features |
Large Opening Engine Hood, Centralized Grease Points, Modular Component Layout |
