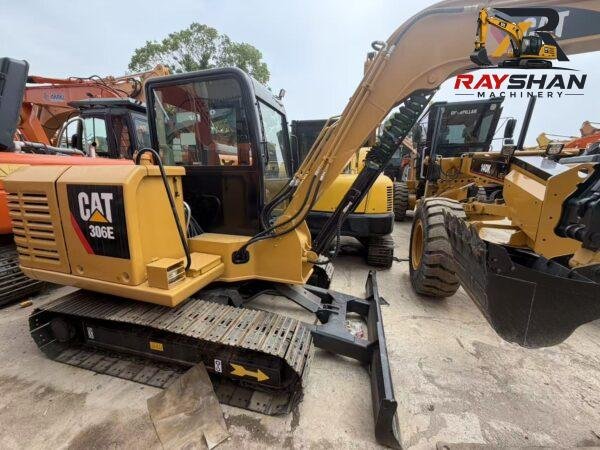

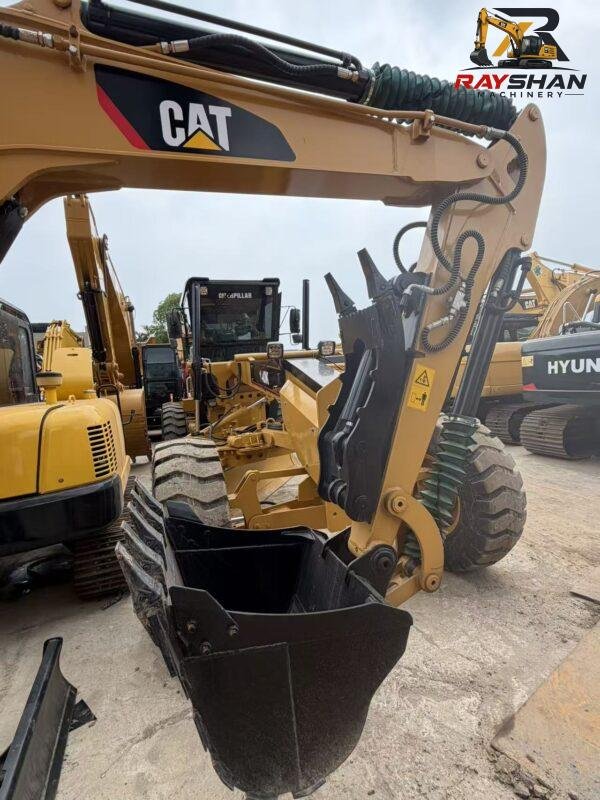

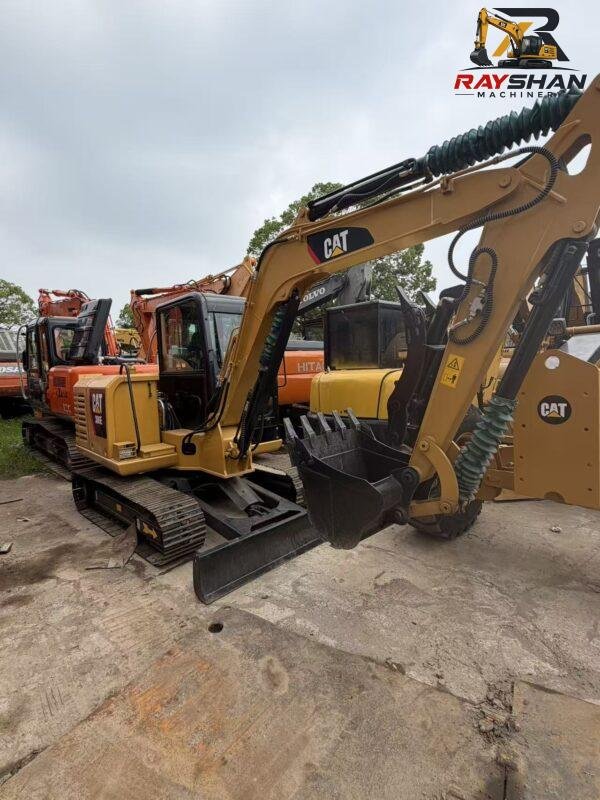

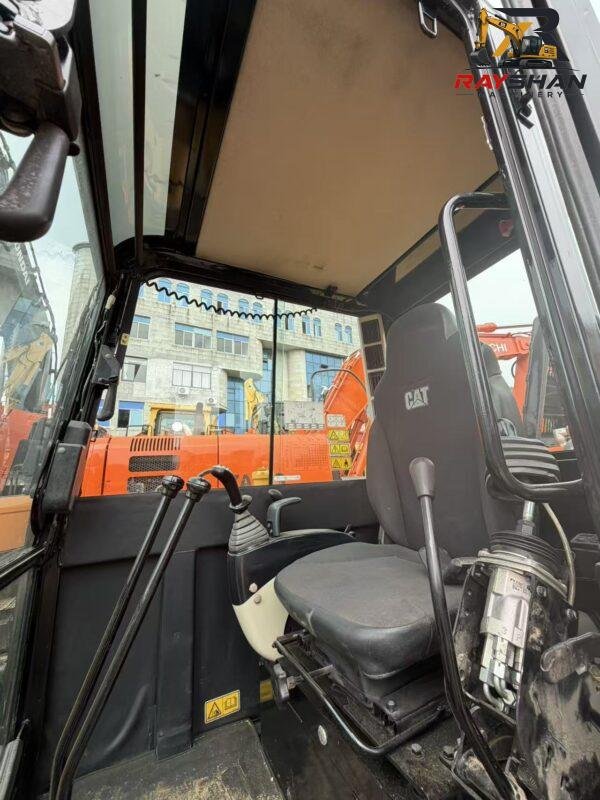

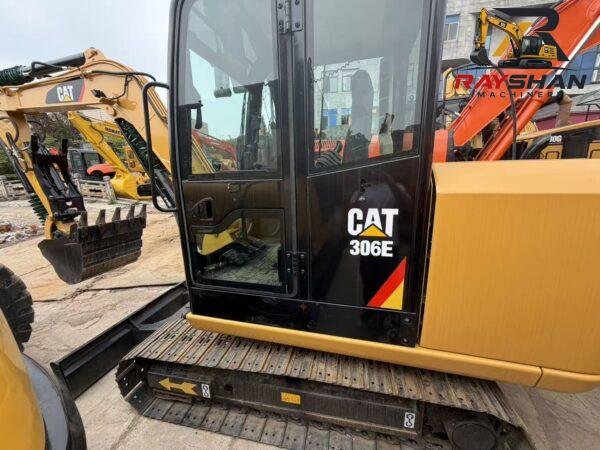

Used CAT 306E Excavator 6ton for sale Intuitive Hydraulics
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
*Proven Dependability: With verified low operating hours and a complete service history, this machine has consistently excelled in demanding tasks like mining and road construction. Trusted by contractors globally, it’s a reliable workhorse for any project.
1. Core Power & Powertrain (Engine)
The 2014 model features a robust, industrial-grade mechanical engine design, prioritized for torque output and tolerance to varying fuel quality across global operating environments.
| Parameter | Metric System | Imperial System | Technical Remarks |
| Engine Model | CAT C2.4 | CAT C2.4 | Inline 4-cylinder, naturally aspirated |
| Net Flywheel Power | 45.0 kW | 60.3 hp | Rated @ 2400 rpm (ISO 9249) |
| Displacement | 2.4 L | 146 cu in | High-torque density for 6-ton class |
| Cooling System | Pressurized | Pressurized | Heavy-duty industrial radiator |
2. Weight, Capacities & Logistics Dimensions
These critical dimensions are required by international freight forwarders for container consolidation (often requiring boom breakdown) or standard RORO shipping calculations.
| Parameter | Metric System | Imperial System | Shipping & Logistics Relevance |
| Operating Weight | 5,900 kg | 13,007 lbs | Standard 6-ton class commercial footprint |
| Transport Length | 5,630 mm | 18.47 ft | Standard shipping boom-down position |
| Transport Width | 1,980 mm | 6.50 ft | Optimized for narrow-access urban freight |
| Transport Height | 2,550 mm | 8.37 ft | Top of cabin shipping clearance line |
| Fuel Tank Capacity | 80 L | 21.1 gal | Efficient capacity for full-shift field autonomy |
| Hydraulic Tank Cap. | 55 L | 14.5 gal | Core fluid reservoir volume declaration |
3. Hydraulic & Structural Systems
Equipped with a high-efficiency load-sensing hydraulic system, ensuring precise multi-function flow distribution and reducing thermal loss during intensive loading cycles.
| Parameter | Metric System | Imperial System | Field Performance Indicator |
| Max Implement Flow | 145 L/min | 38.3 gal/min | Dual variable-displacement piston pumps |
| Operating Pressure | 24,500 kPa | 3,553 psi | Main implement relief circuit threshold |
| Swing Speed | 10.0 rpm | 10.0 rpm | High-torque rotation for tight-site cycling |
| Stick Digging Force | 29.8 kN | 6,700 lbf | Structural linkage penetration threshold |
| Bucket Breakout Force | 48.0 kN | 10,790 lbf | Aggressive earthmoving capacity |
4. Undercarriage & Ground Logistics
Built with a heavy-duty, robotically welded X-frame chassis and high-durability grease-lubricated tracks (GLT), designed for extended life in abrasive soil conditions.
| Parameter | Metric System | Imperial System | Underfoot Durability |
| Standard Shoe Width | 400 mm | 16 in | Triple grouser standard utility track pads |
| Track Gauge | 1,580 mm | 5.18 ft | Balanced stance for slope stability |
| Max Travel Speed | 4.6 km/h | 2.86 mph | Dual-speed auto-shift travel drives |
| Max Drawbar Pull | 52.0 kN | 11,689 lbf | Strong tractive effort for backfilling/climbing |
5. Working Ranges (Standard 1.6 m Stick)
Definitive excavation profiles enabling procurement managers to verify site suitability for utility trenching and civil development.
| Parameter | Metric System | Imperial System |
| Max Digging Depth | 3,740 mm | 12.27 ft |
| Max Reach (Ground) | 6,020 mm | 19.75 ft |
| Max Cutting Height | 5,550 mm | 18.21 ft |
| Max Loading Height | 3,920 mm | 12.86 ft |
| Standard Bucket Cap. | 0.23 m³ | 0.30 yd³ |
