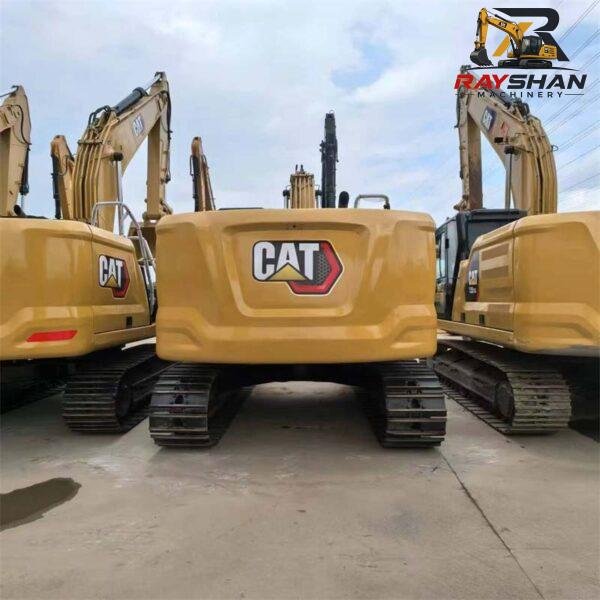

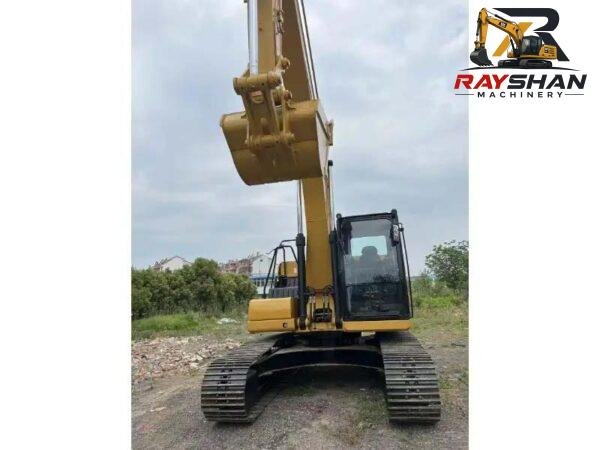

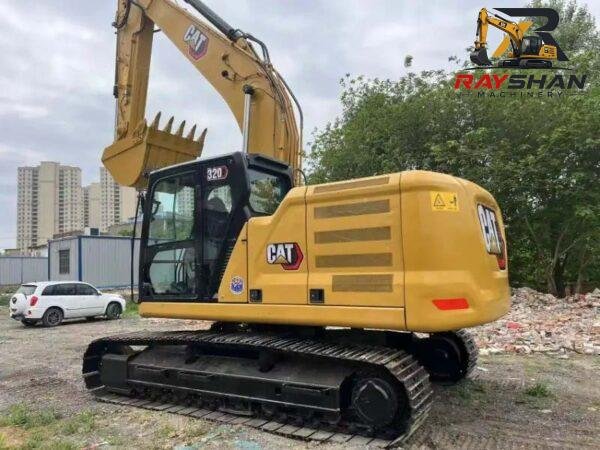

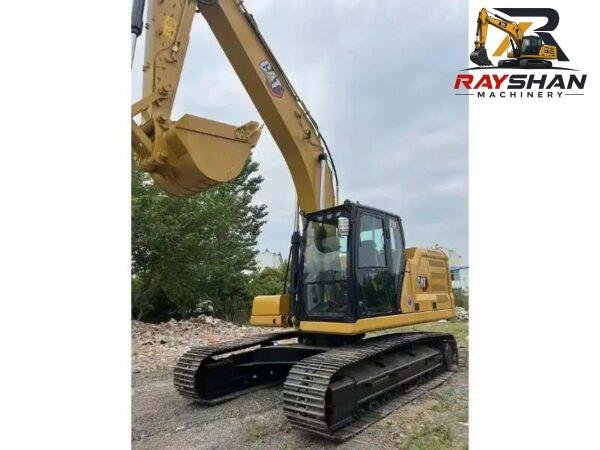

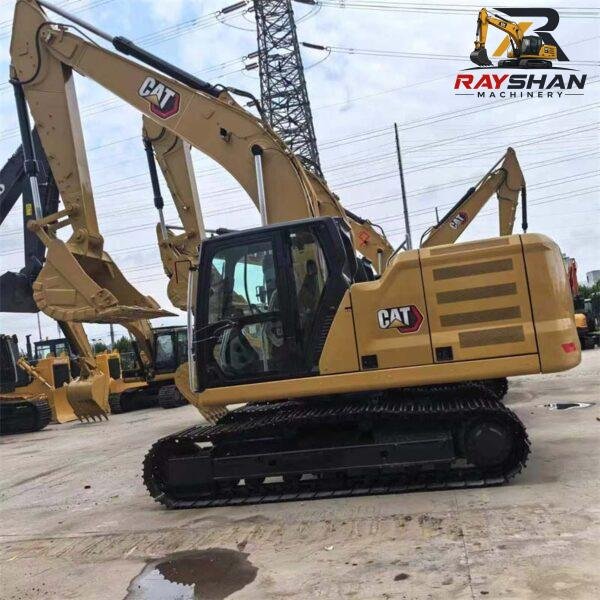

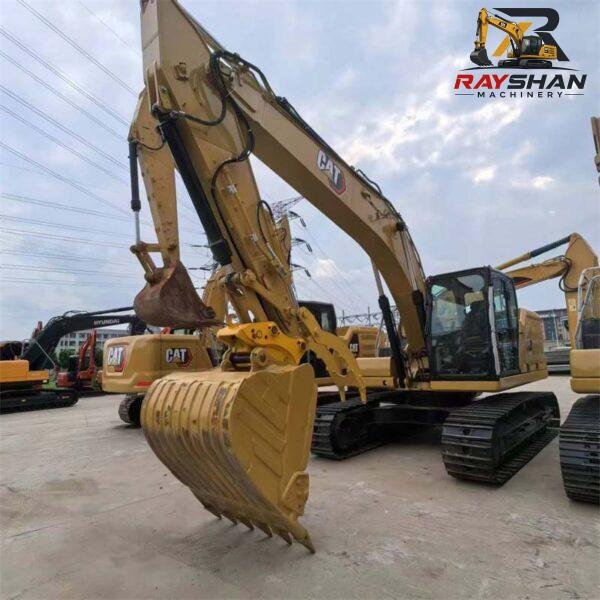

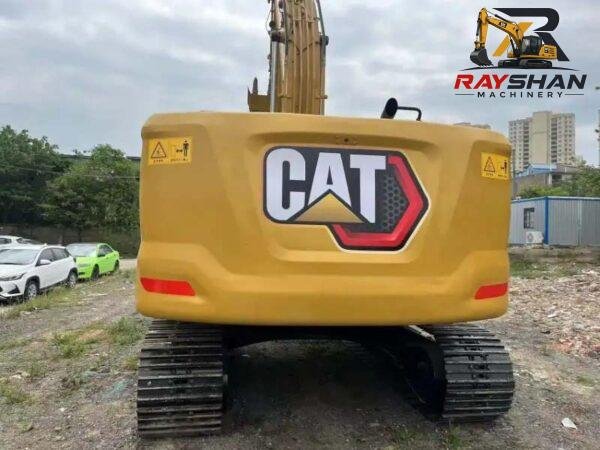

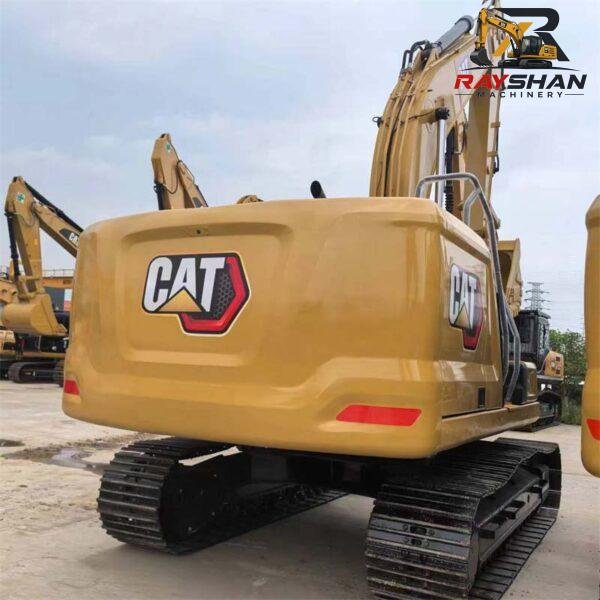

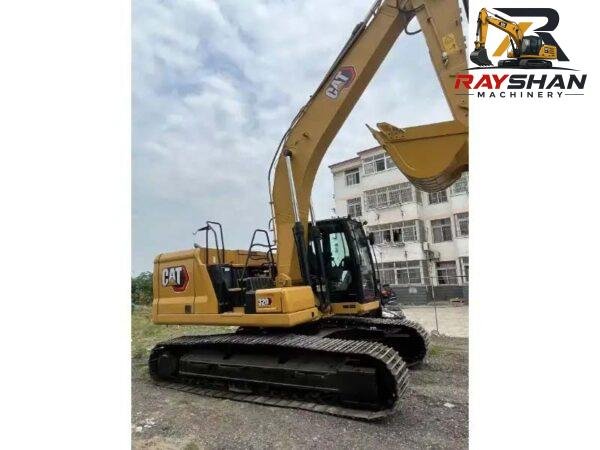

Used CAT 330GC Excavator 30ton for sale original paint
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
*Proven Dependability: With verified low operating hours and a complete service history, this machine has consistently excelled in demanding tasks like mining and road construction. Trusted by contractors globally, it’s a reliable workhorse for any project.

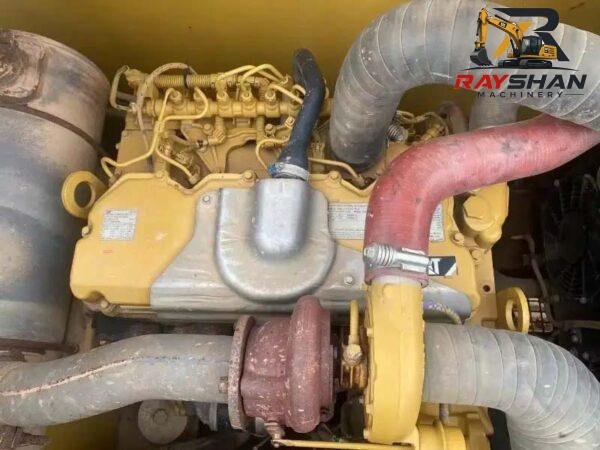

1. Core Power & Powertrain (Engine)
The 2022 Next-Gen GC model features an electronically controlled, turbocharged powertrain designed to match hydraulic demand precisely, maximizing fuel economy while meeting international tier-matching emissions benchmarks.
| Parameter | Metric System | Imperial System | Technical Remarks |
| Engine Model | CAT C7.1 | CAT C7.1 | Electronic common rail, Turbocharged |
| Net Flywheel Power | 151 kW | 202 hp | Rated @ 2200 rpm (ISO 9249) |
| Gross Power | 152 kW | 204 hp | Total engine power capacity (ISO 14396) |
| Displacement | 7.01 L | 428 cu in | Inline 6-cylinder high-efficiency setup |
2. Weight, Capacities & Logistics Dimensions
Exact logistics boundaries required by global freight forwarders for calculating ocean transit routing (RORO booking, Flat Rack configurations) and standard commercial road clearances.
| Parameter | Metric System | Imperial System | Shipping & Logistics Relevance |
| Operating Weight | 30,200 kg | 66,600 lbs | Standard 30-ton class Next-Gen asset baseline |
| Transport Length | 10,420 mm | 34.19 ft | Boom lowered shipping position |
| Transport Width | 3,190 mm | 10.47 ft | Fixed chassis width with standard 600 mm shoes |
| Transport Height | 3,430 mm | 11.25 ft | Top of cab/boom shipping clearance line |
| Fuel Tank Capacity | 474 L | 125.2 gal | High-capacity tank optimized for Next-Gen economy |
| Hydraulic Tank Cap. | 145 L | 38.3 gal | Core fluid reservoir volume declaration |

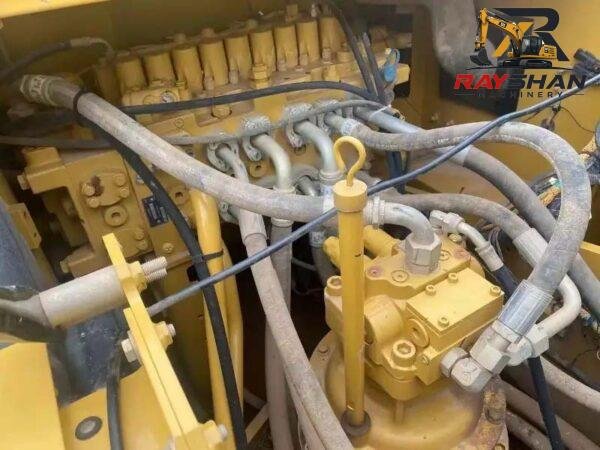

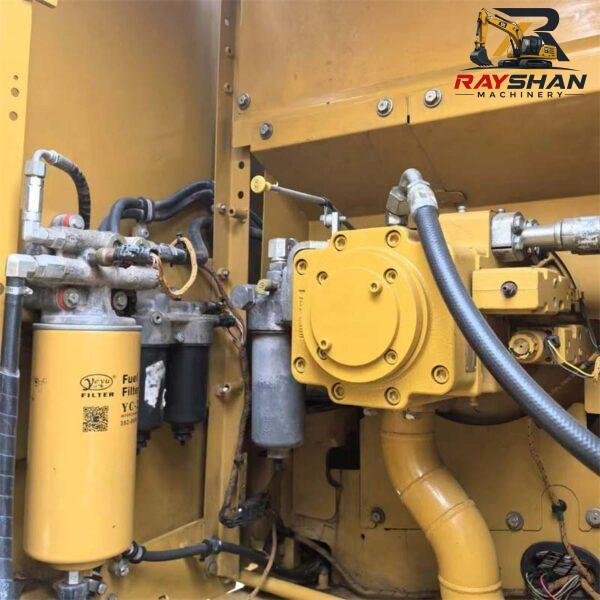

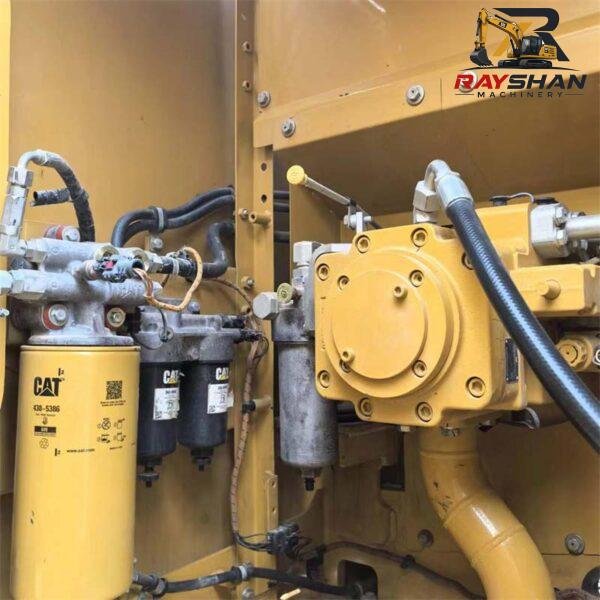

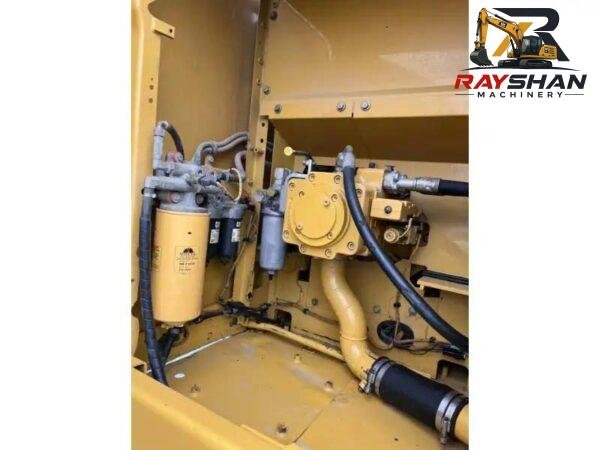

3. Hydraulic & Structural Systems
Features CAT’s advanced electro-hydraulic system, which completely removes traditional pilot lines to eliminate cabin heat, reduce risk of pilot leaks, and lower overall thermodynamic energy loss.
| Parameter | Metric System | Imperial System | Field Performance Indicator |
| Max Implement Flow | 560 L/min | 148 gal/min | Advanced electronic main pump control |
| Implement Pressure | 35,000 kPa | 5,076 psi | Normal working circuit threshold |
| Swing Speed | 11.5 rpm | 11.5 rpm | High-efficiency cycle rotation speed |
| Swing Torque | 105 kN-m | 77,440 lb-ft | High lateral slewing aggregation force |

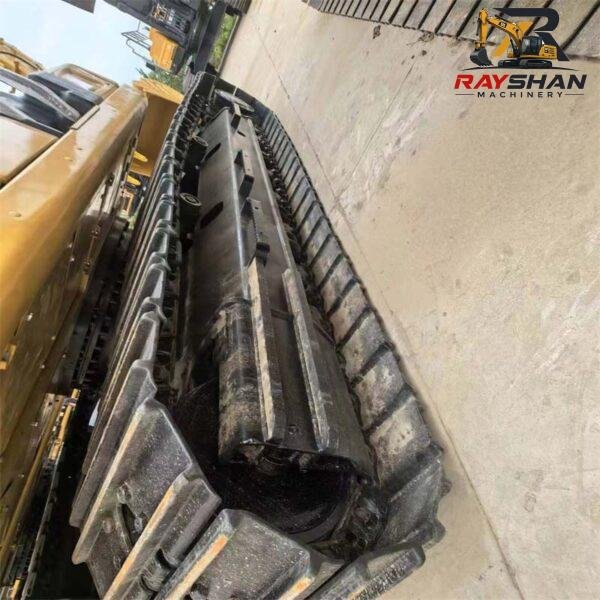

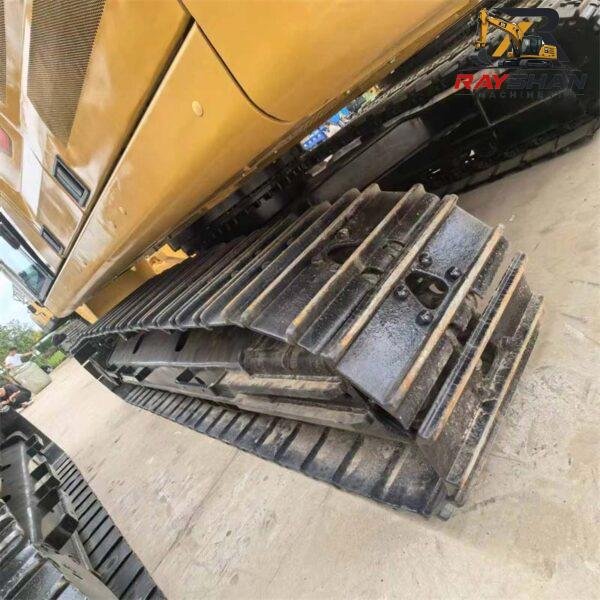

4. Undercarriage & Ground Logistics
Built with a heavy-duty Next-Gen carbody structure and standardized tie-down infrastructure designed to lower ground bearing pressure while maintaining excellent tie-down stability during transit.
| Parameter | Metric System | Imperial System | Underfoot Durability |
| Standard Shoe Width | 600 mm | 24 in | Triple grouser track pads |
| Track Gauge | 2,590 mm | 8.50 ft | Standard balance track layout |
| Max Travel Speed | 5.3 km/h | 3.29 mph | Dual-speed auto shift travel drives |
| Max Drawbar Pull | 248 kN | 55,750 lbs | High slope-climbing and towing capability |
5. Working Ranges (Standard 3.2 m / 10’6″ Stick)
Definitive digging profiles enabling regional procurement managers to match job-site excavation criteria.
| Parameter | Metric System | Imperial System |
| Max Digging Depth | 7,260 mm | 23.82 ft |
| Max Reach Along Ground | 10,690 mm | 35.07 ft |
| Max Cutting Height | 10,020 mm | 32.87 ft |
| Max Loading Height | 6,940 mm | 22.77 ft |
| Standard Bucket Capacity | 1.50 m3 | 1.96 yd3 |
