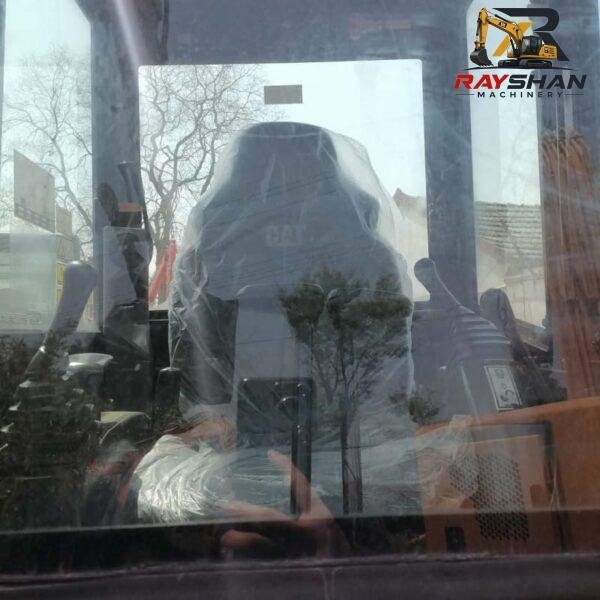

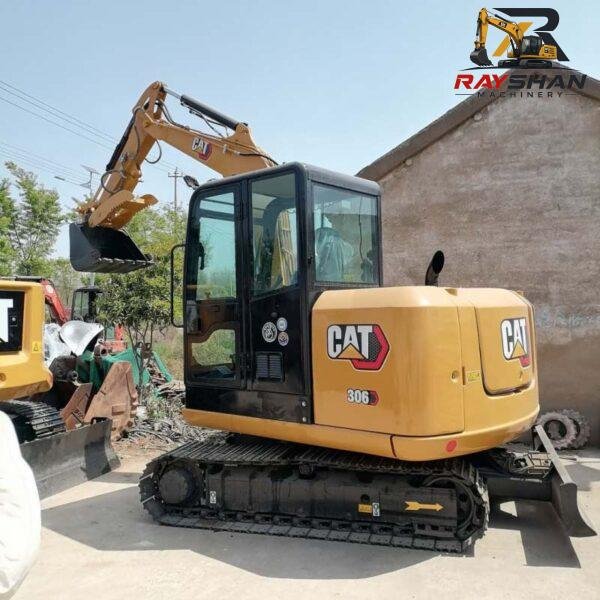

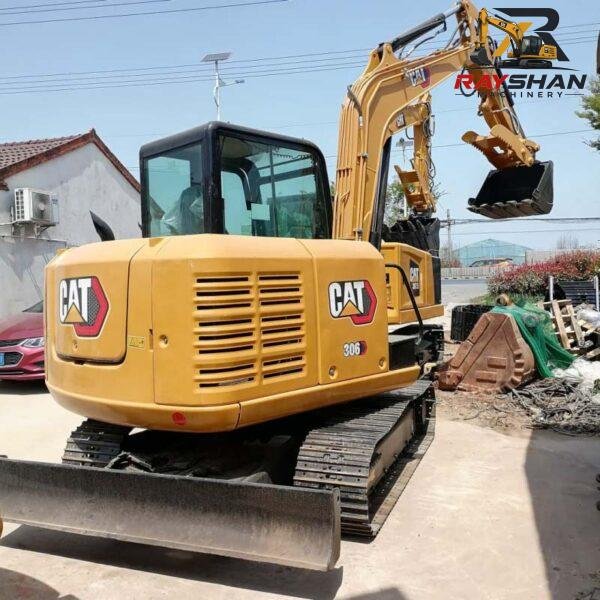

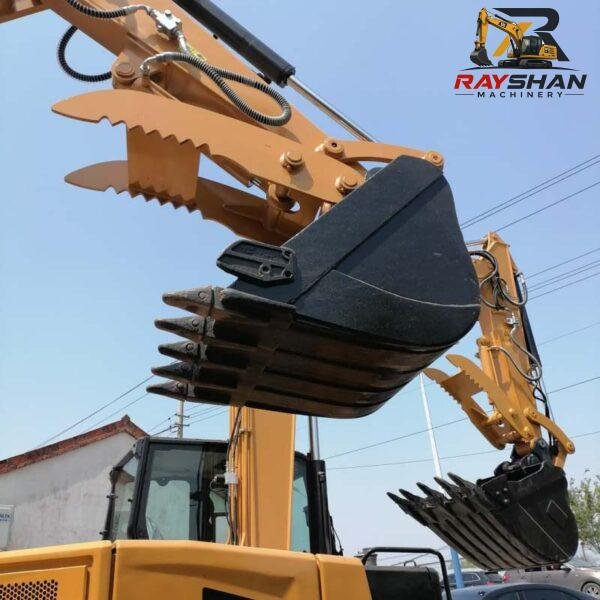

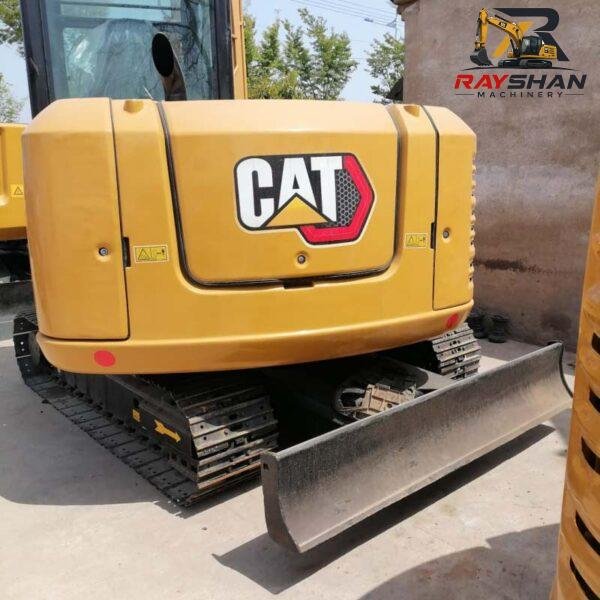

Used CAT 360 Excavator 6ton for sale original paint
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
*Proven Dependability: With verified low operating hours and a complete service history, this machine has consistently excelled in demanding tasks like mining and road construction. Trusted by contractors globally, it’s a reliable workhorse for any project.
Basic Machine Information
| Parameter | Specification |
|---|---|
| Brand | Caterpillar (CAT) |
| Model | 306 |
| Manufacturing Year | 2022 |
| Machine Category | 6-Ton Class Zero-Tail-Swing Mini Crawler Excavator |
| Typical Used Unit Working Hours | 1800 H |
| Operating Weight | 6000 kg (13228 lbs) |
| Standard Bucket Capacity | 0.25 m³ (0.33 yd³) |
| Optional Bucket Range | 0.18 m³ – 0.35 m³ |
Engine System Specifications
| Parameter | Specification |
|---|---|
| Engine Make/Model | Caterpillar C2.4 Turbocharged Diesel Engine |
| Rated Net Power | 42.3 kW (56.7 HP) @ 2400 rpm |
| Displacement | 2.4 L (146.5 cu in) |
| Number of Cylinders | 4 Inline Cylinders |
| Operating Voltage | 12V |
| Alternator Output | 70A |
| Emission Standard | US EPA Tier 4 Final / EU Stage V |
| Cooling System | Water-Cooled |
Hydraulic System Specifications
| Parameter | Specification |
|---|---|
| Main Pump Type | Variable Displacement Axial Piston Pump |
| Main Pump Flow | 132 L/min (34.9 gpm) |
| System Relief Pressure | 260 bar (3770 psi) |
| Hydraulic Oil Tank Capacity | 70 L (18.5 gal) |
| Hydraulic System Total Capacity | 85 L (22.4 gal) |
| Control System | Pilot Operated Joystick Control |

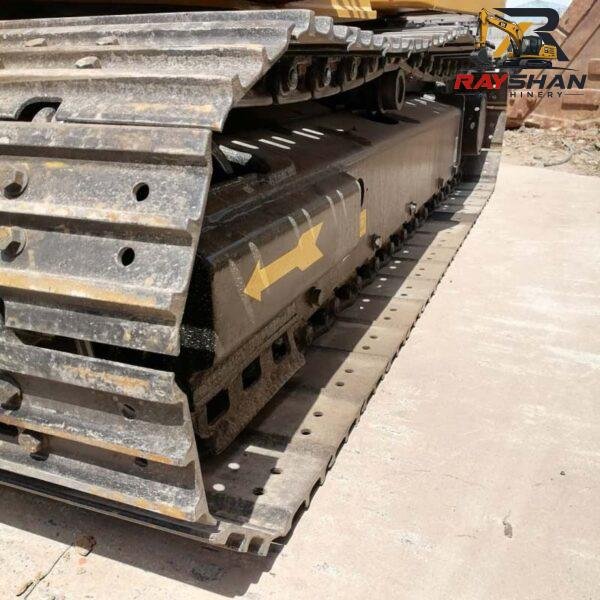

Undercarriage & Chassis Specifications
| Parameter | Specification |
|---|---|
| Track Shoe Width | 450 mm (17.7 in) |
| Track Gauge | 1600 mm (63.0 in) |
| Track Length on Ground | 2050 mm (80.7 in) |
| Track Rollers per Side | 5 Units |
| Track Shoes per Side | 42 Units |
| Maximum Travel Speed | 5.0 km/h (3.1 mph) |
| Average Ground Pressure | 34.5 kPa (5.0 psi) |
| Minimum Ground Clearance | 300 mm (11.8 in) |
| Swing Speed | 10.0 rpm |
| Drawbar Pull | 55.3 kN (12430 lbf) |
Working Range & Digging Performance
| Parameter | Specification |
|---|---|
| Maximum Digging Depth | 3750 mm (147.6 in) |
| Maximum Ground Reach | 6200 mm (244.1 in) |
| Maximum Dumping Clearance | 4350 mm (171.3 in) |
| Maximum Cutting Height | 6050 mm (238.2 in) |
| Bucket Digging Force (ISO) | 47.8 kN (10746 lbf) |
| Arm Crowd Force (ISO) | 36.2 kN (8138 lbf) |
Overall Dimensions & Transport Data
| Parameter | Specification |
|---|---|
| Total Shipping Length | 5780 mm (227.6 in) |
| Total Transport Width | 2000 mm (78.7 in) |
| Cab Full Height | 2520 mm (99.2 in) |
| Tail Swing Radius | 1250 mm (49.2 in) |
| Total Transport Height | 2520 mm (99.2 in) |
Fluid Capacities
| Parameter | Specification |
|---|---|
| Fuel Tank Volume | 135 L (35.7 gal) |
| Engine Oil Capacity | 8.5 L (2.25 gal) |
| Cooling System Capacity | 12 L (3.17 gal) |
| Swing Drive Oil Capacity | 3.0 L (0.79 gal) |
| Final Drive Oil Capacity (per side) | 2.0 L (0.53 gal) |
| Hydraulic Oil Capacity | 70 L (18.5 gal) |
