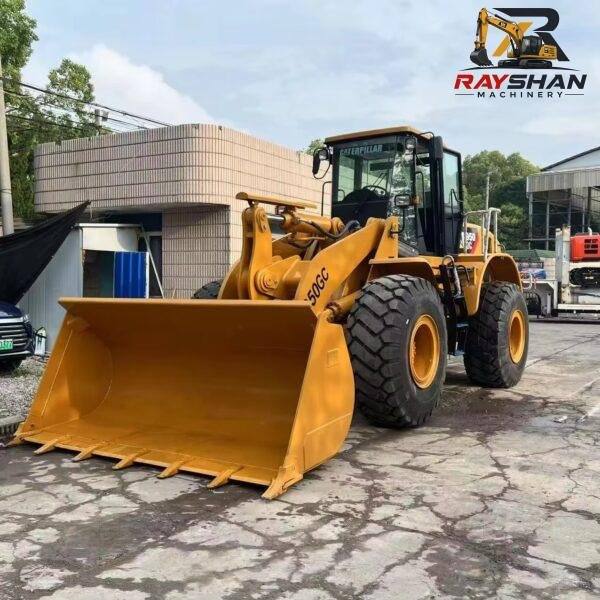

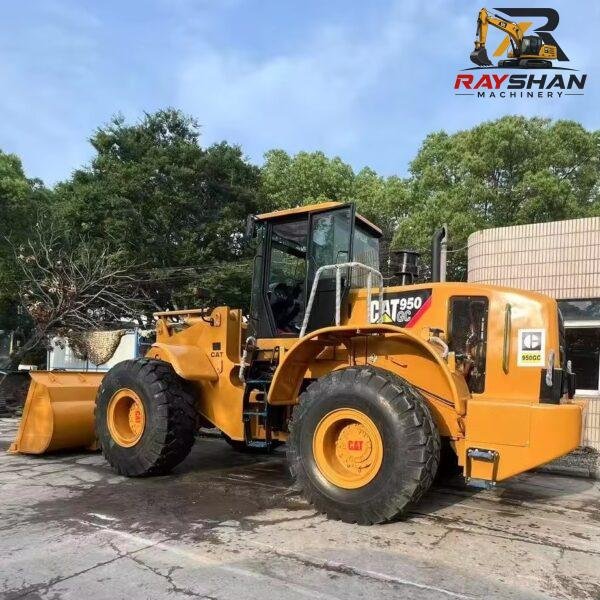

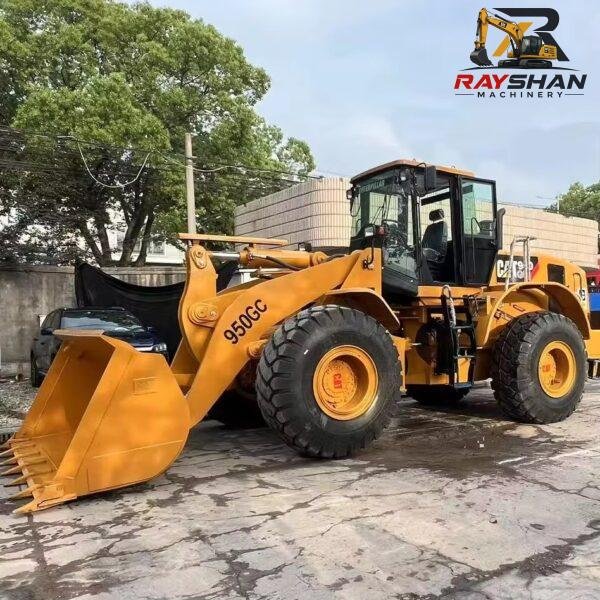

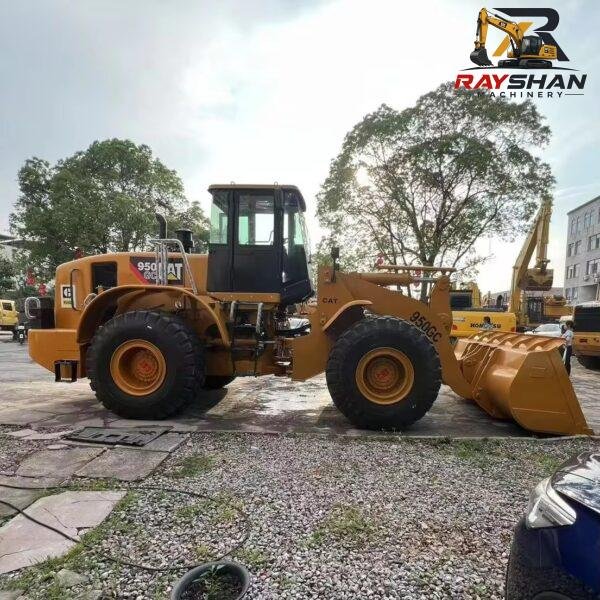

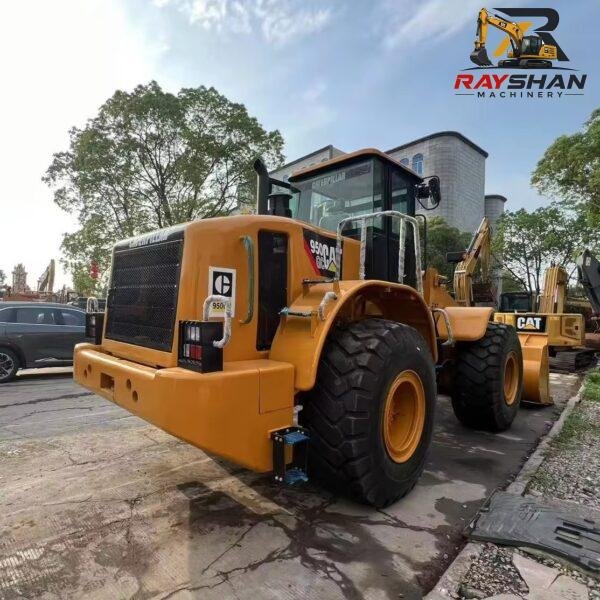

Used CAT 950GC Excavator 19ton for sale Exceptional Liquidity
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
*Proven Dependability: With verified low operating hours and a complete service history, this machine has consistently excelled in demanding tasks like mining and road construction. Trusted by contractors globally, it’s a reliable workhorse for any project.
1. Core Power & Powertrain (Engine)
The 2018 model features CAT’s heavy-duty electronically controlled injection system, delivering high torque rise and fuel efficiency across varying global fuel standards.
| Parameter | Metric System | Imperial System | Technical Remarks |
| Engine Model | CAT C7.1 | CAT C7.1 | Inline 6-cylinder, Turbocharged |
| Net Flywheel Power | 168 kW | 225 hp | Rated @ 1700 rpm (ISO 9249 / SAE J1349) |
| Gross Power | 180 kW | 241 hp | Maximum engine structural capacity (SAE J1995) |
| Peak Net Torque | 1,041 N·m | 768 lbf-ft | High torque density achieved @ 1400 rpm |
| Displacement | 7.0 L | 428 cu in | Robust displacement for heavy loading cycles |
2. Weight, Capacities & Logistics Dimensions
Exact logistics and rigging boundaries required by international freight forwarders to calculate ocean transit routing (RORO booking, Flat Rack, or specialized low-boy road routing).
| Parameter | Metric System | Imperial System | Shipping & Logistics Relevance |
| Operating Weight | 18,849 kg | 41,554 lbs | Standard 18-19 ton class commercial footprint |
| Overall Length | 8,300 mm | 27.23 ft | Total length with bucket flat on ground |
| Width Over Tires | 2,840 mm | 9.32 ft | Standard shipping width on 23.5R25 L3 tires |
| Height to Top of ROPS | 3,458 mm | 11.34 ft | Critical overhead clearance shipping line |
| Fuel Tank Capacity | 290 L | 76.6 gal | Optimized for high-frequency multi-shift autonomy |
| Hydraulic Tank Cap. | 112 L | 29.6 gal | Core oil reservoir volume declaration |
3. Loader Performance & Structural Hydraulics
Features CAT’s optimized Z-bar linkage geometry mated to a high-pressure piston hydraulic system, ensuring aggressive breakout force and faster cycle times during truck-loading operations.
| Parameter | Metric System | Imperial System | Field Performance Indicator |
| Standard Bucket Cap. | 3.10 m³ | 4.00 yd³ | Performance Series pin-on flat floor layout |
| Bucket Capacity Range | 2.9 – 4.4 m³ | 3.75 – 5.75 yd³ | Selectable via material density specifications |
| Breakout Force | 154 kN | 34,638 lbf | High aggregate penetration power at ground level |
| Static Tipping Load | 11,160 kg | 24,604 lbs | Rated at full 38° turn with tire deflection |
| B-Pin Height (Max Lift) | 4,188 mm | 13.75 ft | Maximum structural hinge pin lift clearance |
| Total Hydraulic Cycle | 9.4 seconds | 9.4 seconds | Combined lift, dump, and float down speed |
4. Drivetrain & Travel Logistics
Equipped with CAT’s heavy-duty planetary power-shift countershaft transmission with heat-treated gears and heavy-duty inboard planetary final drives.
| Parameter | Metric System | Imperial System | Underfoot Mobility |
| Transmission Type | Power-Shift | Power-Shift | 4 Forward / 3 Reverse automatic shift gears |
| Max Speed (Forward) | 36.0 km/h | 22.4 mph | Rapid roading capabilities between staging areas |
| Max Speed (Reverse) | 22.8 km/h | 14.2 mph | High reverse cycle speeds for short-loading profiles |
| Service Brake Type | Wet Disc | Wet Disc | Hydraulically activated enclosed wet-disc system |
| Standard Tire Config. | 23.5R25 | 23.5R25 | Standard L3 radial earthmover tread pattern |
