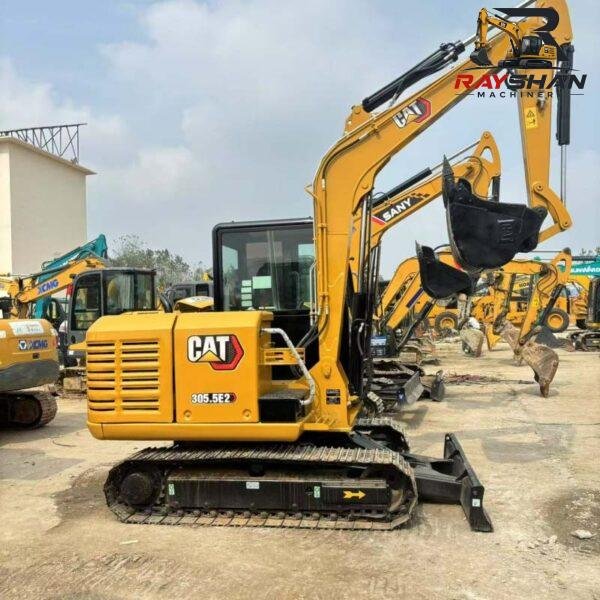

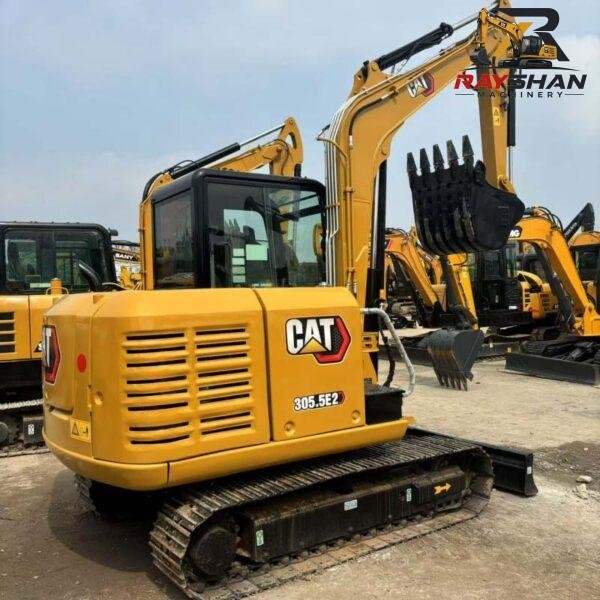

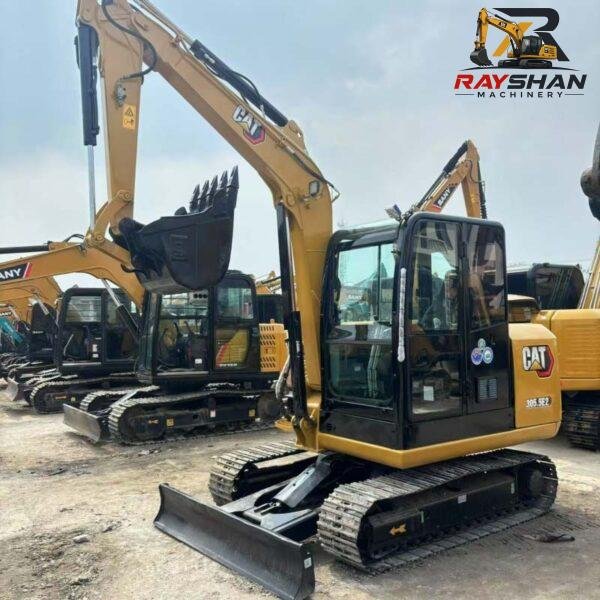

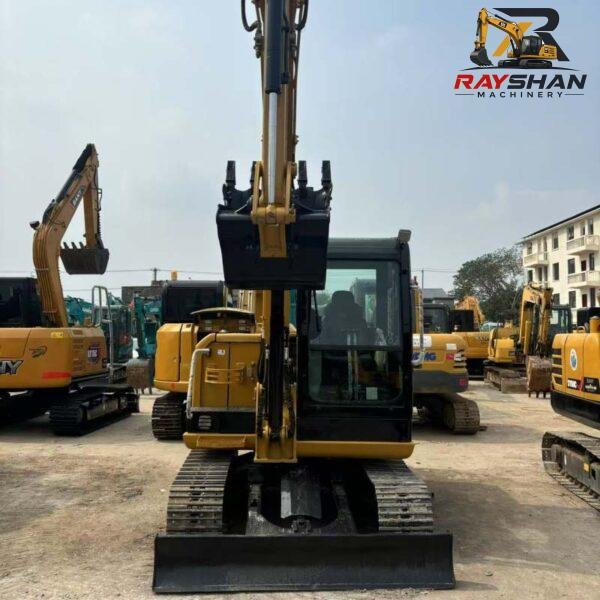

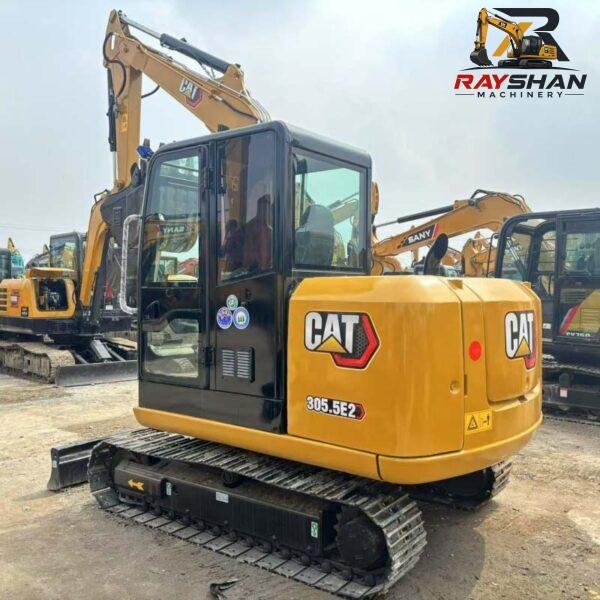

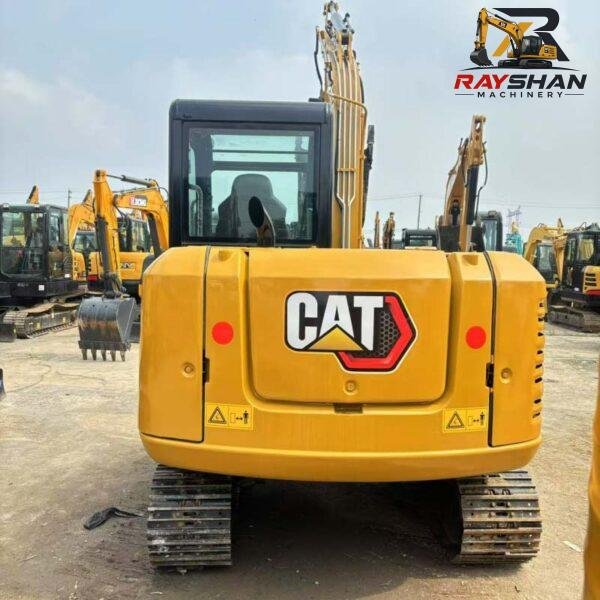

Used CAT E305.5E2 Excavator 5.5ton for sale low fuel consumption
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
*Proven Dependability: With verified low operating hours and a complete service history, this machine has consistently excelled in demanding tasks like mining and road construction. Trusted by contractors globally, it’s a reliable workhorse for any project.
Basic Machine Information
| Parameter | Specification |
|---|---|
| Brand | Caterpillar (CAT) |
| Model | 305.5E2 |
| Manufacturing Year | 2018 |
| Machine Category | 5.5-Ton Class Compact Mini Crawler Excavator |
| Typical Used Unit Working Hours | 3200 H |
| Operating Weight | 5500 kg (12125 lbs) |
| Standard Bucket Capacity | 0.22 m³ (0.29 yd³) |
| Optional Bucket Range | 0.15 m³ – 0.30 m³ |
Engine System Specifications
| Parameter | Specification |
|---|---|
| Engine Make/Model | Caterpillar C2.4 Turbocharged Diesel Engine |
| Rated Net Power | 35.4 kW (47.5 HP) @ 2400 rpm |
| Displacement | 2.4 L (146.5 cu in) |
| Number of Cylinders | 4 Inline Cylinders |
| Operating Voltage | 12V |
| Alternator Output | 60A |
| Emission Standard | US EPA Tier 4 Final / EU Stage IIIB |

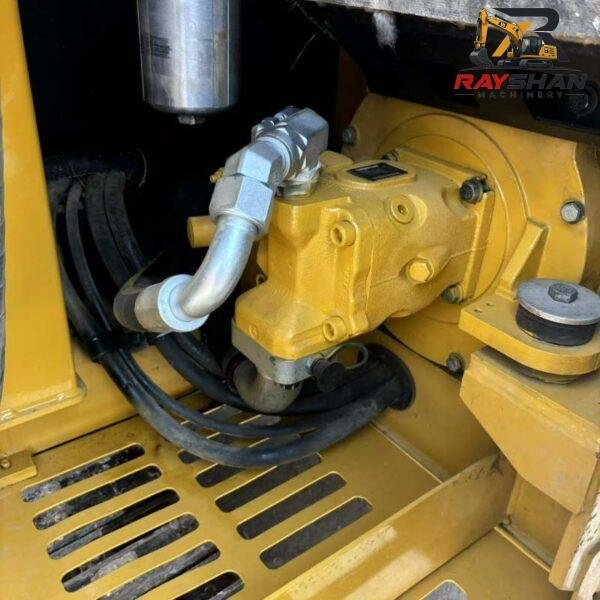

Hydraulic System Specifications
| Parameter | Specification |
|---|---|
| Main Pump Type | Variable Displacement Axial Piston Pump |
| Main Pump Flow | 114 L/min (30.1 gpm) |
| System Relief Pressure | 245 bar (3553 psi) |
| Hydraulic Oil Tank Capacity | 60 L (15.8 gal) |
| Hydraulic System Total Capacity | 75 L (19.8 gal) |
Undercarriage & Chassis Specifications
| Parameter | Specification |
|---|---|
| Track Shoe Width | 400 mm (15.7 in) |
| Track Gauge | 1500 mm (59.1 in) |
| Track Length on Ground | 1900 mm (74.8 in) |
| Track Rollers per Side | 7 Units |
| Track Shoes per Side | 40 Units |
| Maximum Travel Speed | 4.5 km/h (2.8 mph) |
| Average Ground Pressure | 32.4 kPa (4.7 psi) |
| Minimum Ground Clearance | 280 mm (11.0 in) |
Working Range & Digging Performance
| Parameter | Specification |
|---|---|
| Maximum Digging Depth | 3520 mm (138.6 in) |
| Maximum Ground Reach | 5850 mm (230.3 in) |
| Maximum Dumping Clearance | 4100 mm (161.4 in) |
| Maximum Cutting Height | 5700 mm (224.4 in) |
| Bucket Digging Force (ISO) | 42.2 kN (9487 lbf) |
| Arm Crowd Force (ISO) | 32.5 kN (7306 lbf) |
| Swing Speed | 9.0 rpm |
| Drawbar Pull | 50.2 kN (11286 lbf) |
Overall Dimensions & Transport Data
| Parameter | Specification |
|---|---|
| Total Shipping Length | 5530 mm (217.7 in) |
| Total Transport Width | 1980 mm (78.0 in) |
| Cab Full Height | 2450 mm (96.5 in) |
| Tail Swing Radius | 1100 mm (43.3 in) |
| Total Transport Height | 2450 mm (96.5 in) |
Fluid Capacities
| Parameter | Specification |
|---|---|
| Fuel Tank Volume | 120 L (31.7 gal) |
| Engine Oil Capacity | 7.5 L (2.0 gal) |
| Cooling System Capacity | 11 L (2.9 gal) |
| Swing Drive Oil Capacity | 2.5 L (0.66 gal) |
| Final Drive Oil Capacity (per side) | 1.8 L (0.48 gal) |
