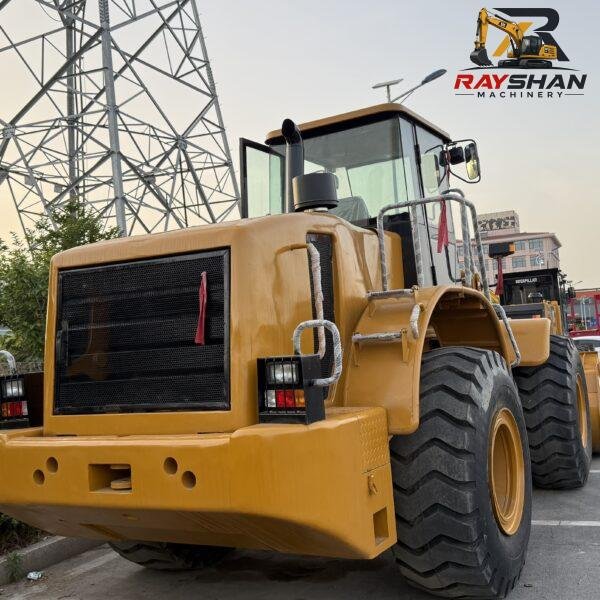

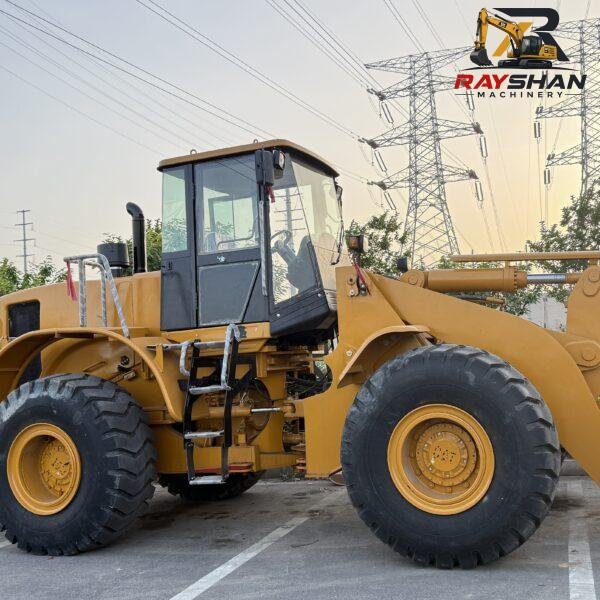

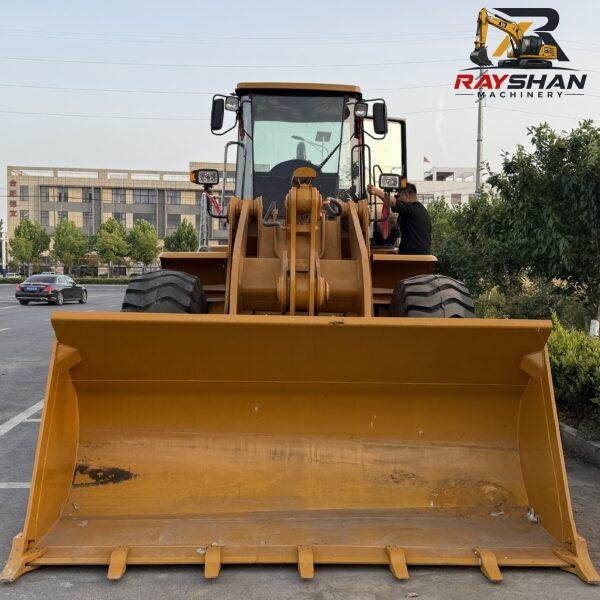

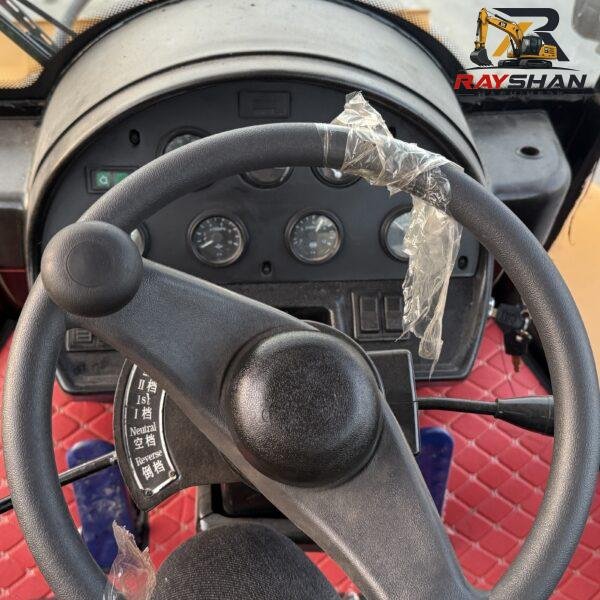

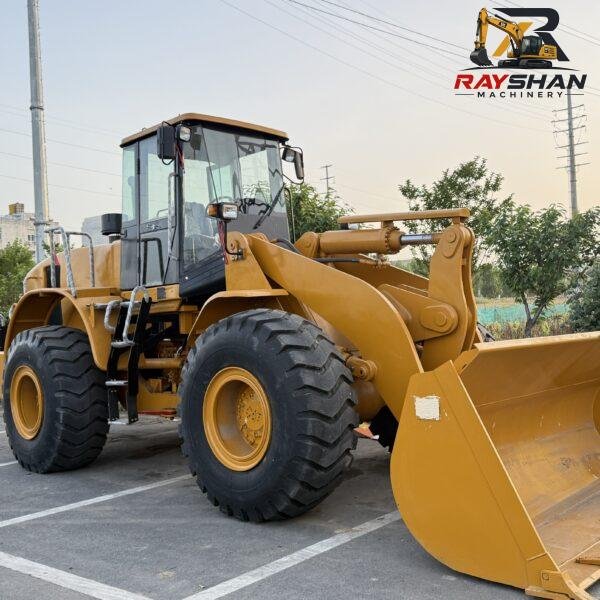

Used CAT 966H Excavator 24ton for sale original paint
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
*Proven Dependability: With verified low operating hours and a complete service history, this machine has consistently excelled in demanding tasks like mining and road construction. Trusted by contractors globally, it’s a reliable workhorse for any project.
1. Core Power & Powertrain (Engine)

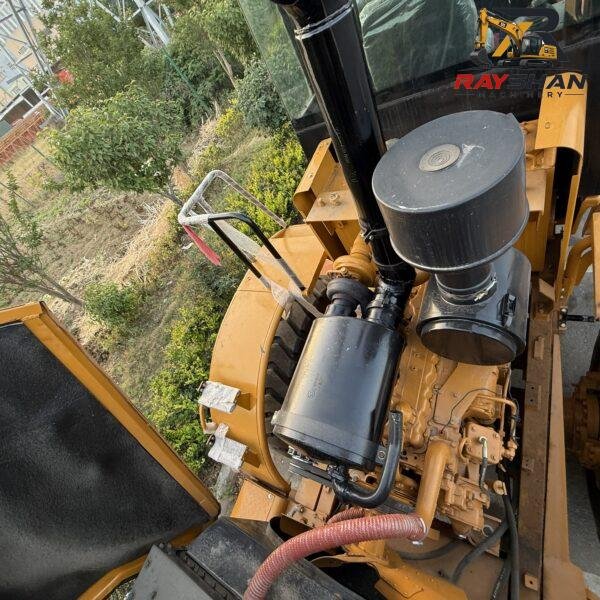

The 2009 model is equipped with the CAT C11 ACERT engine. This engine is highly respected in global markets for balancing high-torque performance with efficient fuel management.
| Parameter | Metric System | Imperial System | Technical Remarks |
| Engine Model | CAT C11 ACERT | CAT C11 ACERT | Inline 6-cylinder, Turbocharged |
| Net Flywheel Power | 195 kW | 262 hp | Rated @ 1800 rpm (ISO 9249) |
| Gross Power | 215 kW | 288 hp | Maximum engine structural capacity |
| Displacement | 11.1 L | 677 cu in | Robust displacement for heavy-duty cycling |
2. Weight, Capacities & Logistics Dimensions
These figures are essential for international freight forwarders to calculate shipping configurations (RORO, Flat Rack, or containerization) and road transit clearances.
| Parameter | Metric System | Imperial System | Shipping & Logistics Relevance |
| Operating Weight | 23,800 kg | 52,470 lbs | Standard configuration with GP bucket |
| Transport Length | 8,800 mm | 28.87 ft | Bucket flat on ground |
| Width Over Tires | 2,980 mm | 9.78 ft | Standard shipping width |
| Height to Top of Cab | 3,580 mm | 11.75 ft | Critical overhead clearance line |
| Fuel Tank Capacity | 416 L | 110 gal | Designed for extended site autonomy |
| Hydraulic Tank Cap. | 115 L | 30.4 gal | Core fluid reservoir volume |
3. Loader Performance & Hydraulics
Features the proven CAT Load-Sensing hydraulic system, which provides precise implement control and reduces thermal energy loss, increasing efficiency during high-cycle loading.
| Parameter | Metric System | Imperial System | Field Performance Indicator |
| Standard Bucket Cap. | 4.2 m³ | 5.5 yd³ | Performance Series Pin-on type |
| Breakout Force | 175 kN | 39,340 lbf | Maximum aggregate penetration power |
| Static Tipping Load | 14,800 kg | 32,628 lbs | Rated @ full 37° turn |
| B-Pin Height (Max) | 4,250 mm | 13.94 ft | Maximum structural lift clearance |
| Total Cycle Time | 9.8 seconds | 9.8 seconds | Combined lift, dump, and lower sequence |
4. Drivetrain & Travel Logistics
Built with a heavy-duty planetary power-shift transmission, enabling smooth shifting and high reliability in demanding environments like mining and mass excavation.
| Parameter | Metric System | Imperial System | Underfoot Mobility |
| Transmission Type | Power-Shift | Power-Shift | 4 Forward / 4 Reverse automatic gears |
| Max Speed (Forward) | 38.0 km/h | 23.6 mph | Rapid site-to-site roading capability |
| Max Speed (Reverse) | 40.0 km/h | 24.8 mph | High-speed reverse for efficient cycle loading |
| Service Brake Type | Wet Disc | Wet Disc | Hydraulically activated enclosed system |
| Standard Tire Config. | 26.5R25 | 26.5R25 | L3 earthmover tread pattern |
Commercial Note for Export
The 2009 CAT 966H remains a benchmark in the secondary equipment market. Its design avoids excessive electronic complexity found in newer models, making it easier to maintain in regions with limited diagnostic infrastructure. Its high liquidity and the global availability of high-quality aftermarket parts ensure a predictable and low total cost of ownership for international operators.
