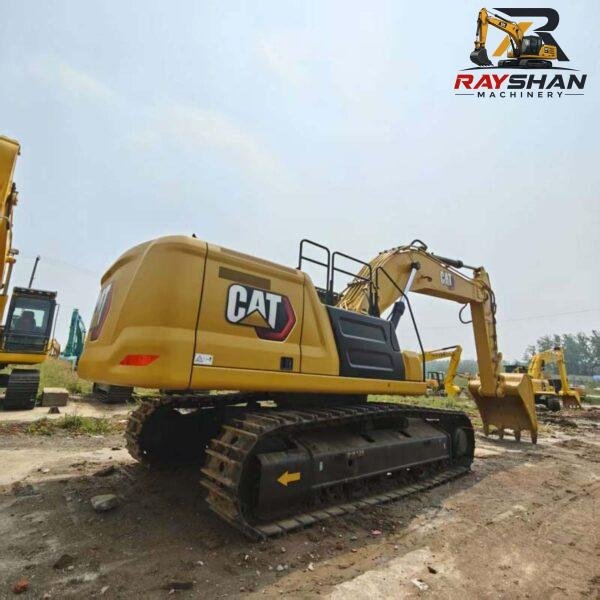

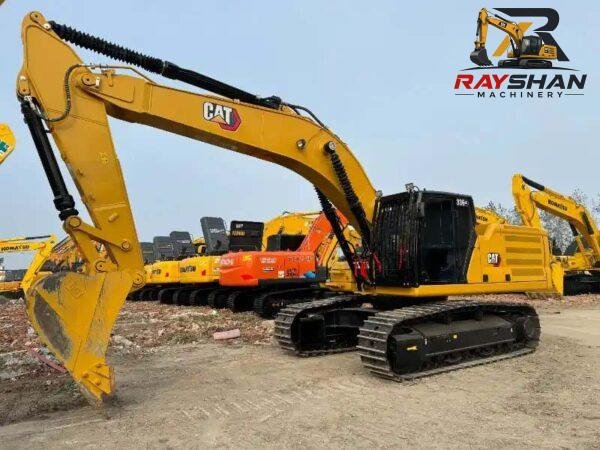

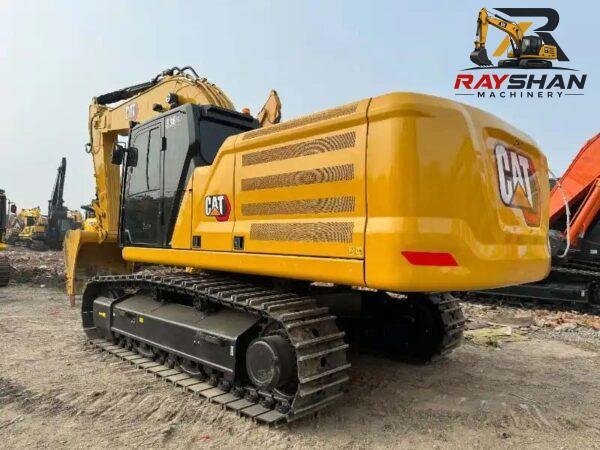

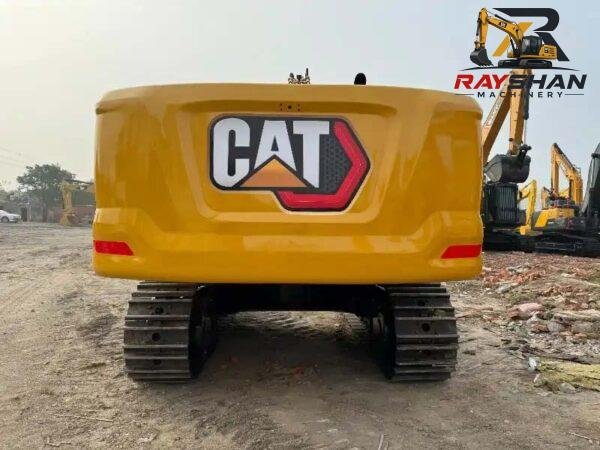

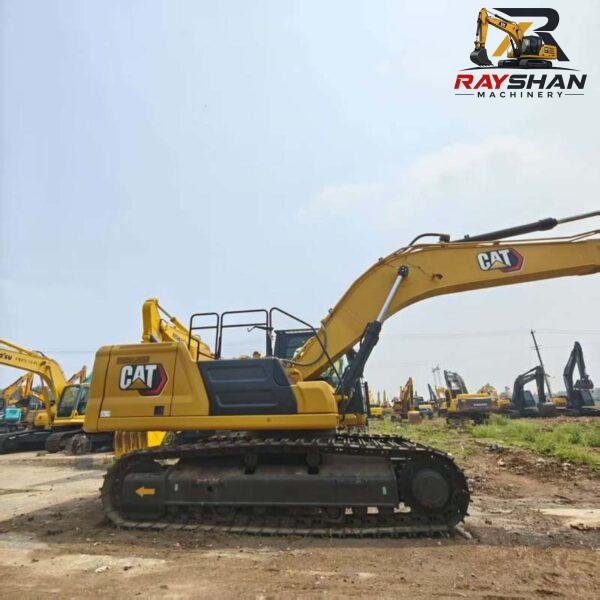

Used CAT 336GC Excavator 36ton for SALE High Resale Value
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
*Proven Dependability: With verified low operating hours and a complete service history, this machine has consistently excelled in demanding tasks like mining and road construction. Trusted by contractors globally, it’s a reliable workhorse for any project.
1. Core Power & Powertrain (Engine)
The 2022 Next-Gen GC model features an electronically controlled, turbocharged powertrain designed to match hydraulic demand precisely, maximizing fuel economy while meeting international tier-matching emissions benchmarks.
| Parameter | Metric System | Imperial System | Technical Remarks |
| Engine Model | CAT C7.1 | CAT C7.1 | Electronic common rail, Turbocharged |
| Net Flywheel Power | 195 kW | 262 hp | Rated @ 2200 rpm (ISO 9249) |
| Gross Power | 196 kW | 263 hp | Total engine power capacity (ISO 14396) |
| Displacement | 7.01 L | 428 cu in | Inline 6-cylinder high-efficiency setup |
2. Weight, Capacities & Logistics Dimensions
Exact logistics boundaries required by global freight forwarders for calculating ocean transit routing (RORO booking, Flat Rack configurations) and standard commercial road clearances.
| Parameter | Metric System | Imperial System | Shipping & Logistics Relevance |
| Operating Weight | 34,900 kg | 76,900 lbs | Standard 36-ton class Next-Gen asset baseline |
| Transport Length | 11,170 mm | 36.65 ft | Boom lowered shipping position |
| Transport Width | 3,190 mm | 10.47 ft | Fixed chassis width with standard 600 mm shoes |
| Transport Height | 3,530 mm | 11.58 ft | Top of cab/boom shipping clearance line |
| Fuel Tank Capacity | 600 L | 158.5 gal | High-capacity tank optimized for Next-Gen economy |
| Hydraulic Tank Cap. | 185 L | 48.9 gal | Core fluid reservoir volume declaration |

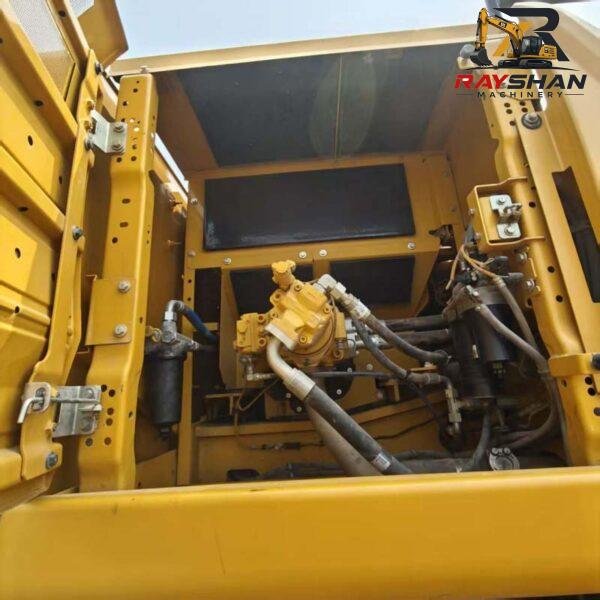

3. Hydraulic & Structural Systems
Features CAT’s advanced electro-hydraulic system, which completely removes traditional pilot lines to eliminate cabin heat, reduce risk of pilot leaks, and lower overall thermodynamic energy loss.
| Parameter | Metric System | Imperial System | Field Performance Indicator |
| Max Implement Flow | 558 L/min | 147 gal/min | Advanced electronic main pump control |
| Implement Pressure | 35,000 kPa | 5,076 psi | Normal working circuit threshold |
| Swing Speed | 8.75 rpm | 8.75 rpm | High-efficiency cycle rotation speed |
| Swing Torque | 137 kN-m | 101,040 lb-ft | Heavy lateral slewing aggregation force |

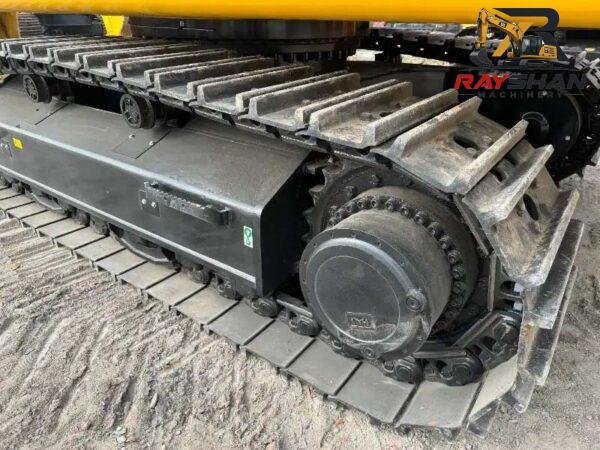

4. Undercarriage & Ground Logistics
Built with a heavy-duty Next-Gen carbody structure and standardized tie-down infrastructure designed to lower ground bearing pressure while maintaining excellent tie-down stability during transit.
| Parameter | Metric System | Imperial System | Underfoot Durability |
| Standard Shoe Width | 600 mm | 24 in | Triple grouser track pads |
| Track Gauge | 2,590 mm | 8.50 ft | Standard balance track layout |
| Max Travel Speed | 4.7 km/h | 2.92 mph | Dual-speed auto shift travel drives |
| Max Drawbar Pull | 294 kN | 66,094 lbs | High slope-climbing and towing capability |
5. Working Ranges (Standard 3.2 m / 10’6″ Stick)
Definitive digging profiles enabling regional procurement managers to match job-site excavation criteria.
| Parameter | Metric System | Imperial System |
| Max Digging Depth | 7,530 mm | 24.70 ft |
| Max Reach Along Ground | 11,040 mm | 36.22 ft |
| Max Cutting Height | 10,240 mm | 33.60 ft |
| Max Loading Height | 7,160 mm | 23.49 ft |
| Standard Bucket Capacity | 1.88 m3 | 2.46 yd3 |
