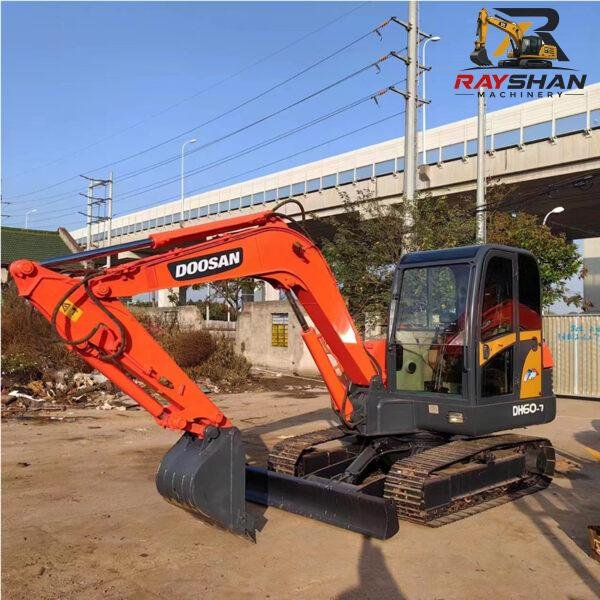

Used DOOSAN DX60 Excavator 6ton for sale Efficient Hydraulic Response
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
*Proven Dependability: With verified low operating hours and a complete service history, this machine has consistently excelled in demanding tasks like mining and road construction. Trusted by contractors globally, it’s a reliable workhorse for any project.
1. Core Power & Powertrain (Engine)

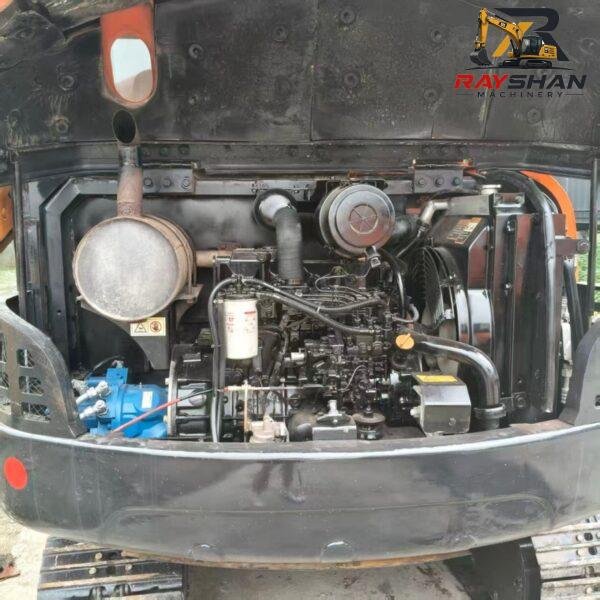

The DX60 is equipped with a high-efficiency, industrial-grade engine designed to provide reliable, low-vibration power, optimized for the rapid cycle times required in urban environments.
| Parameter | Metric System | Imperial System | Technical Remarks |
| Engine Model | Kubota V2403 | Kubota V2403 | 4-cylinder, Liquid-cooled |
| Net Flywheel Power | 44 kW | 59 hp | Rated @ 2,200 rpm |
| Displacement | 2.43 L | 148 cu in | Compact power for high-torque tasks |
| Emission Standard | Tier 4 Final / Stage V | Tier 4 Final / Stage V | Global export configuration |
2. Weight, Capacities & Logistics Dimensions
These metrics are critical for logistics and fleet mobilization. The “R” (Reduced Tail Swing) design allows for safe operation near walls and in narrow streets, while maintaining a compact transport footprint.
| Parameter | Metric System | Imperial System | Shipping & Logistics Relevance |
| Operating Weight | 5,900 kg | 13,007 lbs | Standard configuration with bucket |
| Transport Length | 5,500 mm | 18.04 ft | Highly compact for easy transport |
| Transport Width | 1,980 mm | 6.50 ft | Optimized for standard road hauling |
| Transport Height | 2,550 mm | 8.37 ft | Clearance-compliant for standard haulers |
| Fuel Tank Capacity | 80 L | 21.1 gal | Sized for a full work-day endurance |
3. Hydraulic & Digging Performance
The hydraulic system is engineered for responsiveness, providing the “silk-smooth” control necessary for final grading and utility work while maintaining the breakout force required for site preparation.
| Parameter | Metric System | Imperial System | Field Performance Indicator |

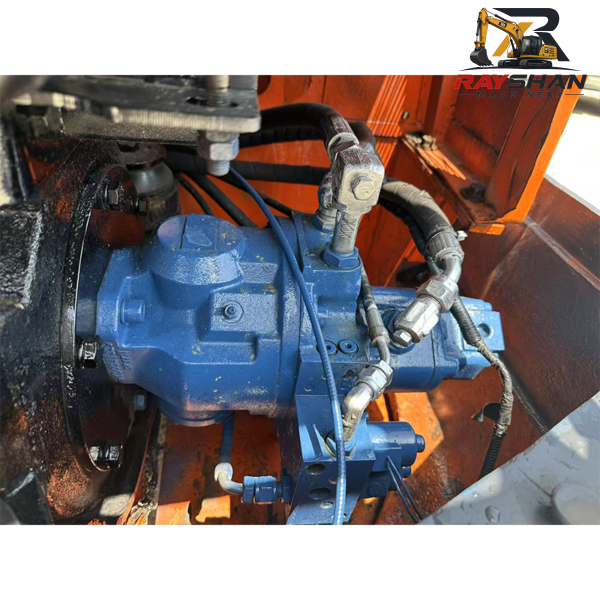

| Max System Flow | 112 L/min | 29.6 gal/min | Variable displacement piston pump |
| Operating Pressure | 24,000 kPa | 3,480 psi | High relief for responsive digging |
| Swing Speed | 9.0 rpm | 9.0 rpm | Fast cycle times for utility trenching |
| Bucket Breakout Force | 44 kN | 9,890 lbf | Robust penetration for 6-ton class |
| Stick Digging Force | 28 kN | 6,290 lbf | Strong power for deep utility work |
4. Undercarriage & Mobility
Designed for stability in tight quarters, the undercarriage offers the traction necessary to navigate uneven job-site terrain without compromising surface integrity.
| Parameter | Metric System | Imperial System | Underfoot Mobility |
| Standard Shoe Width | 400 mm | 16 in | Triple grouser heavy-duty tracks |
| Max Travel Speed | 4.3 km/h | 2.7 mph | Dual-speed auto-shift capability |
| Max Traction Force | 55 kN | 12,365 lbf | Excellent incline performance |
| Ground Pressure | 32.0 kPa | 4.64 psi | Minimal impact for urban surfaces |
5. Working Ranges
Defining the essential operational envelope for municipal utility installation, foundation work, and landscaping.
| Parameter | Metric System | Imperial System |
| Max Digging Depth | 3,800 mm | 12.47 ft |
| Max Reach (Ground) | 6,100 mm | 20.01 ft |
| Max Cutting Height | 5,800 mm | 19.03 ft |
| Max Loading Height | 4,200 mm | 13.78 ft |
