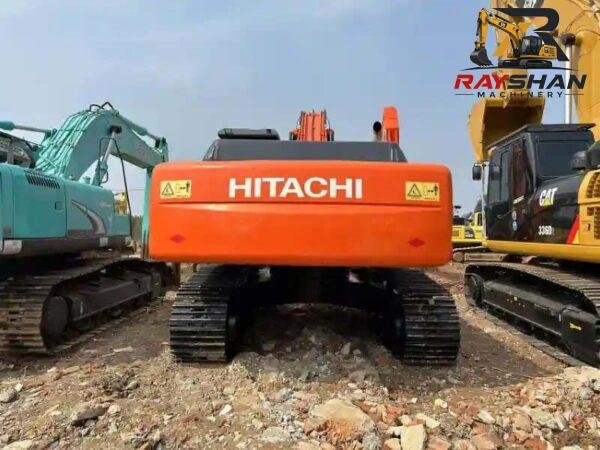

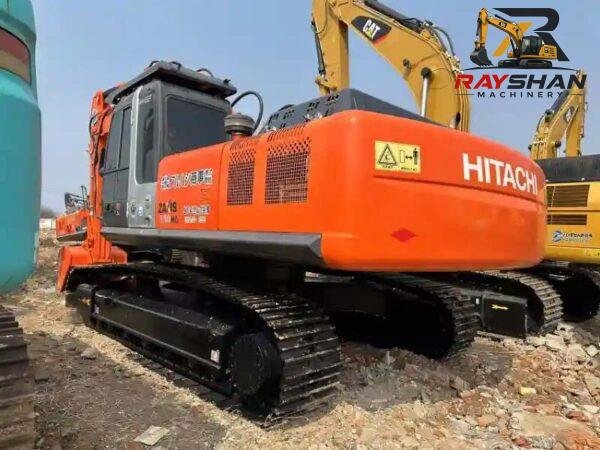

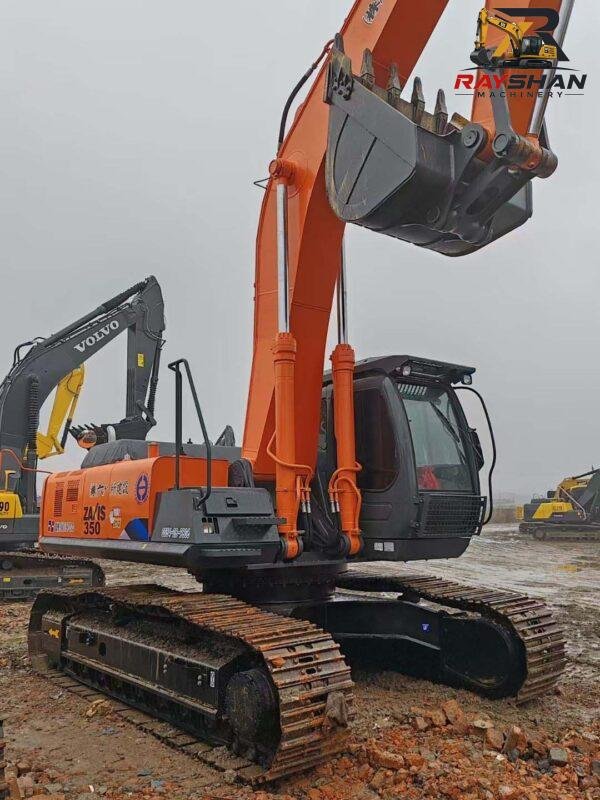

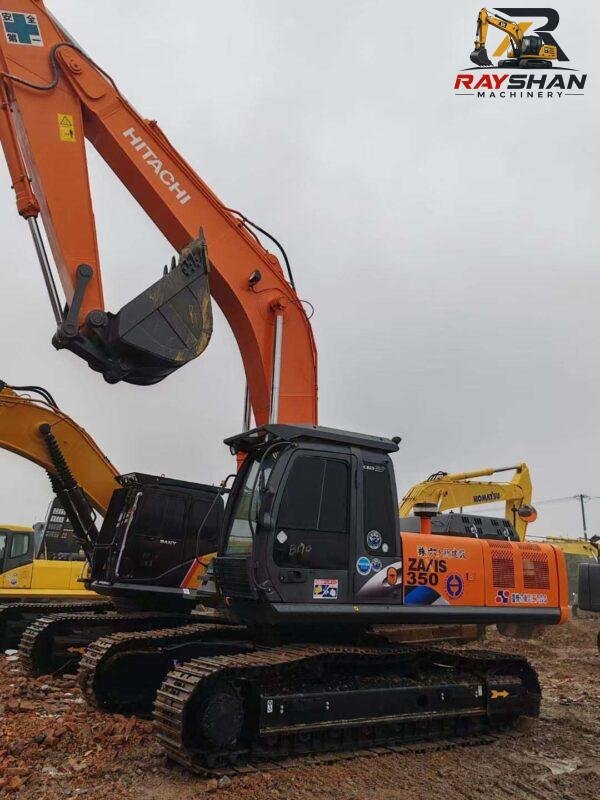

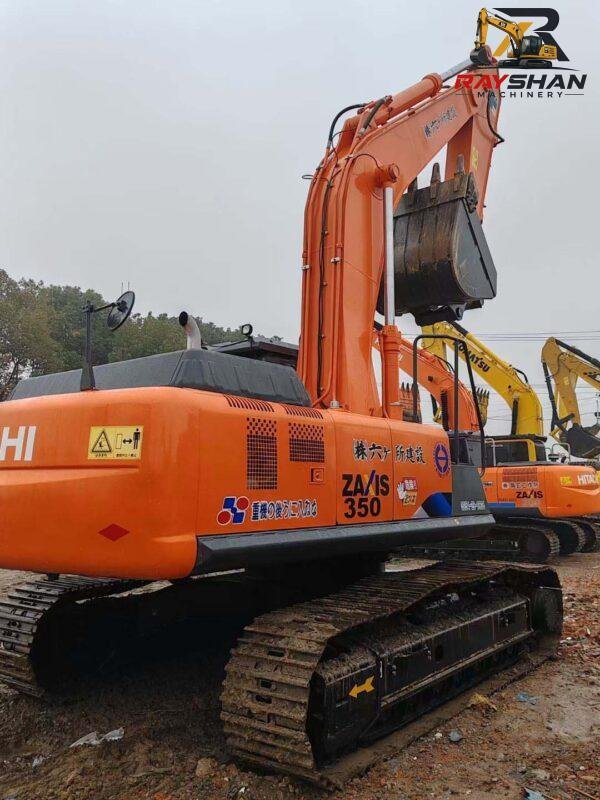

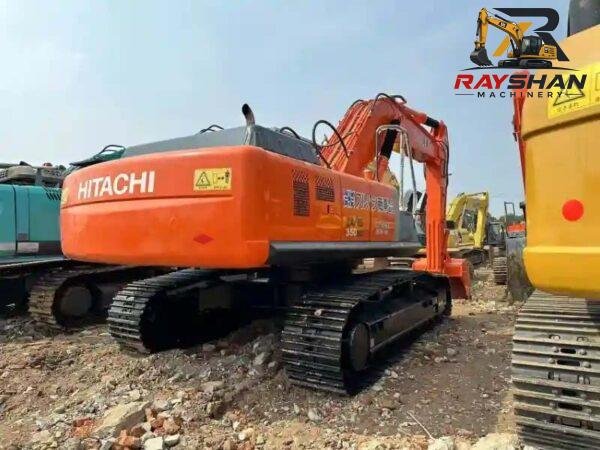

Used HITACHI 350 Excavator 35ton for sale Mining-Grade Structural Durability
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
1. Core Power & Powertrain (Engine)

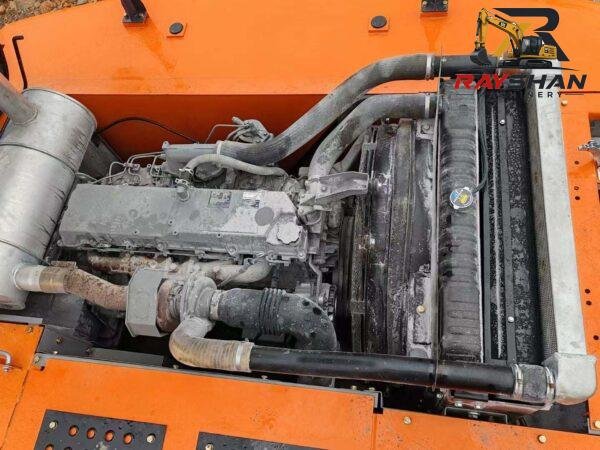

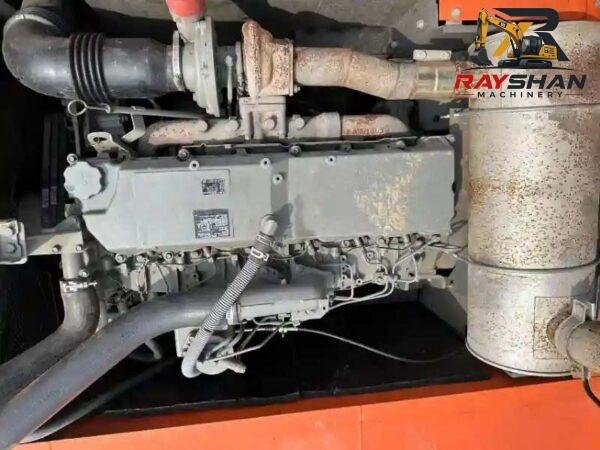

The ZX350-5 is driven by a high-torque Isuzu power plant. Engineered for extreme duty cycles, this engine is favored in international export markets for its thermal management, fuel efficiency, and ability to withstand non-ideal fuel conditions.
| Parameter | Metric System | Imperial System | Technical Remarks |
| Engine Model | Isuzu AH-6HK1XYSA | Isuzu AH-6HK1XYSA | 6-cylinder, Turbocharged, Aftercooled |
| Net Flywheel Power | 184 kW | 247 hp | Rated @ 1,900 rpm |
| Displacement | 7.8 L | 475 cu in | Optimized torque reserve for heavy loads |
| Emission Standard | Tier 3 / Stage IIIA | Tier 3 / Stage IIIA | Highly resilient for global site conditions |
2. Weight, Capacities & Logistics Dimensions
The ZX350-5 is built with reinforced plate steel to handle the massive breakout forces required for primary rock extraction. Its design is standardized to ensure compatibility with global heavy-haul logistical requirements.
| Parameter | Metric System | Imperial System | Shipping & Logistics Relevance |
| Operating Weight | 35,200 kg | 77,600 lbs | High-density mining-grade configuration |
| Transport Length | 11,280 mm | 37.01 ft | Fits standard heavy-haul flatbed trailers |
| Transport Width | 3,190 mm | 10.47 ft | Optimized footprint for site stability |
| Transport Height | 3,240 mm | 10.63 ft | Clearance-compliant for major road transit |
| Fuel Tank Capacity | 560 L | 148.0 gal | Designed for extended high-production shifts |
3. Hydraulic & Digging Performance

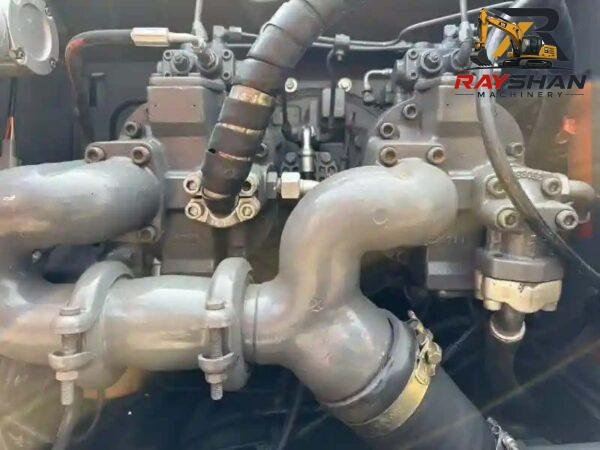

Hitachi’s HIOS III hydraulic system is engineered for simultaneous “multi-function” operation. It provides the necessary high-pressure flow to maintain cycle speeds even when working against dense, consolidated material.
| Parameter | Metric System | Imperial System | Field Performance Indicator |

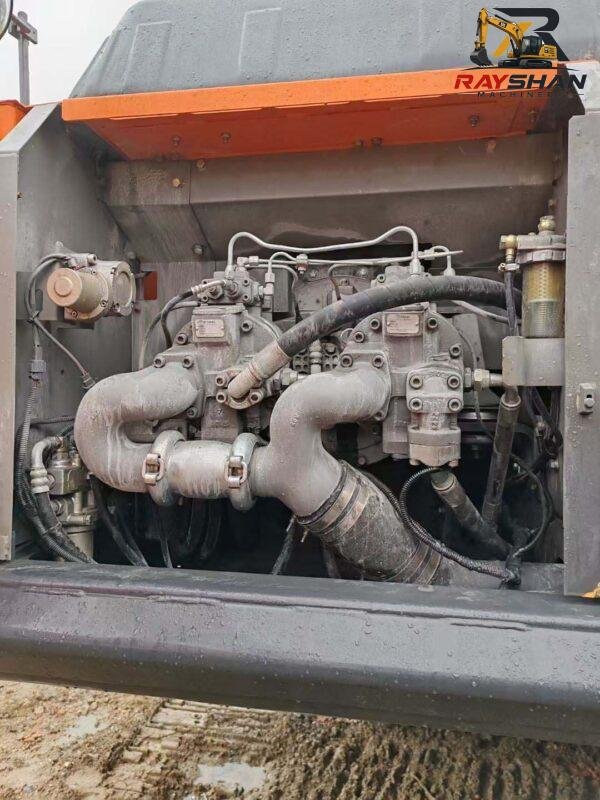

| Max System Flow | 2 x 288 L/min | 2 x 76.1 gal/min | Dual-pump variable displacement system |
| Operating Pressure | 34,300 kPa | 4,975 psi | Sustained power for rock-breaking work |

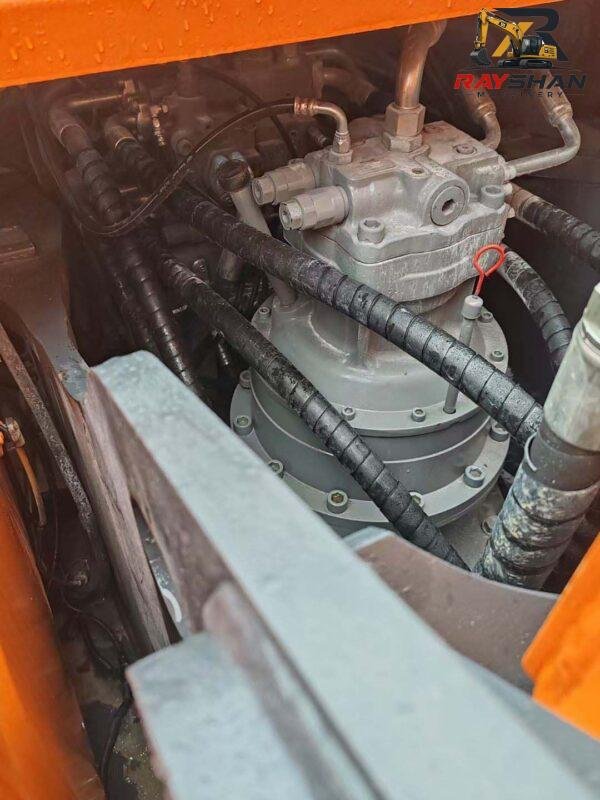

| Swing Speed | 10.2 rpm | 10.2 rpm | High torque for rapid bulk material discharge |
| Bucket Breakout Force | 227 kN | 51,030 lbf | Elite force for primary extraction |
| Stick Digging Force | 168 kN | 37,765 lbf | Robust power for heavy-duty trenching |
4. Undercarriage & Mobility

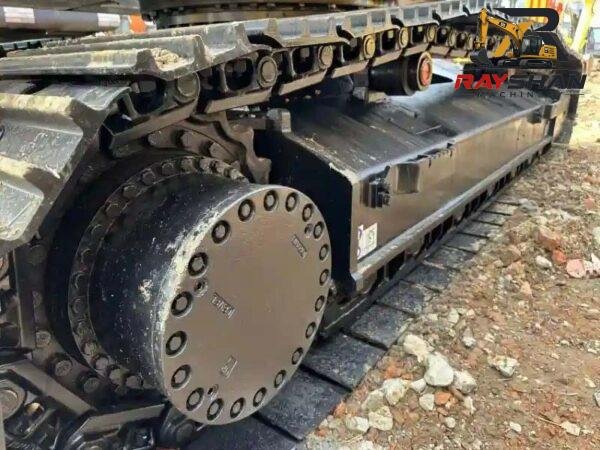

The undercarriage features heat-treated track links and reinforced idler frames, specifically engineered to endure the abrasive impact of quarrying, mining, and large-scale land clearing.
| Parameter | Metric System | Imperial System | Underfoot Mobility |
| Standard Shoe Width | 600 mm | 24 in | Triple grouser heavy-duty track pads |
| Max Travel Speed | 5.5 km/h | 3.4 mph | Dual-speed auto-shift for mobilization |
| Max Traction Force | 304 kN | 68,340 lbf | Massive torque for climbing inclines |
| Ground Pressure | 64.0 kPa | 9.28 psi | Stable footing for high-impact duty |
5. Working Ranges
Defining the operational capability for large-scale mining, mass earthmoving, and foundational industrial infrastructure development.
| Parameter | Metric System | Imperial System |
| Max Digging Depth | 7,380 mm | 24.21 ft |
| Max Reach (Ground) | 11,100 mm | 36.42 ft |
| Max Cutting Height | 10,230 mm | 33.56 ft |
| Max Loading Height | 7,160 mm | 23.49 ft |
