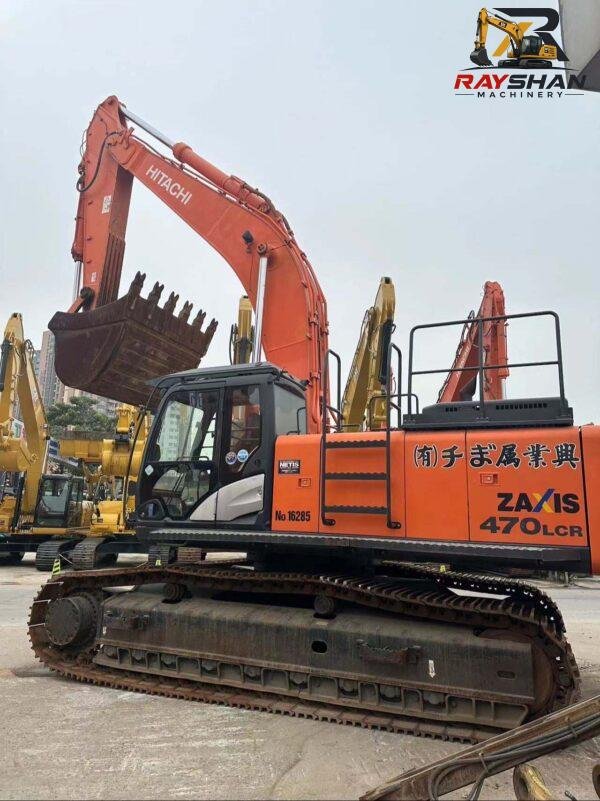

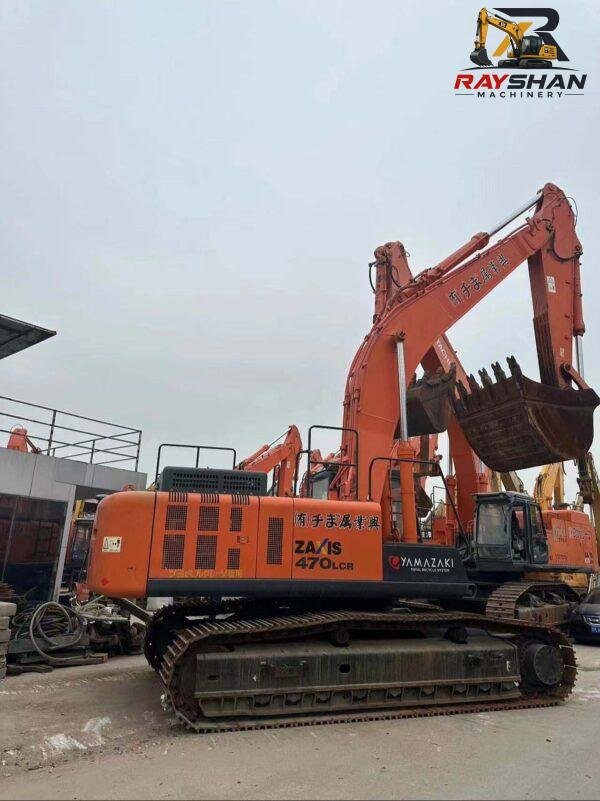

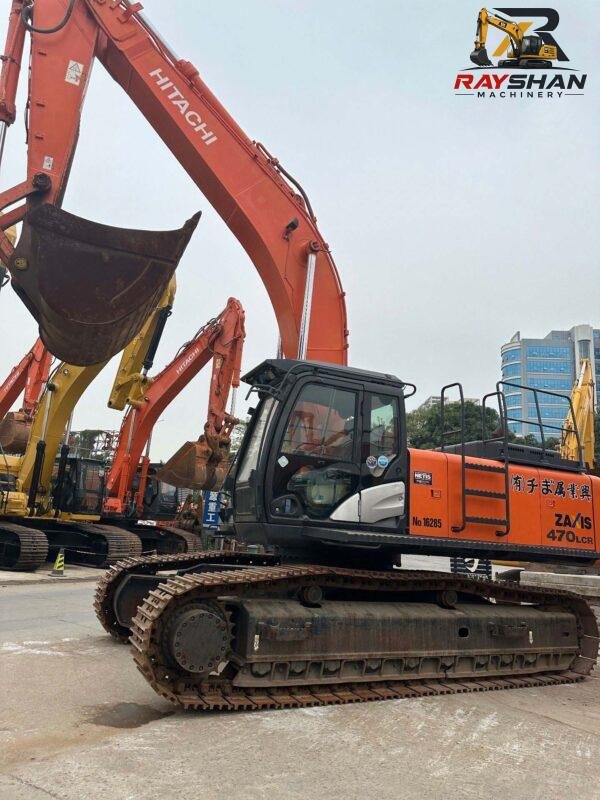

Used HITACHI 470-5G Excavator 47ton for sale Precise Hydraulic Control
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.

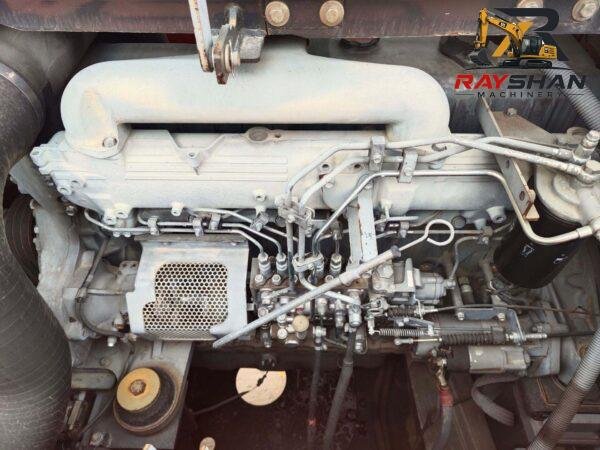

1. Core Power & Powertrain (Engine)
The ZX470-5G is powered by a high-displacement industrial engine designed for sustained high-torque performance. This ensures consistent productivity in continuous, high-load duty cycles typical of deep-pit mining and bulk material extraction.
| Parameter | Metric System | Imperial System | Technical Remarks |
| Engine Model | Isuzu AH-6WG1XYSA | Isuzu AH-6WG1XYSA | 6-cylinder, Turbocharged, Aftercooled |
| Net Flywheel Power | 250 kW | 335 hp | Rated @ 1,800 rpm |
| Displacement | 15.7 L | 958 cu in | Massive torque reserve for heavy duty |
| Emission Standard | Tier 2 / Stage II equivalent | Tier 2 / Stage II equivalent | Optimized for global high-uptime reliability |
2. Weight, Capacities & Logistics Dimensions
The ZX470-5G is built with reinforced high-tensile steel, providing the structural mass necessary for elite-level breakout forces. These dimensions are formatted to facilitate efficient international heavy-haul logistics.
| Parameter | Metric System | Imperial System | Shipping & Logistics Relevance |
| Operating Weight | 47,200 kg | 104,050 lbs | Heavy-duty mining-grade structural mass |
| Transport Length | 12,050 mm | 39.53 ft | Standard heavy-haul flatbed compatible |
| Transport Width | 3,460 mm | 11.35 ft | Wide stance for high-impact stability |
| Transport Height | 3,590 mm | 11.78 ft | Optimized for standard transport routes |
| Fuel Tank Capacity | 710 L | 187.6 gal | Designed for extended high-production shifts |

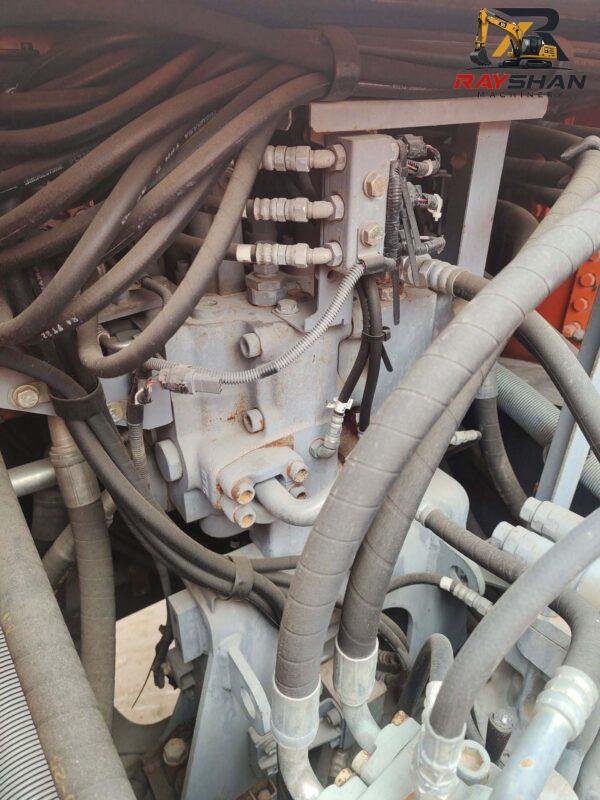

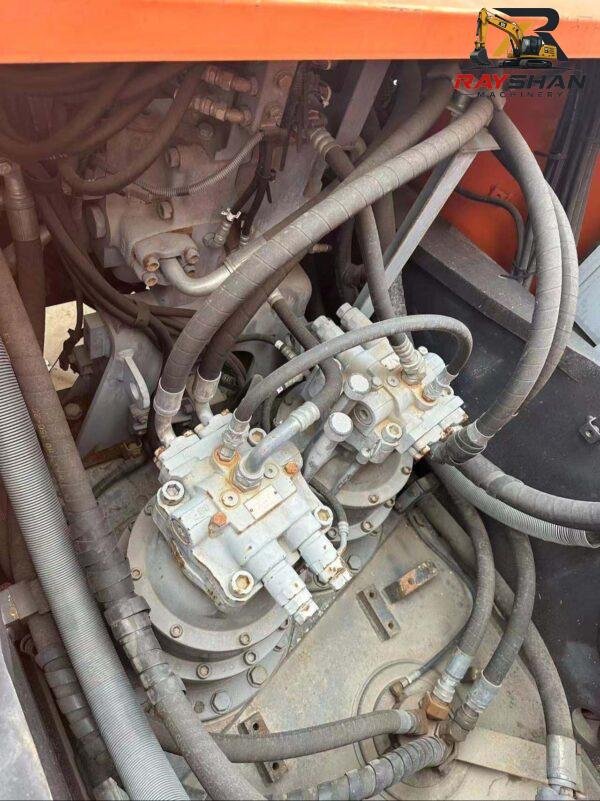

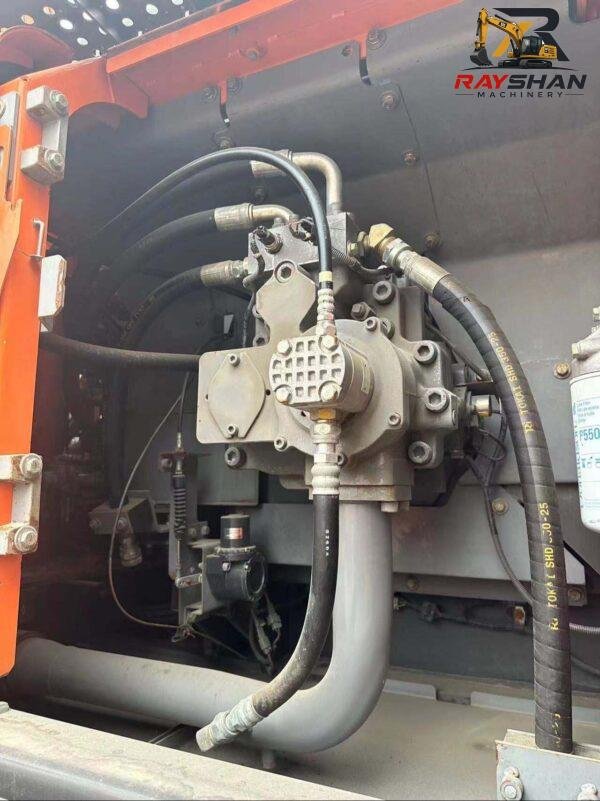

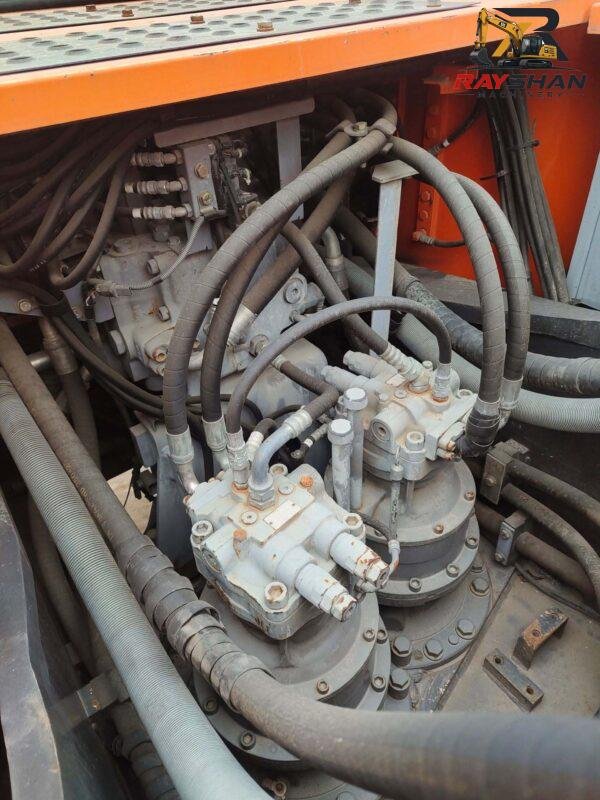

3. Hydraulic & Digging Performance
Featuring Hitachi’s signature HIOS III (Human & Intelligent Operation System), the ZX470-5G provides the rapid, high-pressure hydraulic response required to minimize cycle times in dense material loading.
| Parameter | Metric System | Imperial System | Field Performance Indicator |
| Max System Flow | 2 x 380 L/min | 2 x 100.4 gal/min | High-volume variable displacement pumps |
| Operating Pressure | 34,300 kPa | 4,975 psi | Peak relief for severe digging resistance |
| Swing Speed | 9.0 rpm | 9.0 rpm | Optimized swing torque for bulk loading |
| Bucket Breakout Force | 258 kN | 58,000 lbf | Elite force for primary rock extraction |
| Stick Digging Force | 212 kN | 47,660 lbf | Robust power for massive trenching/loading |

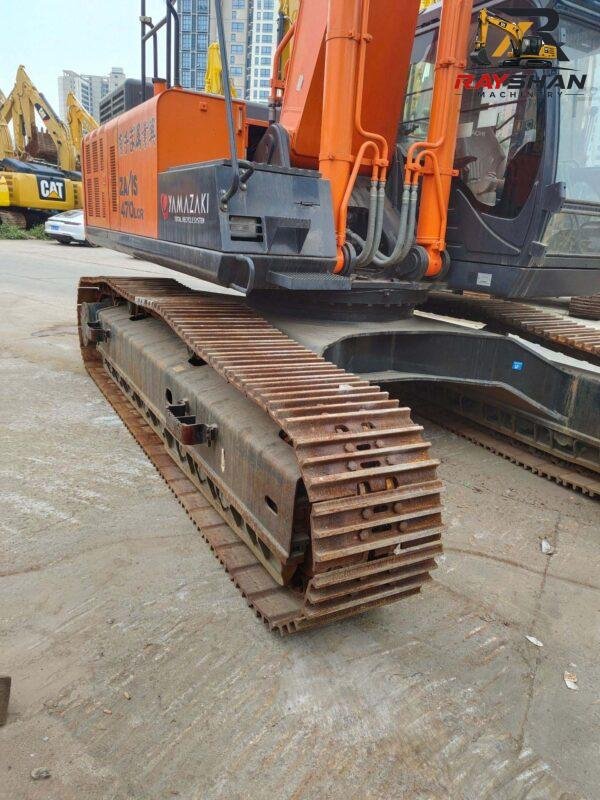

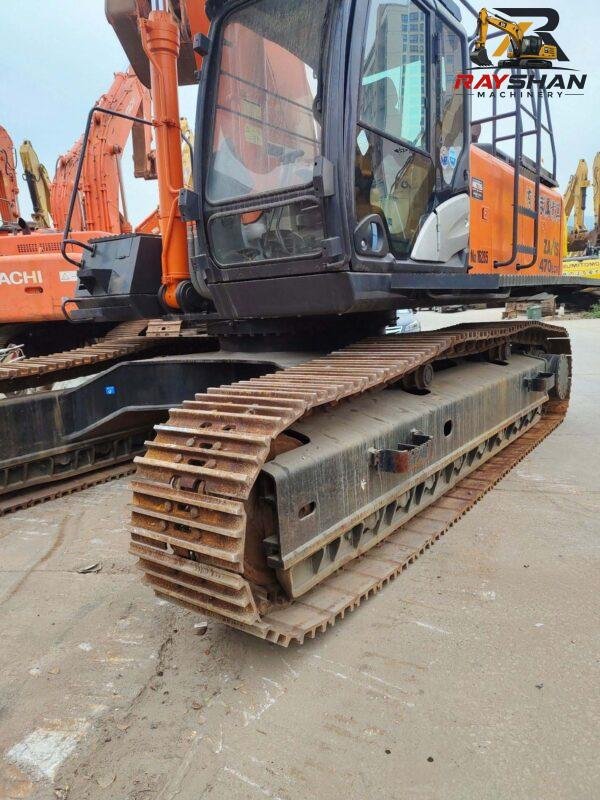

4. Undercarriage & Mobility
Designed for “Mine-Ready” durability, the undercarriage features reinforced track frames and heat-treated components to survive the extreme environmental stresses of quarrying and hard-rock environments.
| Parameter | Metric System | Imperial System | Underfoot Mobility |
| Standard Shoe Width | 600 mm | 24 in | Triple grouser heavy-duty track pads |
| Max Travel Speed | 5.0 km/h | 3.1 mph | Dual-speed auto-shift for site transit |
| Max Traction Force | 370 kN | 83,180 lbf | Exceptional climbing power for inclines |
| Ground Pressure | 82.0 kPa | 11.89 psi | Stable footing for high-output operations |
5. Working Ranges
Defining the operational capability for large-scale mining, major industrial foundations, and mass excavation site development.
| Parameter | Metric System | Imperial System |
| Max Digging Depth | 7,720 mm | 25.33 ft |
| Max Reach (Ground) | 11,850 mm | 38.88 ft |
| Max Cutting Height | 10,930 mm | 35.86 ft |
| Max Loading Height | 7,650 mm | 25.10 ft |
