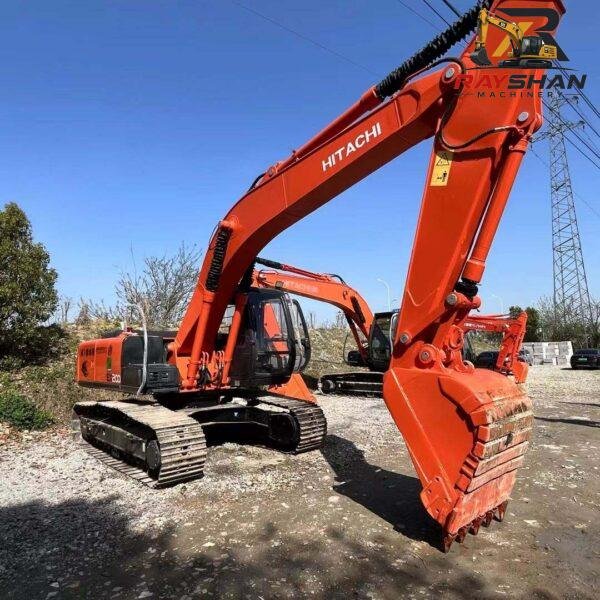

Used HITACHI ZX200 Excavator 20ton for sale Excellent Structural Durability
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
1. Core Identification & Basic Trade Specifications
| Parameter | Specification | Trade & Compliance Notes |
|---|---|---|
| Official Model Code | ZX200 (ZAXIS 200) | Hitachi’s flagship 20-ton class tracked excavator, first-generation ZAXIS series |
| Original Production Period | 2000–2010 | Primary production run; 85% of units in global used trade are 2003–2008 vintages |
| Standard Operating Weight | 19,800 kg (43,650 lbs) | Base configuration; 20,400 kg (44,975 lbs) for LC long-track variant |
| Containerized Shipping Weight | 18,500 kg (40,785 lbs) | Dismantled for standard 40ft HQ container export (no oversize fees for most markets) |
| Standard Transport Dimensions (L×W×H) | 9,450 mm × 2,860 mm × 3,000 mm | Road-legal for most Southeast Asian, African, Middle Eastern, and Latin American markets |
| Target Export Markets | Global non-regulated & emerging markets | Tier 2/Tier 3 emission compliant, no strict aftertreatment requirements for most import regions |
| Primary Factory Application | General construction, trenching, truck loading, grading, light demolition, quarry work | High versatility for mixed job sites, a top selling point for trade buyers |

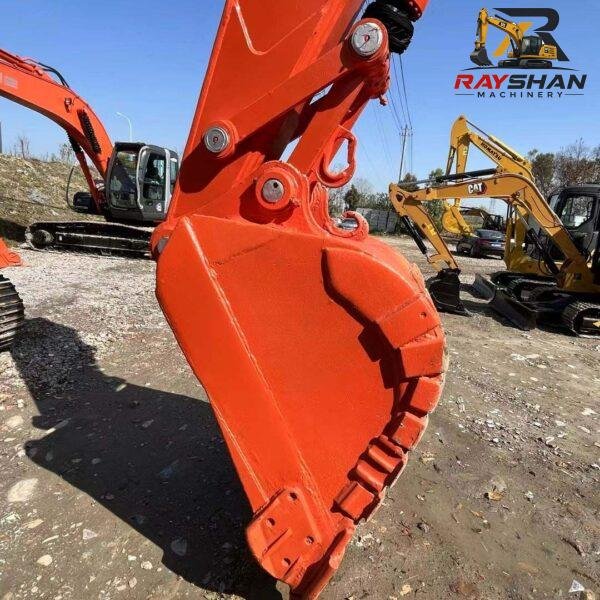

| Standard Bucket Configuration | 1.0 m³ (1.31 yd³) general-purpose digging bucket | Factory standard; compatible with 0.51–1.20 m³ (0.67–1.57 yd³) bucket range |
2. Engine Technical Specifications
| Parameter | Specification | Trade & Reliability Notes |
|---|---|---|

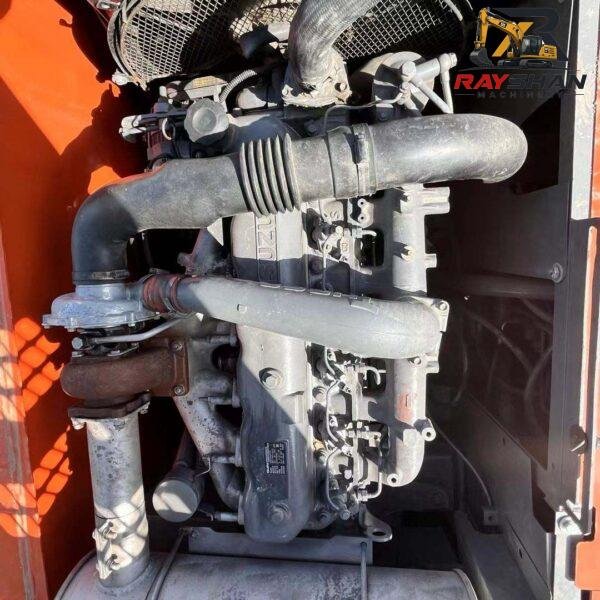

| Manufacturer & Model | Isuzu 6BG1T (early units) / Isuzu 4HK1X (late units) | Legendary Japanese diesel engines, global parts availability is near-universal |
| Engine Type | 4-stroke, water-cooled, direct-injection turbocharged diesel | No complex electronic common rail system on early units; minimal maintenance for remote regions |
| Cylinder Configuration | 6-cylinder in-line (6BG1T) / 4-cylinder in-line (4HK1X) | |
| Rated Net Power | 113 kW (152 HP) @ 2,000 RPM (6BG1T) / 122 kW (163 HP) @ 2,000 RPM (4HK1X) | |
| Maximum Torque | 638 Nm @ 1,500 RPM (6BG1T) / 652 Nm @ 1,500 RPM (4HK1X) | High low-end torque for heavy digging, uphill operation, and high-load attachments |
| Fuel System | Mechanical injection pump (6BG1T) / Electronic common rail (4HK1X) | Mechanical variant eliminates ECU/electronic failure points, preferred for harsh remote job sites |
| Emission Standard | EU Stage II / US EPA Tier 2 | Fully compliant for 90% of global non-urban markets; no DPF/SCR aftertreatment required |
| Air Filtration | Dual-stage dry air cleaner with dust ejector | Optimized for high-dust construction and quarry environments |
| Fuel Tank Capacity | 360 L (95 US gal) | Extended operating range for remote job sites, reduces frequent refueling |
| Engine Oil Change Interval | 500 operating hours | Standard global service interval, parts and service procedures standardized worldwide |
3. Hydraulic System Performance Specifications
| Parameter | Specification | Operational & Trade Notes |
|---|---|---|
| System Type | Hitachi Load-Sensing Hydraulic System (LHS) | Industry-leading smoothness, fuel efficiency, and consistent control; core differentiator from competing brands |

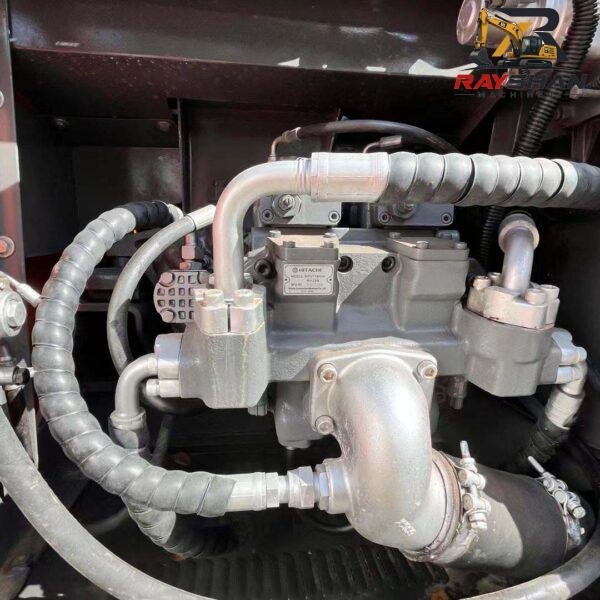

| Main Pump Configuration | 2 × variable displacement axial piston pumps + 1 × gear pilot pump | Independent flow distribution for simultaneous multi-function operations (digging, swinging, traveling) |
| Maximum System Flow | 2 × 212 L/min (55.9 US gal/min) | |
| Maximum Operating Pressure | 34.3 MPa (4,975 PSI) | Standard for 20-ton class excavators, sufficient for hydraulic breakers, grapples, and other high-demand attachments |

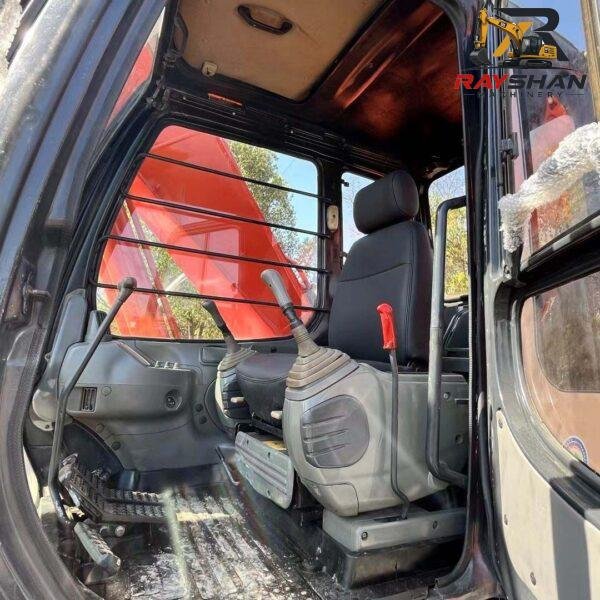

| Control System | Pilot-operated joystick control | Low operator fatigue, consistent control feel across all working modes; operator familiarity is a major trade selling point |

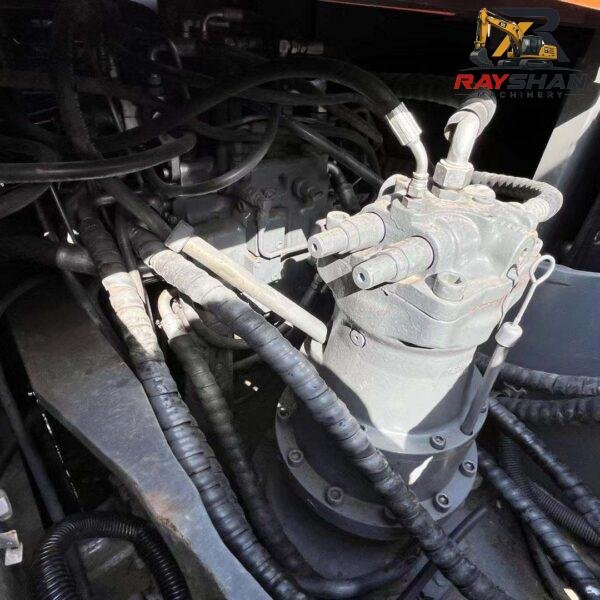

| Swing Motor | Axial piston motor with planetary reduction | |
| Swing Speed | 11.3 RPM | Fast cycle times for truck loading, trenching, and material handling |
| Swing Torque | 58 kNm | High swing torque for uphill digging, uneven terrain, and heavy load swinging |
| Auxiliary Hydraulic Circuit | Standard 2-way auxiliary circuit with adjustable flow | Fully compatible with all global standard attachments (hammers, grapples, augers, rippers, compactors) |
| Hydraulic Oil Tank Capacity | 200 L (52.8 US gal) | Standard service capacity, filter and oil change parts available globally |
4. Working Range & Digging Performance Specifications
| Parameter | Specification | Configuration Notes |
|---|---|---|
| Standard Arm Length | 2.91 m (9 ft 7 in) | Factory standard; 2.42 m (7 ft 11 in) short arm variant for heavy digging |
| Maximum Digging Reach (Ground Level) | 9,700 mm (31 ft 10 in) | |
| Maximum Digging Depth | 6,150 mm (20 ft 2 in) | |
| Maximum Dumping Height | 6,850 mm (22 ft 6 in) | Optimized for standard 10-wheel truck loading and material handling |
| Maximum Vertical Wall Digging Depth | 5,200 mm (17 ft 1 in) | |
| Bucket Breakout Force (ISO) | 158 kN (35,520 lbf) | At power boost, sufficient for hard soil, clay, and fractured rock digging |
| Arm Crowd Force (ISO) | 140 kN (31,470 lbf) | For standard 2.91m arm; 114 kN for 2.91m heavy-duty arm |
| Swing Bearing | Single-row ball bearing with internal teeth | Sealed for dust protection, long service life in harsh construction environments |

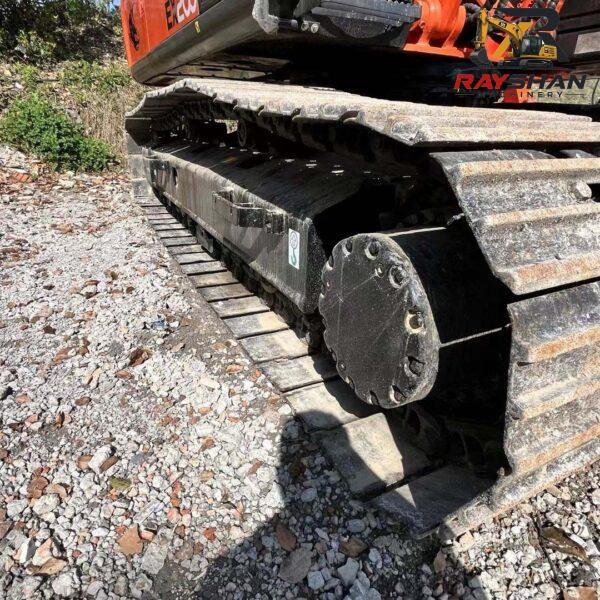

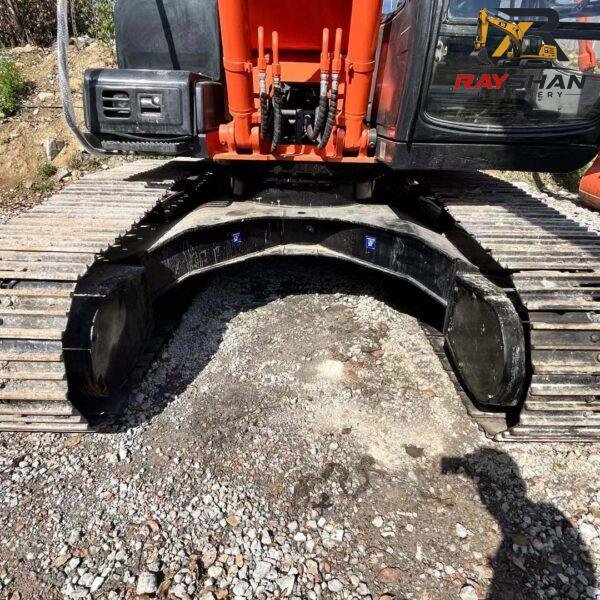

5. Undercarriage & Chassis Specifications
| Parameter | Specification | Terrain & Transport Notes |
|---|---|---|
| Standard Track Shoe Width | 600 mm (24 in) | Factory standard; 700 mm (28 in) / 800 mm (31 in) wide shoe variants for soft terrain |
| Track Gauge | 2,200 mm (87 in) | Standard for base model; 2,390 mm (94 in) for LC long-track variant |
| Ground Contact Pressure | 44.1 kPa (6.4 PSI) | For standard 600mm shoes; low ground pressure for soft, muddy terrain |
| Drive System | 2-speed hydrostatic travel drive | |
| Maximum Travel Speed | 5.5 km/h (3.4 mph) | High/low speed selection for job site mobility |
| Gradeability | 35° (70%) | Sufficient for steep construction access roads, quarry ramps, and uneven terrain |
| Track Roller Configuration | 7 bottom rollers + 2 top rollers per side | Standard heavy-duty configuration for long service life |
| Idler & Track Tension | Hydraulic track tension with grease cylinder | Easy to adjust, minimal maintenance, reduces track wear |
| Counterweight | Standard 3,200 kg (7,055 lbs) bolt-on counterweight | Easy to remove for container export, reduces shipping costs and simplifies customs clearance |
6. Trade-Focused Key Differentiators & Aftermarket Compatibility
| Feature | Specification | Trade Buyer Benefit |
|---|---|---|
| Global Parts Availability | 95% of all components are in stock across 120+ countries | No extended downtime waiting for parts; critical for trade buyers needing immediate operational units |
| Used Equipment Resale Value | 82% of original retail value after 5 years (in good condition) | One of the highest resale values in the 20-ton tracked excavator segment, a major selling point for trade buyers |
| Service Network Coverage | Hitachi authorized service centers in 80+ countries | Factory-trained technicians available for repair and support in most export markets |
| Attachment Compatibility | Fully compatible with all global standard excavator attachments | No custom adapters needed, immediate compatibility with local job site tools |
| Operating Cost Per Hour | Average $16–$20 USD/hour (fuel + maintenance) | Lower than most competing brands in the same class, a key metric for rental and construction companies |
| Local Market Popularity | Top 2 best-selling 20-ton tracked excavator in Southeast Asia, Africa, and the Middle East | High local demand means fast resale and minimal holding costs for trade buyers |
| Export Compliance | Pre-certified for export to most non-regulated markets; no restricted components | Smooth customs clearance for global trade shipments, no unexpected import delays |
| Operator Familiarity | Industry-standard control layout, widely trained operators worldwide | No specialized training required for local crews, immediate deployment on job sites |
