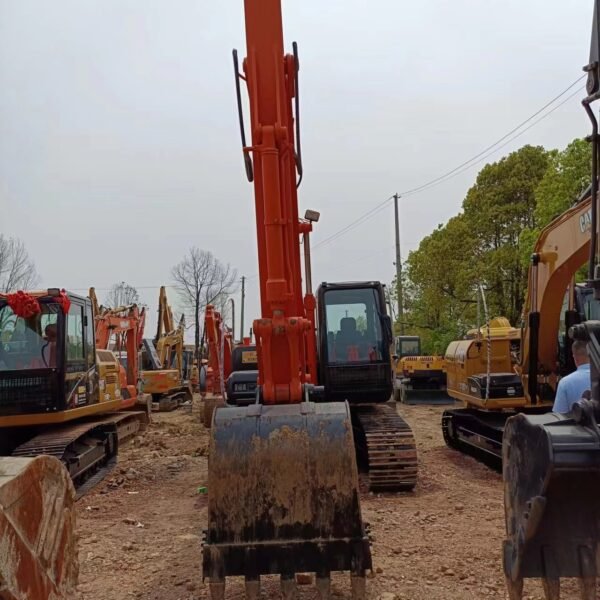

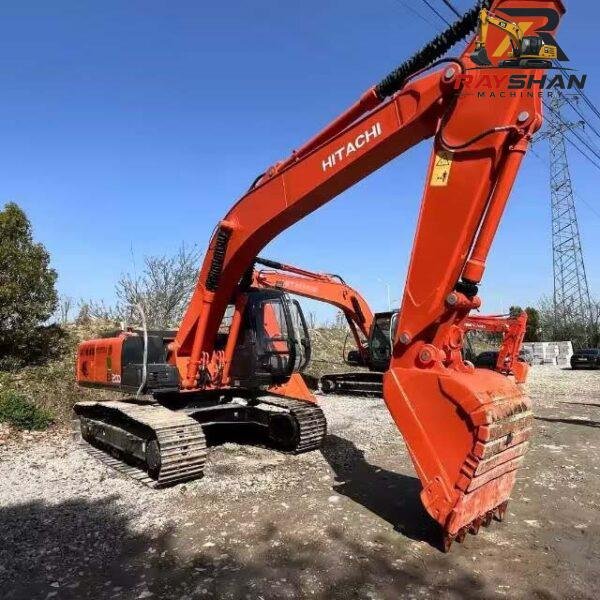

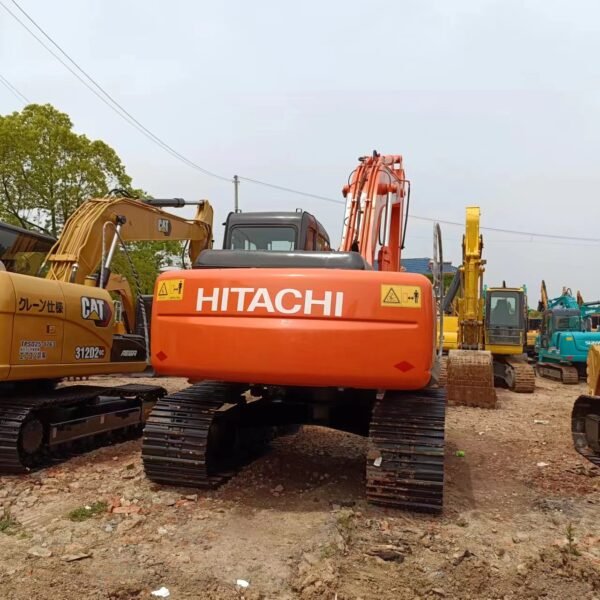

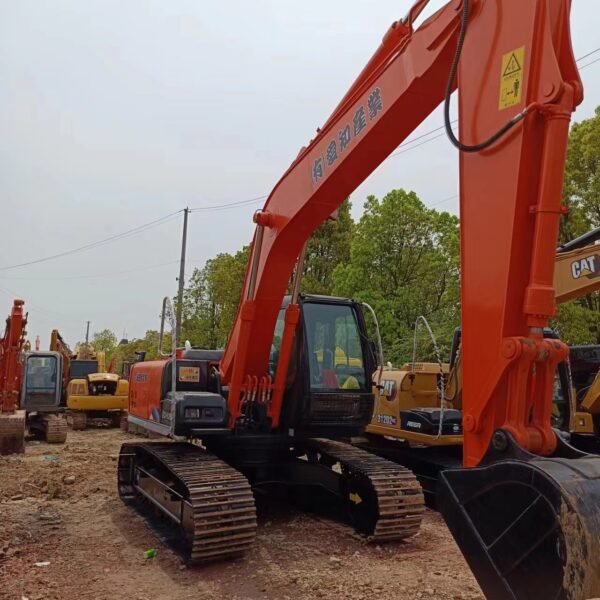

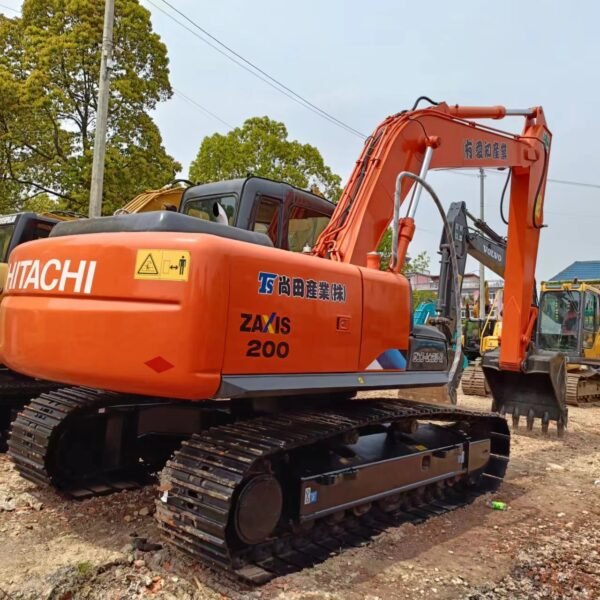

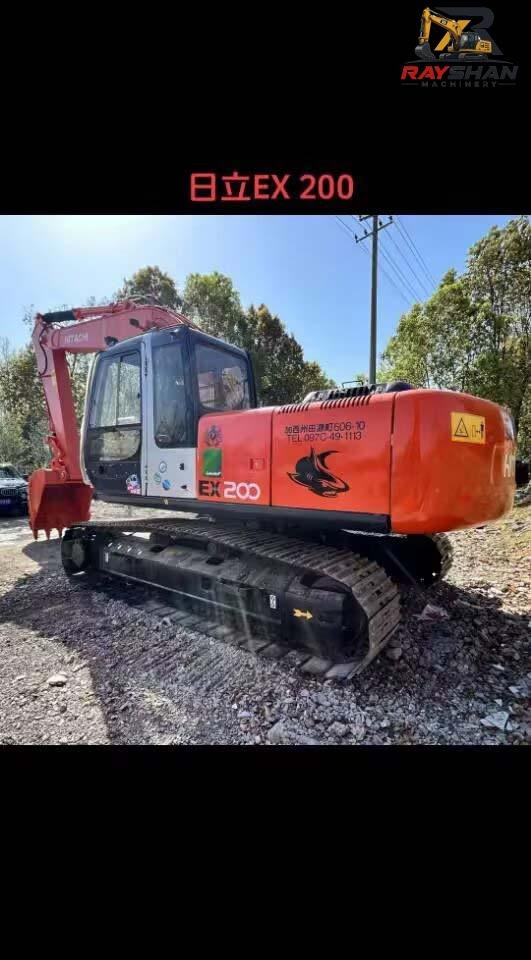

Used HITACHI EX200 Excavator 20ton for sale High-Standard Wear-Resistant Structure

1. Core Power & Powertrain (Engine)

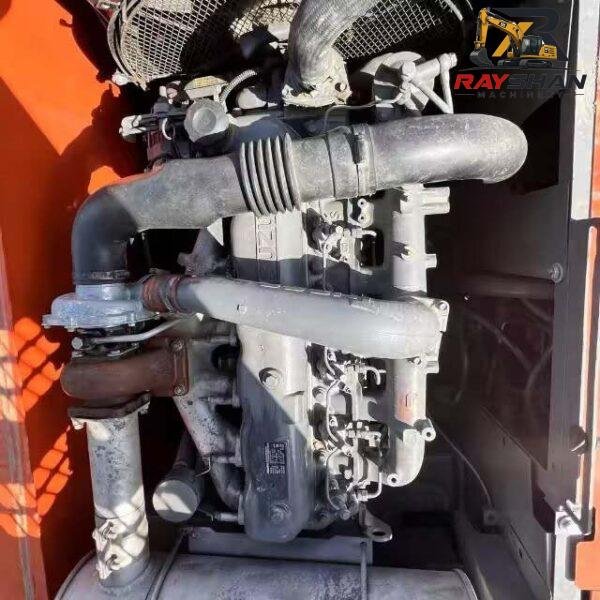

The EX200-5 is powered by the legendary Isuzu engine, known for its high torque-to-weight ratio and ability to perform consistently in diverse fuel environments, which is essential for remote project sites.

Parameter	Metric System	Imperial System	Technical Remarks
Engine Model	Isuzu AH-6BG1T	Isuzu AH-6BG1T	6-cylinder, Turbocharged
Net Flywheel Power	99 kW	133 hp	Rated @ 2,100 rpm
Displacement	6.5 L	396 cu in	High-torque for sustained heavy work
Emission Standard	Tier 1 / Stage I	Tier 1 / Stage I	High tolerance for variable fuel quality

---

2. Weight, Capacities & Logistics Dimensions

The EX200-5 features a balanced footprint that ensures stability while remaining highly mobile. These dimensions are standard for easy transport via container or flatbed trailer.

Parameter	Metric System	Imperial System	Shipping & Logistics Relevance
Operating Weight	19,800 kg	43,650 lbs	Optimized for standard ground pressure
Transport Length	9,480 mm	31.10 ft	Compact for cost-efficient shipping
Transport Width	2,800 mm	9.19 ft	Standard haulage clearance
Transport Height	2,930 mm	9.61 ft	Optimized for containerized/flatbed transit
Fuel Tank Capacity	310 L	81.9 gal	Balanced for long-shift autonomy

---

3. Hydraulic & Digging Performance

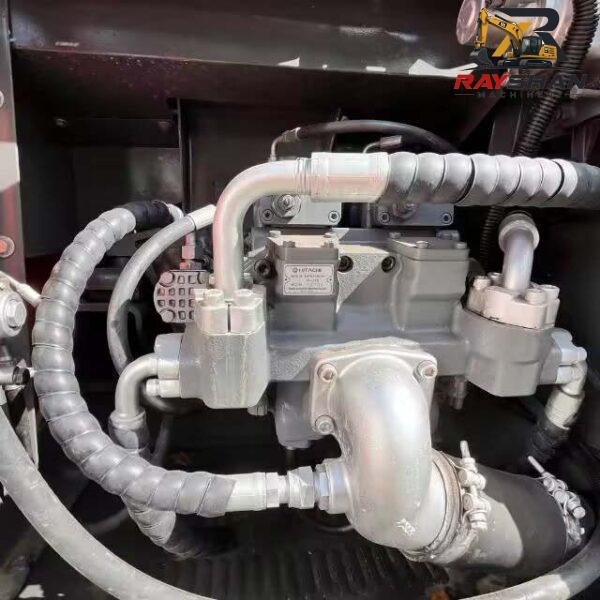

Hitachi’s hydraulic system is world-renowned for its “Direct Feel” responsiveness. The EX200-5 utilizes a sophisticated pump management system to ensure smooth, high-speed cycle times.

Parameter	Metric System	Imperial System	Field Performance Indicator
Max System Flow	2 x 210 L/min	2 x 55.5 gal/min	Dual-pump, variable flow system
Operating Pressure	34,300 kPa	4,975 psi	Maximum power for heavy-duty breakout
Swing Speed	13.3 rpm	13.3 rpm	Rapid cycle times for high-volume loading

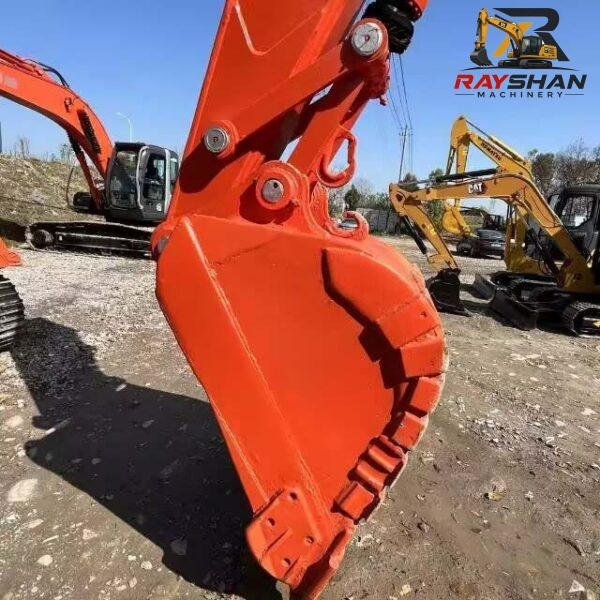

Bucket Breakout Force	137 kN	30,800 lbf	Proven force for dense clay and rock
Stick Digging Force	96 kN	21,580 lbf	Exceptional control for precise utility work

---

4. Undercarriage & Mobility

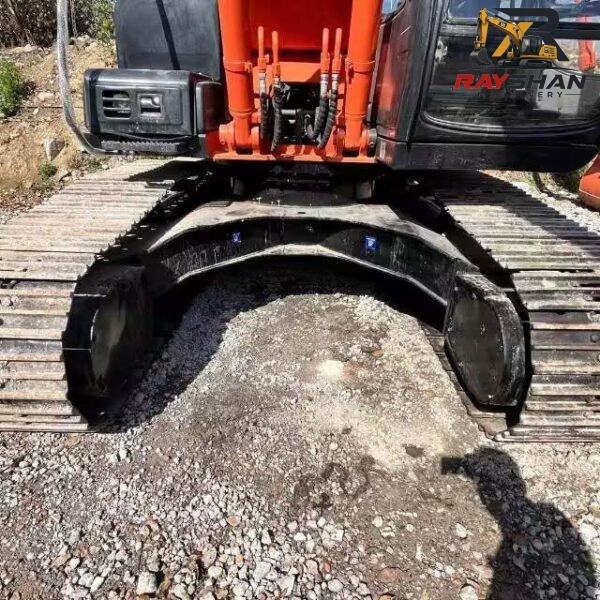

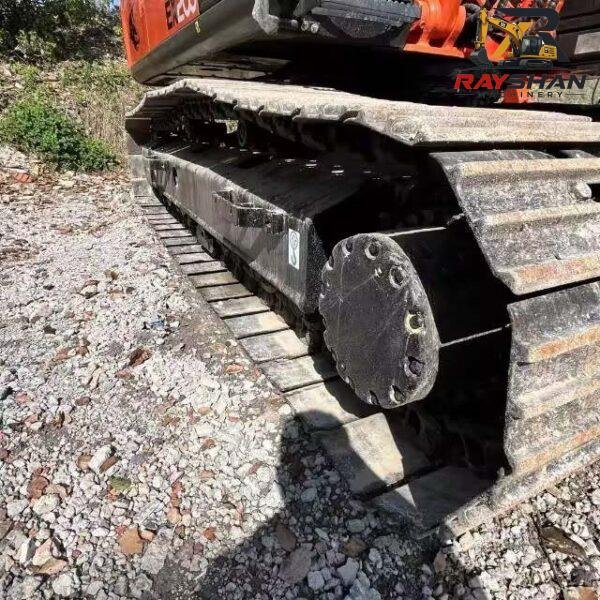

The undercarriage is engineered for extreme duty, providing the necessary traction and structural rigidity to handle challenging terrain without premature wear.

Parameter	Metric System	Imperial System	Underfoot Mobility
Standard Shoe Width	600 mm	24 in	Triple grouser heavy-duty track pads
Max Travel Speed	5.5 km/h	3.4 mph	Dual-speed auto-shift for mobilization
Max Traction Force	185 kN	41,590 lbf	Superior climbing power for site inclines
Ground Pressure	45.0 kPa	6.53 psi	Excellent flotation in soft soil conditions

---

5. Working Ranges

Defining the operational envelope for site preparation, trenching, and general infrastructure tasks.

Parameter	Metric System	Imperial System
Max Digging Depth	6,180 mm	20.28 ft
Max Reach (Ground)	9,430 mm	30.94 ft
Max Cutting Height	9,500 mm	31.17 ft
Max Loading Height	6,650 mm	21.82 ft
