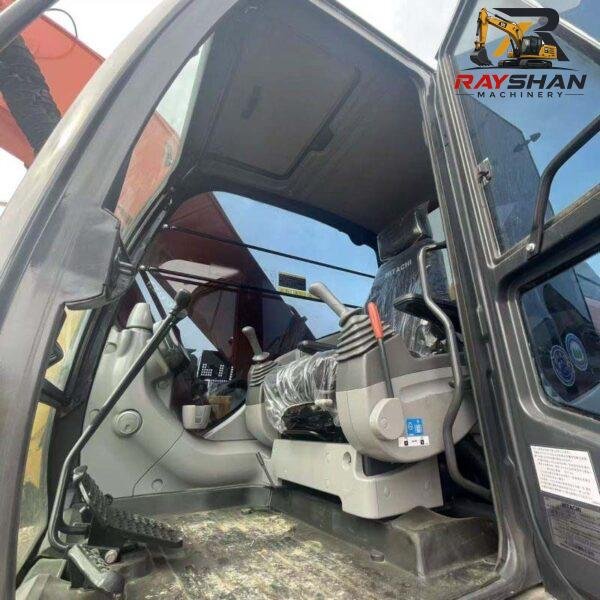

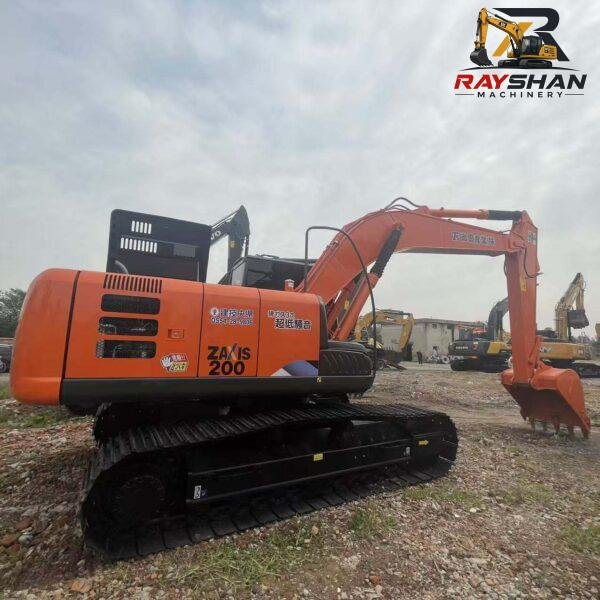

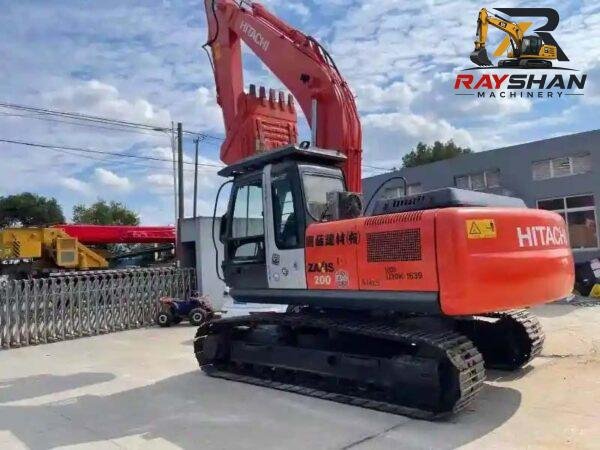

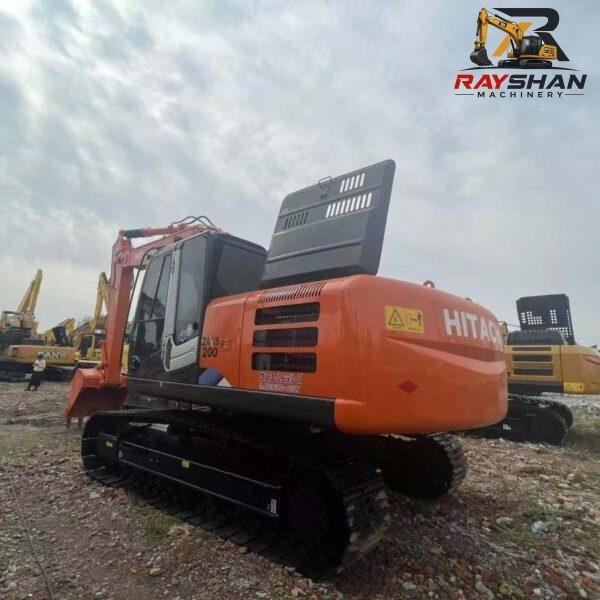

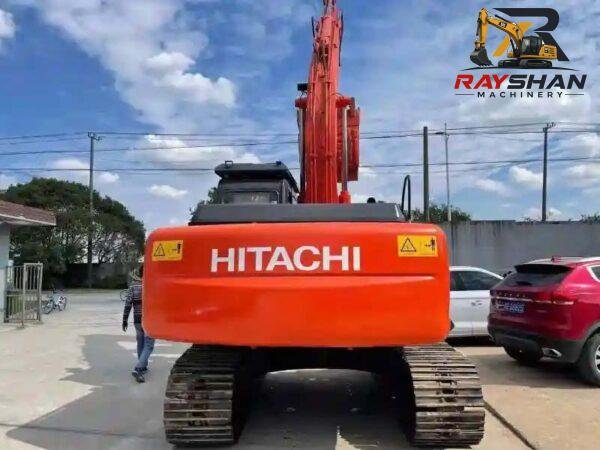

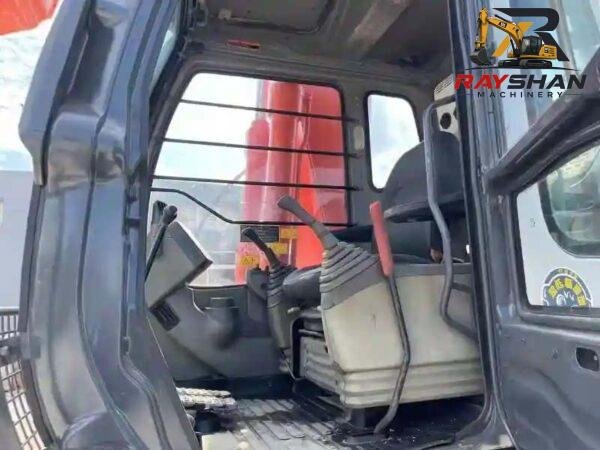

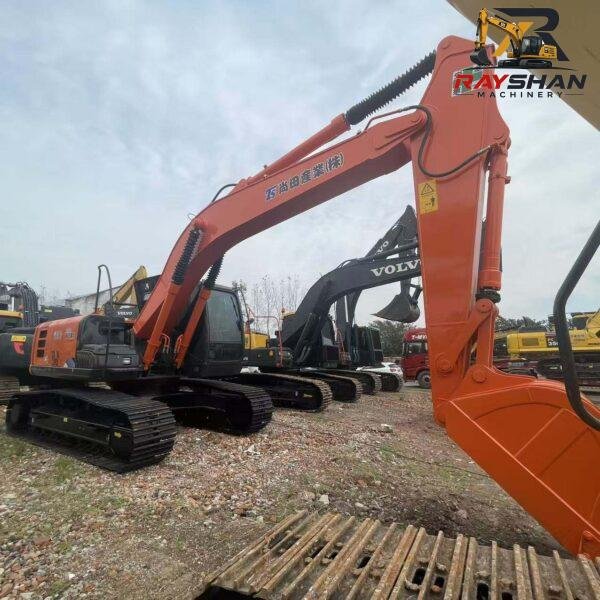

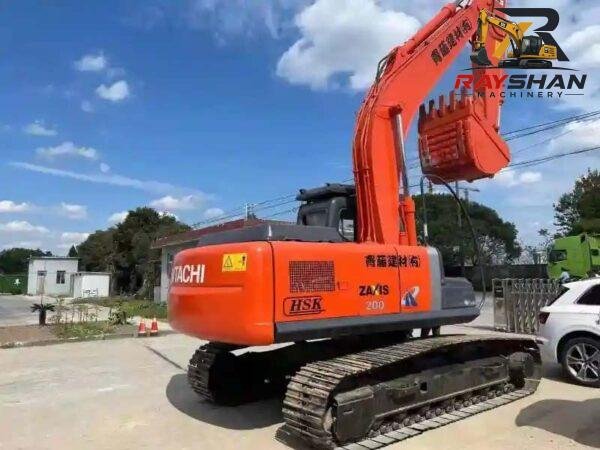

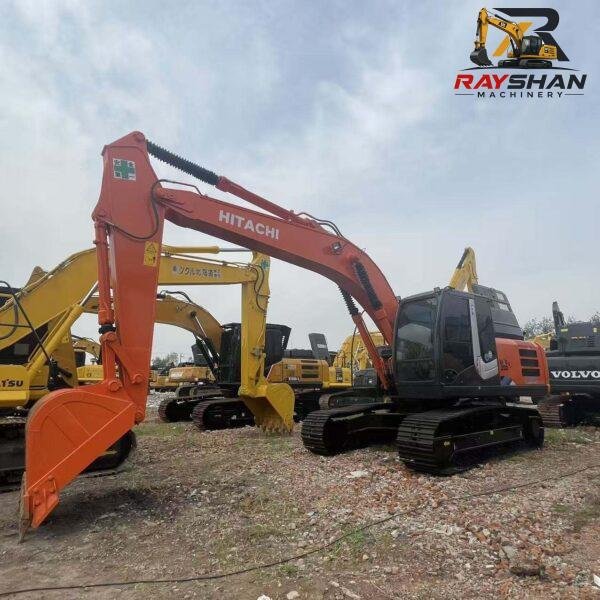

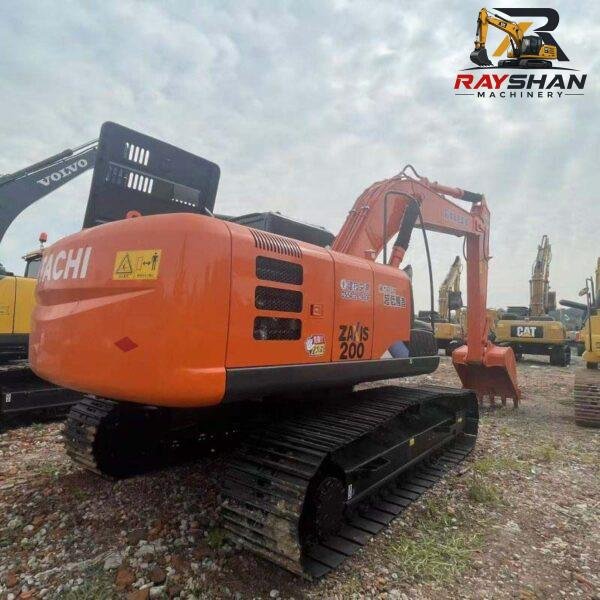

Used HITACHI ZX220 Excavator 22ton for sale Proven Dependable Hydraulic Control System
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
1. Basic Trade & Machine Identification
| Parameter | Specification | Export Trade Remarks |
|---|---|---|
| Model | ZX200-5A (ZAXIS 200) | 20-ton mid-size tracked excavator |
| Engine Model | Isuzu AH-6HK1XYS | 6-cylinder electronic injection diesel engine |
| Production Period | 2013–2018 | Mainstream used stock for global export |
| Operating Weight | 19,700 kg | Standard base configuration |
| Standard Shipping Dimensions | 9420 mm × 2860 mm × 3010 mm | Fits into 40HQ container after removing counterweight |
| Emission Standard | Tier 3 / China National Stage III | Suitable for most African, Southeast Asian, Latin American markets without strict emission limits |
| Standard Bucket Capacity | 1.0 m³ | General-purpose digging bucket |

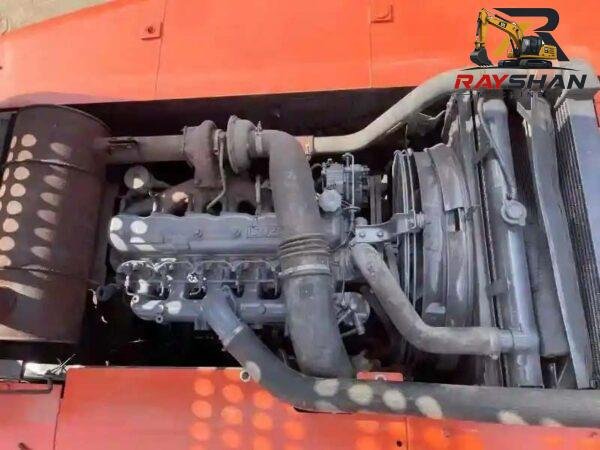

2. Engine Specifications
| Parameter | Data | Reliability Notes |
|---|---|---|
| Engine Type | Water-cooled, 4-stroke, turbocharged direct injection | Mature Isuzu industrial engine, spare parts widely available globally |
| Rated Net Power | 113 kW (152 HP) @ 2000 rpm | Balanced power and low fuel consumption |
| Max Torque | 650 N·m @ 1500 rpm | Strong low-speed torque for heavy digging |
| Fuel Control | Electronic common rail injection | Equipped with ECO / PWR dual working modes, fuel-saving performance improved by 10%–16% vs older ZX200 models |
| Fuel Tank Volume | 400 L | Longer continuous operation time |
| Air Cleaner | Dual-stage dry-type air filter | Adaptable to dusty construction sites |

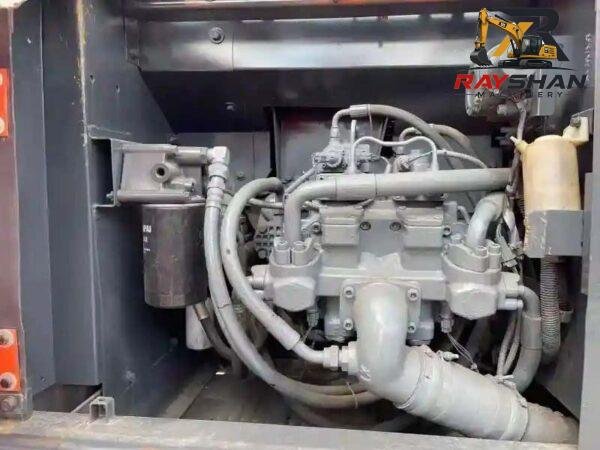

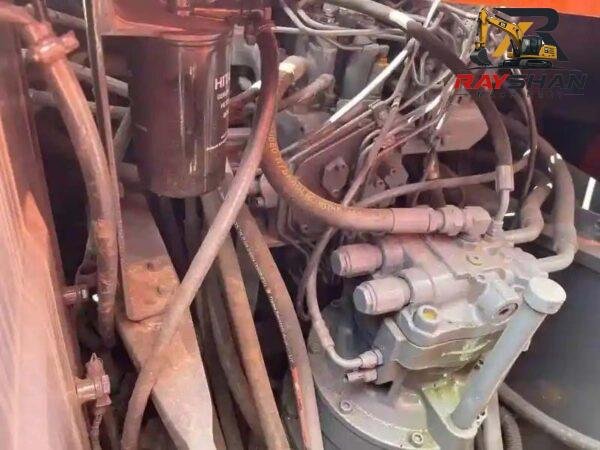

3. Hydraulic System
| Item | Parameter | Operational Advantage |
|---|---|---|
| Hydraulic System | Hitachi HIOS III load-sensing system | Smooth compound movements, less power loss |
| Main Pumps | 2 variable displacement axial piston pumps | Independent flow distribution for digging, swinging and travelling |
| Max System Pressure | 34.3 MPa | Sufficient power for breakers, grapples and other attachments |
| Total Pump Flow | 2 × 212 L/min | Shortens working cycle time |
| Swing Speed | 11.5 rpm | Fast slewing speed for truck loading |
| Auxiliary Hydraulic Line | Standard bi-directional auxiliary circuit | Directly compatible with all standard construction attachments worldwide |
4. Digging Performance & Working Range
| Specification | Value |
|---|---|
| Maximum Digging Reach (Ground Level) | 9,680 mm |
| Maximum Digging Depth | 6,150 mm |
| Maximum Dumping Height | 6,830 mm |
| Bucket Breakout Force | 157 kN |
| Arm Digging Force | 139 kN |
5. Undercarriage & Chassis
| Parameter | Data | |
|---|---|---|
| Standard Track Shoe Width | 600 mm | |
| Track Roller Configuration | 7 bottom rollers + 2 top rollers on each side | |
| Max Travel Speed | 5.5 km/h | |
| Gradeability | 35° | |
| Ground Contact Pressure | 44 kPa | |
| Counterweight | 3.2 tons bolt-on design | Easy disassembly for container shipment to cut ocean freight cost |
6. Export Selling Points
- Fuel Economy: ECO mode effectively cuts hourly fuel cost, favored by rental contractors.
- Global Parts Supply: Isuzu 6HK1 engine and Hitachi hydraulic components can be sourced in nearly all emerging markets.
- Structural Durability: Reinforced boom, arm and chassis, low long-term maintenance cost for second-hand buyers.
- Wide Market Adaptability: Tier 3 emission meets the import requirement of most developing countries without complex exhaust aftertreatment devices.
- High Resale Value: ZX200 series maintains top resale price among 20-ton excavators in the used machinery trade.
