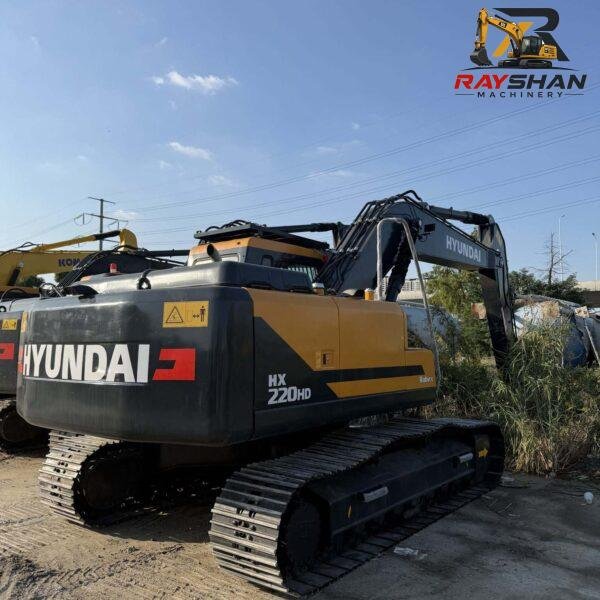

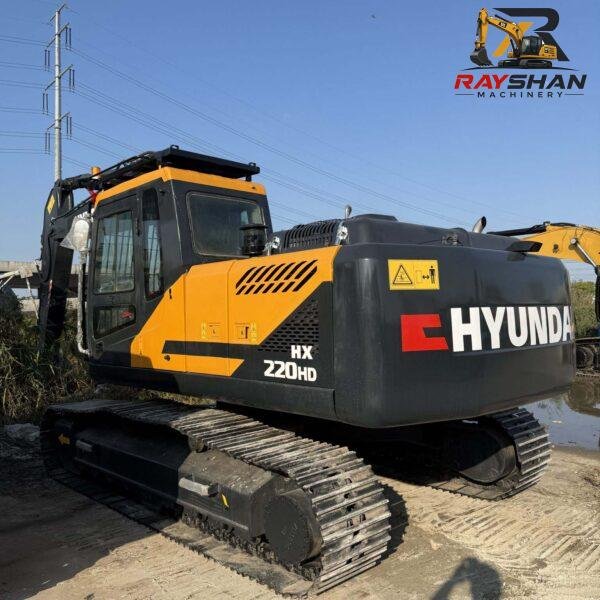

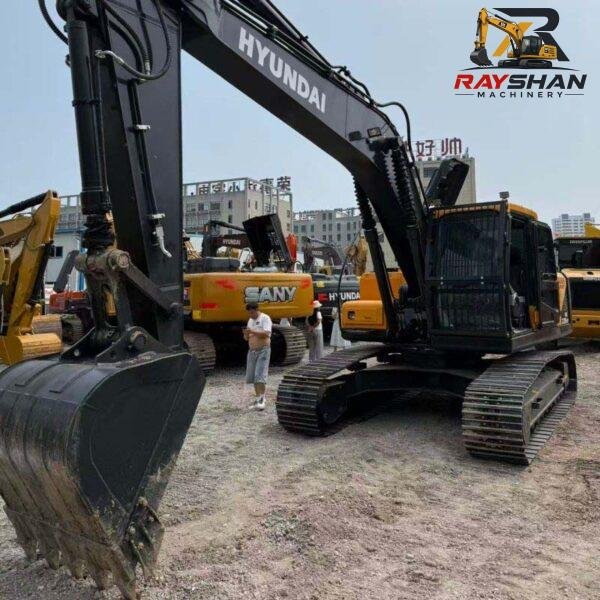

Used HYUNDAI 200HD Excavator 20ton for sale Intelligent Power Optimization
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
*Proven Dependability: With verified low operating hours and a complete service history, this machine has consistently excelled in demanding tasks like mining and road construction. Trusted by contractors globally, it’s a reliable workhorse for any project.
1. Core Power & Powertrain (Engine)
The R200HD-9 is equipped with a high-torque, industrial-grade engine designed to handle continuous high-load cycles. It is optimized for sustained power delivery in demanding environments.
| Parameter | Metric System | Imperial System | Technical Remarks |
| Engine Model | Cummins B5.9-C | Cummins B5.9-C | 6-cylinder, Turbocharged |
| Net Flywheel Power | 110 kW | 148 hp | Rated @ 1,950 rpm |
| Displacement | 5.9 L | 360 cu in | High torque for rigorous work cycles |
| Emission Standard | Tier 3 / Stage IIIA | Tier 3 / Stage IIIA | Standard configuration for global export |
2. Weight, Capacities & Logistics Dimensions
These specs are critical for logistics and fleet planning. The HD configuration offers reinforced structural integrity while maintaining an optimized footprint for efficient mobilization.
| Parameter | Metric System | Imperial System | Shipping & Logistics Relevance |
| Operating Weight | 21,200 kg | 46,738 lbs | HD (Heavy Duty) configuration |
| Transport Length | 9,500 mm | 31.17 ft | Compact for standard flatbed hauling |
| Transport Width | 2,800 mm | 9.19 ft | Optimized for stable site transit |
| Transport Height | 3,030 mm | 9.94 ft | Standard clearance for heavy-haulers |
| Fuel Tank Capacity | 340 L | 89.8 gal | Engineered for long-shift autonomy |

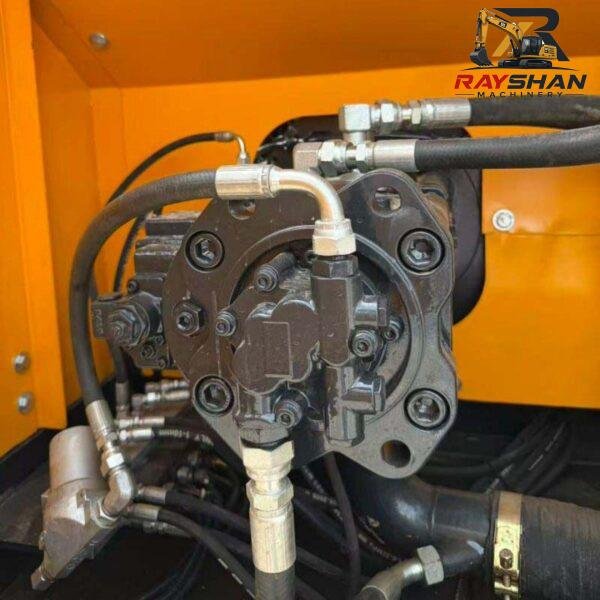

3. Hydraulic & Digging Performance
Hyundai’s CAPO (Computer Aided Power Optimization) system ensures precise hydraulic control and high breakout forces, allowing for seamless operation in hard-packed soils and rocky terrain.
| Parameter | Metric System | Imperial System | Field Performance Indicator |
| Max System Flow | 2 x 220 L/min | 2 x 58.1 gal/min | Variable displacement piston pumps |
| Operating Pressure | 35,000 kPa | 5,076 psi | Maximum relief for sustained breakout |
| Swing Speed | 12.0 rpm | 12.0 rpm | Fast cycle times for loading bulk materials |
| Bucket Breakout Force | 133 kN | 29,900 lbf | Elite force for dense, difficult soil |
| Stick Digging Force | 98 kN | 22,030 lbf | Robust power for heavy-duty trenching |

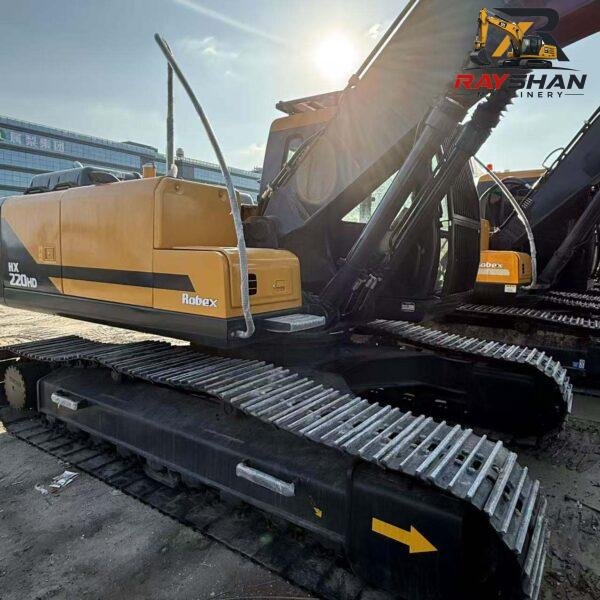

4. Undercarriage & Mobility (HD Configuration)
The “HD” designation denotes a reinforced undercarriage with high-strength wear components, ensuring longevity and stability during high-impact digging and heavy lifting.
| Parameter | Metric System | Imperial System | Underfoot Mobility |
| Standard Shoe Width | 600 mm | 24 in | Triple grouser heavy-duty track pads |
| Max Travel Speed | 5.5 km/h | 3.4 mph | Dual-speed auto-shift for site transit |
| Max Traction Force | 178 kN | 40,015 lbf | Superior climbing power on site inclines |
| Ground Pressure | 48.0 kPa | 6.96 psi | Optimized for load-bearing and stability |

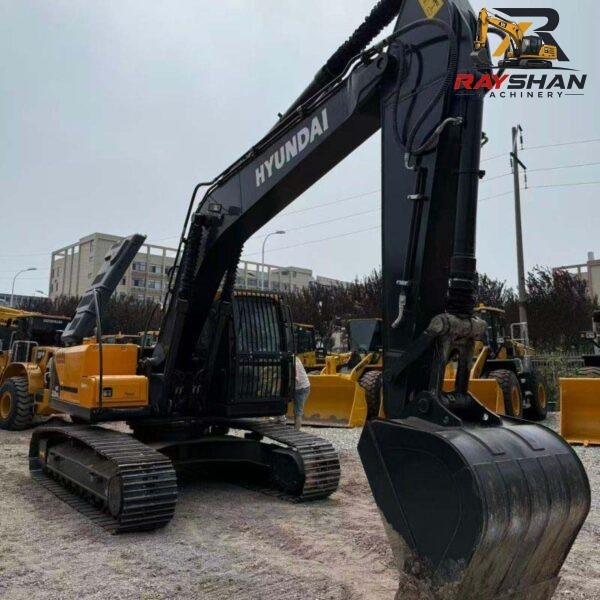

5. Working Ranges
Defining the essential operational envelope for large-scale site preparation, mining, and heavy infrastructure projects.
| Parameter | Metric System | Imperial System |
| Max Digging Depth | 6,500 mm | 21.33 ft |
| Max Reach (Ground) | 9,800 mm | 32.15 ft |
| Max Cutting Height | 9,600 mm | 31.50 ft |
| Max Loading Height | 6,800 mm | 22.31 ft |
