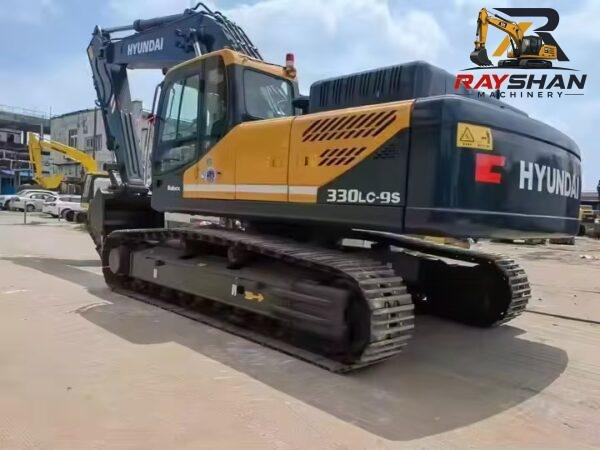

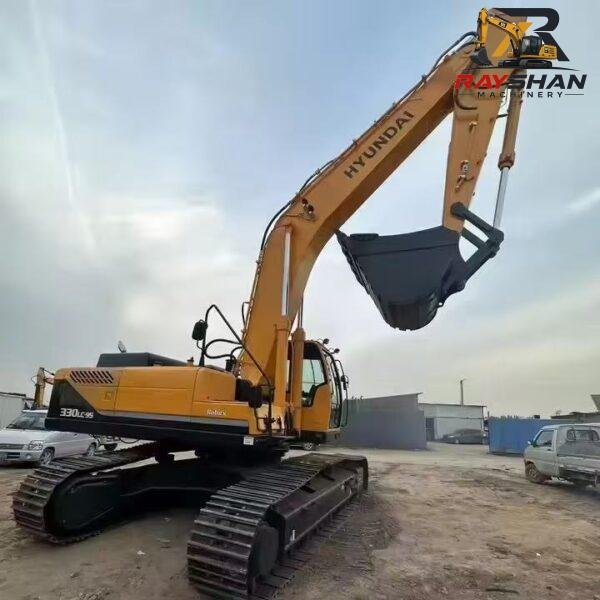

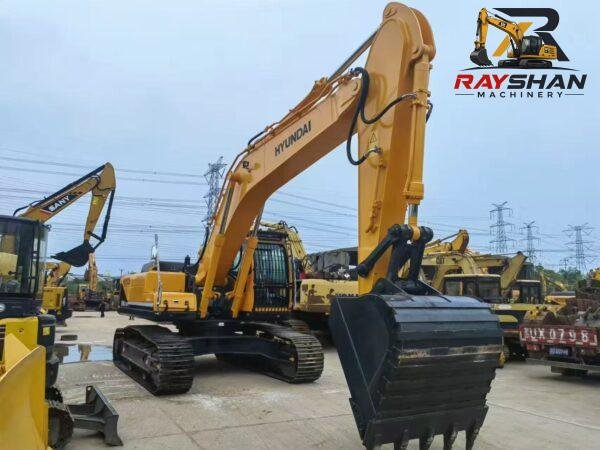

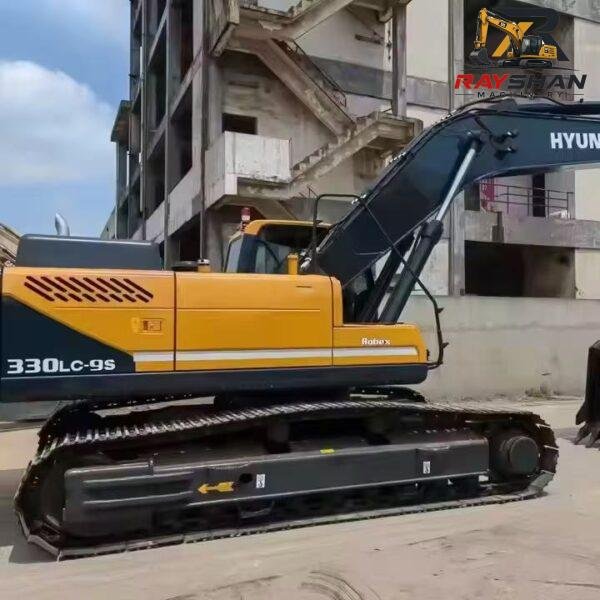

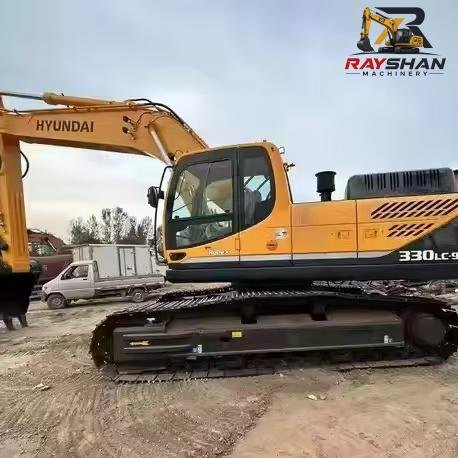

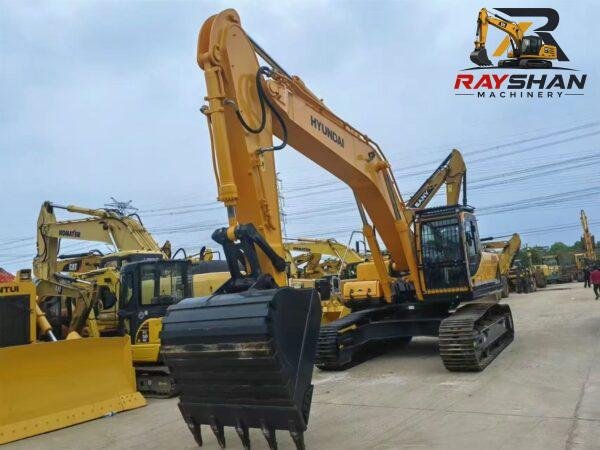

Used HYUNDAI 330LC-9S Excavator 33ton for sale Powerful Burst Digging Force

1. Core Power & Powertrain (Engine)

The R330LC-9S utilizes a high-torque industrial engine, tuned to deliver maximum hydraulic efficiency and sustained power under the heavy-duty conditions characteristic of rock excavation and long-cycle loading.

Parameter	Metric System	Imperial System	Technical Remarks
Engine Model	Cummins QSL9	Cummins QSL9	6-cylinder, Turbocharged, CRDI
Net Flywheel Power	206 kW	276 hp	Rated @ 1,900 rpm
Displacement	8.9 L	543 cu in	Massive torque for peak excavation loads
Emission Standard	Tier 3 / Stage IIIA	Tier 3 / Stage IIIA	Standard global export configuration

---

2. Weight, Capacities & Logistics Dimensions

The “LC” (Long Carriage) configuration provides an extended ground contact area, maximizing stability during high-impact digging. These specifications are optimized for standard heavy-duty transport logistics.

Parameter	Metric System	Imperial System	Shipping & Logistics Relevance
Operating Weight	33,200 kg	73,190 lbs	Reinforced heavy-duty configuration
Transport Length	11,150 mm	36.58 ft	Standard heavy-haul flatbed compatible
Transport Width	3,200 mm	10.50 ft	Optimized footprint for high-impact stability
Transport Height	3,380 mm	11.09 ft	Clearance-compliant for major transport corridors
Fuel Tank Capacity	500 L	132.1 gal	Designed for extended high-production shifts

---

3. Hydraulic & Digging Performance

Hyundai’s CAPO (Computer Aided Power Optimization) system in the 9S series ensures rapid, precise hydraulic responses, minimizing cycle times when moving high-density earth or rock.

Parameter	Metric System	Imperial System	Field Performance Indicator
Max System Flow	2 x 284 L/min	2 x 75.0 gal/min	High-volume variable displacement pumps
Operating Pressure	35,000 kPa	5,076 psi	Peak relief for severe digging resistance
Swing Speed	9.8 rpm	9.8 rpm	High swing torque for fast loading cycles
Bucket Breakout Force	206 kN	46,310 lbf	Superior force for primary rock extraction
Stick Digging Force	162 kN	36,390 lbf	Robust power for heavy-duty trenching

---

4. Undercarriage & Mobility

The R330LC-9S undercarriage is reinforced for high-impact mining and quarrying, providing exceptional traction and durability under extreme ground pressures.

Parameter	Metric System	Imperial System	Underfoot Mobility
Standard Shoe Width	600 mm	24 in	Triple grouser heavy-duty track pads
Max Travel Speed	5.5 km/h	3.4 mph	Dual-speed auto-shift for transit
Max Traction Force	320 kN	71,940 lbf	Exceptional climbing power for inclines
Ground Pressure	65.0 kPa	9.43 psi	Balanced stability for high-output work

---

5. Working Ranges

Defining the operational capability for large-scale mining, industrial infrastructure, and bulk material extraction.

Parameter	Metric System	Imperial System
Max Digging Depth	7,370 mm	24.18 ft
Max Reach (Ground)	10,950 mm	35.93 ft
Max Cutting Height	10,400 mm	34.12 ft
Max Loading Height	7,200 mm	23.62 ft
