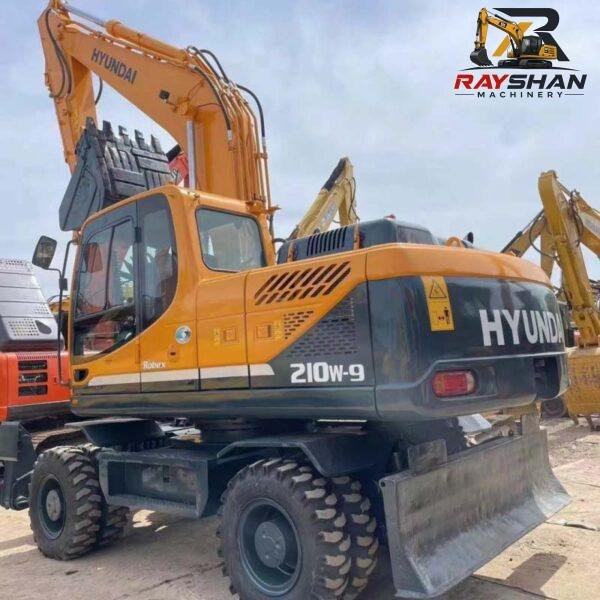

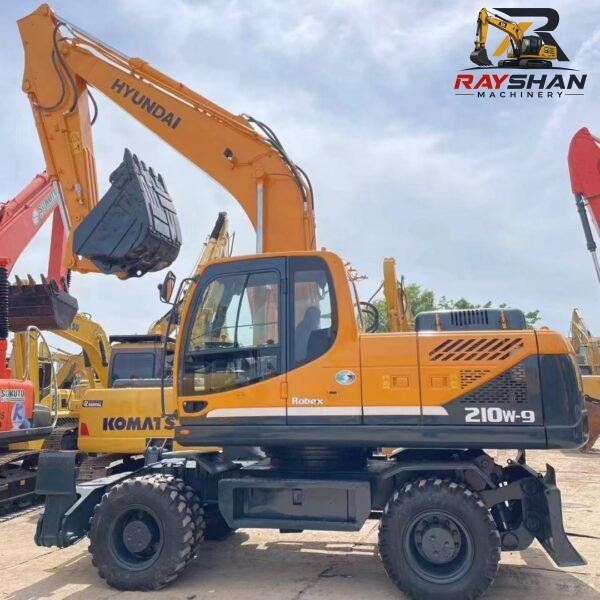

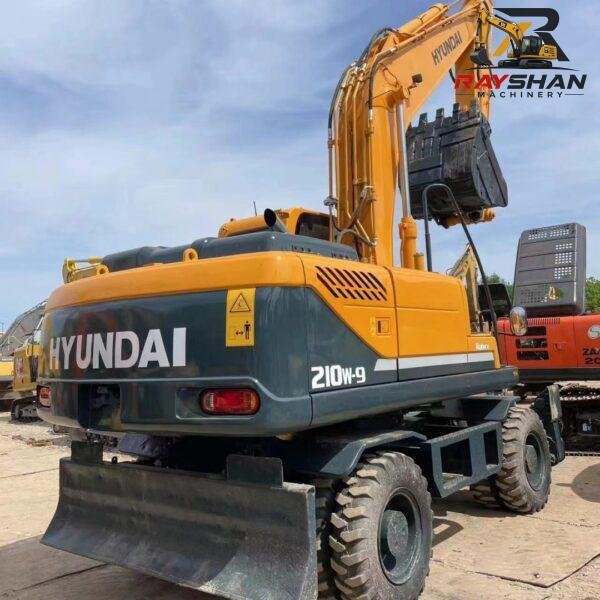

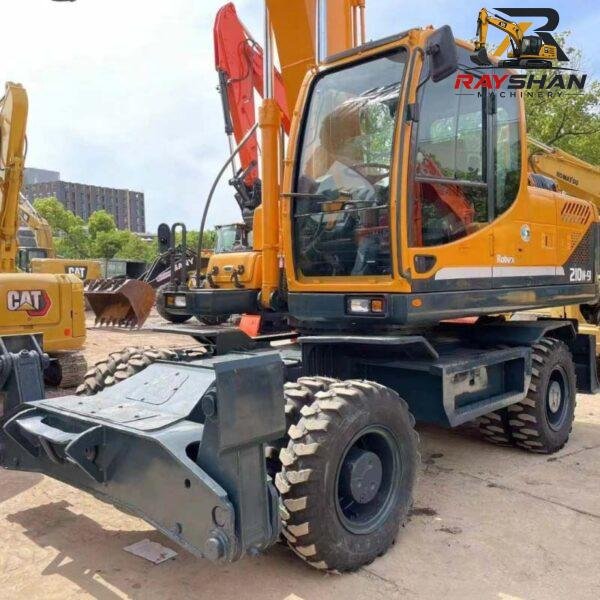

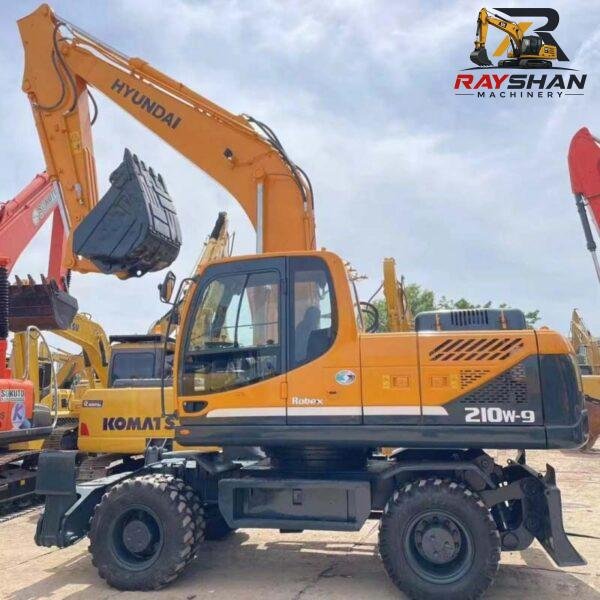

Used HYUNDAI 210W-9 Excavator 21ton for sale Excellent Hydraulic Control
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
*Proven Dependability: With verified low operating hours and a complete service history, this machine has consistently excelled in demanding tasks like mining and road construction. Trusted by contractors globally, it’s a reliable workhorse for any project.
1. Core Power & Powertrain (Engine)
The R210W-9 is powered by a high-torque, industrial-grade engine that delivers consistent performance under heavy load, optimized for fuel efficiency in high-frequency, multi-cycle urban work environments.
| Parameter | Metric System | Imperial System | Technical Remarks |
| Engine Model | Cummins B5.9-C | Cummins B5.9-C | 6-cylinder, Turbocharged |
| Net Flywheel Power | 123 kW | 165 hp | Rated @ 2,000 rpm |
| Displacement | 5.9 L | 360 cu in | High torque for efficient road travel |
| Emission Standard | Tier 3 / Stage IIIA | Tier 3 / Stage IIIA | Standard configuration for global export |
2. Weight, Capacities & Logistics Dimensions
These specifications are essential for logistics planning. The R210W-9 is designed for road-legal mobility and compact transport, significantly reducing mobilization costs compared to tracked equivalents.
| Parameter | Metric System | Imperial System | Shipping & Logistics Relevance |
| Operating Weight | 21,000 kg | 46,300 lbs | Standard configuration with bucket |
| Transport Length | 9,500 mm | 31.17 ft | Compact for efficient ferry or truck transit |
| Transport Width | 2,500 mm | 8.20 ft | Road-legal width for urban transit |
| Transport Height | 3,180 mm | 10.43 ft | Optimized for standard bridge clearances |
| Fuel Tank Capacity | 340 L | 89.8 gal | Engineered for long, all-day work shifts |
3. Hydraulic & Digging Performance
Hyundai’s advanced hydraulic system is designed for responsiveness and fine control. It provides the smooth, accurate movement needed for utility work and the necessary power for trenching in diverse soil types.
| Parameter | Metric System | Imperial System | Field Performance Indicator |
| Max System Flow | 2 x 220 L/min | 2 x 58.1 gal/min | Variable displacement piston pumps |
| Operating Pressure | 35,000 kPa | 5,076 psi | Maximum relief for sustained breakout |
| Swing Speed | 12.0 rpm | 12.0 rpm | Fast cycle times for loading operations |
| Bucket Breakout Force | 133 kN | 29,900 lbf | Elite penetration for compact urban soil |
| Stick Digging Force | 98 kN | 22,030 lbf | Robust power for utility trenching |
4. Mobility & Undercarriage
The wheeled chassis provides the mobility of a truck, allowing for rapid transit between project locations. It includes heavy-duty axles and a stable outrigger system for high-impact digging.
| Parameter | Metric System | Imperial System | Mobility Relevance |
| Max Travel Speed | 30.0 km/h | 18.6 mph | Rapid site-to-site response time |
| Min Turning Radius | 6,800 mm | 22.31 ft | Efficient maneuverability in tight streets |
| Outrigger Stance | 4,200 mm | 13.78 ft | High-stability platform for heavy lifting |
| Tire Size | 11.00-20-16PR | 11.00-20-16PR | Heavy-duty, high-traction bias tires |
5. Working Ranges
Defining the operational envelope for utility, infrastructure, and foundation preparation in restricted work spaces.
| Parameter | Metric System | Imperial System |
| Max Digging Depth | 6,380 mm | 20.93 ft |
| Max Reach (Ground) | 9,400 mm | 30.84 ft |
| Max Cutting Height | 9,500 mm | 31.17 ft |
| Max Loading Height | 6,900 mm | 22.64 ft |
