Used HYUNDAI 220LC Excavator 22ton for sale Excellent Impact Resistance
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
*Proven Dependability: With verified low operating hours and a complete service history, this machine has consistently excelled in demanding tasks like mining and road construction. Trusted by contractors globally, it’s a reliable workhorse for any project.
1. Core Power & Powertrain (Engine)
The R220LC-9 is engineered with a high-torque industrial engine, tuned to provide maximum efficiency during continuous, high-load digging cycles.
| Parameter | Metric System | Imperial System | Technical Remarks |
| Engine Model | Cummins B5.9-C | Cummins B5.9-C | 6-cylinder, Turbocharged |
| Net Flywheel Power | 118 kW | 158 hp | Rated @ 1,950 rpm |
| Displacement | 5.9 L | 360 cu in | High torque for steady earthmoving |
| Emission Standard | Tier 3 / Stage IIIA | Tier 3 / Stage IIIA | Global export configuration |
2. Weight, Capacities & Logistics Dimensions
The “LC” (Long Carriage) design provides a wider, longer footprint, which is crucial for stability during heavy lifting. These dimensions are critical for mobilizing the machine between job sites via standard transport.
| Parameter | Metric System | Imperial System | Shipping & Logistics Relevance |
| Operating Weight | 22,100 kg | 48,720 lbs | Optimized for structural stability |
| Transport Length | 9,650 mm | 31.66 ft | Standard flatbed compatibility |
| Transport Width | 2,990 mm | 9.81 ft | Wide stance for high-impact work |
| Transport Height | 3,030 mm | 9.94 ft | Optimized for heavy-haul clearance |
| Fuel Tank Capacity | 400 L | 105.7 gal | Designed for extended, high-output shifts |
3. Hydraulic & Digging Performance
Hyundai’s CAPO (Computer Aided Power Optimization) system in the R220LC-9 allows for precision control and high-pressure hydraulic flow, ensuring rapid cycle times in bulk excavation.
| Parameter | Metric System | Imperial System | Field Performance Indicator |
| Max System Flow | 2 x 222 L/min | 2 x 58.6 gal/min | Variable displacement piston pumps |
| Operating Pressure | 35,000 kPa | 5,076 psi | Maximum relief for sustained breakout |
| Swing Speed | 11.5 rpm | 11.5 rpm | High-efficiency for loading cycles |
| Bucket Breakout Force | 152 kN | 34,170 lbf | Proven force for dense material |
| Stick Digging Force | 115 kN | 25,850 lbf | Robust power for deep utility trenching |

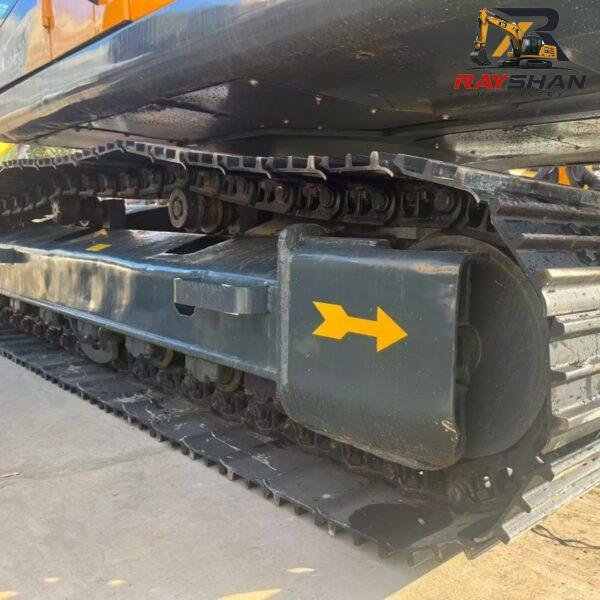

4. Undercarriage & Mobility
The R220LC-9 undercarriage is built to withstand extreme environmental stress, providing the necessary traction for safe operation in soft, wet, or uneven terrain.
| Parameter | Metric System | Imperial System | Underfoot Mobility |
| Standard Shoe Width | 600 mm | 24 in | Triple grouser heavy-duty tracks |
| Max Travel Speed | 5.5 km/h | 3.4 mph | Dual-speed auto-shift for transit |
| Max Traction Force | 210 kN | 47,190 lbf | Reliable climbing power on site inclines |
| Ground Pressure | 47.0 kPa | 6.82 psi | Balanced footing for high-impact work |
5. Working Ranges
Defining the essential operational envelope for large-scale site preparation, mining, and heavy infrastructure.
| Parameter | Metric System | Imperial System |
| Max Digging Depth | 6,700 mm | 21.98 ft |
| Max Reach (Ground) | 9,960 mm | 32.68 ft |
| Max Cutting Height | 9,750 mm | 31.99 ft |
| Max Loading Height | 6,850 mm | 22.47 ft |
