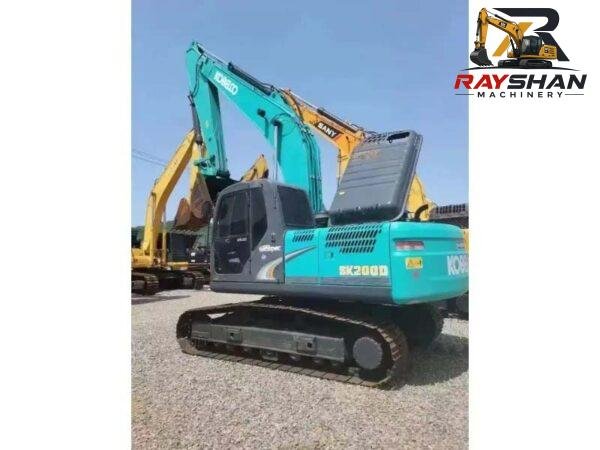

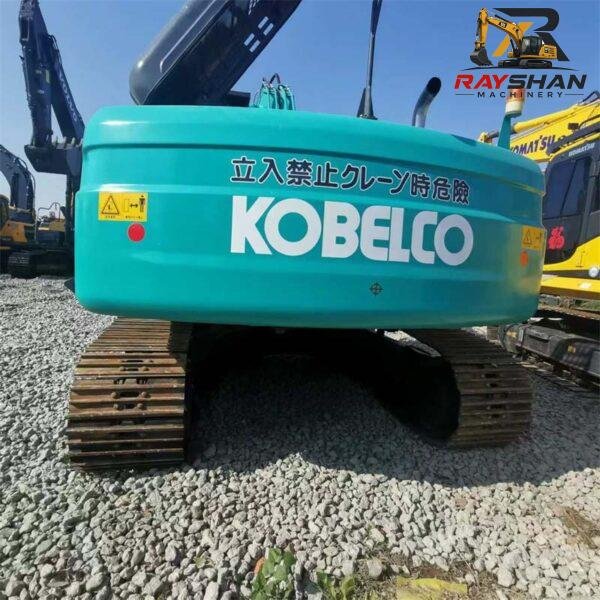

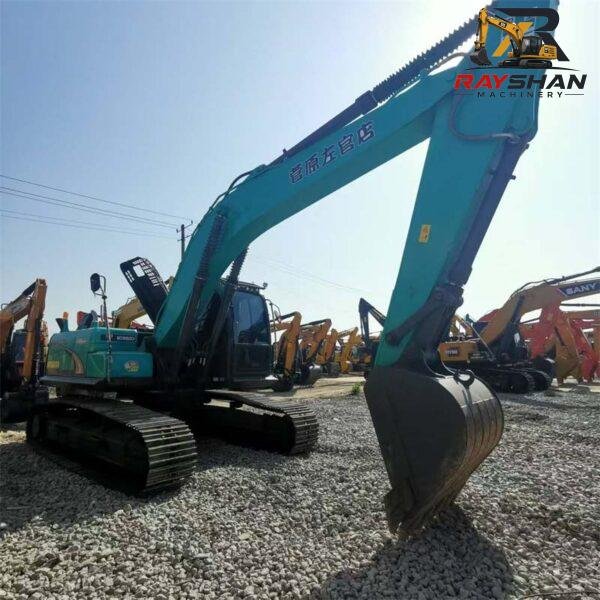

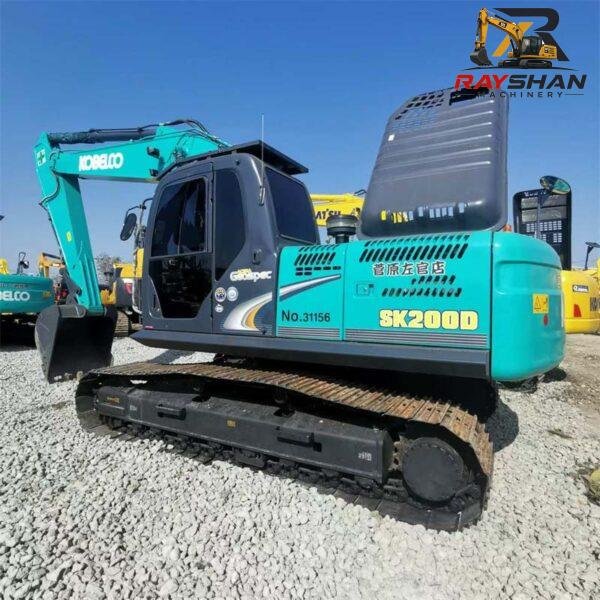

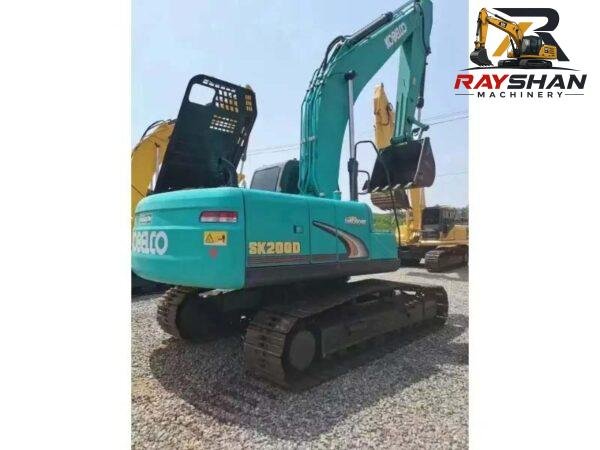

Used KOBELCO SK200D Excavator 20ton for sale Ultimate Fuel Consumption Performance

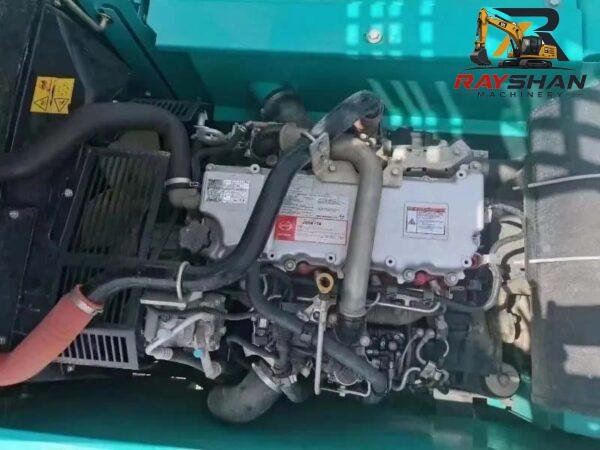

1. Core Power & Powertrain (Engine)

The SK200D utilizes a high-torque engine optimized for the rigorous duty cycles of 20-ton class machines, ensuring consistent breakout force while maintaining industry-leading fuel economy.

Parameter	Metric System	Imperial System	Technical Remarks
Engine Model	Isuzu 4HK1X	Isuzu 4HK1X	4-cylinder, Turbocharged
Net Flywheel Power	114 kW	153 hp	Rated @ 2,000 rpm
Displacement	5.19 L	317 cu in	Optimized for high-torque excavation
Fuel System	Common Rail	Common Rail	Electronically controlled for efficiency

---

2. Weight, Capacities & Logistics Dimensions

These metrics are essential for logistics planning and site mobilization. The SK200D is engineered to provide maximum stability on the job site while remaining within standard dimensions for cost-effective trailer transport.

Parameter	Metric System	Imperial System	Shipping & Logistics Relevance
Operating Weight	20,200 kg	44,530 lbs	Standard configuration with bucket
Transport Length	9,490 mm	31.14 ft	Standard for flatbed transport
Transport Width	2,800 mm	9.19 ft	Fits standard heavy-haul widths
Transport Height	3,060 mm	10.04 ft	Optimized for standard trailer clearance
Fuel Tank Capacity	320 L	84.5 gal	Sustained performance for long shifts

---

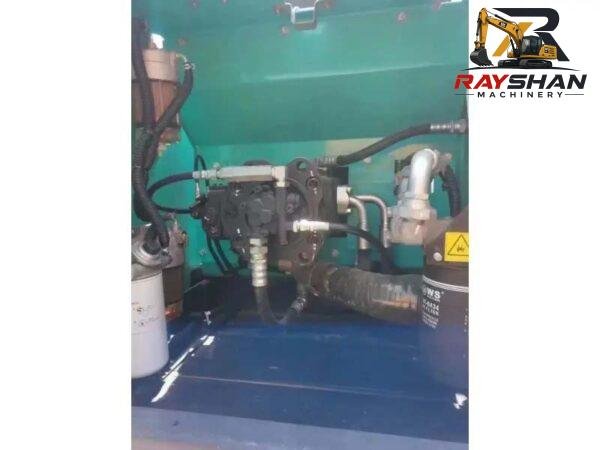

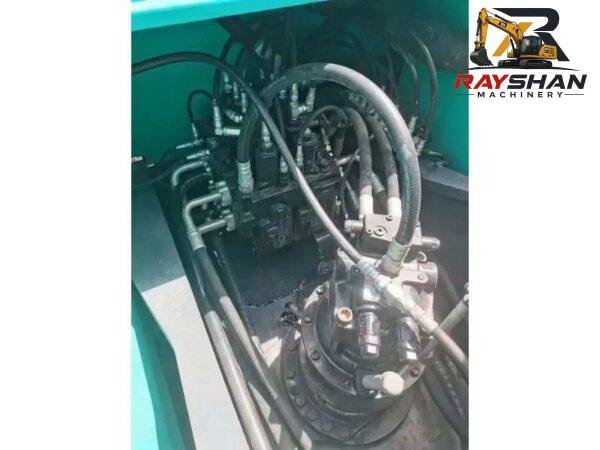

3. Hydraulic & Digging Performance

Kobelco’s hydraulic system is world-renowned for its “silk-smooth” operation. It provides the high flow rates necessary for fast cycle times in loading, paired with the precision required for fine grading.

Parameter	Metric System	Imperial System	Field Performance Indicator
Max System Flow	440 L/min	116.2 gal/min	Dual variable displacement pumps
Operating Pressure	34,300 kPa	4,975 psi	High-force relief for hard ground
Swing Speed	12.1 rpm	12.1 rpm	Rapid cycle times for bulk loading
Bucket Breakout Force	143 kN	32,150 lbf	Robust force for site excavation
Stick Digging Force	102 kN	22,930 lbf	Strong power for trenching/loading

---

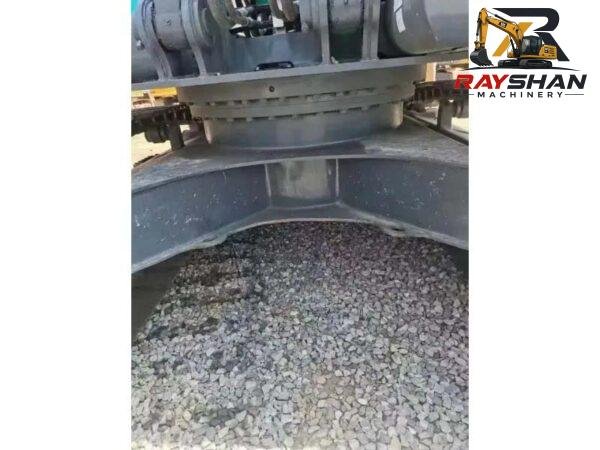

4. Undercarriage & Mobility

Built for durability, the undercarriage on the SK200D is designed to withstand high-stress environments. It provides a stable platform for safe lifting and side-loading on uneven or challenging ground.

Parameter	Metric System	Imperial System	Underfoot Mobility
Standard Shoe Width	600 mm	24 in	Triple grouser heavy-duty tracks
Max Travel Speed	5.6 km/h	3.5 mph	Dual-speed auto-shift capability
Max Traction Force	204 kN	45,860 lbf	Excellent grade-climbing ability
Ground Pressure	46.0 kPa	6.67 psi	Stable footing for various terrains

---

5. Working Ranges

Defining the essential operational envelope for large-scale earthmoving, foundation construction, and utility site preparation.

Parameter	Metric System	Imperial System
Max Digging Depth	6,700 mm	21.98 ft
Max Reach (Ground)	9,900 mm	32.48 ft
Max Cutting Height	9,720 mm	31.89 ft
Max Loading Height	6,850 mm	22.47 ft
