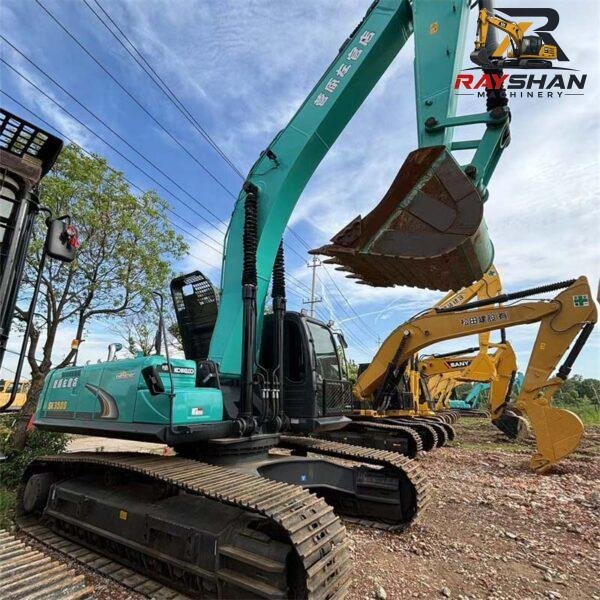

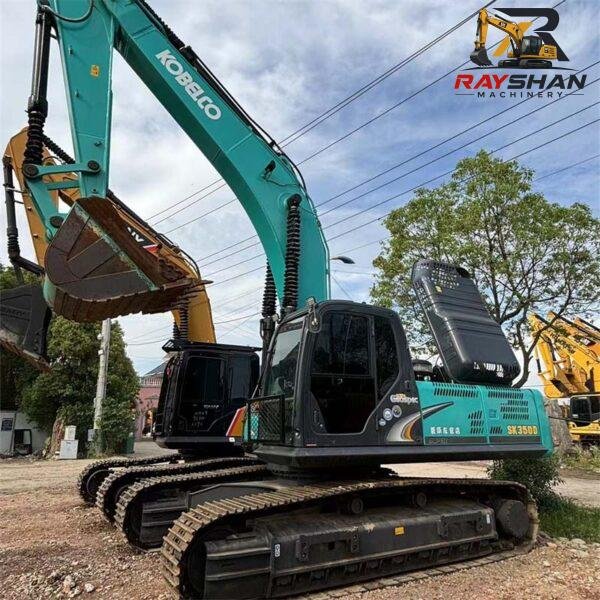

Used KOBELCO SK350D Excavator 35ton for sale Exceptional Structural Strength
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
*Proven Dependability: With verified low operating hours and a complete service history, this machine has consistently excelled in demanding tasks like mining and road construction. Trusted by contractors globally, it’s a reliable workhorse for any project.
1. Core Power & Powertrain (Engine)
The SK350 utilizes a heavy-duty industrial engine engineered to handle high-torque demands in mining and rock excavation, ensuring consistent power output under maximum load.
| Parameter | Metric System | Imperial System | Technical Remarks |
| Engine Model | Hino J08E-UN | Hino J08E-UN | 6-cylinder, Turbocharged |
| Net Flywheel Power | 195 kW | 261 hp | Rated @ 2,100 rpm |
| Displacement | 7.68 L | 469 cu in | Optimized for high-torque digging |
| Emissions Level | Tier 3 / Stage IIIA | Tier 3 / Stage IIIA | Export-standard reliability |
2. Weight, Capacities & Logistics Dimensions
These metrics are critical for logistics and site preparation. The SK350 is built with a heavy, reinforced frame for stability, requiring proper transport planning for its size and weight.
| Parameter | Metric System | Imperial System | Shipping & Logistics Relevance |
| Operating Weight | 35,400 kg | 78,040 lbs | Standard configuration with bucket |
| Transport Length | 11,200 mm | 36.75 ft | Standard for heavy-duty logistics |
| Transport Width | 3,200 mm | 10.50 ft | Wide footprint for deep-soil stability |
| Transport Height | 3,330 mm | 10.93 ft | Clearance-optimized for heavy haulers |
| Fuel Tank Capacity | 580 L | 153.2 gal | High capacity for multi-shift work |
3. Hydraulic & Digging Performance
Kobelco’s hydraulic architecture in the 35-ton class is designed to balance massive breakout forces with the fluid, responsive control needed for large-scale loading and trenching.
| Parameter | Metric System | Imperial System | Field Performance Indicator |
| Max System Flow | 2 x 319 L/min | 2 x 84.3 gal/min | High-output variable displacement |
| Operating Pressure | 34,300 kPa | 4,975 psi | High-force relief for hard-rock work |
| Swing Speed | 10.0 rpm | 10.0 rpm | Fast cycle times for bulk transport |
| Bucket Breakout Force | 243 kN | 54,630 lbf | Extreme force for dense strata |
| Stick Digging Force | 171 kN | 38,440 lbf | Massive power for deep excavation |

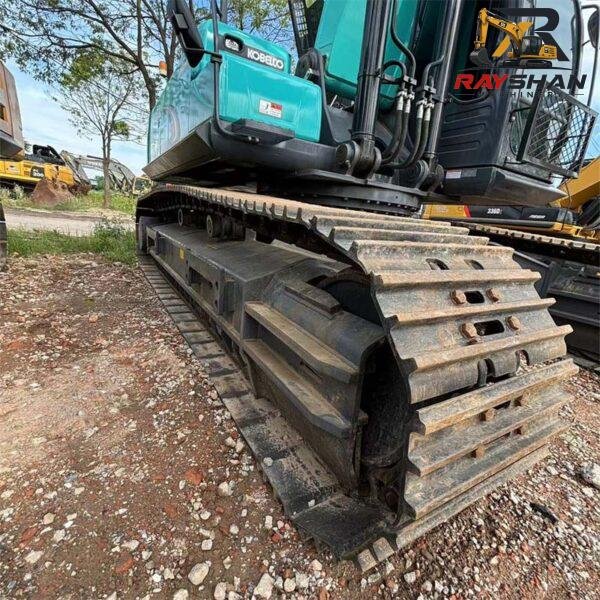

4. Undercarriage & Mobility
Designed for harsh, abrasive environments like quarries and mines, the undercarriage provides superior traction and structural integrity, minimizing maintenance in demanding site conditions.
| Parameter | Metric System | Imperial System | Underfoot Mobility |
| Standard Shoe Width | 600 mm | 24 in | Heavy-duty triple grouser shoes |
| Max Travel Speed | 5.6 km/h | 3.5 mph | Dual-speed auto-shift capability |
| Max Traction Force | 329 kN | 73,960 lbf | Superior climbing on steep grades |
| Ground Pressure | 63.0 kPa | 9.14 psi | Stable base for heavy-lifting tasks |
5. Working Ranges
Defining the essential operational limits for heavy construction, deep trenching, and large-scale foundation projects.
| Parameter | Metric System | Imperial System |
| Max Digging Depth | 7,560 mm | 24.80 ft |
| Max Reach (Ground) | 11,260 mm | 36.94 ft |
| Max Cutting Height | 10,660 mm | 34.97 ft |
| Max Loading Height | 7,550 mm | 24.77 ft |
