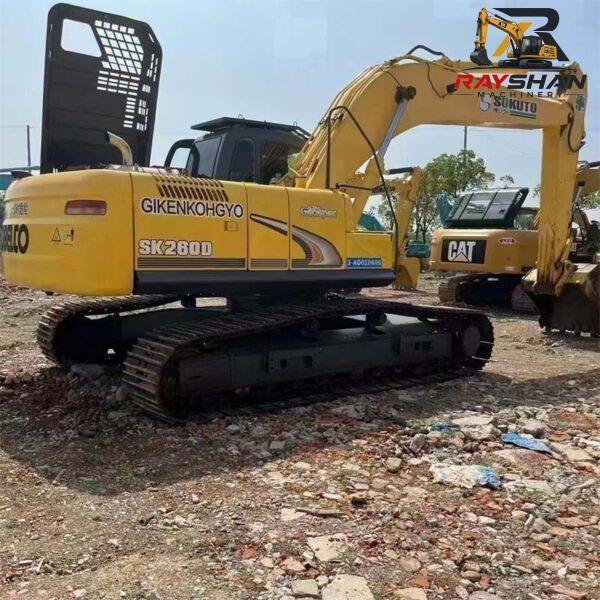

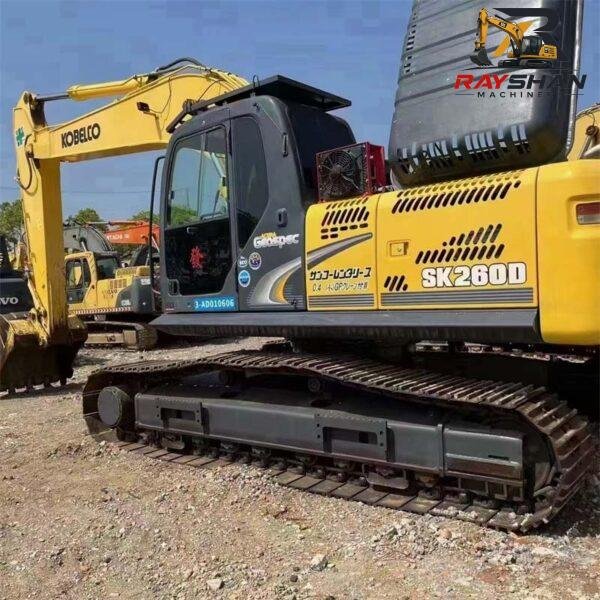

Used KOBELCO SK260D Excavator 26ton for sale Durable reinforced frame
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
*Proven Dependability: With verified low operating hours and a complete service history, this machine has consistently excelled in demanding tasks like mining and road construction. Trusted by contractors globally, it’s a reliable workhorse for any project.
1. Basic Equipment Core Information
| Specification Item | Standard Value |
|---|---|
| Equipment Type | Medium Crawler Excavator |
| Model | Kobelco SK260D |
| Manufacturing Year | 2020 |
| Operating Weight | 25,700 kg (25.7 T, 26T Industry Class) |
| Standard Bucket Capacity | 1.2 m³ |
| Original Manufacturer | Kobelco (Japan) |
2. Powertrain Specifications
| Specification Item | Standard Value |
|---|---|
| Engine Model | Hino JO5E-TM (4-cylinder, water-cooled, turbocharged, direct-injection diesel engine) |
| Rated Power | 134 kW |
| Engine Displacement | 5.123 L |
| Fuel Tank Capacity | 240 L |
| Radiator Capacity | 15 L |
| Engine Oil Capacity | 18 L |
| Air Intake System | Turbocharged |
| Emission Standard | China Stage III / EU Stage IIIA (compatible with low-purity fuel regions) |

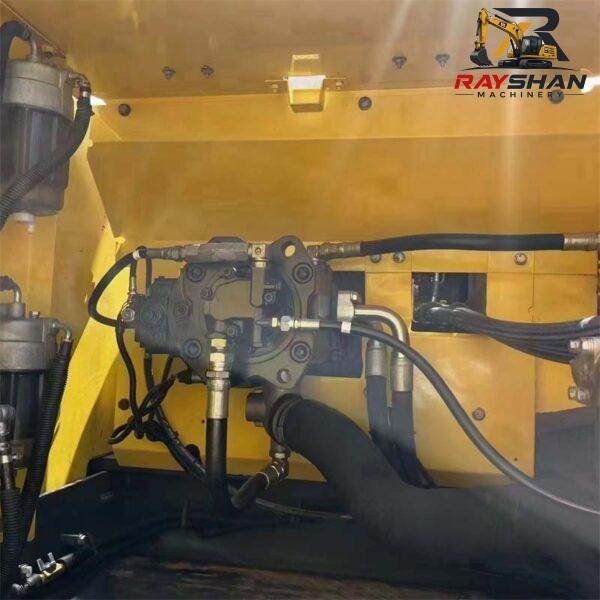

3. Hydraulic System Specifications
| Specification Item | Standard Value |
|---|---|
| Hydraulic Tank Capacity | 140 L |
| Main Pump Type | Kawasaki Variable Displacement Axial Piston Pump |
| Standard System Pressure | 34.3 MPa |
| Bucket Digging Force | 178 kN |
| Arm Digging Force | 120 kN |
| Control System | Kobelco Intelligent Load-Sensing Electro-hydraulic Control System |

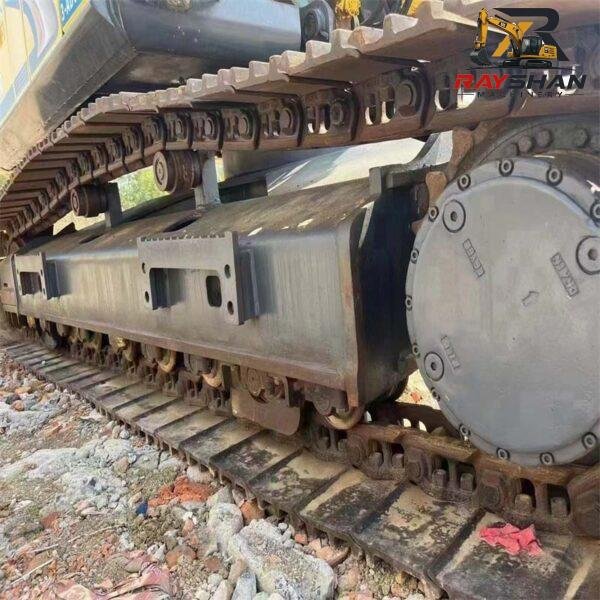

4. Undercarriage & Travel System Specifications
| Specification Item | Standard Value |
|---|---|
| Track Type | Steel Track Shoes |
| Track Shoe Width | 600 mm |
| Track Rollers (Per Side) | 7 |
| Carrier Rollers (Per Side) | 2 |
| Ground Contact Length of Track | 3370 mm |
| Total Track Length | 4150 mm |
| Max Travel Speed | 5.5 km/h |
| Gradeability | 35° |
| Ground Contact Pressure | 50.2 kPa |
5. Operating Performance Parameters
| Specification Item | Standard Value |
|---|---|
| Maximum Digging Height | 9680 mm |
| Maximum Unloading Height | 6720 mm |
| Maximum Digging Depth | 6920 mm |
| Maximum Vertical Boom Digging Depth | 6050 mm |
| Maximum Digging Distance | 10230 mm |
| Minimum Slewing Radius | 3520 mm |
| Slewing Speed | 11 rpm |
6. Standard Working Device Specifications
| Specification Item | Standard Value |
|---|---|
| Standard Boom Length | 5.85 m |
| Standard Stick Length | 3.05 m |
| Bucket Capacity Range | 0.8 – 1.5 m³ |
| Bucket Pin Diameter | 70 mm |
| Compatible Attachments | Hydraulic Breaker, Auger, Grapple, Quick Coupler, Compactor, Screening Bucket |
