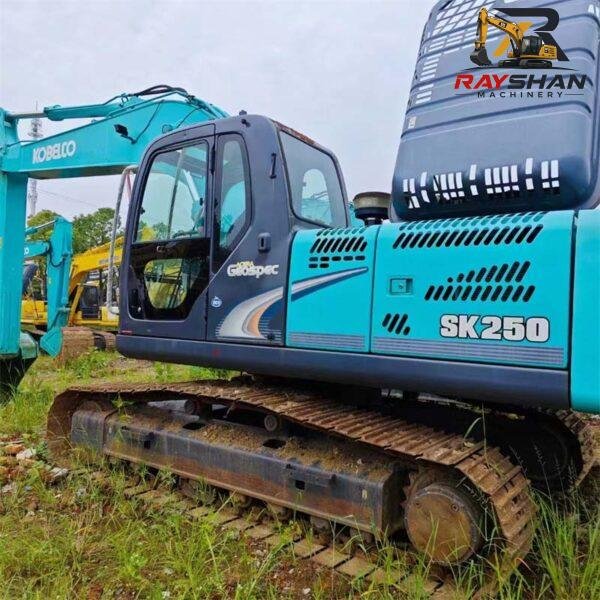

Used KOBELCO SK250 Excavator 25ton for sale Iconic Kobelco Handling Feel
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
*Proven Dependability: With verified low operating hours and a complete service history, this machine has consistently excelled in demanding tasks like mining and road construction. Trusted by contractors globally, it’s a reliable workhorse for any project.
1. Core Power & Powertrain (Engine)
The SK250 is equipped with a high-performance, turbocharged engine designed to deliver massive torque at lower RPMs, ensuring peak productivity during high-demand excavation cycles.
| Parameter | Metric System | Imperial System | Technical Remarks |
| Engine Model | Hino J05E | Hino J05E | 4-cylinder, Turbocharged |
| Net Flywheel Power | 124 kW | 166 hp | Rated @ 2,000 rpm |
| Displacement | 5.12 L | 312 cu in | High torque density for heavy soil |
| Emissions Level | Tier 3 / Stage IIIA | Tier 3 / Stage IIIA | Standard for international export |
2. Weight, Capacities & Logistics Dimensions
These specifications are vital for logistics planning. The SK250 is engineered for maximum ground stability while remaining optimized for standard heavy-haul trailer dimensions.
| Parameter | Metric System | Imperial System | Shipping & Logistics Relevance |
| Operating Weight | 25,200 kg | 55,560 lbs | Standard with 1.0 m³ bucket |
| Transport Length | 10,130 mm | 33.23 ft | Optimized for heavy-haul trailers |
| Transport Width | 3,190 mm | 10.47 ft | Stable footprint for large-scale work |
| Transport Height | 3,090 mm | 10.14 ft | Clearance-compliant for standard transport |
| Fuel Tank Capacity | 400 L | 105.6 gal | Extended operation without refueling |

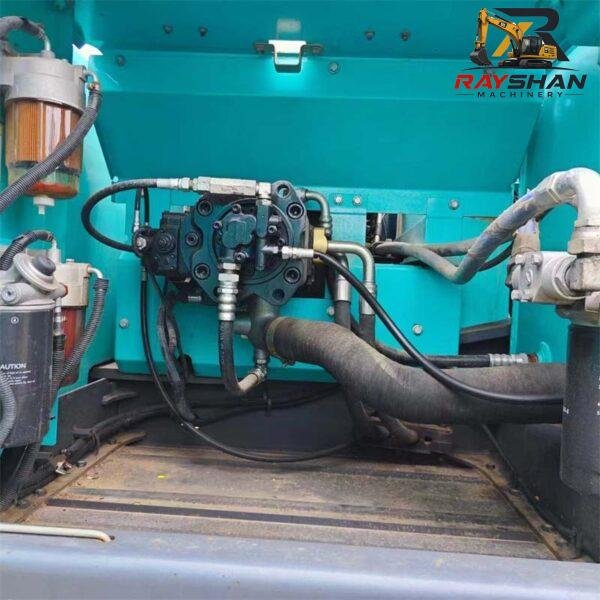

3. Hydraulic & Digging Performance
Featuring Kobelco’s advanced hydraulic circuit, the SK250 delivers rapid cycle times and “silk-smooth” operation, allowing for high-precision grading alongside brute-force excavation.
| Parameter | Metric System | Imperial System | Field Performance Indicator |
| Max System Flow | 2 x 235 L/min | 2 x 62.1 gal/min | Tandem variable displacement pumps |
| Operating Pressure | 34,300 kPa | 4,975 psi | High-force relief for hard-rock work |
| Swing Speed | 10.3 rpm | 10.3 rpm | Efficient cycle times for truck loading |
| Bucket Breakout Force | 177 kN | 39,790 lbf | Massive force for dense material |
| Stick Digging Force | 126 kN | 28,330 lbf | Powerful penetration for trenching |

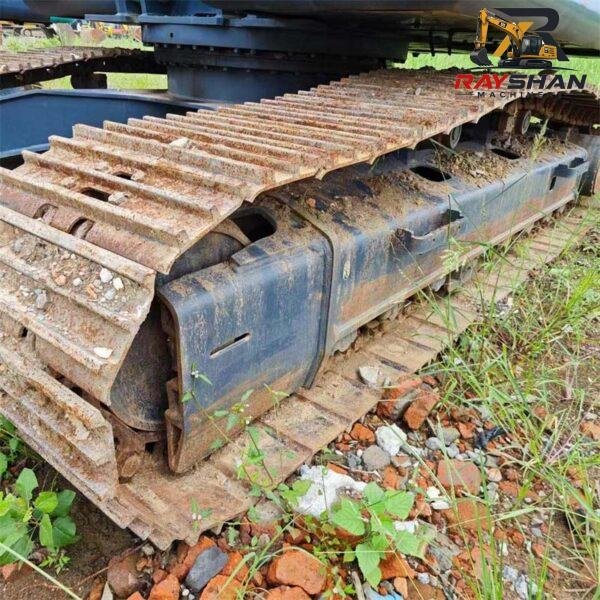

4. Undercarriage & Mobility
The SK250’s heavy-duty undercarriage provides an exceptionally stable platform for lifting operations and high-impact excavating, with superior traction for hilly or unstable terrain.
| Parameter | Metric System | Imperial System | Underfoot Mobility |
| Standard Shoe Width | 600 mm | 24 in | Triple grouser heavy-duty tracks |
| Max Travel Speed | 5.6 km/h | 3.5 mph | Dual-speed auto-shift |
| Max Traction Force | 240 kN | 53,950 lbf | Superior climbing on steep grades |
| Ground Pressure | 50.0 kPa | 7.25 psi | Stable footing in challenging soil |
5. Working Ranges
Defining the essential operational limits for deep foundation work, bulk earthmoving, and large-scale site preparation.
| Parameter | Metric System | Imperial System |
| Max Digging Depth | 7,000 mm | 22.97 ft |
| Max Reach (Ground) | 10,300 mm | 33.79 ft |
| Max Cutting Height | 9,920 mm | 32.55 ft |
| Max Loading Height | 7,020 mm | 23.03 ft |
