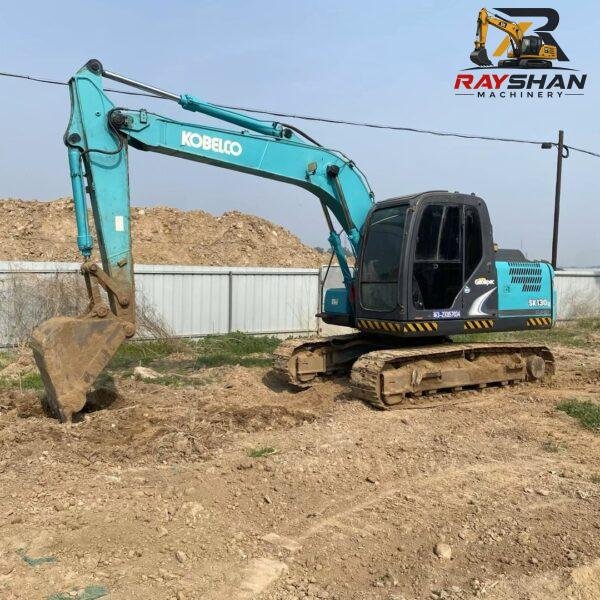

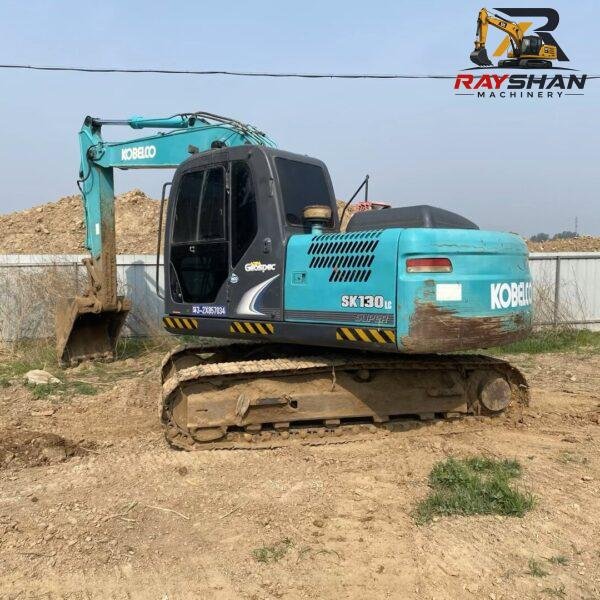

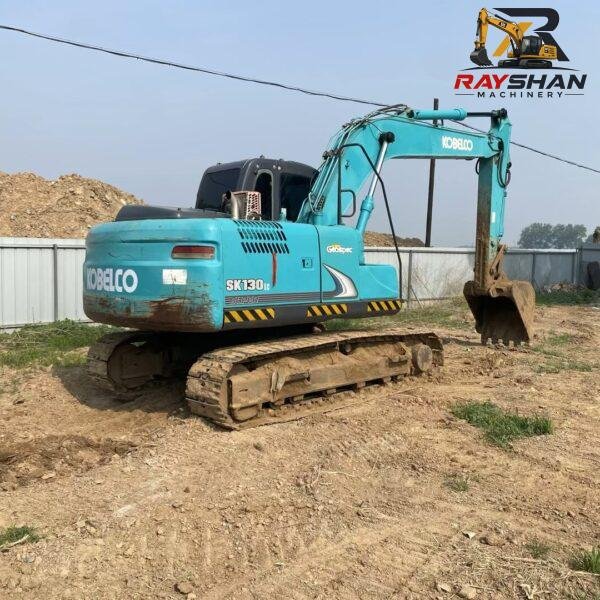

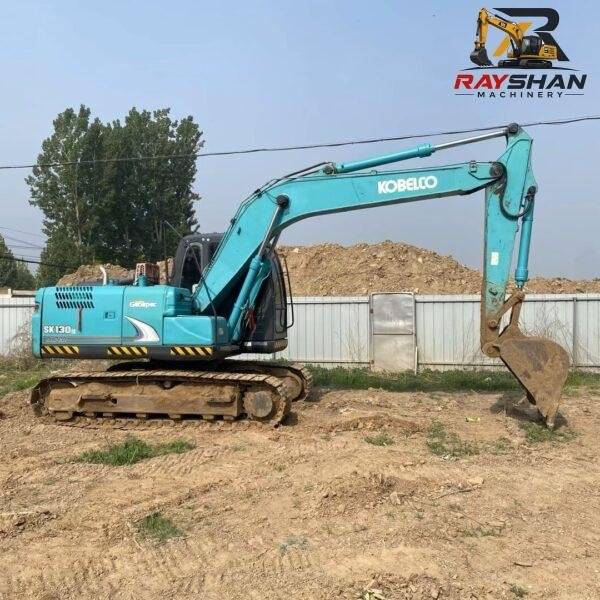

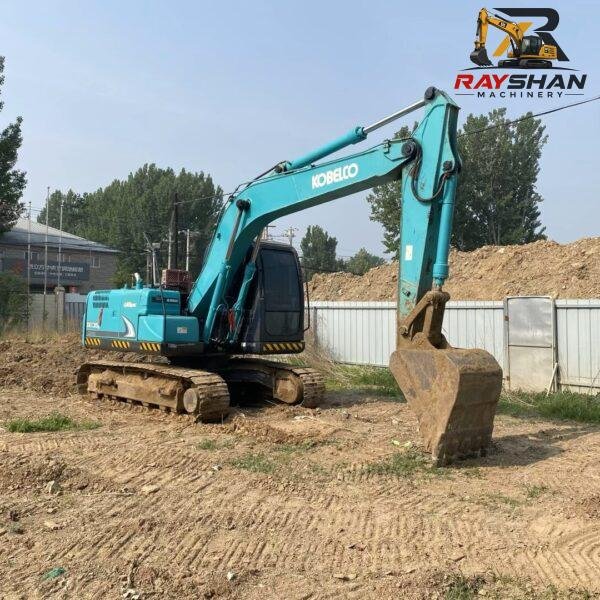

Used KOBELCO SK130 Excavator 13ton for sale Excellent Operational Economy

1. Core Power & Powertrain (Engine)

The SK130 utilizes a high-torque, industrial engine engineered for reliability and fuel economy, making it an ideal choice for contractors balancing performance with operational costs.

Parameter	Metric System	Imperial System	Technical Remarks
Engine Model	Isuzu 4JJ1X	Isuzu 4JJ1X	4-cylinder, Turbocharged
Net Flywheel Power	74 kW	99 hp	Rated @ 2,000 rpm
Displacement	2.99 L	182 cu in	High torque for medium-duty digging
Cooling System	Pressurized	Pressurized	High-capacity cooling for extended use

---

2. Weight, Capacities & Logistics Dimensions

These specs are essential for efficient site mobilization. The SK130’s optimized transport footprint allows it to be moved easily between job sites using standard equipment, reducing logistics overhead.

Parameter	Metric System	Imperial System	Shipping & Logistics Relevance
Operating Weight	13,200 kg	29,100 lbs	Standard configuration with bucket
Transport Length	7,650 mm	25.10 ft	Compact for standard flatbed transport
Transport Width	2,490 mm	8.17 ft	Transport-friendly width
Transport Height	2,820 mm	9.25 ft	Clearance-compliant for standard haulers
Fuel Tank Capacity	200 L	52.8 gal	Designed for full-shift endurance

---

3. Hydraulic & Digging Performance

Kobelco’s hydraulic system in the 13-ton class provides the “silk-smooth” control needed for precision utility work, while maintaining the force required for faster cycle times in loading.

Parameter	Metric System	Imperial System	Field Performance Indicator
Max System Flow	2 x 130 L/min	2 x 34.3 gal/min	Dual variable displacement pumps
Operating Pressure	34,300 kPa	4,975 psi	High-force relief for dense soils
Swing Speed	12.5 rpm	12.5 rpm	Fast cycle times for bulk loading
Bucket Breakout Force	90 kN	20,230 lbf	Strong penetration for its class
Stick Digging Force	64 kN	14,390 lbf	Robust power for trenching

---

4. Undercarriage & Mobility

Designed for versatile job-site maneuverability, the undercarriage offers the traction and stability necessary for working on diverse surfaces, from soft trench beds to hard-packed gravel.

Parameter	Metric System	Imperial System	Underfoot Mobility
Standard Shoe Width	500 mm	20 in	Triple grouser heavy-duty tracks
Max Travel Speed	5.6 km/h	3.5 mph	Dual-speed auto-shift capability
Max Traction Force	140 kN	31,470 lbf	Excellent grade-climbing ability
Ground Pressure	41.0 kPa	5.95 psi	Low pressure for delicate surfaces

---

5. Working Ranges

Defining the essential operational envelope for utility, infrastructure, and site development tasks.

Parameter	Metric System	Imperial System
Max Digging Depth	5,520 mm	18.11 ft
Max Reach (Ground)	8,260 mm	27.10 ft
Max Cutting Height	8,760 mm	28.74 ft
Max Loading Height	6,430 mm	21.10 ft
