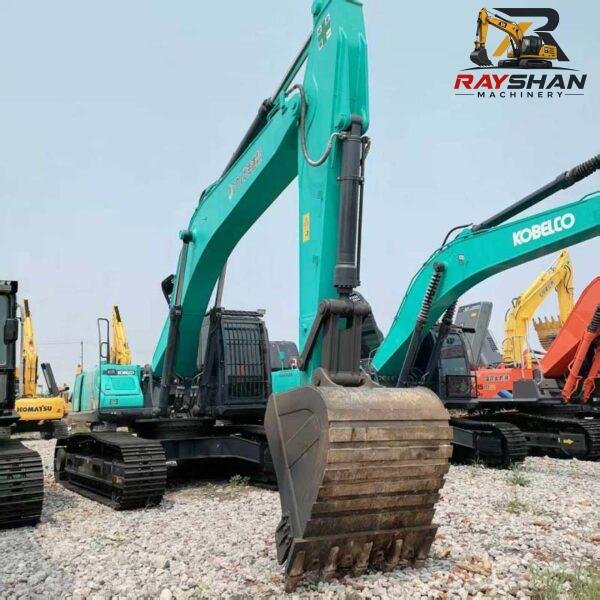

Used KOBELCO SK350LC Excavator 35ton for sale Smooth Operation of Kobelco Hydraulic System

Used KOBELCO SK350LC Excavator 35ton for sale Smooth Operation of Kobelco Hydraulic System

*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
*Proven Dependability: With verified low operating hours and a complete service history, this machine has consistently excelled in demanding tasks like mining and road construction. Trusted by contractors globally, it’s a reliable workhorse for any project.

Category:

1. Core Power & Powertrain (Engine)

The SK350LC is engineered with a high-torque, industrial-grade engine designed to sustain peak performance during continuous heavy-load excavation cycles.

Parameter Metric System Imperial System Technical Remarks
Engine Model Hino J08E-UN Hino J08E-UN 6-cylinder, Turbocharged
Net Flywheel Power 195 kW 261 hp Rated @ 2,100 rpm
Displacement 7.68 L 469 cu in Optimized for high-torque digging
Cooling System Pressurized Pressurized High-capacity industrial cooling

2. Weight, Capacities & Logistics Dimensions

These metrics are critical for logistics planning and site management. The “LC” (Long Crawler) design provides the enhanced footprint necessary for stability on uneven or soft terrain.

Parameter Metric System Imperial System Shipping & Logistics Relevance
Operating Weight 35,400 kg 78,040 lbs Standard configuration with bucket
Transport Length 11,200 mm 36.75 ft Standard for heavy-duty mobilization
Transport Width 3,200 mm 10.50 ft Optimized footprint for stability
Transport Height 3,330 mm 10.93 ft Clearance-compliant for standard haulers
Fuel Tank Capacity 580 L 153.2 gal Designed for extended site uptime

3. Hydraulic & Digging Performance

Kobelco’s hydraulic systems are world-renowned for their “silk-smooth” operation, providing the perfect balance of massive breakout force for rock-heavy ground and precision control for loading.

Parameter Metric System Imperial System Field Performance Indicator
Max System Flow 2 x 319 L/min 2 x 84.3 gal/min Tandem variable displacement pumps
Operating Pressure 34,300 kPa 4,975 psi High-force relief for dense material
Swing Speed 10.0 rpm 10.0 rpm Fast cycle times for bulk truck loading
Bucket Breakout Force 243 kN 54,630 lbf Extreme force for hard excavation
Stick Digging Force 171 kN 38,440 lbf Powerful penetration for deep trenches

4. Undercarriage & Mobility

Designed for abrasive, high-stress environments such as quarries and mines, the LC undercarriage ensures low ground pressure and superior traction in challenging soil conditions.

Parameter Metric System Imperial System Underfoot Mobility
Standard Shoe Width 600 mm 24 in Triple grouser heavy-duty tracks
Max Travel Speed 5.6 km/h 3.5 mph Dual-speed auto-shift capability
Max Traction Force 329 kN 73,960 lbf Exceptional climbing performance
Ground Pressure 63.0 kPa 9.14 psi Stable footing for heavy-duty lifting

5. Working Ranges

Defining the essential operational limits for large-scale earthmoving, mining, and foundation preparation.

Parameter Metric System Imperial System
Max Digging Depth 7,560 mm 24.80 ft
Max Reach (Ground) 11,260 mm 36.94 ft
Max Cutting Height 10,660 mm 34.97 ft
Max Loading Height 7,550 mm 24.77 ft
