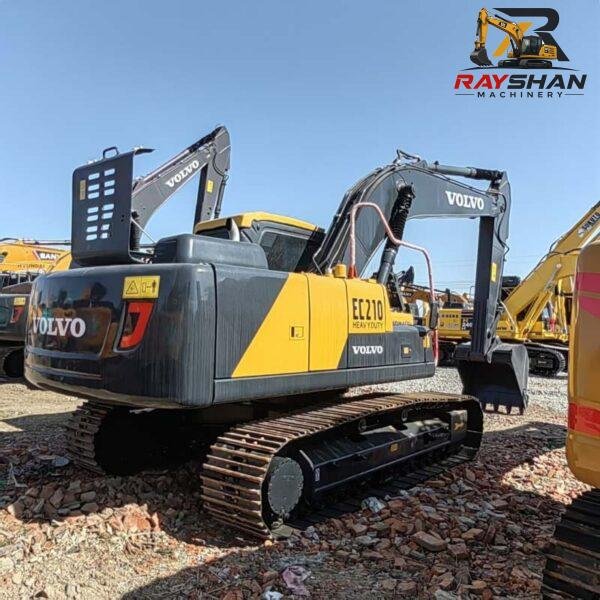

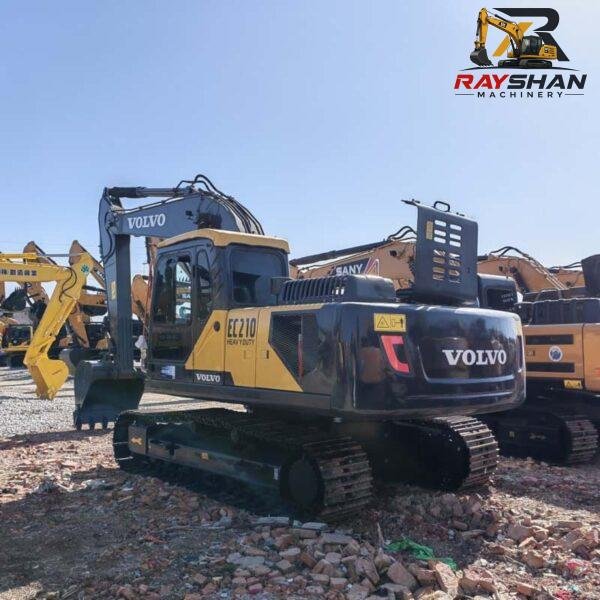

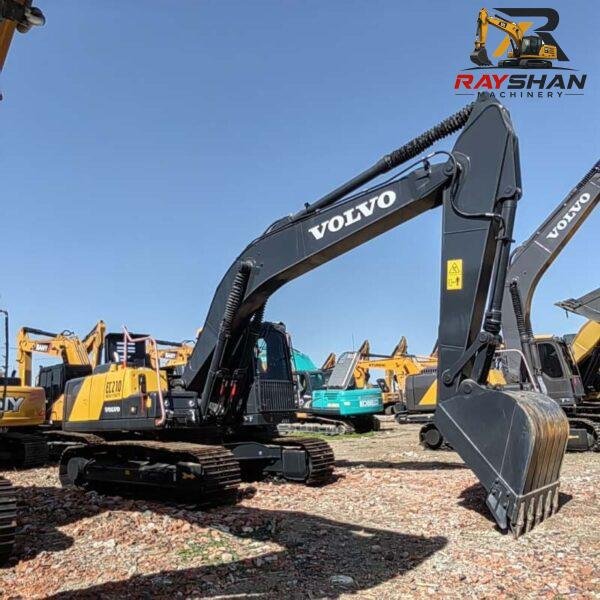

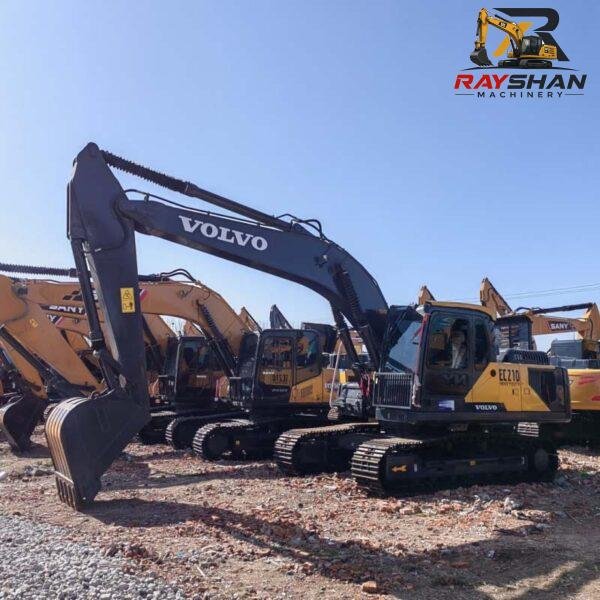

Used VOLVO EC210 Excavator 21ton for sale Robust Material Construction
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
*Proven Dependability: With verified low operating hours and a complete service history, this machine has consistently excelled in demanding tasks like mining and road construction. Trusted by contractors globally, it’s a reliable workhorse for any project.
1. Core Power & Powertrain (Engine)
The EC210 features a robust, high-torque industrial engine designed for continuous heavy-load operation. Its mechanical simplicity ensures reliable performance, even when operating in regions with variable fuel quality.
| Parameter | Metric System | Imperial System | Technical Remarks |
| Engine Model | Volvo D6E | Volvo D6E | 6-cylinder, Turbocharged |
| Net Flywheel Power | 110 kW | 148 hp | Rated @ 1,900 rpm |
| Displacement | 5.7 L | 348 cu in | Optimized for high-torque endurance |
| Emission Standard | Tier 2 / Stage II | Tier 2 / Stage II | Proven reliability for global export |
2. Weight, Capacities & Logistics Dimensions
These specs are critical for logistics planning. Despite its heavy-duty status, the EC210 is engineered with a transport-conscious profile to ensure it can be mobilized between major work sites efficiently.
| Parameter | Metric System | Imperial System | Shipping & Logistics Relevance |
| Operating Weight | 21,500 kg | 47,400 lbs | Standard configuration with bucket |
| Transport Length | 9,690 mm | 31.79 ft | Optimized for heavy-duty flatbed hauling |
| Transport Width | 2,990 mm | 9.81 ft | Standard footprint for large machinery |
| Transport Height | 3,000 mm | 9.84 ft | Clearance-compliant for heavy haulers |
| Fuel Tank Capacity | 350 L | 92.5 gal | Sized for extended, high-intensity shifts |

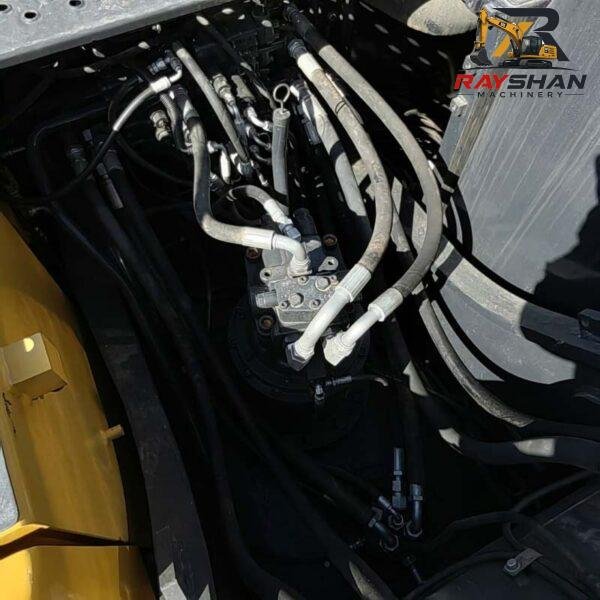

3. Hydraulic & Digging Performance
The EC210 is famous for its hydraulic strength. The load-sensing system provides the precise, high-pressure flow required for heavy rock excavation and bulk earthmoving, offering a distinct edge in cycle times.
| Parameter | Metric System | Imperial System | Field Performance Indicator |
| Max System Flow | 2 x 200 L/min | 2 x 52.8 gal/min | Dual variable displacement piston pumps |
| Operating Pressure | 34,300 kPa | 4,975 psi | High relief for maximum breakout force |
| Swing Speed | 12.5 rpm | 12.5 rpm | Fast cycle times for bulk material loading |
| Bucket Breakout Force | 149 kN | 33,500 lbf | Massive force for dense, compacted ground |
| Stick Digging Force | 103 kN | 23,150 lbf | Robust power for deep foundation trenches |
4. Undercarriage & Mobility
Designed to withstand the rigors of mining and harsh terrain, the undercarriage provides superior stability and traction, ensuring minimal downtime in muddy or uneven job sites.
| Parameter | Metric System | Imperial System | Underfoot Mobility |
| Standard Shoe Width | 600 mm | 24 in | Heavy-duty triple grouser tracks |
| Max Travel Speed | 5.5 km/h | 3.4 mph | Dual-speed auto-shift for site transit |
| Max Traction Force | 187 kN | 42,040 lbf | High-torque for steep site inclines |
| Ground Pressure | 46.0 kPa | 6.67 psi | Stable footing for heavy structural work |
5. Working Ranges
Defining the essential operational envelope for large-scale utility installation, infrastructure foundation work, and heavy site preparation.
| Parameter | Metric System | Imperial System |
| Max Digging Depth | 6,730 mm | 22.08 ft |
| Max Reach (Ground) | 9,900 mm | 32.48 ft |
| Max Cutting Height | 9,670 mm | 31.73 ft |
| Max Loading Height | 6,700 mm | 21.98 ft |
