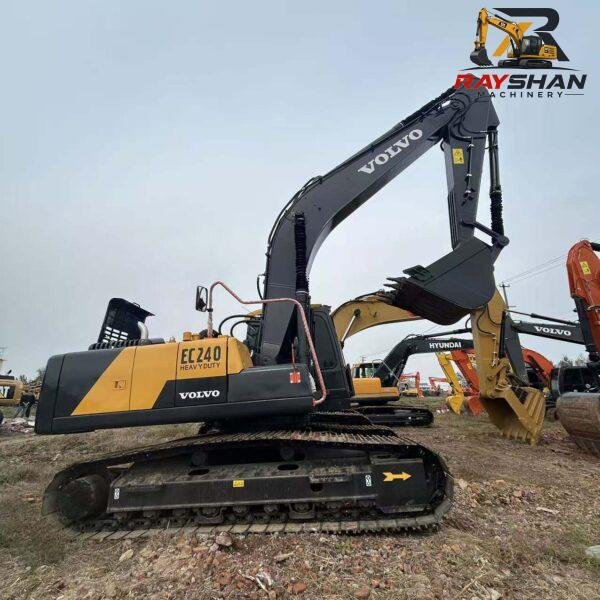

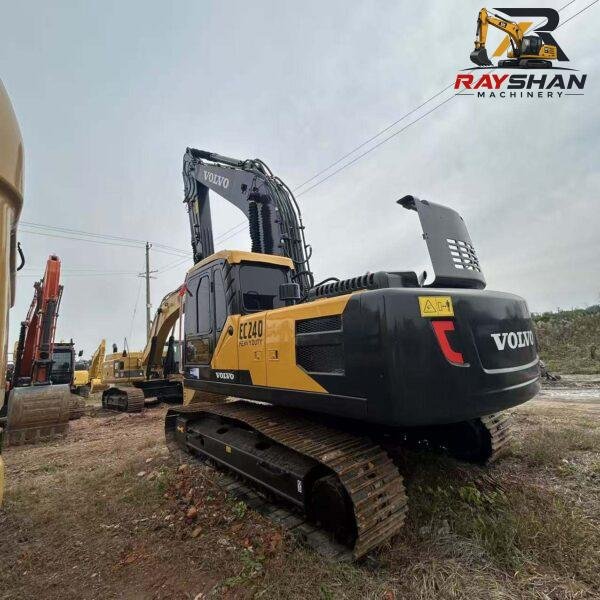

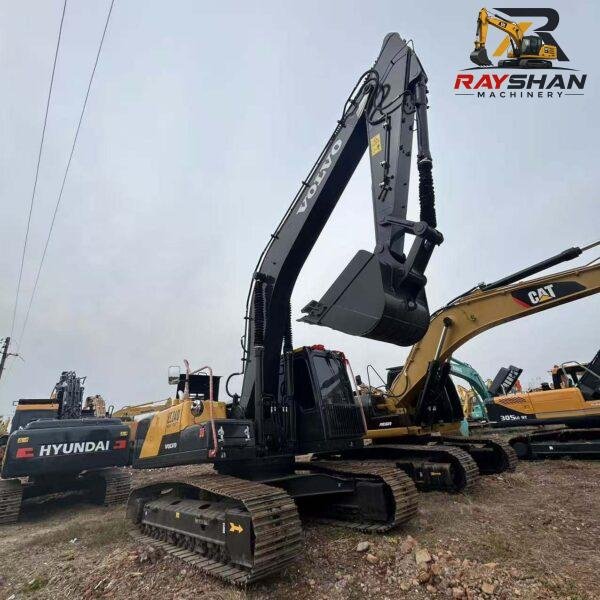

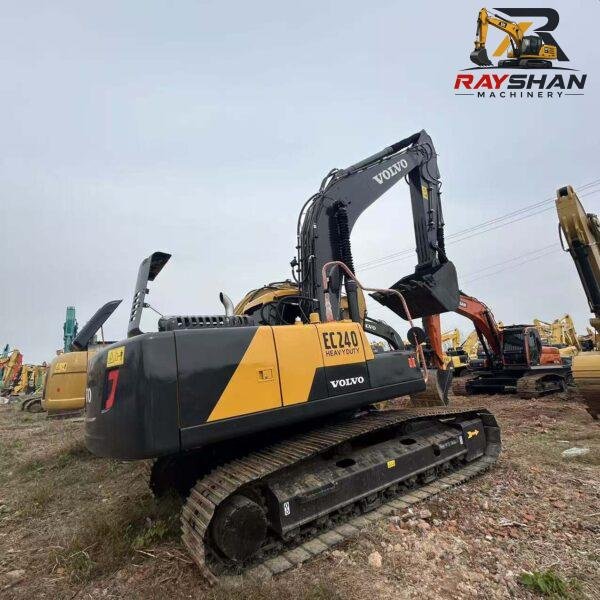

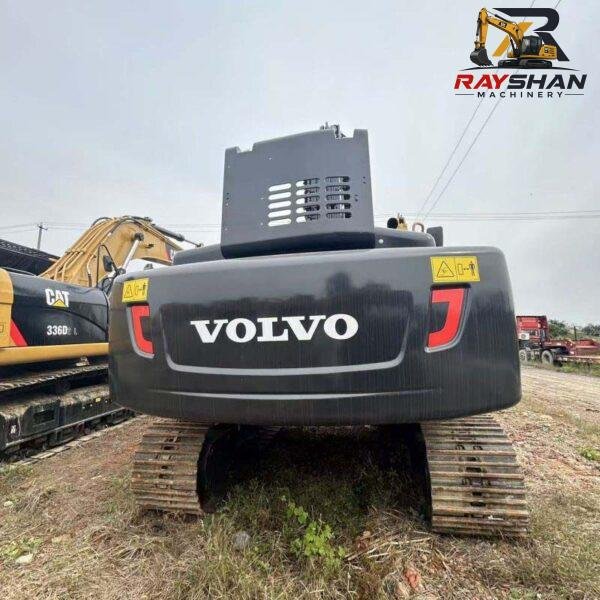

Used VOLVO EC240 Excavator 24ton for sale Mature Mechanical Performance
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
*Proven Dependability: With verified low operating hours and a complete service history, this machine has consistently excelled in demanding tasks like mining and road construction. Trusted by contractors globally, it’s a reliable workhorse for any project.
1. Core Power & Powertrain (Engine)
The EC240 is powered by a high-torque, industrial-grade engine designed to deliver sustained, reliable power under extreme stress. Its engineering prioritizes longevity and performance in high-cycle-duty environments.
| Parameter | Metric System | Imperial System | Technical Remarks |
| Engine Model | Volvo D7E | Volvo D7E | 6-cylinder, Turbocharged |
| Net Flywheel Power | 125 kW | 168 hp | Rated @ 2,000 rpm |
| Displacement | 7.1 L | 433 cu in | Massive torque reserve for heavy lifting |
| Emission Standard | Tier 2 / Stage II | Tier 2 / Stage II | High-tolerance for global fuel quality |
2. Weight, Capacities & Logistics Dimensions
These metrics are essential for logistics and fleet management. The EC240 is designed with a heavy-duty profile while maintaining transport efficiency for standard low-bed trailer mobilization.
| Parameter | Metric System | Imperial System | Shipping & Logistics Relevance |
| Operating Weight | 24,500 kg | 54,013 lbs | Standard configuration with bucket |
| Transport Length | 10,200 mm | 33.46 ft | Optimized for heavy-duty flatbed transport |
| Transport Width | 2,990 mm | 9.81 ft | Standard width for heavy machine transit |
| Transport Height | 3,100 mm | 10.17 ft | Clearance-compliant for heavy haulers |
| Fuel Tank Capacity | 470 L | 124.2 gal | Engineered for long, high-output work shifts |
3. Hydraulic & Digging Performance
Volvo’s advanced hydraulic system provides the immense breakout force required for rock excavation, deep foundation work, and dense material loading, ensuring industry-leading cycle times.
| Parameter | Metric System | Imperial System | Field Performance Indicator |
| Max System Flow | 2 x 215 L/min | 2 x 56.8 gal/min | Dual variable displacement piston pumps |
| Operating Pressure | 35,300 kPa | 5,120 psi | High relief for maximum penetration |
| Swing Speed | 11.5 rpm | 11.5 rpm | Fast cycle times for bulk loading |
| Bucket Breakout Force | 165 kN | 37,100 lbf | Elite force for hard-packed material |
| Stick Digging Force | 117 kN | 26,300 lbf | Robust power for heavy-duty trenching |
4. Undercarriage & Mobility
The heavy-duty undercarriage is designed to withstand the brutal environment of quarrying and demolition, providing the stability and traction needed for steep inclines and unstable ground.
| Parameter | Metric System | Imperial System | Underfoot Mobility |
| Standard Shoe Width | 600 mm | 24 in | High-strength triple grouser tracks |
| Max Travel Speed | 5.5 km/h | 3.4 mph | Dual-speed auto-shift capability |
| Max Traction Force | 208 kN | 46,760 lbf | Superior climbing ability on slopes |
| Ground Pressure | 51.0 kPa | 7.40 psi | Stable footing for high-impact work |
5. Working Ranges
Defining the essential operational envelope for large-scale mining, mass-excavation, and heavy infrastructure projects.
| Parameter | Metric System | Imperial System |
| Max Digging Depth | 6,800 mm | 22.31 ft |
| Max Reach (Ground) | 10,200 mm | 33.46 ft |
| Max Cutting Height | 9,800 mm | 32.15 ft |
| Max Loading Height | 6,900 mm | 22.64 ft |
