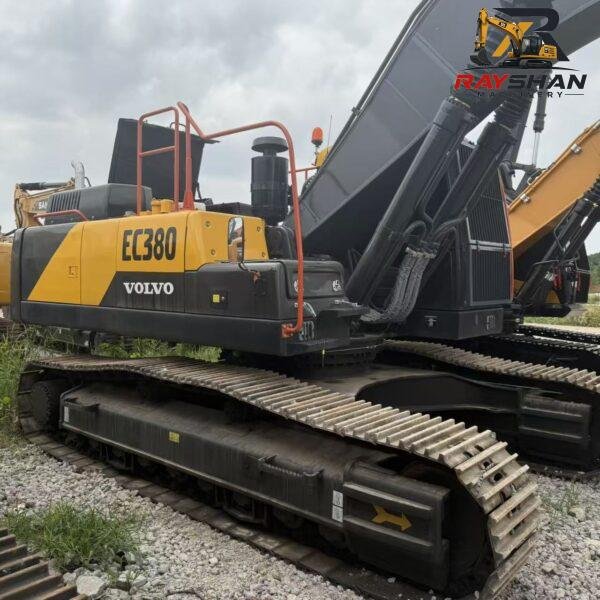

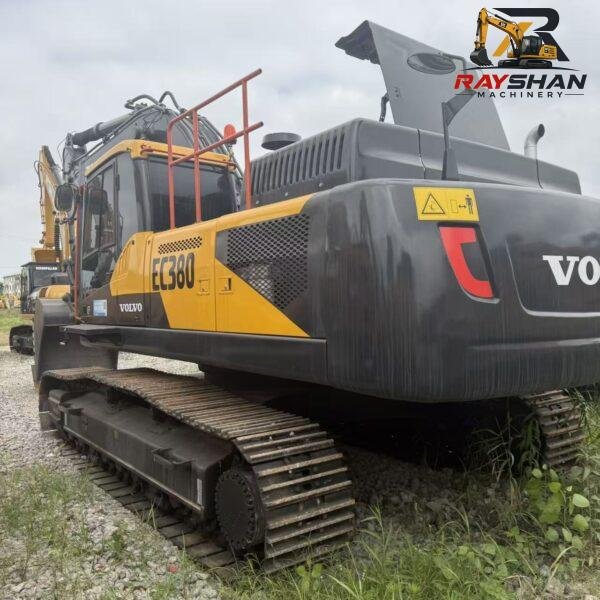

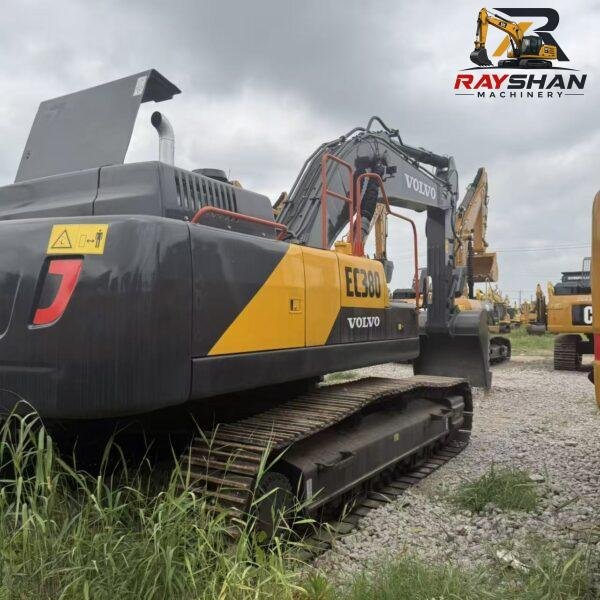

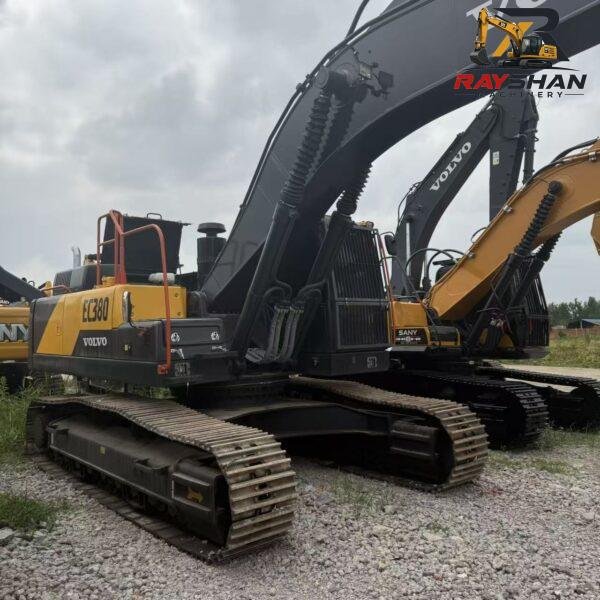

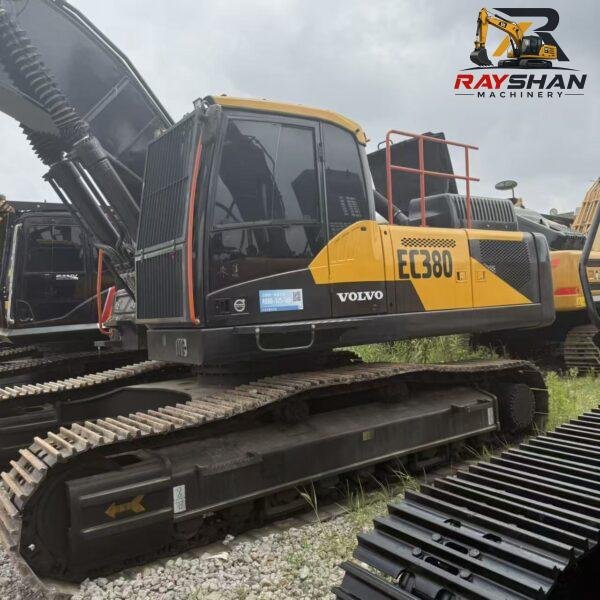

Used VOLVO 380 Excavator 38ton for sale Powerful Burst Digging Force
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
*Proven Dependability: With verified low operating hours and a complete service history, this machine has consistently excelled in demanding tasks like mining and road construction. Trusted by contractors globally, it’s a reliable workhorse for any project.
1. Core Power & Powertrain (Engine)
The EC380 utilizes an industrial-grade engine optimized for high-torque output. It is built to maintain consistent productivity under peak loads, typical of primary rock extraction and heavy earthmoving.
| Parameter | Metric System | Imperial System | Technical Remarks |
| Engine Model | Volvo D13 | Volvo D13 | 6-cylinder, Turbocharged |
| Net Flywheel Power | 225 kW | 302 hp | Rated @ 1,800 rpm |
| Displacement | 12.8 L | 781 cu in | High torque for aggressive cycling |
| Emission Standard | Tier 3 / Stage IIIA | Tier 3 / Stage IIIA | Global market export configuration |
2. Weight, Capacities & Logistics Dimensions
These specs are critical for logistics and fleet planning. The EC380 balances massive structural durability with an efficient profile for heavy-haul mobilization between major job sites.
| Parameter | Metric System | Imperial System | Shipping & Logistics Relevance |
| Operating Weight | 38,500 kg | 84,878 lbs | Standard configuration with bucket |
| Transport Length | 11,200 mm | 36.75 ft | Optimized for heavy-duty flatbed transport |
| Transport Width | 3,190 mm | 10.47 ft | Stable stance for heavy-load operations |
| Transport Height | 3,550 mm | 11.65 ft | Clearance-compliant for heavy haulers |
| Fuel Tank Capacity | 600 L | 158.5 gal | Engineered for extended high-output shifts |
3. Hydraulic & Digging Performance
Volvo’s advanced hydraulic system is engineered for responsiveness and high-pressure endurance. It provides the “brute force” required for rock breaking and the precision needed for consistent, fast cycle times.
| Parameter | Metric System | Imperial System | Field Performance Indicator |
| Max System Flow | 2 x 315 L/min | 2 x 83.2 gal/min | Dual variable displacement piston pumps |
| Operating Pressure | 35,000 kPa | 5,076 psi | Maximum relief for sustained breakout |
| Swing Speed | 10.2 rpm | 10.2 rpm | High-efficiency for bulk loading |
| Bucket Breakout Force | 210 kN | 47,210 lbf | Massive penetration for dense materials |
| Stick Digging Force | 180 kN | 40,465 lbf | Robust power for deep, hard-packed earth |
4. Undercarriage & Mobility
Designed for the rigors of mining, the undercarriage provides superior stability and traction, ensuring the machine remains a productive asset even on steep, uneven, or unstable terrain.
| Parameter | Metric System | Imperial System | Underfoot Mobility |
| Standard Shoe Width | 600 mm | 24 in | Triple grouser heavy-duty tracks |
| Max Travel Speed | 5.2 km/h | 3.2 mph | Dual-speed auto-shift capability |
| Max Traction Force | 280 kN | 62,950 lbf | Superior climbing power on inclines |
| Ground Pressure | 72.0 kPa | 10.44 psi | Optimized for load-bearing stability |
5. Working Ranges
Defining the operational envelope for mining, mass-excavation, and large-scale infrastructure site preparation.
| Parameter | Metric System | Imperial System |
| Max Digging Depth | 7,300 mm | 23.95 ft |
| Max Reach (Ground) | 11,000 mm | 36.09 ft |
| Max Cutting Height | 10,200 mm | 33.46 ft |
| Max Loading Height | 7,100 mm | 23.29 ft |
