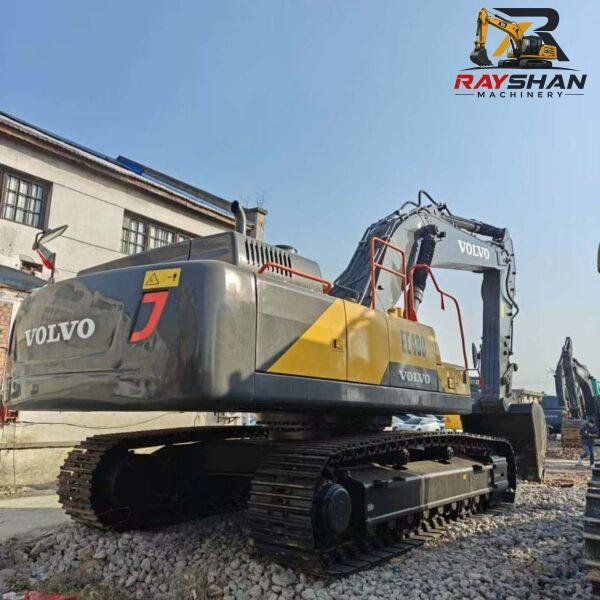

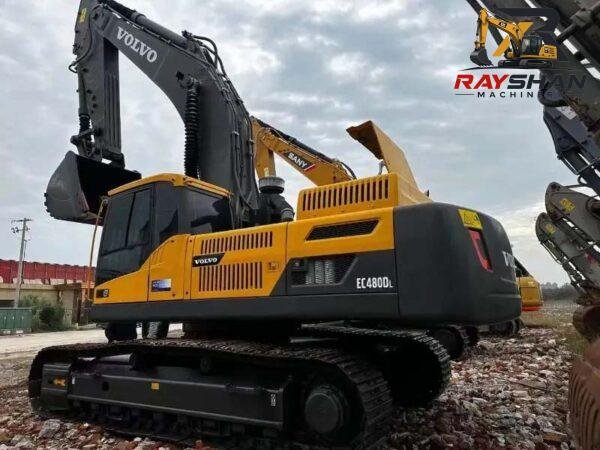

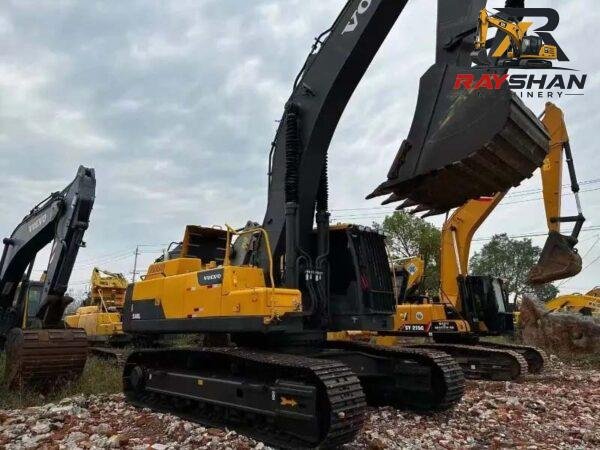

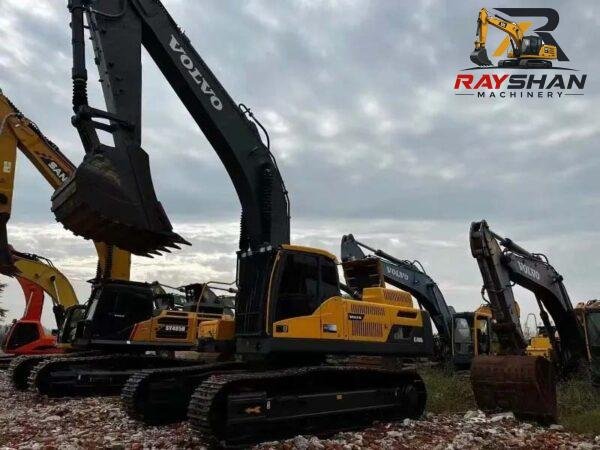

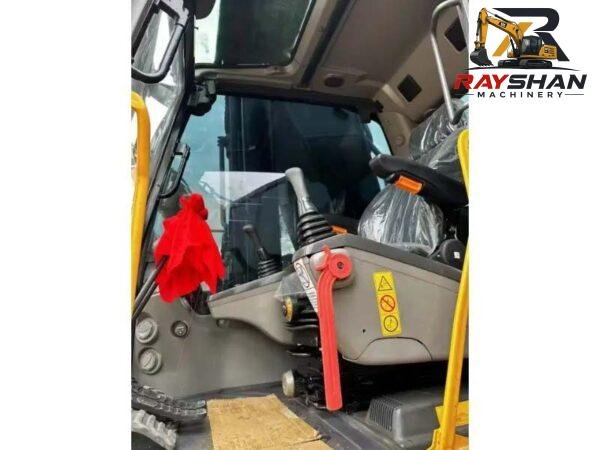

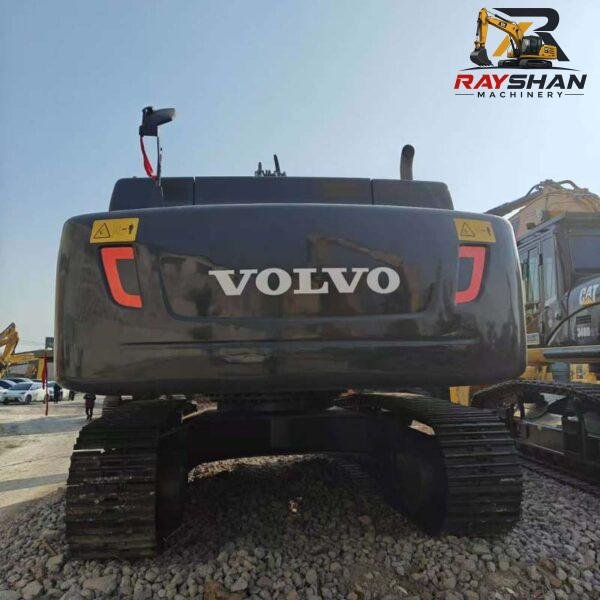

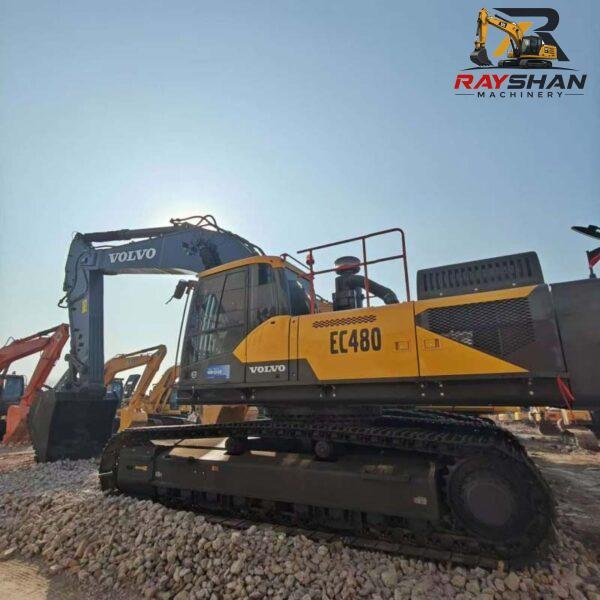

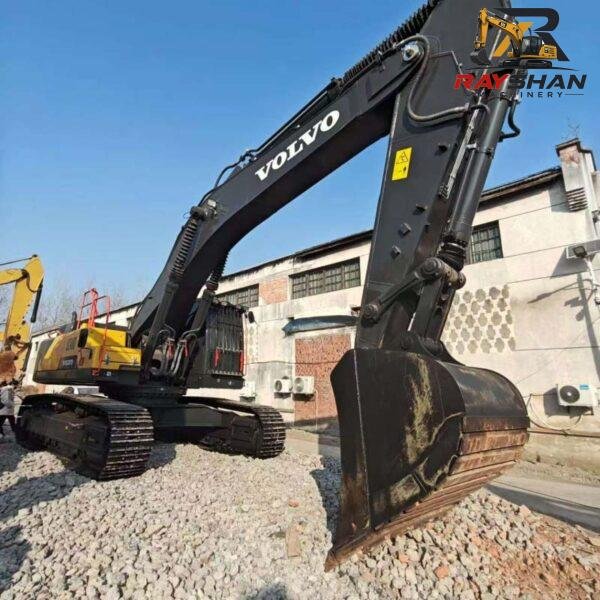

Used VOLVO EC480 Excavator 48ton for sale Intelligent Fuel Management System
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
*Proven Dependability: With verified low operating hours and a complete service history, this machine has consistently excelled in demanding tasks like mining and road construction. Trusted by contractors globally, it’s a reliable workhorse for any project.

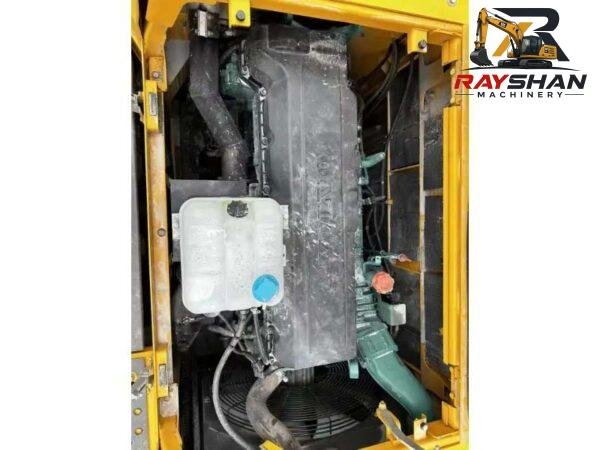

1. Core Power & Powertrain (Engine)
The EC480 is powered by a high-torque, industrial-grade engine designed to provide sustained, reliable power under extreme stress. Its engineering prioritizes longevity and performance in high-cycle-duty mining environments.
| Parameter | Metric System | Imperial System | Technical Remarks |
| Engine Model | Volvo D13 | Volvo D13 | 6-cylinder, Turbocharged |
| Net Flywheel Power | 265 kW | 355 hp | Rated @ 1,800 rpm |
| Displacement | 12.8 L | 781 cu in | Massive torque reserve for heavy loading |
| Emission Standard | Tier 3 / Stage IIIA | Tier 3 / Stage IIIA | Proven reliability for global export |
2. Weight, Capacities & Logistics Dimensions
These metrics are critical for logistics and heavy-fleet management. The EC480 is designed for rugged performance while maintaining transport efficiency to facilitate mobilization between major work sites.
| Parameter | Metric System | Imperial System | Shipping & Logistics Relevance |
| Operating Weight | 48,500 kg | 106,924 lbs | Standard configuration with bucket |
| Transport Length | 12,050 mm | 39.53 ft | Optimized for heavy-duty low-bed transport |
| Transport Width | 3,340 mm | 10.96 ft | Wide stance for maximum operational stability |
| Transport Height | 3,750 mm | 12.30 ft | Clearance-compliant for heavy haulers |
| Fuel Tank Capacity | 680 L | 179.6 gal | Engineered for long, high-output work shifts |

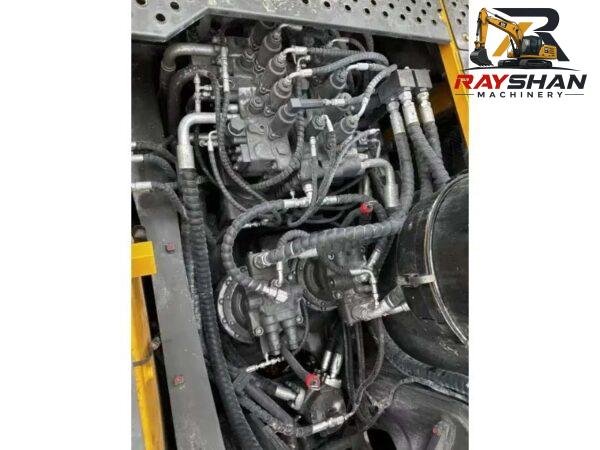

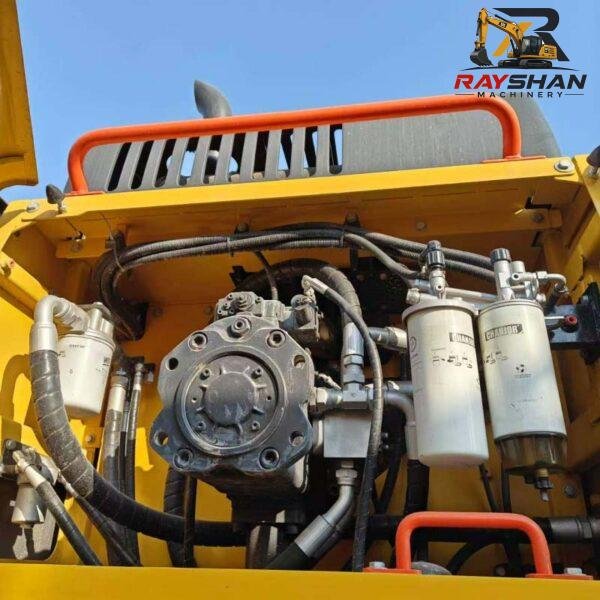

3. Hydraulic & Digging Performance
Volvo’s advanced hydraulic system is renowned for its responsiveness and high-pressure output. It provides the “brute force” required for primary rock breaking and bulk material handling, ensuring top-tier cycle times.
| Parameter | Metric System | Imperial System | Field Performance Indicator |
| Max System Flow | 2 x 355 L/min | 2 x 93.8 gal/min | Dual variable displacement piston pumps |
| Operating Pressure | 35,000 kPa | 5,076 psi | High relief for maximum penetration |
| Swing Speed | 8.8 rpm | 8.8 rpm | Optimized for high-capacity bulk loading |
| Bucket Breakout Force | 243 kN | 54,630 lbf | Elite force for hard-packed, heavy material |
| Stick Digging Force | 215 kN | 48,335 lbf | Robust power for deep, heavy-duty trenching |
4. Undercarriage & Mobility
Designed for the rigors of mining and demolition, the undercarriage provides superior stability and traction, ensuring the machine remains a productive asset even on steep, uneven, or unstable terrain.
| Parameter | Metric System | Imperial System | Underfoot Mobility |
| Standard Shoe Width | 600 mm | 24 in | Heavy-duty triple grouser tracks |
| Max Travel Speed | 5.2 km/h | 3.2 mph | Dual-speed auto-shift for site transit |
| Max Traction Force | 338 kN | 75,980 lbf | Superior climbing power on mine inclines |
| Ground Pressure | 84.0 kPa | 12.18 psi | Optimized for high-impact structural stability |
5. Working Ranges
Defining the operational envelope for large-scale mining, mass-excavation, and heavy-duty infrastructure site preparation.
| Parameter | Metric System | Imperial System |
| Max Digging Depth | 7,600 mm | 24.93 ft |
| Max Reach (Ground) | 11,700 mm | 38.39 ft |
| Max Cutting Height | 10,700 mm | 35.10 ft |
| Max Loading Height | 7,400 mm | 24.28 ft |
