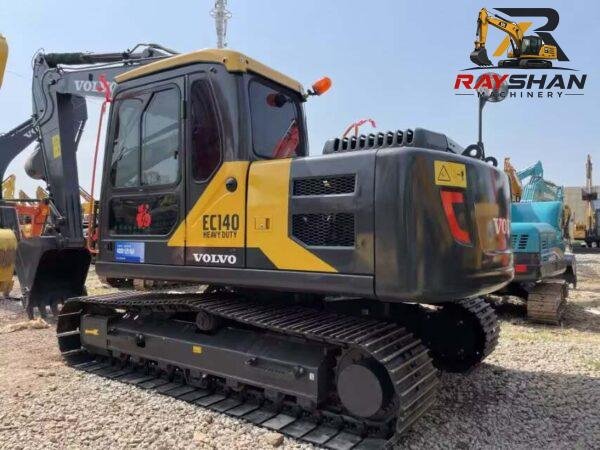

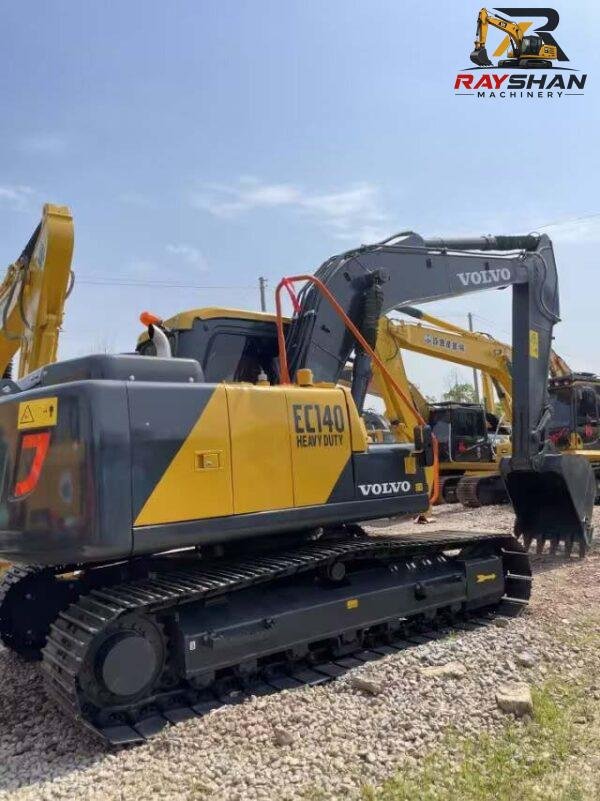

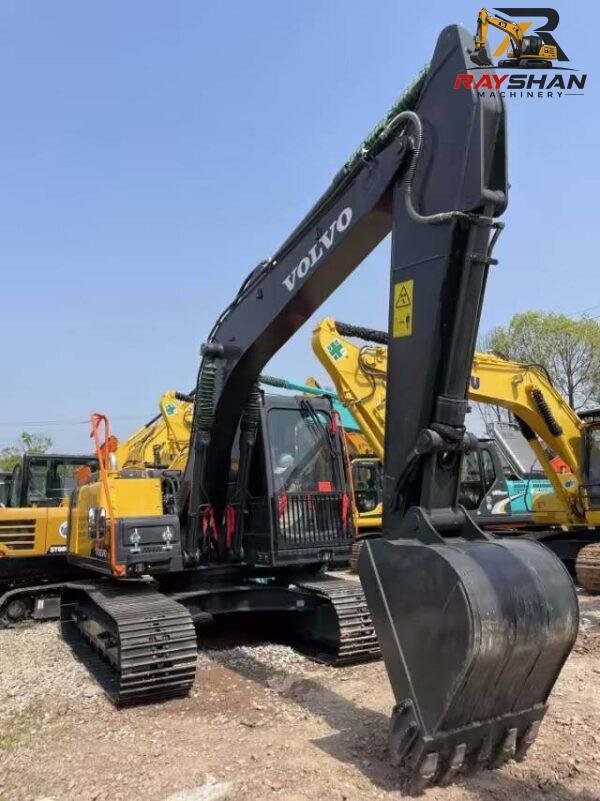

Used VOLVO 135 Excavator 13ton for sale High Fuel Efficiency

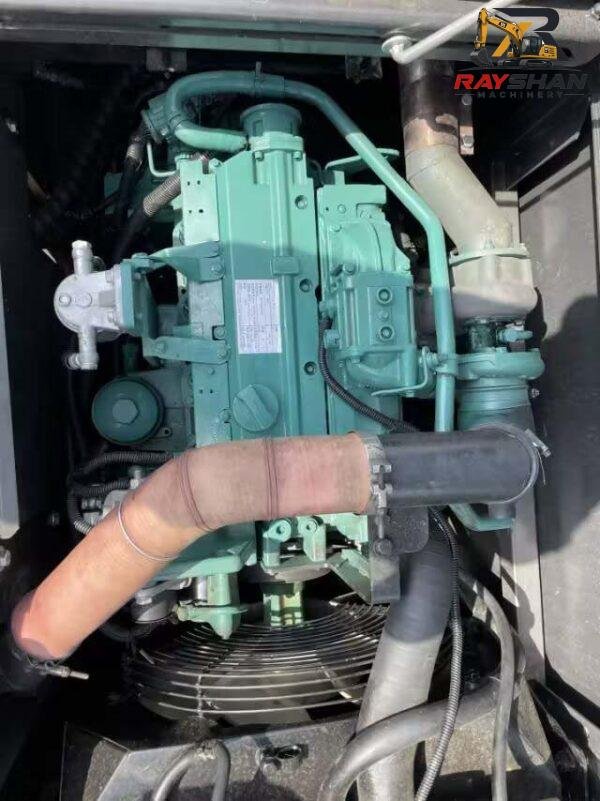

1. Core Power & Powertrain (Engine)

The EC135 is equipped with a high-torque, fuel-efficient engine designed for consistent performance in stop-start work cycles, typical of municipal and utility environments.

Parameter	Metric System	Imperial System	Technical Remarks
Engine Model	Volvo D4	Volvo D4	4-cylinder, Turbocharged
Net Flywheel Power	70 kW	94 hp	Rated @ 2,000 rpm
Displacement	4.0 L	244 cu in	Optimized for high-torque efficiency
Emission Standard	Tier 3 / Stage IIIA	Tier 3 / Stage IIIA	Standard configuration for global export

---

2. Weight, Capacities & Logistics Dimensions

These metrics are critical for logistics and fleet management. The EC135 is designed with a compact footprint, making it one of the most efficient machines to mobilize for regional construction sites.

Parameter	Metric System	Imperial System	Shipping & Logistics Relevance
Operating Weight	13,800 kg	30,424 lbs	Standard configuration with bucket
Transport Length	7,650 mm	25.10 ft	Compact profile for easy truck loading
Transport Width	2,490 mm	8.17 ft	Road-legal transport width
Transport Height	2,800 mm	9.19 ft	Low profile for bridge/tunnel clearance
Fuel Tank Capacity	250 L	66.0 gal	Balanced for all-day autonomy

---

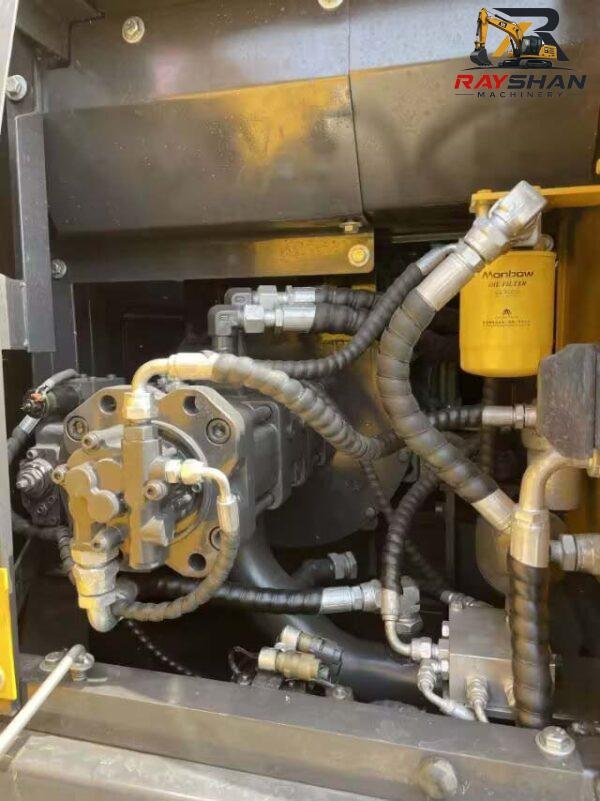

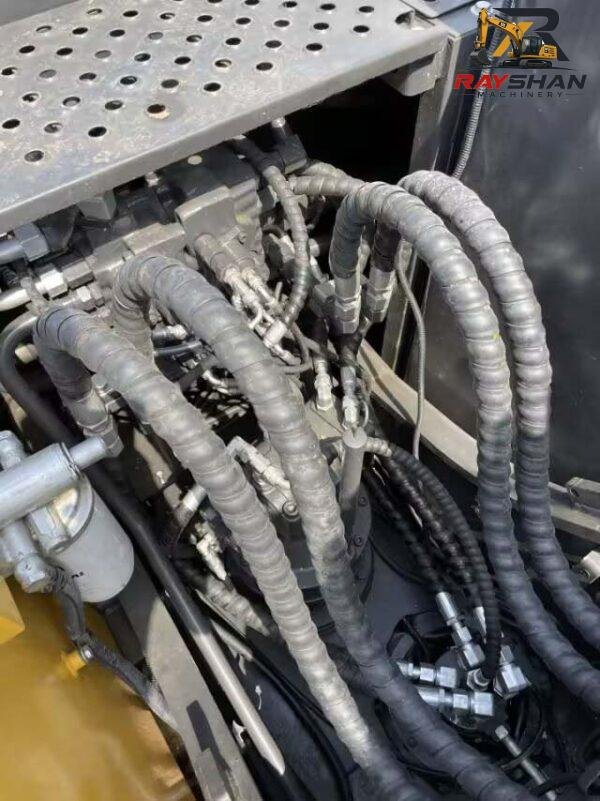

3. Hydraulic & Digging Performance

Volvo’s advanced hydraulic system is engineered for precision and responsiveness. It provides the smooth control needed for fine grading and the force required for trenching in diverse soil conditions.

Parameter	Metric System	Imperial System	Field Performance Indicator
Max System Flow	2 x 125 L/min	2 x 33.0 gal/min	Variable displacement piston pumps
Operating Pressure	34,300 kPa	4,975 psi	High relief for maximum breakout force
Swing Speed	12.0 rpm	12.0 rpm	Fast cycle times for loading operations
Bucket Breakout Force	98 kN	22,030 lbf	Strong penetration for compact soils
Stick Digging Force	68 kN	15,285 lbf	Precise power for utility trenching

---

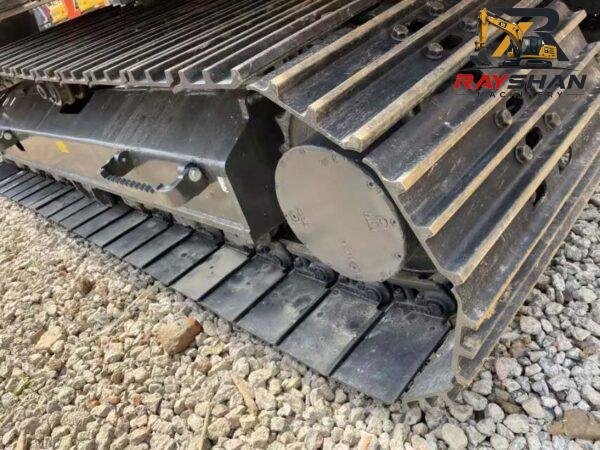

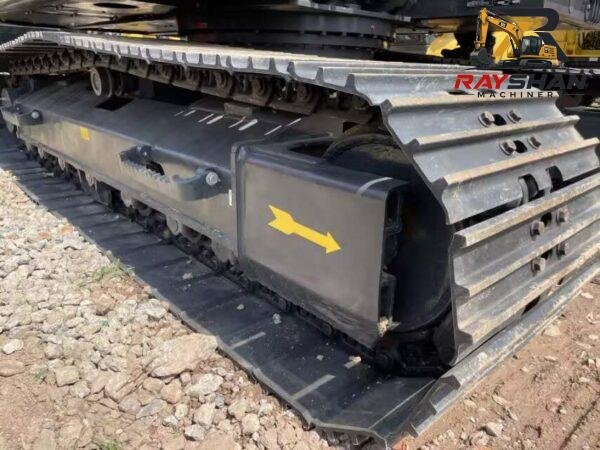

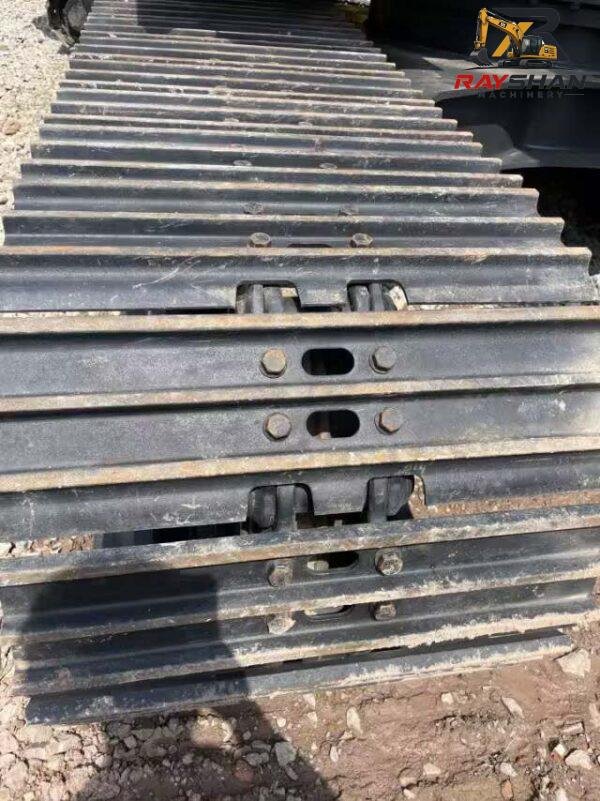

4. Undercarriage & Mobility

Designed for stability in tight spaces, the undercarriage provides a solid foundation for over-the-side lifting and safe operation on urban streetscapes.

Parameter	Metric System	Imperial System	Underfoot Mobility
Standard Shoe Width	600 mm	24 in	Triple grouser tracks for grip
Max Travel Speed	5.5 km/h	3.4 mph	Dual-speed auto-shift for site transit
Max Traction Force	128 kN	28,775 lbf	Reliable climbing power on site inclines
Ground Pressure	42.0 kPa	6.09 psi	Low-impact for finished surfaces

---

5. Working Ranges

Defining the essential operational envelope for utility, infrastructure, and landscape construction.

Parameter	Metric System	Imperial System
Max Digging Depth	5,500 mm	18.04 ft
Max Reach (Ground)	8,200 mm	26.90 ft
Max Cutting Height	8,600 mm	28.22 ft
Max Loading Height	6,300 mm	20.67 ft
