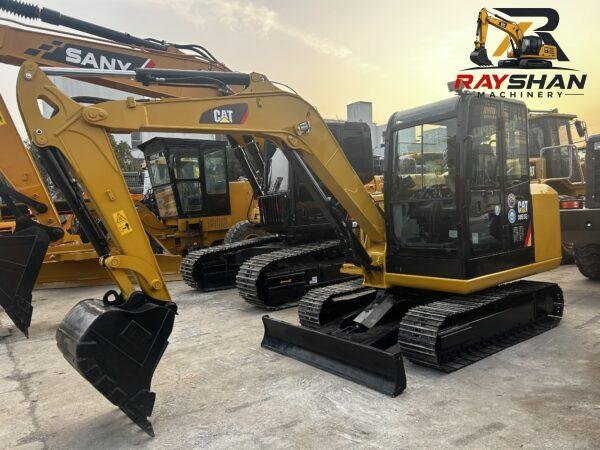

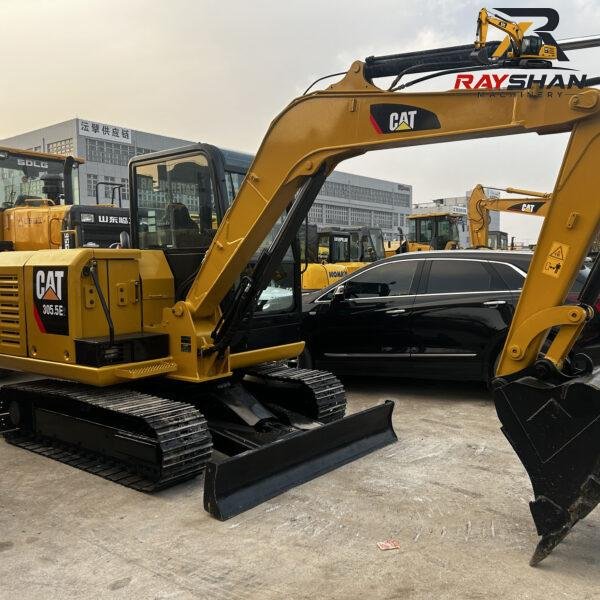

Used CAT 305.5E Excavator 5.5ton for sale High Flow Performance
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
*Proven Dependability: With verified low operating hours and a complete service history, this machine has consistently excelled in demanding tasks like mining and road construction. Trusted by contractors globally, it’s a reliable workhorse for any project.

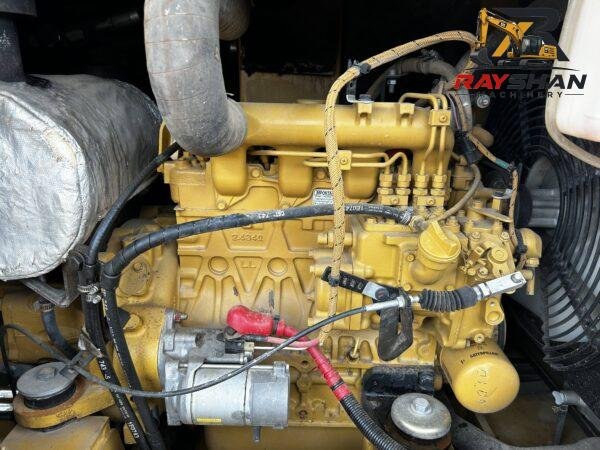

1. Core Power & Powertrain (Engine)
The 2016 model utilizes a heavy-duty mechanical direct-injection engine framework, delivering optimum thermodynamic stability and outstanding tolerance for varied sulfur content or lower grades of fuel common in regional utility markets.
| Parameter | Metric System | Imperial System | Technical Remarks |
| Engine Model | CAT C2.4 DI | CAT C2.4 DI | Naturally aspirated, direct injection |
| Net Flywheel Power | 34.1 kW | 45.7 hp | Rated @ 2400 rpm (ISO 9249) |
| Gross Power | 36.2 kW | 48.5 hp | Total engine power capacity (SAE J1995) |
| Displacement | 2.4 L | 146 cu in | Reliable inline 4-cylinder mechanical block |
2. Weight, Capacities & Logistics Dimensions
Exact logistics boundaries required by global freight forwarders for calculating ocean transit packaging (fits standard High-Cube shipping container configurations via breakdown or standard RORO routing) and regional heavy-haul trailer clearances.
| Parameter | Metric System | Imperial System | Shipping & Logistics Relevance |
| Operating Weight | 5,400 kg | 11,905 lbs | Standard 5.5-ton class compact utility baseline |
| Transport Length | 5,330 mm | 17.49 ft | Boom lowered standard shipping position |
| Transport Width | 1,980 mm | 6.50 ft | Compact chassis envelope for confined urban transport |
| Transport Height | 2,550 mm | 8.37 ft | Top of cab shipping clearance line |
| Fuel Tank Capacity | 78 L | 20.6 gal | Optimized tank for prolonged multi-shift operation |
| Hydraulic Tank Cap. | 48 L | 12.7 gal | Core fluid reservoir volume declaration |
3. Hydraulic & Structural Systems
Features CAT’s high-definition load-sensing hydraulic architecture. This system delivers flow-sharing capabilities for ultra-smooth multi-function profiling, minimizing fuel drop and high-temperature thermal losses under continuous load.
| Parameter | Metric System | Imperial System | Field Performance Indicator |
| Max Pump Flow | 150 L/min | 39.6 gal/min | High-output load-sensing piston pump |
| Operating Pressure | 24,500 kPa | 3,553 psi | Main implement relief circuit threshold |
| Swing Speed | 10.0 rpm | 10.0 rpm | High-torque rotation speed for tight quarters |
| Stick Digging Force | 28.9 kN | 6,497 lbs | Standard structural linkage output |
| Bucket Breakout Force | 50.9 kN | 11,443 lbs | High-penetration bucket cylinders |
4. Undercarriage & Ground Logistics
Built with a conventional durable rubber or steel track-ready layout, utilizing a heavy-duty compact X-chassis frame with integrated blade-down stabilizing mechanics.
| Parameter | Metric System | Imperial System | Underfoot Mobility |
| Standard Shoe Width | 400 mm | 16 in | Available in steel tracks or durable rubber pads |
| Track Gauge | 1,580 mm | 5.18 ft | Compact footprint optimized for narrow trenches |
| Max Travel Speed | 4.5 km/h | 2.80 mph | Dual-speed auto shift travel motors |
| Max Drawbar Pull | 47.8 kN | 10,745 lbs | Maximum tractive effort for grade climbing |
5. Working Ranges (Standard 1.52 m / 5’0″ Stick)
Definitive compact excavation profiles enabling global utility procurement managers to instantly verify regional urban project or civil municipal code compatibility.
| Parameter | Metric System | Imperial System |
| Max Digging Depth | 3,830 mm | 12.57 ft |
| Max Reach Along Ground | 5,630 mm | 18.47 ft |
| Max Cutting Height | 5,440 mm | 17.85 ft |
| Max Loading Height | 3,850 mm | 12.63 ft |
| Standard Bucket Capacity | 0.22 m³ | 0.29 yd³ |
