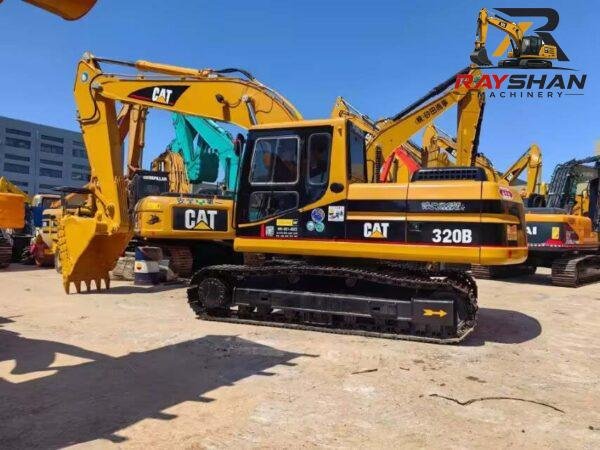

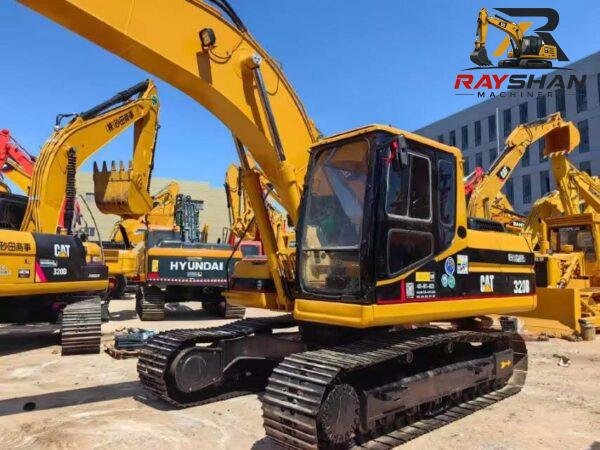

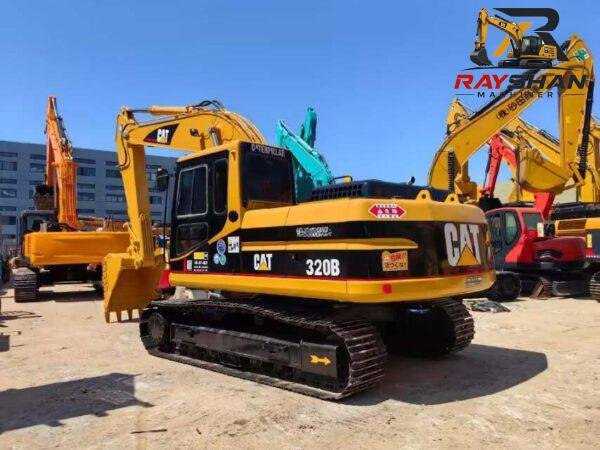

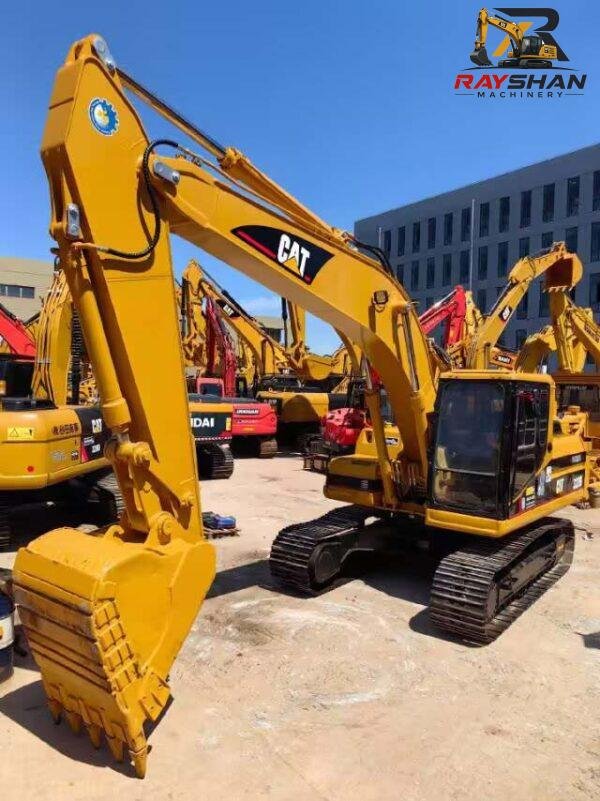

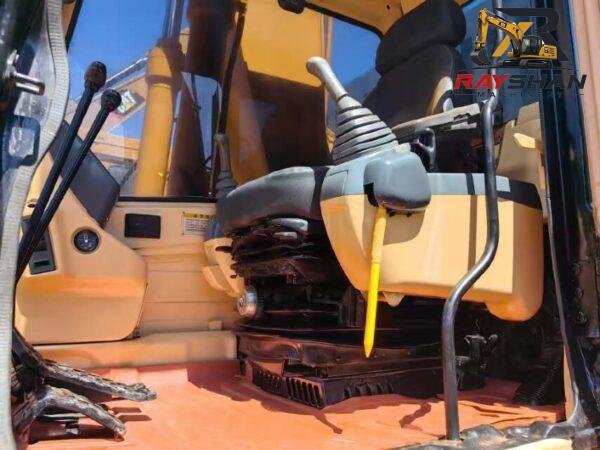

Used CAT 320B Excavator 20ton for sale high resale value
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
*Proven Dependability: With verified low operating hours and a complete service history, this machine has consistently excelled in demanding tasks like mining and road construction. Trusted by contractors globally, it’s a reliable workhorse for any project.

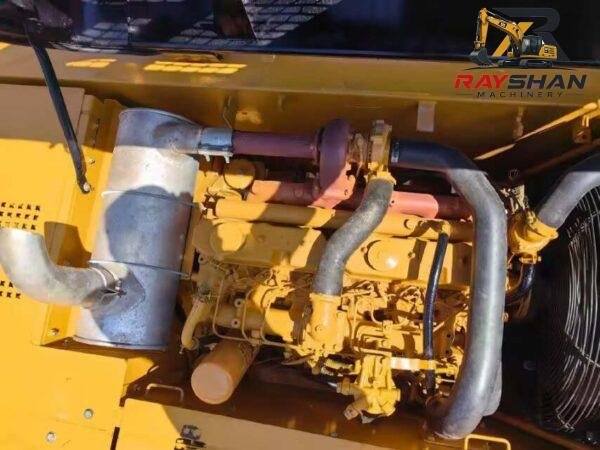

1. Core Power & Powertrain (Engine)
| Parameter | Metric System | Imperial System | Technical Remarks |
| Engine Model | CAT 3066T | CAT 3066T | Heavy-duty, Turbocharged |
| Net Flywheel Power | 96 kW | 128 hp | Rated @ 2000 rpm (ISO 9249) |
| Gross Power | 100 kW | 135 hp | Total thermodynamic capacity |
| Displacement | 6.4 L | 389 cu in | 6-Cylinder inline configuration |
2. Weight, Capacities & Logistics Dimensions
| Parameter | Metric System | Imperial System | Shipping & Logistics Relevance |
| Operating Weight | 20,000 kg | 44,090 lbs | Standard 20-ton class asset layout |
| Transport Length | 9,440 mm | 30.97 ft | Boom lowered position |
| Transport Width | 2,800 mm | 9.19 ft | Standard width configuration |
| Transport Height | 2,980 mm | 9.78 ft | Top of cab clearance line |
| Fuel Tank Capacity | 340 L | 89.8 gal | High-capacity tank for long shifts |
| Hydraulic Tank Cap. | 136 L | 35.9 gal | Core reservoir fluid volume |

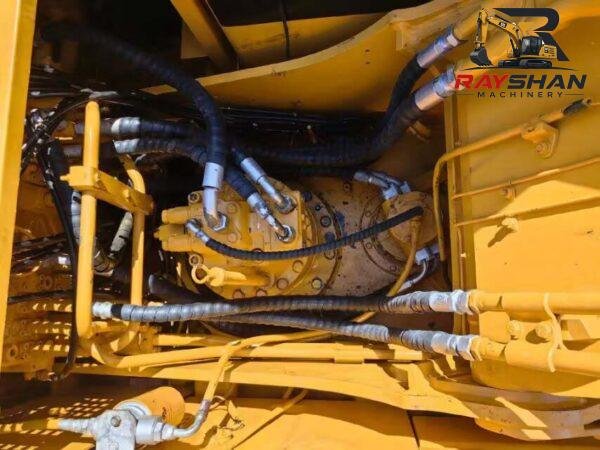

3. Hydraulic & Structural Systems
| Parameter | Metric System | Imperial System | Field Performance Indicator |
| Max Implement Flow | 2 x 200 L/min | 2 x 52.8 gal/min | Dual variable-displacement pumps |
| Implement Pressure | 34,300 kPa | 4,980 psi | Heavy lift/digging circuit threshold |
| Swing Speed | 10.7 rpm | 10.7 rpm | High-efficiency cycle performance |
| Bucket Breakout Force | 126 kN | 28,440 lbs | High-penetration linkage output |
4. Undercarriage & Ground Logistics
| Parameter | Metric System | Imperial System | Underfoot Durability |
| Standard Shoe Width | 600 mm | 24 in | Triple grouser track pads |
| Track Gauge | 2,200 mm | 7.22 ft | Stable lateral footprint |
| Max Travel Speed | 5.5 km/h | 3.42 mph | Dual-speed auto shift travel |
| Max Drawbar Pull | 196 kN | 44,060 lbs | High climbing/towing capability |
5. Working Ranges (Standard 2.9 m / 9’6″ Stick)
| Parameter | Metric System | Imperial System |
| Max Digging Depth | 6,660 mm | 21.85 ft |
| Max Reach Along Ground | 9,860 mm | 32.35 ft |
| Max Cutting Height | 9,620 mm | 31.56 ft |
| Max Loading Height | 6,710 mm | 22.01 ft |
| Standard Bucket Capacity | 0.80 m3 | 1.05 yd3 |
