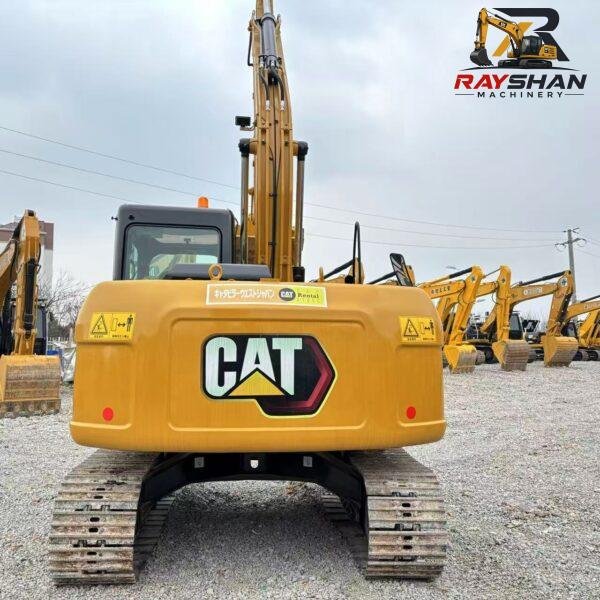

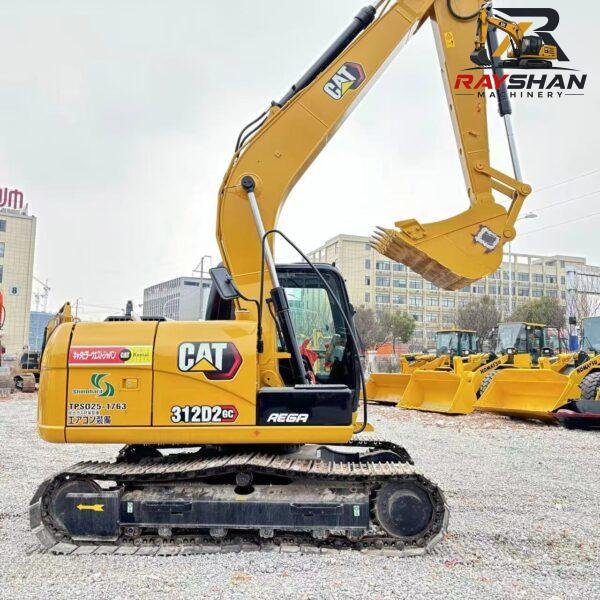

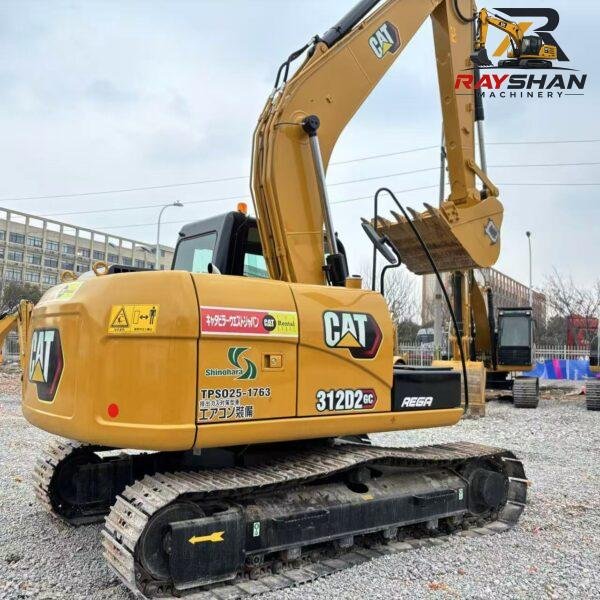

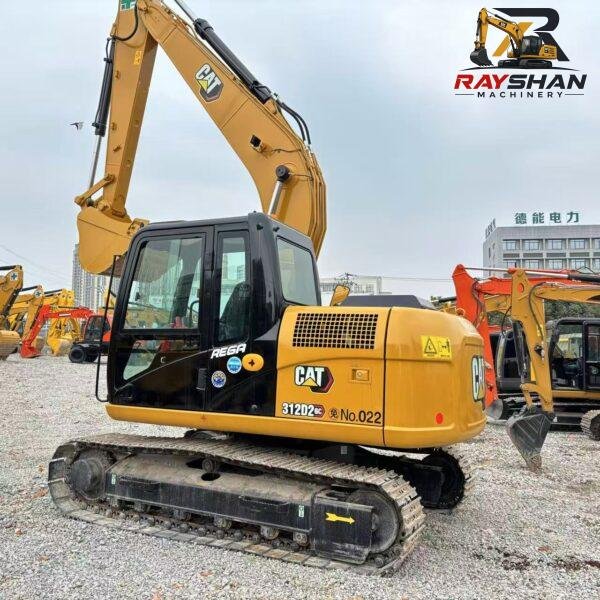

Used CAT 312D2GC Excavator 13ton for sale Proven Rigidity
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
*Proven Dependability: With verified low operating hours and a complete service history, this machine has consistently excelled in demanding tasks like mining and road construction. Trusted by contractors globally, it’s a reliable workhorse for any project.
1. Core Power & Powertrain (Engine)
The D2 GC configuration features a highly durable mechanical governor system, engineered specifically for unrefined or high-sulfur diesel common in non-regulated developing markets.
| Parameter | Metric System | Imperial System | Technical Remarks |
| Engine Model | CAT 3054C | CAT 3054C | Inline 4-cylinder mechanical layout |
| Net Flywheel Power | 56 kW | 75 hp | Rated @ 2200 rpm (ISO 9249 / SAE J1349) |
| Gross Power | 59 kW | 79 hp | Total engine structural capacity (ISO 14396) |
| Displacement | 4.4 L | 269 cu in | Robust displacement optimized for fuel economy |
2. Weight, Capacities & Logistics Dimensions
Exact shipping and rigging boundaries required by international freight forwarders to calculate ocean transit routing (highly compatible with standard High-Cube container breakdown or standard RORO/Flat Rack shipping) and road clearances.
| Parameter | Metric System | Imperial System | Shipping & Logistics Relevance |
| Operating Weight | 12,500 kg | 27,558 lbs | Standard 13-ton class global utility asset footprint |
| Transport Length | 7,590 mm | 24.90 ft | Boom lowered standard shipping position |
| Transport Width | 2,490 mm | 8.17 ft | Compact fixed chassis width with standard 500 mm shoes |
| Transport Height | 2,830 mm | 9.29 ft | Top of cab shipping height clearance line |
| Fuel Tank Capacity | 250 L | 66.0 gal | Highly efficient capacity for continuous long shifts |
| Hydraulic Tank Cap. | 90.6 L | 24.0 gal | Core fluid reservoir volume declaration |
3. Hydraulic & Structural Systems

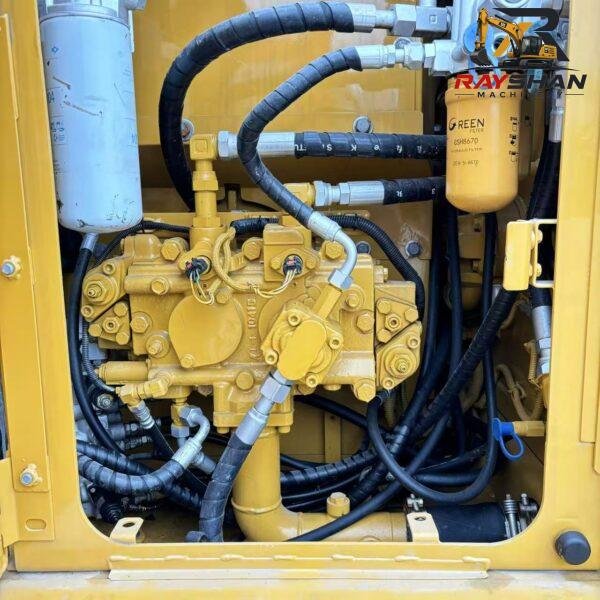

Features an energy-saving hydraulic cross-sensing layout with dual variable-displacement pumps and built-in regeneration valves to maximize multi-function speed and lower operational thermal losses.
| Parameter | Metric System | Imperial System | Field Performance Indicator |
| Max Implement Flow | 232 L/min | 61.3 gal/min | Dual pump high-efficiency flow distribution |
| Implement Pressure | 30,500 kPa | 4,424 psi | Heavy lift/digging circuit relief threshold |
| Travel Pressure | 35,000 kPa | 5,076 psi | Maximum tracking circuit torque threshold |
| Swing Speed | 11.2 rpm | 11.2 rpm | High-efficiency cycle rotation speed |
| Bucket Digging Force | 85 kN | 19,110 lbs | Standard earthmoving penetration capacity (ISO) |
4. Undercarriage & Ground Logistics
Built on a compact, robotically welded X-shaped, box-section carbody with pentagonal track frames, featuring long-life Grease Lubricated Tracks (GLT2) to protect internal pins and bushings.
| Parameter | Metric System | Imperial System | Underfoot Durability |
| Standard Shoe Width | 500 mm | 20 in | Triple grouser standard utility track pads |
| Track Gauge | 1,990 mm | 6.53 ft | Standard track layout for tight urban access |
| Max Travel Speed | 5.1 km/h | 3.20 mph | Dual-speed auto shift travel drives |
| Max Drawbar Pull | 114 kN | 25,628 lbs | High traction effort for slope-climbing and backfilling |
5. Working Ranges (Standard 4.65 m Boom / 2.5 m Stick)
Definitive excavation profiles enabling regional procurement managers to instantly verify job-site suitability for deep trenching or general contracting.
| Parameter | Metric System | Imperial System |
| Max Digging Depth | 5,540 mm | 18.18 ft |
| Max Reach Along Ground | 8,170 mm | 26.81 ft |
| Max Cutting Height | 8,480 mm | 27.83 ft |
| Max Loading Height | 6,100 mm | 20.02 ft |
| Standard Bucket Capacity | 0.53 m³ | 0.69 yd³ |
