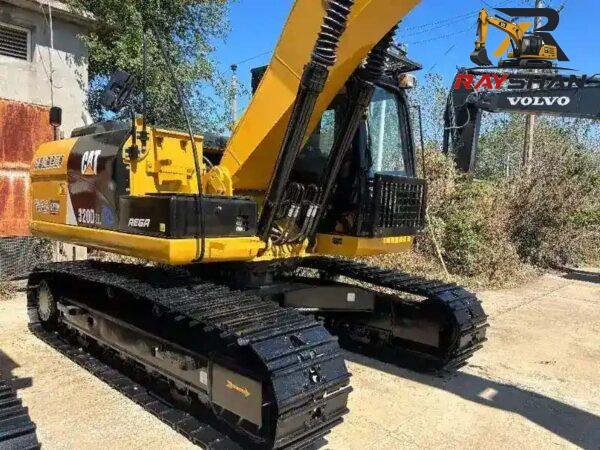

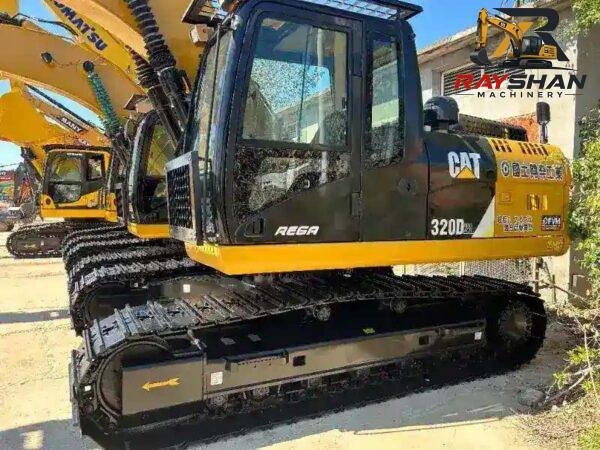

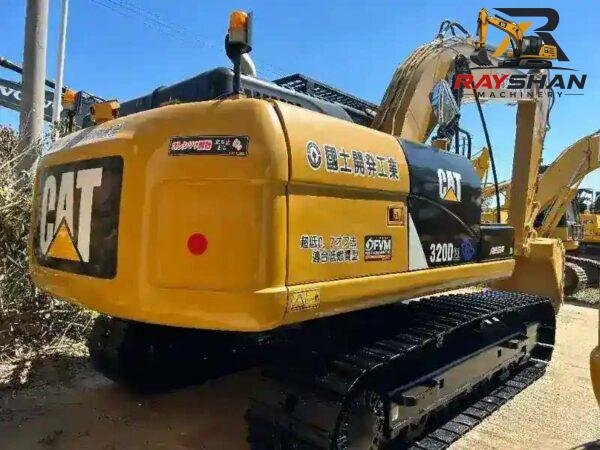

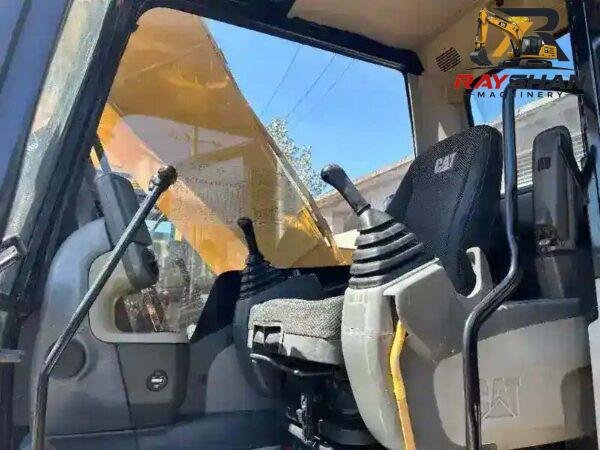

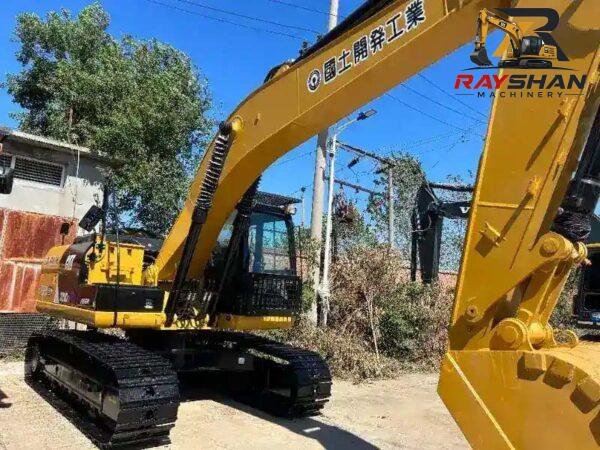

Used CAT 320D2L Excavator 22ton for sale original paint
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
*Proven Dependability: With verified low operating hours and a complete service history, this machine has consistently excelled in demanding tasks like mining and road construction. Trusted by contractors globally, it’s a reliable workhorse for any project.

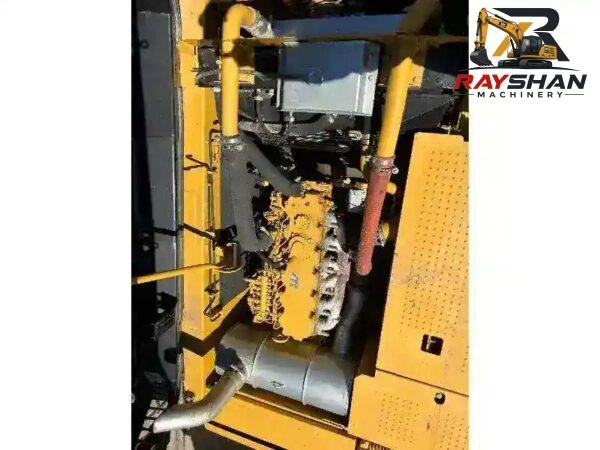

1. Core Power & Powertrain (Engine)
The 2016 model year features a robust mechanical fuel control system, highly favored in cross-border trade for its exceptional resilience to low-quality or high-sulfur diesel.
| Parameter | Metric System | Imperial System | Technical Remarks |
| Engine Model | CAT C7.1 | CAT C7.1 | Mechanically governed, Turbocharged |
| Net Flywheel Power | 109 kW | 146 hp | Rated @ 1800 rpm (SAE J1349) |
| Gross Power | 112 kW | 150 hp | Total engine power capacity (ISO 14396) |
| Displacement | 7.0 L | 428 cu in | High-displacement, heavy-duty setup |
2. Weight, Capacities & Logistics Dimensions
Exact logistics boundaries required for calculating international ocean freight routing (RORO booking, Flat Rack) and local heavy-haul permit compliance.
| Parameter | Metric System | Imperial System | Shipping & Logistics Relevance |
| Operating Weight | 22,300 kg | 49,200 lbs | Standard 22-ton class Long Undercarriage asset |
| Transport Length | 9,460 mm | 31.04 ft | Boom lowered shipping position |
| Transport Width | 2,990 mm | 9.81 ft | Standard frame clearance with 600 mm shoes |
| Transport Height | 3,030 mm | 9.95 ft | Top of cab clearance line |
| Fuel Tank Capacity | 410 L | 108.3 gal | High-capacity tank for extended field shifts |
| Hydraulic Tank Cap. | 138 L | 36.5 gal | Core fluid reservoir volume declaration |

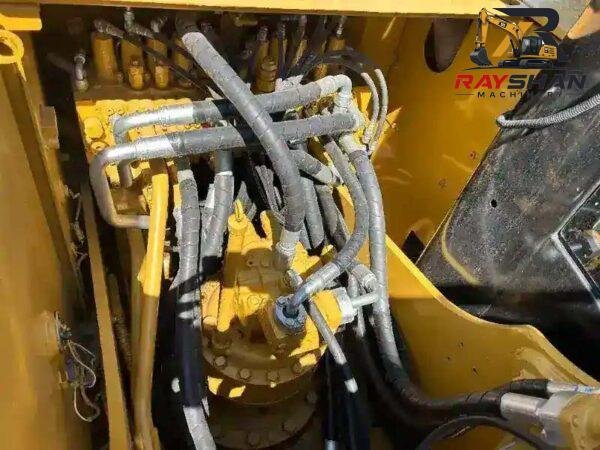

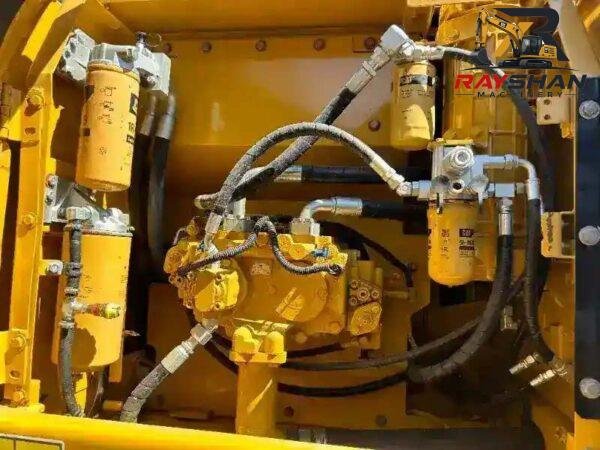

3. Hydraulic & Structural Systems
Engineered with an automatic twin-pump flow aggregation system to optimize cycle speeds, allowing high efficiency during heavy truck-loading or trenching work.
| Parameter | Metric System | Imperial System | Field Performance Indicator |
| Max Implement Flow | 2 x 202 L/min | 2 x 53.4 gal/min | Dual high-efficiency variable piston pumps |
| Implement Pressure | 35,000 kPa | 5,076 psi | Heavy lift/digging circuit threshold |
| Swing Speed | 10.9 rpm | 10.9 rpm | Smooth dual-pump cycle aggregation |
| Swing Torque | 61.8 kN-m | 45,581 lb-ft | High lateral slewing force |

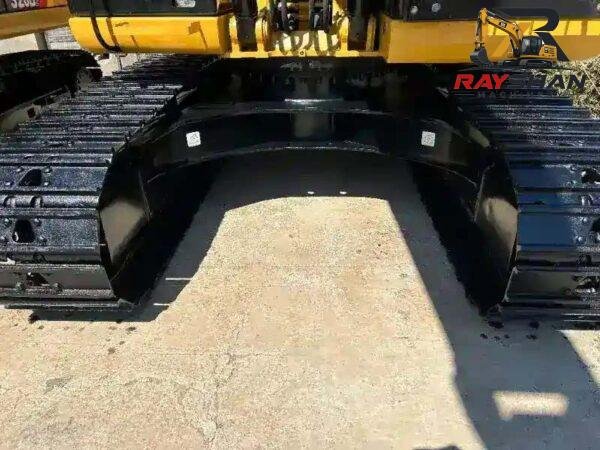

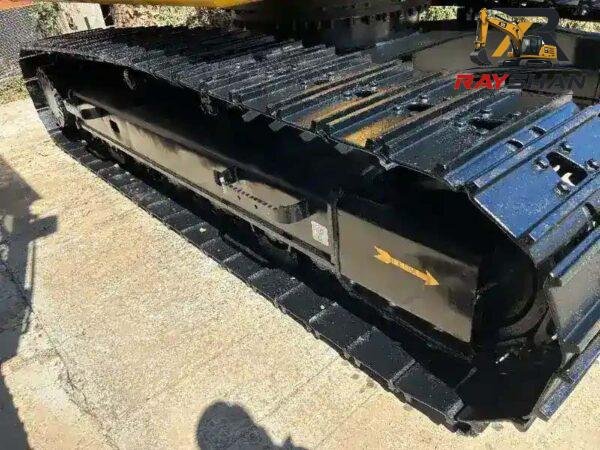

4. Undercarriage & Ground Logistics
The “L” configuration signifies a lengthened, heavy-duty undercarriage structure that enhances stability and distributes ground pressure evenly during heavy lifting.
| Parameter | Metric System | Imperial System | Underfoot Durability |
| Standard Shoe Width | 600 mm | 24 in | Triple grouser track pads |
| Track Gauge | 2,380 mm | 7.81 ft | Extended lateral structural width |
| Max Travel Speed | 5.4 km/h | 3.4 mph | Dual-speed auto shift travel drives |
| Max Drawbar Pull | 205 kN | 46,086 lbs | Heavy climbing and towing capability |
5. Working Ranges (Standard 2.9 m / 9’6″ Stick)
Definitive digging profiles enabling regional procurement managers to match job-site excavation criteria.
| Parameter | Metric System | Imperial System |
| Max Digging Depth | 6,720 mm | 22.05 ft |
| Max Reach Along Ground | 9,890 mm | 32.45 ft |
| Max Loading Height | 6,490 mm | 21.33 ft |
| Standard Bucket Capacity | 1.20 m3 | 1.57 yd3 |
