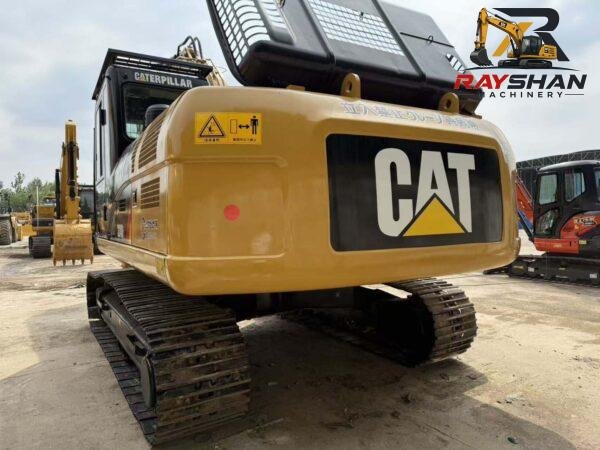

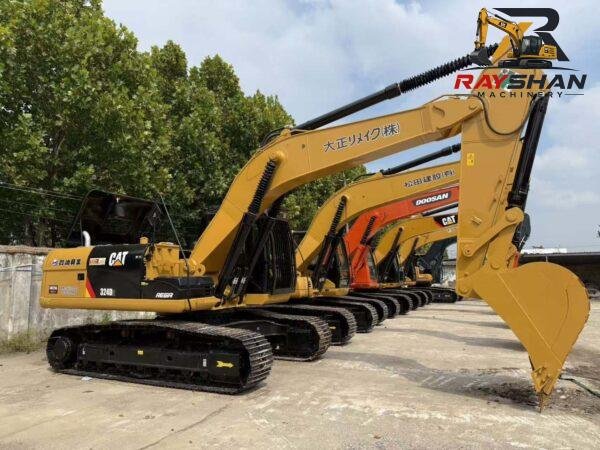

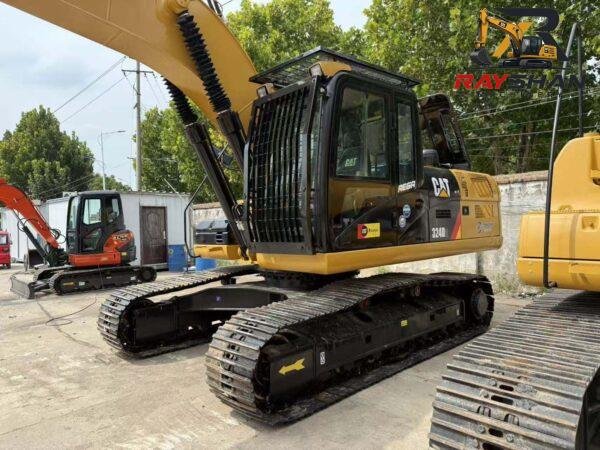

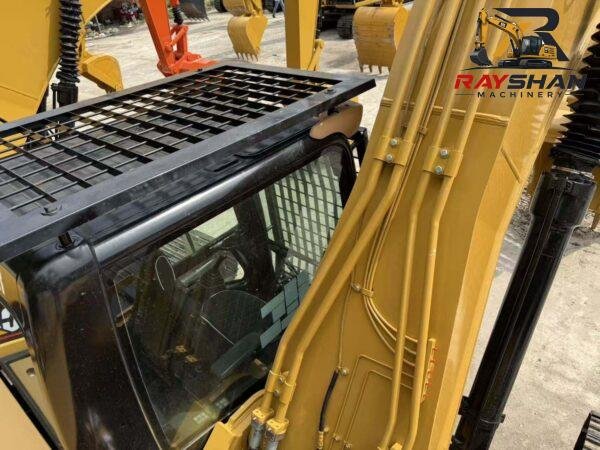

Used CAT 324D Excavator 24ton for sale High Resale Value
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
*Proven Dependability: With verified low operating hours and a complete service history, this machine has consistently excelled in demanding tasks like mining and road construction. Trusted by contractors globally, it’s a reliable workhorse for any project.

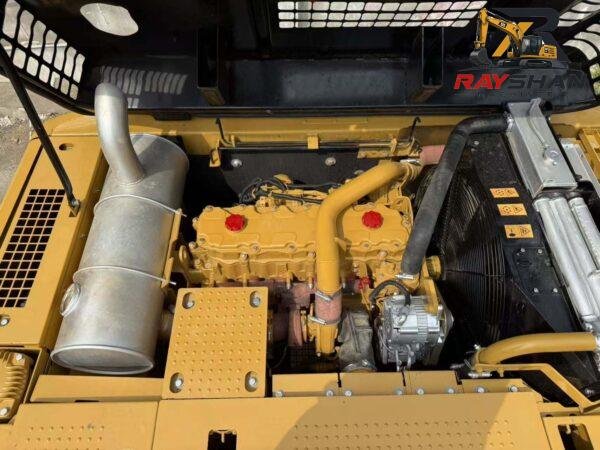

1. Core Power & Powertrain (Engine)
The 2010 model year relies on CAT’s ACERT™ technology, providing an ideal balance of electronic fuel management and a multi-stage filtration system that maximizes engine resilience against varying global fuel qualities.
| Parameter | Metric System | Imperial System | Technical Remarks |
| Engine Model | CAT C7 ACERT | CAT C7 ACERT | Electronic common rail, Turbocharged |
| Net Flywheel Power | 140 kW | 188 hp | Rated @ 1800 rpm (ISO 9249) |
| Gross Power | 147 kW | 197 hp | Total thermodynamic capacity (ISO 14396) |
| Displacement | 7.2 L | 439 cu in | 6-Cylinder inline configuration |
2. Weight, Capacities & Logistics Dimensions
Exact logistics boundaries required to calculate international ocean freight routing (RORO booking or Flat Rack) and standard commercial road transport clearances.
| Parameter | Metric System | Imperial System | Shipping & Logistics Relevance |
| Operating Weight | 24,500 kg | 54,010 lbs | Standard 24-ton class medium-heavy asset footprint |
| Transport Length | 10,100 mm | 33.14 ft | Boom lowered shipping position |
| Transport Width | 3,190 mm | 10.47 ft | Chassis width with standard 600 mm shoes |
| Transport Height | 3,190 mm | 10.47 ft | Top of cab/boom shipping height clearance |
| Fuel Tank Capacity | 520 L | 137.4 gal | High-capacity fuel reservoir for extended shifts |
| Hydraulic Tank Cap. | 145 L | 38.3 gal | Core fluid reservoir volume declaration |

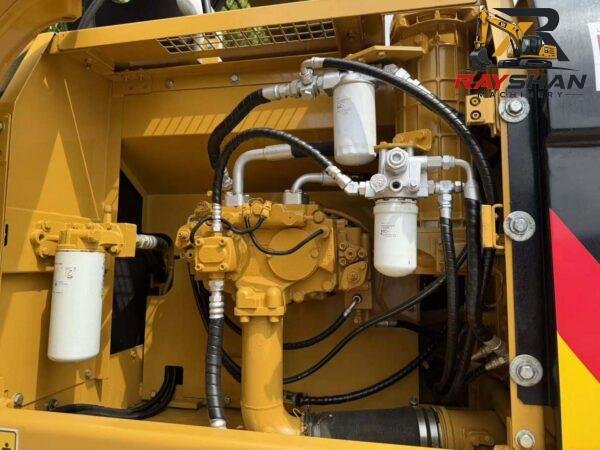

3. Hydraulic & Structural Systems
Features a high-pressure cross-sensing hydraulic system engineered to automatically aggregate twin-pump flow, drastically reducing cycle times during heavy truck-loading or trenching.
| Parameter | Metric System | Imperial System | Field Performance Indicator |
| Max Implement Flow | 2 x 224 L/min | 2 x 59.2 gal/min | Dual variable-displacement piston pumps |
| Implement Pressure | 35,000 kPa | 5,076 psi | Heavy lift/digging circuit threshold |
| Swing Speed | 10.2 rpm | 10.2 rpm | High-efficiency cycle rotation speed |
| Bucket Breakout Force | 164 kN | 36,870 lbs | High-penetration heavy digging linkage output |
4. Undercarriage & Ground Logistics
Built on a heavy-duty, robotically welded X-shaped carbody designed to withstand severe torsional stress in high-impact, rock-loading, or demolition environments.
| Parameter | Metric System | Imperial System | Underfoot Durability |
| Standard Shoe Width | 600 mm | 24 in | Triple grouser heavy track pads |
| Track Gauge | 2,590 mm | 8.50 ft | Extended footprint for enhanced lifting stability |
| Max Travel Speed | 5.3 km/h | 3.29 mph | Dual-speed auto shift travel drives |
| Max Drawbar Pull | 222 kN | 49,910 lbs | High slope-climbing and towing capability |
5. Working Ranges (Standard 2.9 m / 9’6″ Stick)
Definitive excavation profiles enabling international procurement managers to quickly verify job-site suitability.
| Parameter | Metric System | Imperial System |
| Max Digging Depth | 6,810 mm | 22.34 ft |
| Max Reach Along Ground | 10,010 mm | 32.84 ft |
| Max Cutting Height | 9,770 mm | 32.05 ft |
| Max Loading Height | 6,750 mm | 22.15 ft |
| Standard Bucket Capacity | 1.30 m3 | 1.70 yd3 |
