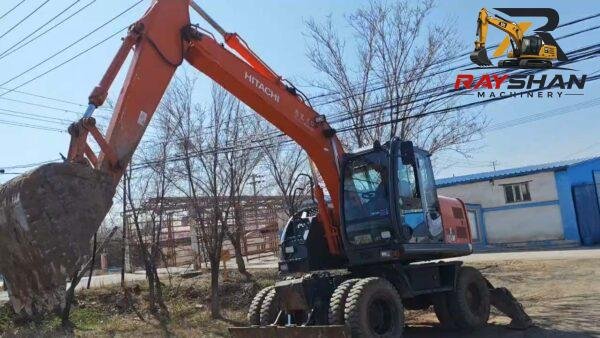

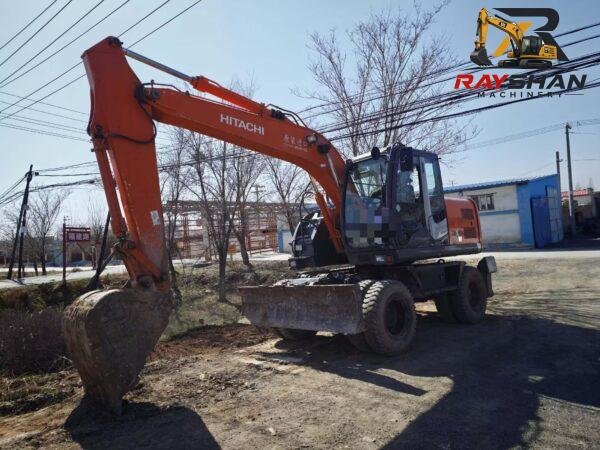

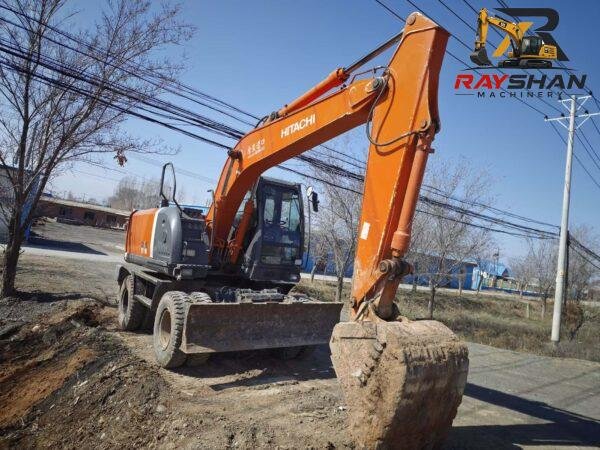

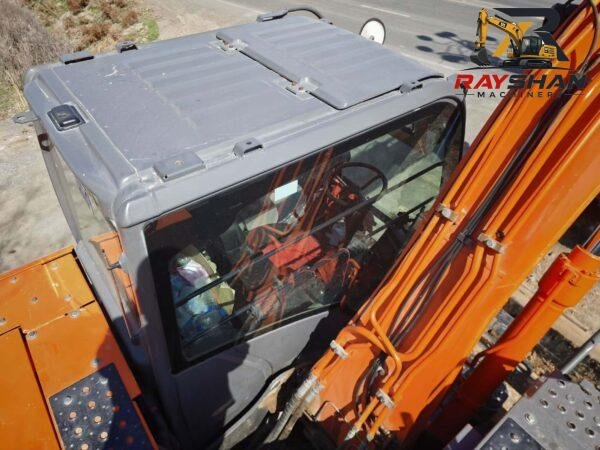

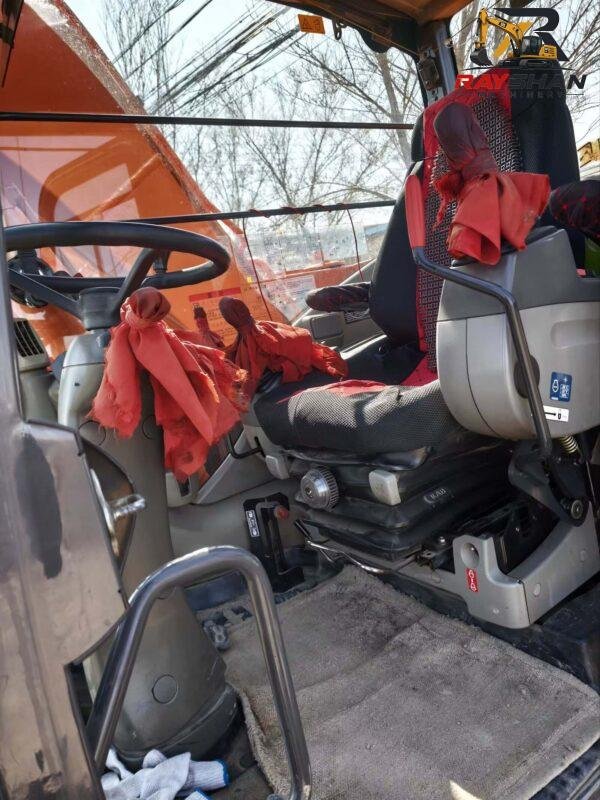

Used HITACHI 140W Excavator 14ton for sale Smooth & Delicate Hydraulic Control

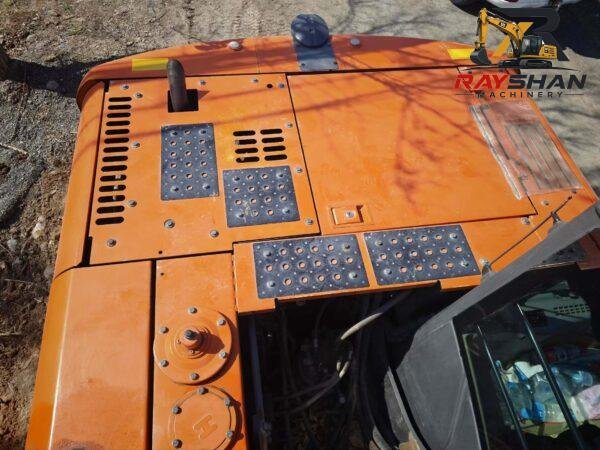

1. Core Power & Powertrain (Engine)

The ZX140W utilizes a high-torque, industrial-grade Isuzu engine, chosen for its fuel efficiency and reliability in high-cycle, urban-based duty cycles.

Parameter	Metric System	Imperial System	Technical Remarks
Engine Model	Isuzu AI-4JJ1X	Isuzu AI-4JJ1X	4-cylinder, Turbocharged, Intercooled
Net Flywheel Power	90 kW	121 hp	Rated @ 2,000 rpm
Displacement	3.0 L	183 cu in	Balanced for high torque at idle/low RPM
Emission Standard	Tier 3 / Stage IIIA	Tier 3 / Stage IIIA	Optimized for global fuel reliability

---

2. Weight, Capacities & Logistics Dimensions

The ZX140W is engineered for urban mobility. Its design allows it to navigate tight city environments and move between job sites at road-legal speeds, significantly reducing mobilization costs.

Parameter	Metric System	Imperial System	Shipping & Logistics Relevance
Operating Weight	14,800 kg	32,630 lbs	Sturdy foundation for high-reach work
Transport Length	7,650 mm	25.10 ft	Fits standard heavy-haul trailer lanes
Transport Width	2,530 mm	8.30 ft	Standard width for road legal transit
Transport Height	3,180 mm	10.43 ft	Optimized for bridge clearance
Fuel Tank Capacity	220 L	58.1 gal	Extended autonomy for long city shifts

---

3. Hydraulic & Digging Performance

Featuring the HIOS III hydraulic system, the ZX140W delivers high-pressure precision. It is specifically tuned for the rapid cycle times required in urban pipe-laying, demolition, and material handling.

Parameter	Metric System	Imperial System	Field Performance Indicator
Max System Flow	2 x 155 L/min	2 x 41.0 gal/min	High-volume variable displacement pumps
Operating Pressure	34,300 kPa	4,975 psi	Exceptional relief for hard digging
Swing Speed	12.1 rpm	12.1 rpm	High-speed response for truck loading
Bucket Breakout Force	99 kN	22,260 lbf	Elite force for 14-ton class mobility
Stick Digging Force	71 kN	15,960 lbf	Precise control for utility trenching

---

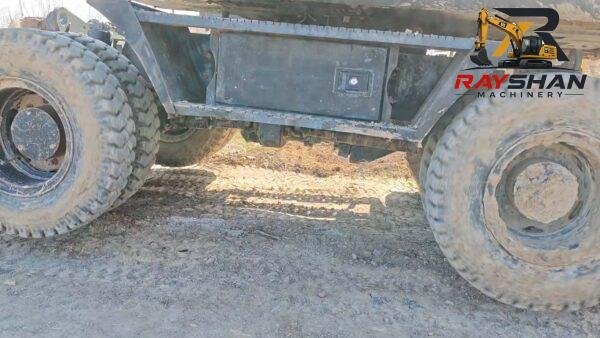

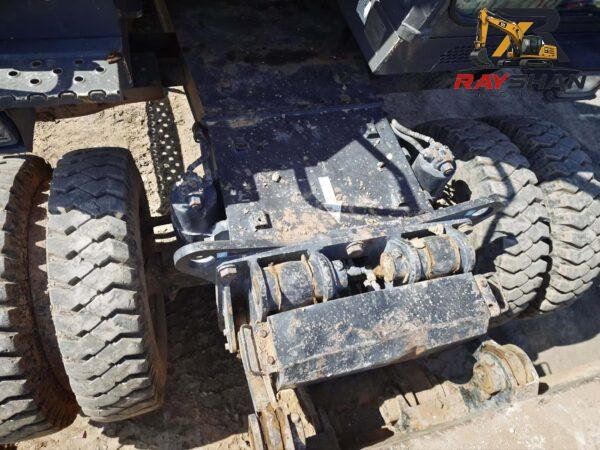

4. Undercarriage & Mobility

Designed for multi-surface utility, the undercarriage provides a rock-solid platform for excavating while maintaining the ability to traverse city roads at high speeds.

Parameter	Metric System	Imperial System	Underfoot Mobility
Max Travel Speed	35.0 km/h	21.7 mph	Road-legal speeds for rapid job-site transit
Stabilizer Type	Blade & Outrigger	Blade & Outrigger	Independent controls for max stability
Traction Force	75 kN	16,860 lbf	High-torque drive for urban inclines
Min Turning Radius	6,300 mm	20.67 ft	Agile for narrow street maneuvering

---

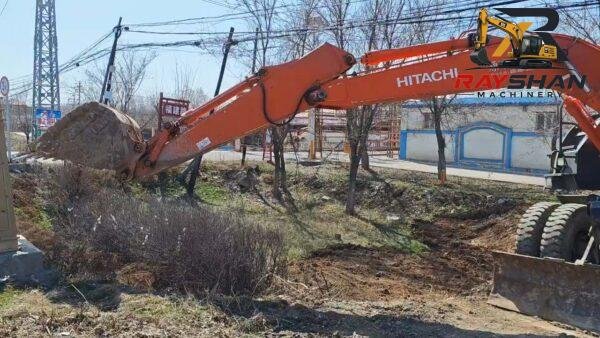

5. Working Ranges

Defining the operational capability for municipal pipe-laying, road maintenance, and rapid-response construction tasks.

Parameter	Metric System	Imperial System
Max Digging Depth	5,060 mm	16.60 ft
Max Reach (Ground)	8,630 mm	28.31 ft
Max Cutting Height	9,120 mm	29.92 ft
Max Loading Height	6,560 mm	21.52 ft
