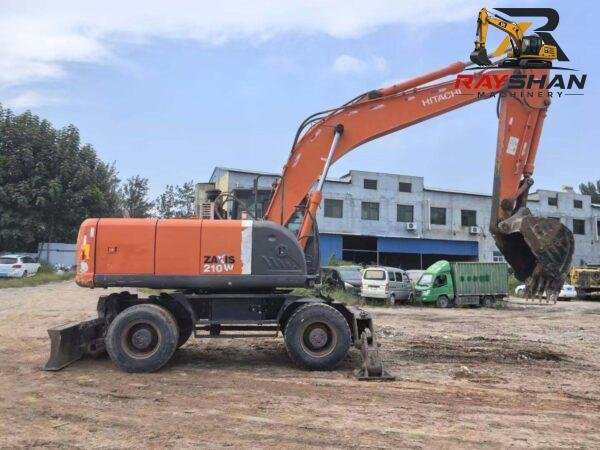

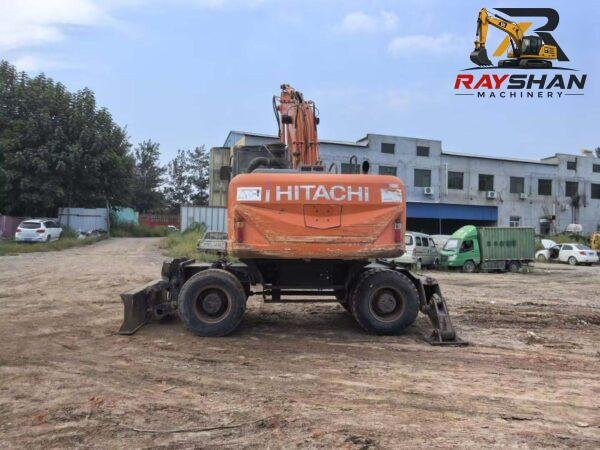

Used HITACHI 210W Excavator 21ton for sale Precise Hydraulic Control
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
1. Core Identification & Basic Trade Specifications
| Parameter | Specification | Trade Notes |
|---|---|---|
| Official Model Code | ZX210W | Hitachi’s 21-ton class wheeled excavator, part of the first-generation ZAXIS series |
| Original Production Period | 2002–2010 | Primary production run; most used units in global trade are 2004–2008 vintages |
| Standard Operating Weight | 19,800 kg (43,650 lbs) | Base configuration; 20,500 kg (45,195 lbs) with heavy-duty counterweight |
| Containerized Shipping Weight | 18,200 kg (40,125 lbs) | Dismantled for 40ft HQ container shipment (standard for export) |
| Standard Transport Dimensions (L×W×H) | 9,350 mm × 2,800 mm × 3,450 mm | Road-legal for most Southeast Asian, African, and Latin American markets |
| Target Export Markets | Global emerging markets (Southeast Asia, Africa, Middle East, South America) | Tier 2/Tier 3 emission compliant, no strict aftertreatment requirements for non-regulated regions |
| Primary Factory Application | Urban construction, road maintenance, material handling, landscaping, light demolition | High versatility for mixed job sites, a key selling point for trade buyers |

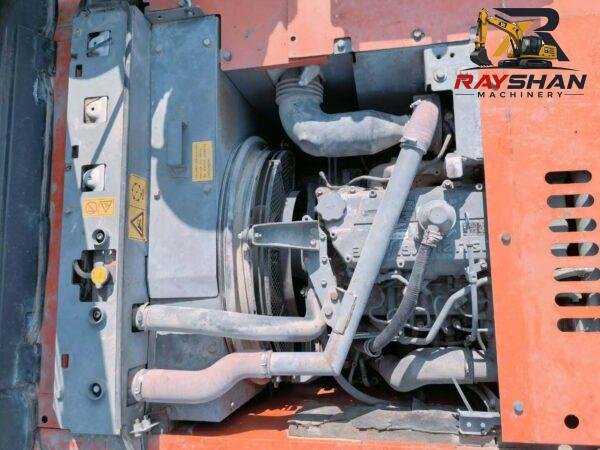

2. Engine Technical Specifications
| Parameter | Specification | Compliance Notes |
|---|---|---|
| Manufacturer & Model | Isuzu AA-6BG1T | Legendary Japanese diesel engine, global parts availability is near-universal |
| Engine Type | 4-stroke, water-cooled, direct-injection turbocharged diesel | No complex electronic common rail system, minimal maintenance requirements for remote regions |
| Cylinder Configuration | 6-cylinder, in-line | |
| Rated Net Power | 110 kW (148 HP) @ 2,100 RPM | |
| Maximum Torque | 550 Nm @ 1,200 RPM | High low-end torque for heavy digging and climbing |
| Fuel System | Mechanical injection pump | No ECU/electronic controls, eliminates common electrical failure points in used units |
| Emission Standard | EU Stage II / US EPA Tier 2 | Fully compliant for most non-urban global markets; no DPF/SCR aftertreatment |
| Air Filtration | Dual-stage dry air cleaner with dust ejector | Optimized for high-dust construction sites |
| Fuel Tank Capacity | 250 L (66 US gal) | Extended operating range for remote job sites |
3. Hydraulic System Performance Specifications
| Parameter | Specification | Operational Notes |
|---|---|---|
| System Type | Hitachi Load-Sensing Hydraulic System (LHS) | Industry-leading smoothness and fuel efficiency, a core differentiator from competing brands |
| Main Pump Configuration | 2 × variable displacement axial piston pumps + 1 × gear pump for pilot control | Independent flow distribution for simultaneous multi-function operations |
| Maximum System Flow | 2 × 210 L/min (55.5 US gal/min) | |
| Maximum Operating Pressure | 34.3 MPa (4,975 PSI) | Standard for 20-ton class excavators, sufficient for breaking and heavy digging |
| Control System | Pilot-operated joystick control | Low operator fatigue, consistent control feel across all working modes |

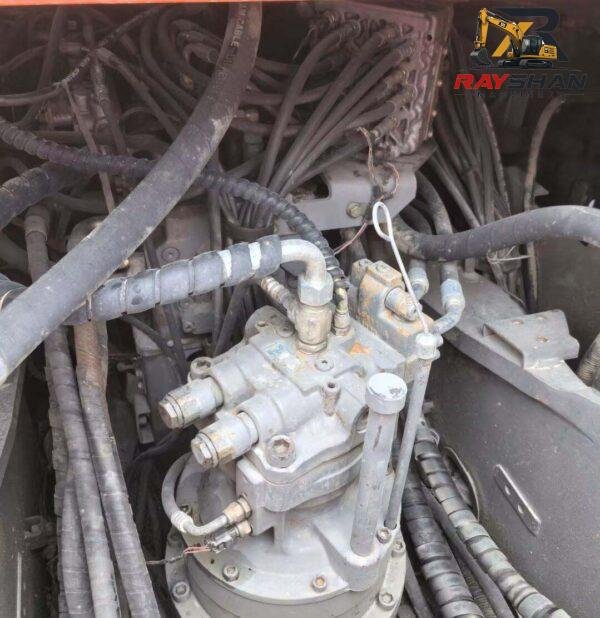

| Swing Motor | Axial piston motor with planetary reduction | |
| Swing Speed | 11.3 RPM | Fast cycle times for loading and trenching operations |
| Swing Torque | 58 kNm | High swing torque for uphill digging and uneven terrain |
| Auxiliary Hydraulic Circuit | Standard 2-way auxiliary circuit with adjustable flow | Compatible with hammers, grapples, augers, and other popular attachments in global trade |
4. Working Range & Load Capacity Specifications
| Parameter | Specification | Configuration Notes |
|---|---|---|
| Standard Bucket Capacity Range | 0.8 m³ – 1.2 m³ (1.05 yd³ – 1.57 yd³) | Factory standard 1.0 m³ (1.31 yd³) general-purpose bucket |
| Maximum Digging Reach (Ground Level) | 9,700 mm (31 ft 10 in) | |
| Maximum Digging Depth | 6,150 mm (20 ft 2 in) | |
| Maximum Dumping Height | 6,850 mm (22 ft 6 in) | Optimized for truck loading and material handling |
| Maximum Vertical Wall Digging Depth | 5,200 mm (17 ft 1 in) | |
| Bucket Breakout Force | 147 kN (33,050 lbf) | |
| Arm Crowd Force | 108 kN (24,280 lbf) | |
| Swing Bearing | Single-row ball bearing with internal teeth | Sealed for dust protection, long service life in harsh conditions |

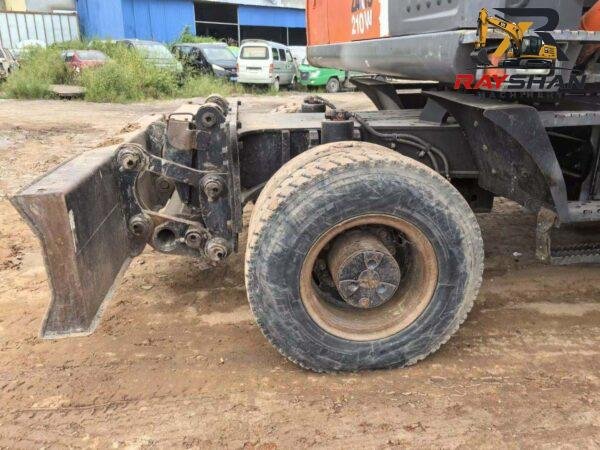

5. Undercarriage & Wheel System Specifications
| Parameter | Specification | Terrain Compatibility Notes |
|---|---|---|
| Standard Tire Size | 10.00-20 16PR Off-road tires | Heavy-duty construction tires, compatible with most paved and unpaved job sites |
| Axle Configuration | 2 axles (4×2 drive) | |
| Drive System | Rear-wheel drive with limited-slip differential | Traction control for muddy and uneven terrain |
| Maximum Travel Speed | 35 km/h (21.7 mph) | Road-legal for highway travel, no need for lowboy transport between job sites (a major trade advantage over tracked excavators) |
| Gradeability | 30° (58%) | Sufficient for steep construction access roads |
| Service Brake System | Hydraulic disc brakes on all wheels | Reliable stopping power, easy to source replacement parts globally |
| Parking Brake | Spring-applied, hydraulic-release wet disc brake | Fail-safe design for long-term parking on slopes |
| Front Stabilizer | Standard hydraulic dozer blade | For leveling and front-end stability during heavy digging |
| Rear Counterweight | Standard 3,200 kg (7,055 lbs) bolt-on counterweight | Easy to remove for container export, reduces shipping costs |
6. Trade-Focused Key Differentiators & Aftermarket Compatibility
| Feature | Specification | Trade Benefit |
|---|---|---|
| Global Parts Availability | 95% of all components are in stock across 120+ countries | No downtime waiting for parts; critical for trade buyers who need immediate operational units |
| Used Equipment Resale Value | 85% of original retail value after 5 years (in good condition) | One of the highest resale values in the 20-ton wheeled excavator segment, a major selling point for trade buyers |
| Service Network Coverage | Hitachi authorized service centers in 80+ countries | Factory-trained technicians available for warranty and repair support in most export markets |
| Compatible Attachments | Fully compatible with all global standard attachments (hammers, grapples, augers, rippers, buckets) | No custom adapters needed, immediate compatibility with local job site tools |
| Operating Cost Per Hour | Average $18–$22 USD/hour (fuel + maintenance) | Lower than most competing brands in the same class, a key metric for rental and construction companies |
| Local Market Popularity | Top 3 best-selling 20-ton wheeled excavator in Southeast Asia, Africa, and the Middle East | High local demand means fast resale for trade buyers |
| Export Compliance | Pre-certified for export to most non-regulated markets; no restricted components | Smooth customs clearance for global trade shipments |
