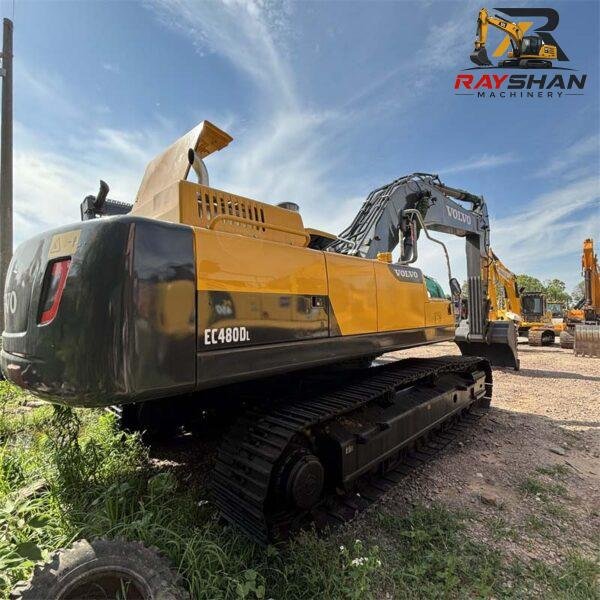

Used VOLVO EC480DC Excavator 48ton for sale Highly Reliable Mechanical Design
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
*Proven Dependability: With verified low operating hours and a complete service history, this machine has consistently excelled in demanding tasks like mining and road construction. Trusted by contractors globally, it’s a reliable workhorse for any project.
1. Core Power & Powertrain (Engine)
The EC480DC is powered by an industrial-grade, high-torque engine designed for sustained output in the most rigorous environments, ensuring peak productivity for large-scale earthmoving and primary rock extraction.
| Parameter | Metric System | Imperial System | Technical Remarks |
| Engine Model | Volvo D13 | Volvo D13 | 6-cylinder, Turbocharged |
| Net Flywheel Power | 245 kW | 329 hp | Rated @ 1,800 rpm |
| Displacement | 12.8 L | 781 cu in | High torque for heavy-duty cycling |
| Emission Standard | Tier 3 / Stage IIIA | Tier 3 / Stage IIIA | Proven global performance standard |
2. Weight, Capacities & Logistics Dimensions
These specs are critical for logistics and fleet management. The EC480DC balances heavy-duty structural integrity with a footprint optimized for efficient mobilization on heavy-haul low-bed trailers.
| Parameter | Metric System | Imperial System | Shipping & Logistics Relevance |
| Operating Weight | 47,500 kg | 104,720 lbs | Standard configuration with bucket |
| Transport Length | 12,050 mm | 39.53 ft | Optimized for heavy-duty flatbed transport |
| Transport Width | 3,340 mm | 10.96 ft | Wide stance for operational stability |
| Transport Height | 3,750 mm | 12.30 ft | Clearance-compliant for heavy haulers |
| Fuel Tank Capacity | 680 L | 179.6 gal | Engineered for long-shift autonomy |

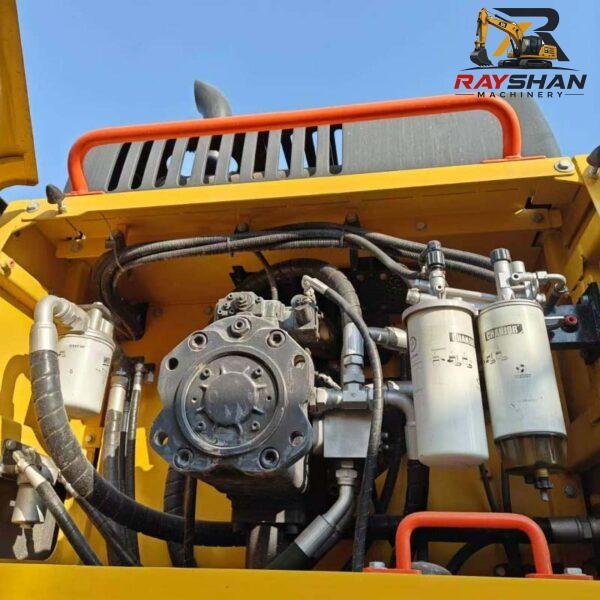

3. Hydraulic & Digging Performance
Volvo’s hydraulic system is renowned for responsiveness and high pressure. The EC480DC provides the raw force required for primary rock breaking and high-volume material loading, minimizing cycle times.
| Parameter | Metric System | Imperial System | Field Performance Indicator |
| Max System Flow | 2 x 355 L/min | 2 x 93.8 gal/min | Dual variable displacement piston pumps |
| Operating Pressure | 35,000 kPa | 5,076 psi | Maximum relief for breakout force |
| Swing Speed | 8.8 rpm | 8.8 rpm | Efficient for bulk loading operations |
| Bucket Breakout Force | 243 kN | 54,630 lbf | Massive force for dense, hard material |
| Stick Digging Force | 215 kN | 48,335 lbf | Robust power for heavy-duty trenching |

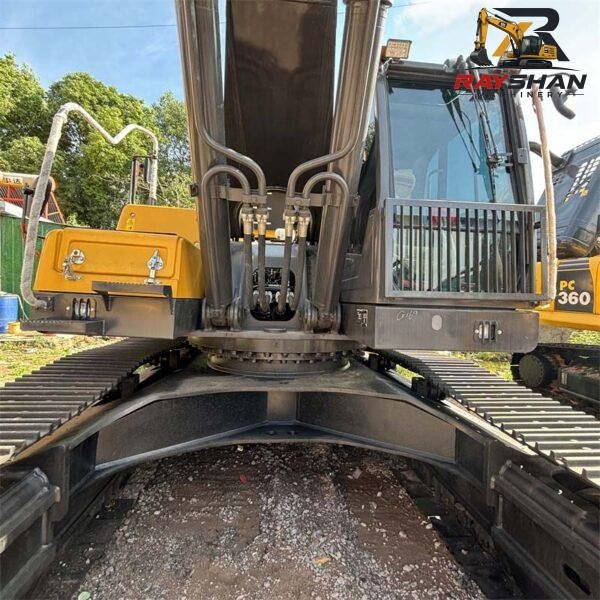

4. Undercarriage & Mobility
The heavy-duty undercarriage is built to withstand extreme stress. It provides the stability and traction necessary for navigating soft, uneven, or steep terrain common in large-scale mining and infrastructure construction.
| Parameter | Metric System | Imperial System | Underfoot Mobility |
| Standard Shoe Width | 600 mm | 24 in | Triple grouser heavy-duty tracks |
| Max Travel Speed | 5.2 km/h | 3.2 mph | Dual-speed auto-shift capability |
| Max Traction Force | 338 kN | 75,980 lbf | Superior climbing power on inclines |
| Ground Pressure | 82.0 kPa | 11.89 psi | Balanced load-bearing stability |
5. Working Ranges
Defining the essential operational envelope for large-scale mining, mass-excavation, and foundational infrastructure preparation.
| Parameter | Metric System | Imperial System |
| Max Digging Depth | 7,600 mm | 24.93 ft |
| Max Reach (Ground) | 11,700 mm | 38.39 ft |
| Max Cutting Height | 10,700 mm | 35.10 ft |
| Max Loading Height | 7,400 mm | 24.28 ft |
