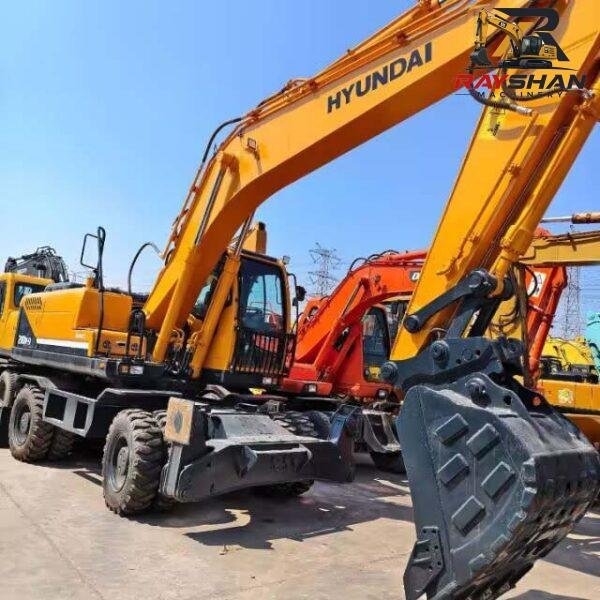

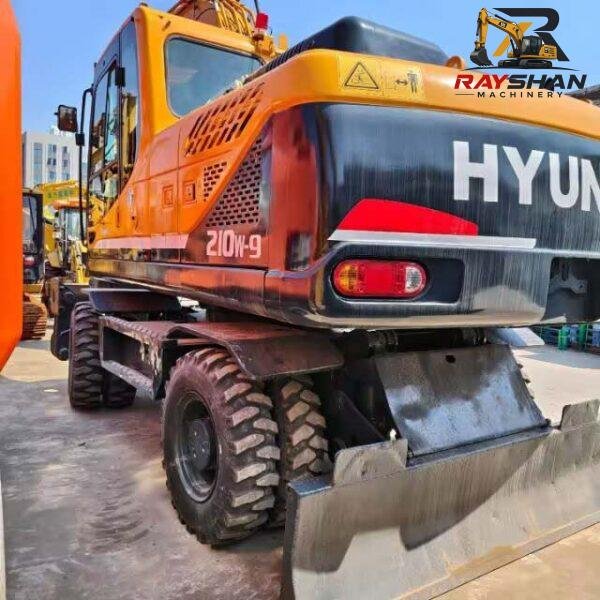

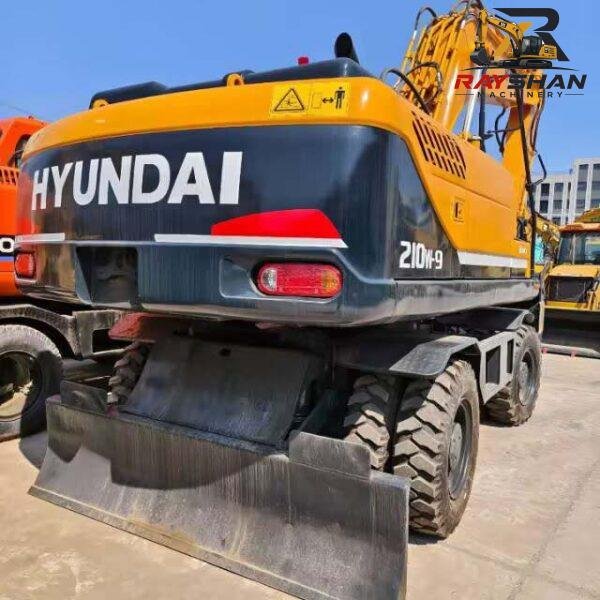

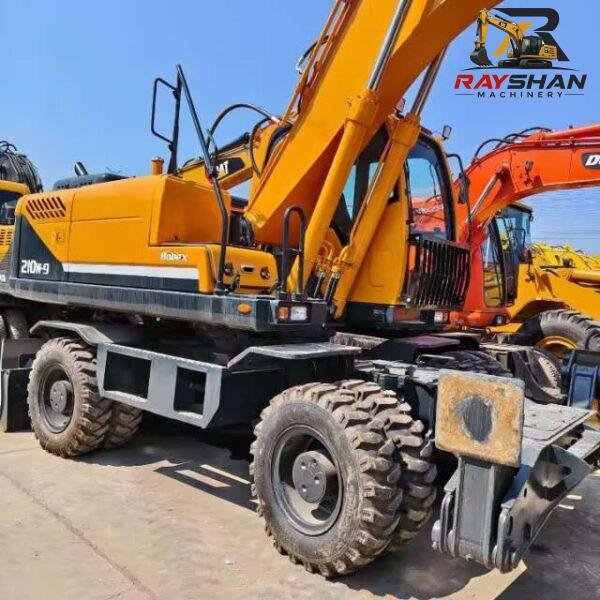

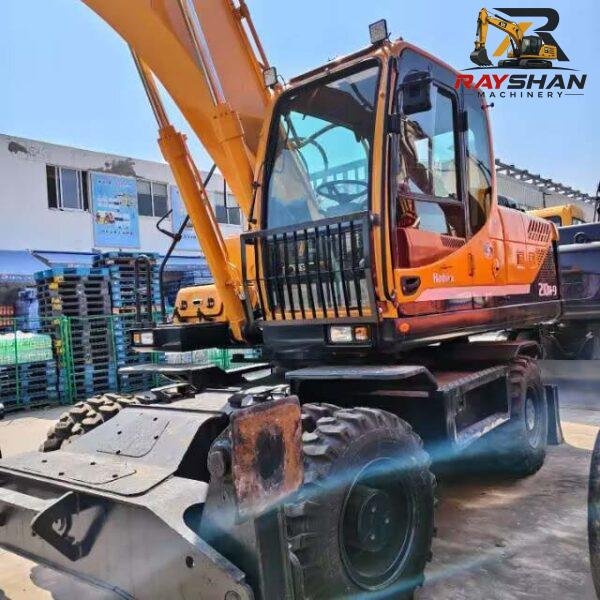

Used HYUNDAI 210-9 Excavator 21ton for sale Robust Long-Lasting Construction

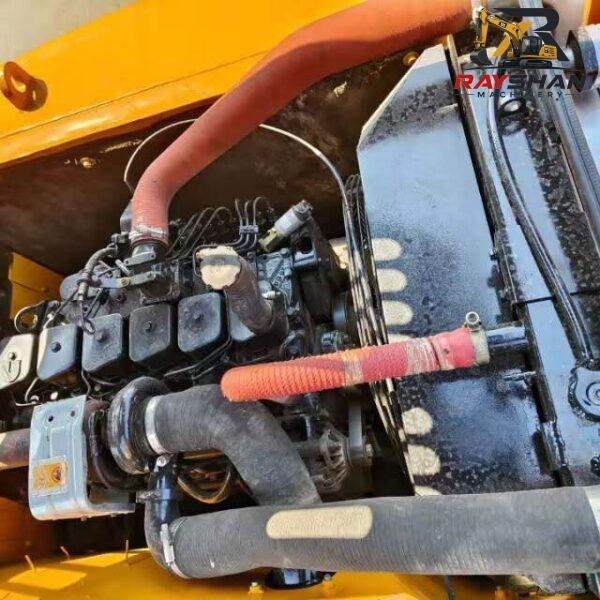

1. Core Power & Powertrain (Engine)

The R210-9 is powered by a high-torque, industrial-grade engine engineered for sustained performance. It is optimized to deliver consistent power during intense work cycles while maintaining excellent fuel economy.

Parameter	Metric System	Imperial System	Technical Remarks
Engine Model	Cummins B5.9-C	Cummins B5.9-C	6-cylinder, Turbocharged
Net Flywheel Power	110 kW	148 hp	Rated @ 1,950 rpm
Displacement	5.9 L	360 cu in	High torque for efficient earthmoving
Emission Standard	Tier 3 / Stage IIIA	Tier 3 / Stage IIIA	Global market export configuration

---

2. Weight, Capacities & Logistics Dimensions

These metrics are critical for logistics planning. The R210-9 is designed to provide an optimal balance of machine footprint and operational stability, ensuring cost-effective transport between sites.

Parameter	Metric System	Imperial System	Shipping & Logistics Relevance
Operating Weight	21,700 kg	47,840 lbs	Standard configuration with bucket
Transport Length	9,500 mm	31.17 ft	Optimized for standard flatbed hauling
Transport Width	2,800 mm	9.19 ft	Compact footprint for road-legal transit
Transport Height	2,980 mm	9.78 ft	Low-profile for clearance compliance
Fuel Tank Capacity	340 L	89.8 gal	Engineered for long, high-output shifts

---

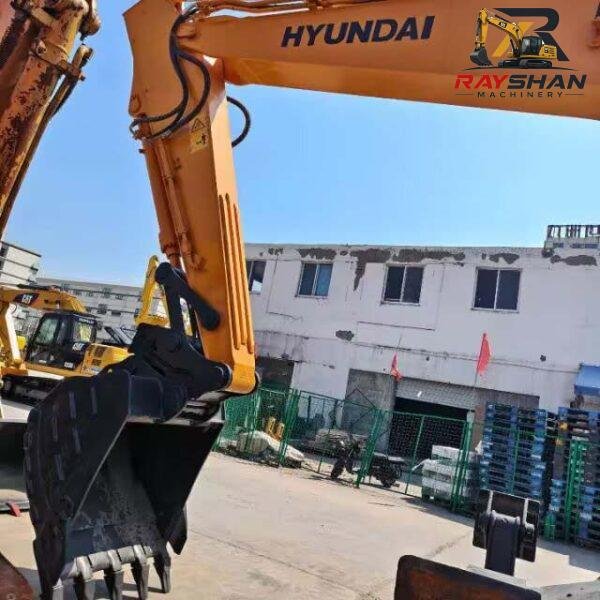

3. Hydraulic & Digging Performance

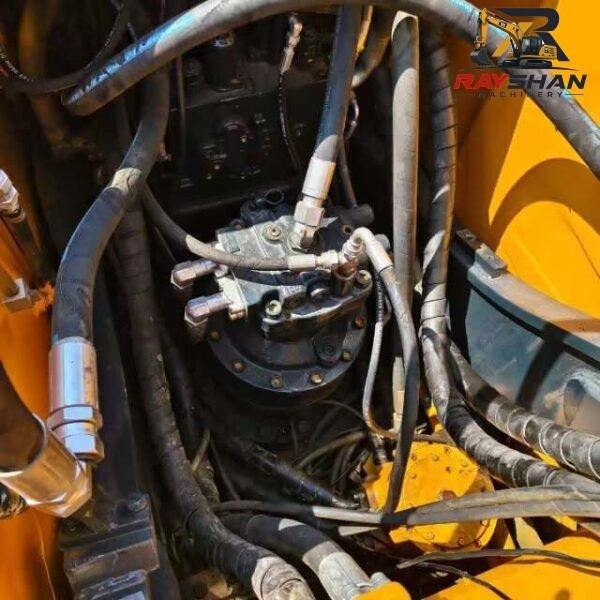

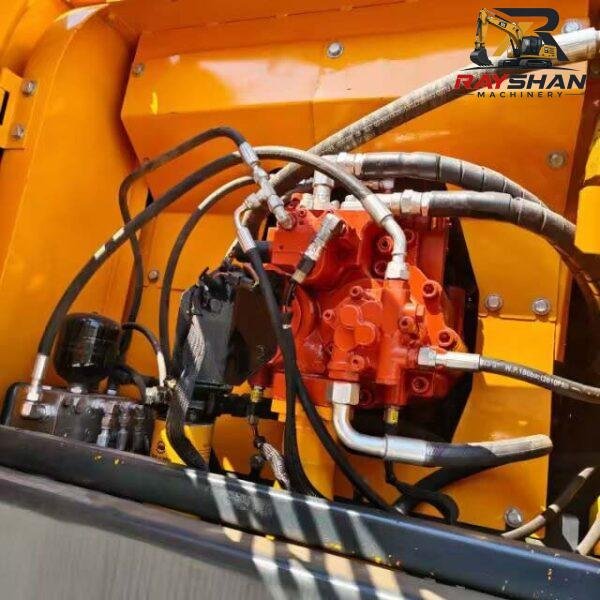

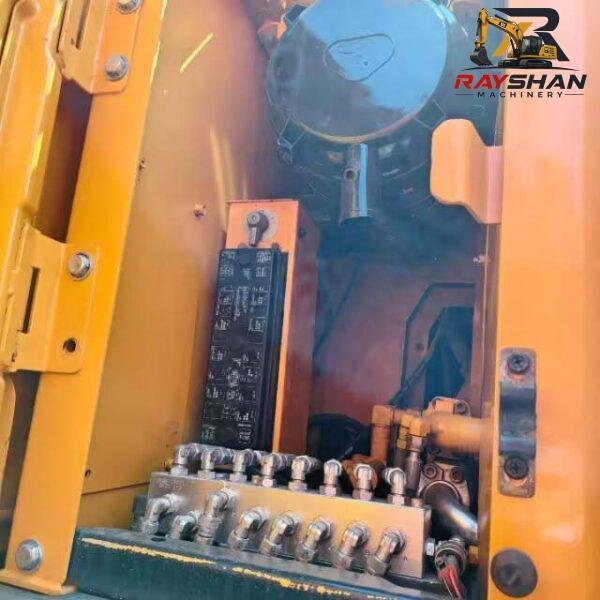

Hyundai’s CAPO (Computer Aided Power Optimization) hydraulic system provides the responsiveness required for fine-grading and the raw force necessary for primary excavation and trenching.

Parameter	Metric System	Imperial System	Field Performance Indicator
Max System Flow	2 x 220 L/min	2 x 58.1 gal/min	Dual variable displacement piston pumps
Operating Pressure	35,000 kPa	5,076 psi	High relief for maximum breakout force
Swing Speed	12.6 rpm	12.6 rpm	Fast cycle times for bulk loading
Bucket Breakout Force	133 kN	29,900 lbf	Superior force for hard-packed material
Stick Digging Force	97 kN	21,820 lbf	Robust power for deep utility trenching

---

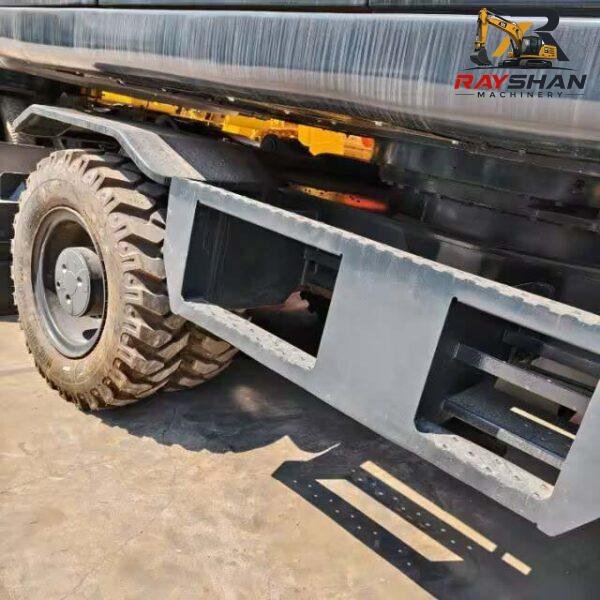

4. Undercarriage & Mobility

The undercarriage is built to withstand extreme environmental stress, providing the traction and stability necessary for safe, productive operation in soft or uneven terrain.

Parameter	Metric System	Imperial System	Underfoot Mobility
Standard Shoe Width	600 mm	24 in	Triple grouser heavy-duty tracks
Max Travel Speed	5.5 km/h	3.4 mph	Dual-speed auto-shift for transit
Max Traction Force	178 kN	40,015 lbf	Reliable climbing power on inclines
Ground Pressure	47.0 kPa	6.82 psi	Balanced footing for high-impact work

---

5. Working Ranges

Defining the operational envelope for mid-scale construction, utility installation, and general site preparation.

Parameter	Metric System	Imperial System
Max Digging Depth	6,500 mm	21.33 ft
Max Reach (Ground)	9,900 mm	32.48 ft
Max Cutting Height	9,600 mm	31.50 ft
Max Loading Height	6,800 mm	22.31 ft
