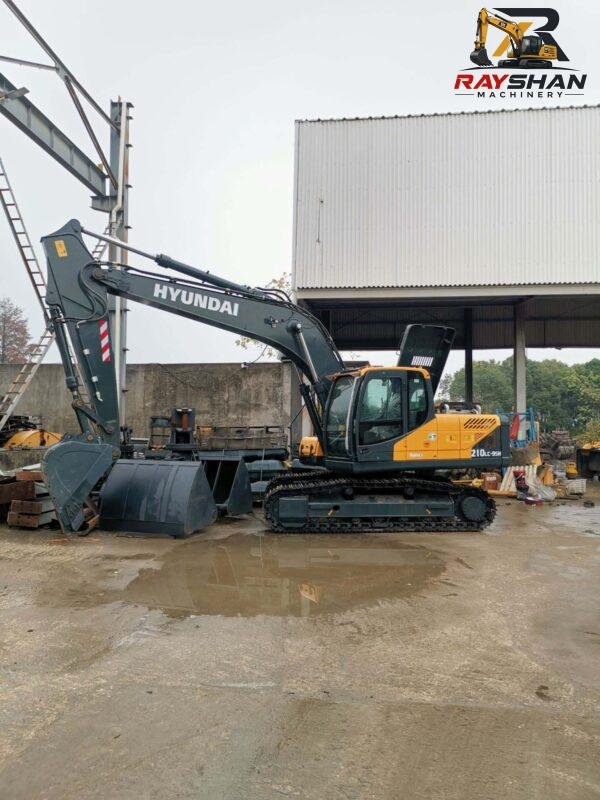

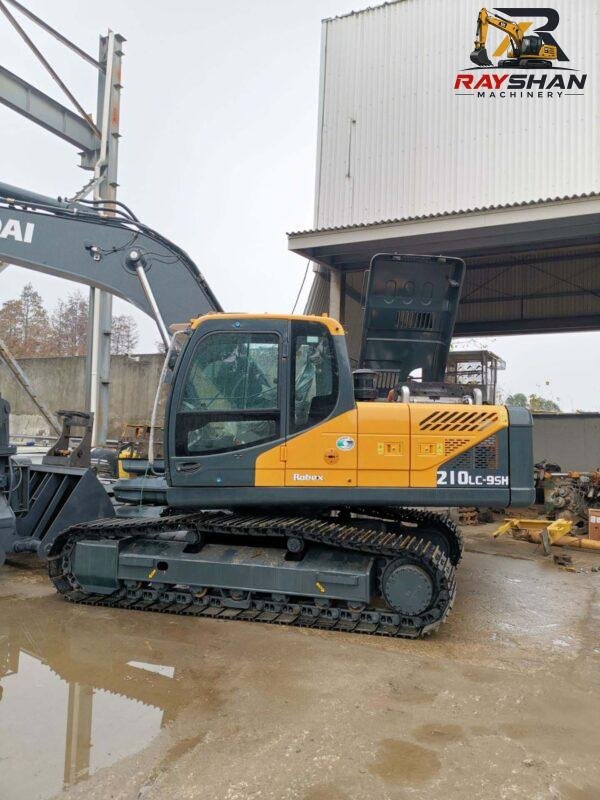

Used HYUNDAI 210LC-95H Excavator 21ton for sale Reinforced Long Track Undercarriage
*Stringent Quality Assurance: This used construction equipment has successfully passed 15 comprehensive inspections, ensuring top-notch performance across the engine, hydraulic systems, and structural components. Every part is in peak condition, ready to handle demanding tasks from the get-go.
*Cost-Effective Solution: Skip the hefty price tag of new machinery. Our used construction equipment can save more than 20% on initial costs while maintaining over 80% of its original operational efficiency, making it the perfect choice for maximizing project budgets.
*Proven Dependability: With verified low operating hours and a complete service history, this machine has consistently excelled in demanding tasks like mining and road construction. Trusted by contractors globally, it’s a reliable workhorse for any project.

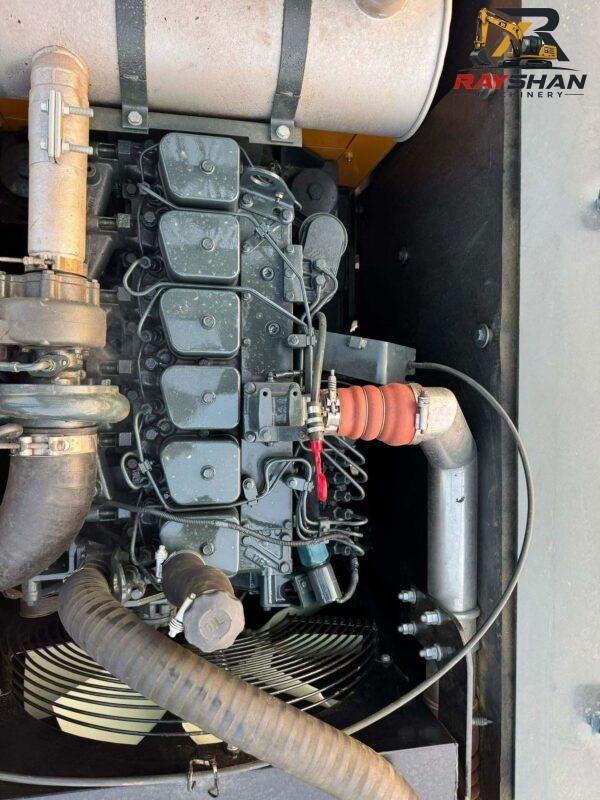

1. Core Power & Powertrain (Engine)
The R210LC-9SH is equipped with a high-torque, industrial-grade engine designed to provide consistent power delivery under the continuous, high-load conditions typical of mining and primary excavation.
| Parameter | Metric System | Imperial System | Technical Remarks |
| Engine Model | Cummins B5.9-C | Cummins B5.9-C | 6-cylinder, Turbocharged |
| Net Flywheel Power | 110 kW | 148 hp | Rated @ 1,950 rpm |
| Displacement | 5.9 L | 360 cu in | High torque for aggressive cycles |
| Emission Standard | Tier 3 / Stage IIIA | Tier 3 / Stage IIIA | Standard global export configuration |
2. Weight, Capacities & Logistics Dimensions
These specifications are vital for logistics planning. The “LC” (Long Carriage) design increases stability for heavy-duty attachments, while the transport profile remains optimized for standard heavy-haul mobilization.
| Parameter | Metric System | Imperial System | Shipping & Logistics Relevance |
| Operating Weight | 22,300 kg | 49,160 lbs | Reinforced HD configuration |
| Transport Length | 9,500 mm | 31.17 ft | Optimized for standard flatbed transit |
| Transport Width | 2,990 mm | 9.81 ft | Enhanced stability stance |
| Transport Height | 3,030 mm | 9.94 ft | Optimized for heavy-haul clearance |
| Fuel Tank Capacity | 340 L | 89.8 gal | Engineered for long, high-output shifts |

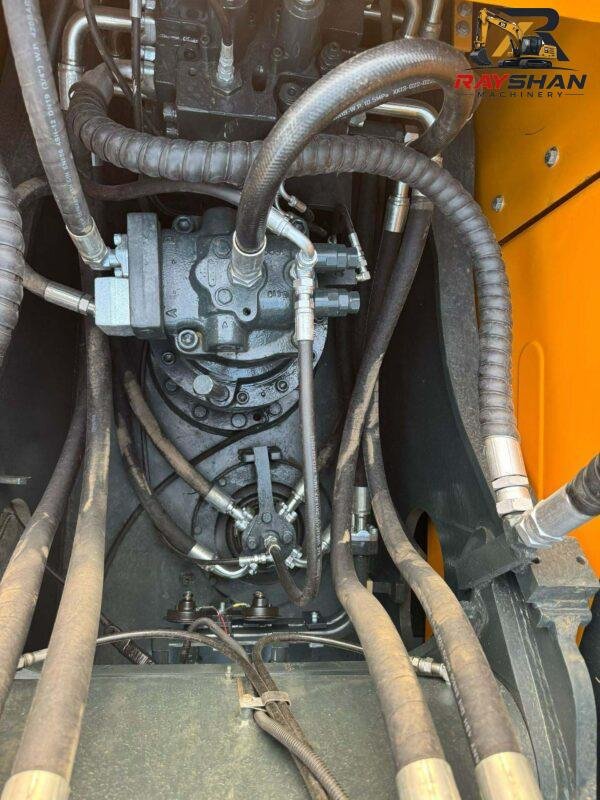

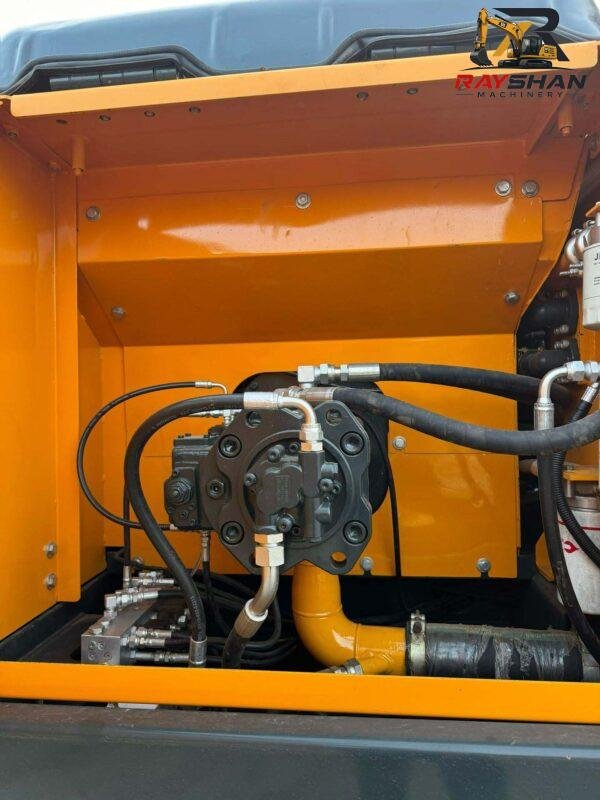

3. Hydraulic & Digging Performance
Hyundai’s CAPO (Computer Aided Power Optimization) system is configured here for maximum breakout force. It provides the high-pressure hydraulic flow necessary for rock breaking and deep-trenching in dense, compact soils.
| Parameter | Metric System | Imperial System | Field Performance Indicator |
| Max System Flow | 2 x 220 L/min | 2 x 58.1 gal/min | Variable displacement piston pumps |
| Operating Pressure | 35,000 kPa | 5,076 psi | Maximum relief for sustained breakout |
| Swing Speed | 12.6 rpm | 12.6 rpm | High-efficiency for bulk material loading |
| Bucket Breakout Force | 133 kN | 29,900 lbf | Extreme force for heavy rock/clay |
| Stick Digging Force | 98 kN | 22,030 lbf | Robust power for heavy-duty trenching |

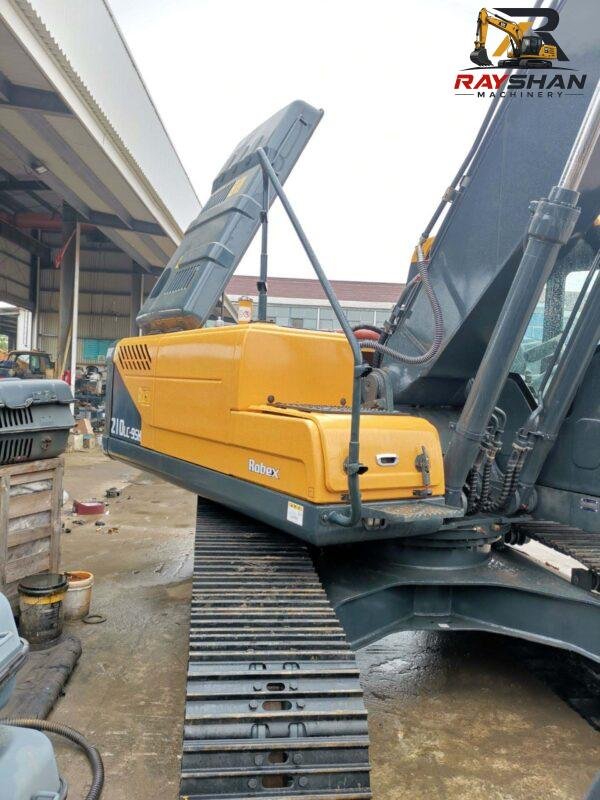

4. Undercarriage & Mobility (SH – Super Heavy-duty)
The 9SH configuration features a reinforced track frame and increased ground contact area, ensuring the machine remains a productive asset even in unstable, uneven, or wet terrain.
| Parameter | Metric System | Imperial System | Underfoot Mobility |
| Standard Shoe Width | 600 mm | 24 in | Triple grouser heavy-duty track pads |
| Max Travel Speed | 5.5 km/h | 3.4 mph | Dual-speed auto-shift for transit |
| Max Traction Force | 178 kN | 40,015 lbf | Superior climbing power on site inclines |
| Ground Pressure | 49.0 kPa | 7.11 psi | Optimized for load-bearing stability |
5. Working Ranges
Defining the operational envelope for mining, quarrying, and large-scale infrastructure foundations.
| Parameter | Metric System | Imperial System |
| Max Digging Depth | 6,500 mm | 21.33 ft |
| Max Reach (Ground) | 9,900 mm | 32.48 ft |
| Max Cutting Height | 9,600 mm | 31.50 ft |
| Max Loading Height | 6,800 mm | 22.31 ft |
